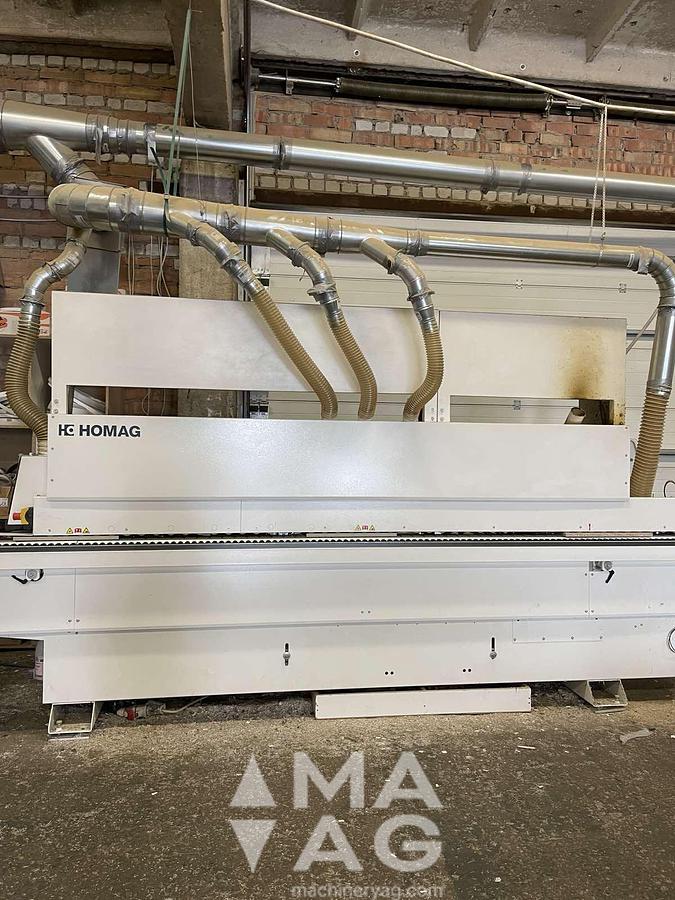

Homag EDGETEQ S-240 PROFI KDF 230, year 2020

Compact edgebanding machine of the EDGETEQ series for the small handicraft business with possibility of automatisation of the units.

Basic equipment (2020):

• Control easyTouch
• Joint milling unit
• Gluing unit + 1 spare glue pot.
• Cutting saw unit, double motor, pneu. adjustable
• Milling unit with manual adjust on flush, fibre, radius
• Form milling unit/Edgerounding unit
• Profile scraper, pneu. adjustable
• Flat scraper
• Buffing unit

Technical data (2020):

• Machine length [mm]: 4.153
• Workpiece width

workpiece thickness 8 - 22 [mm]: 70

workpiece thickness 23 - 50 [mm]: 120

workpiece thickness 41 - 60 [mm]: 150

• Workpiece thickness [mm]: 8 - 50 (opt. 8 - 60)
• Edge thickness [mm]: 0,4 - 3
• Feed [m/min]: 11
