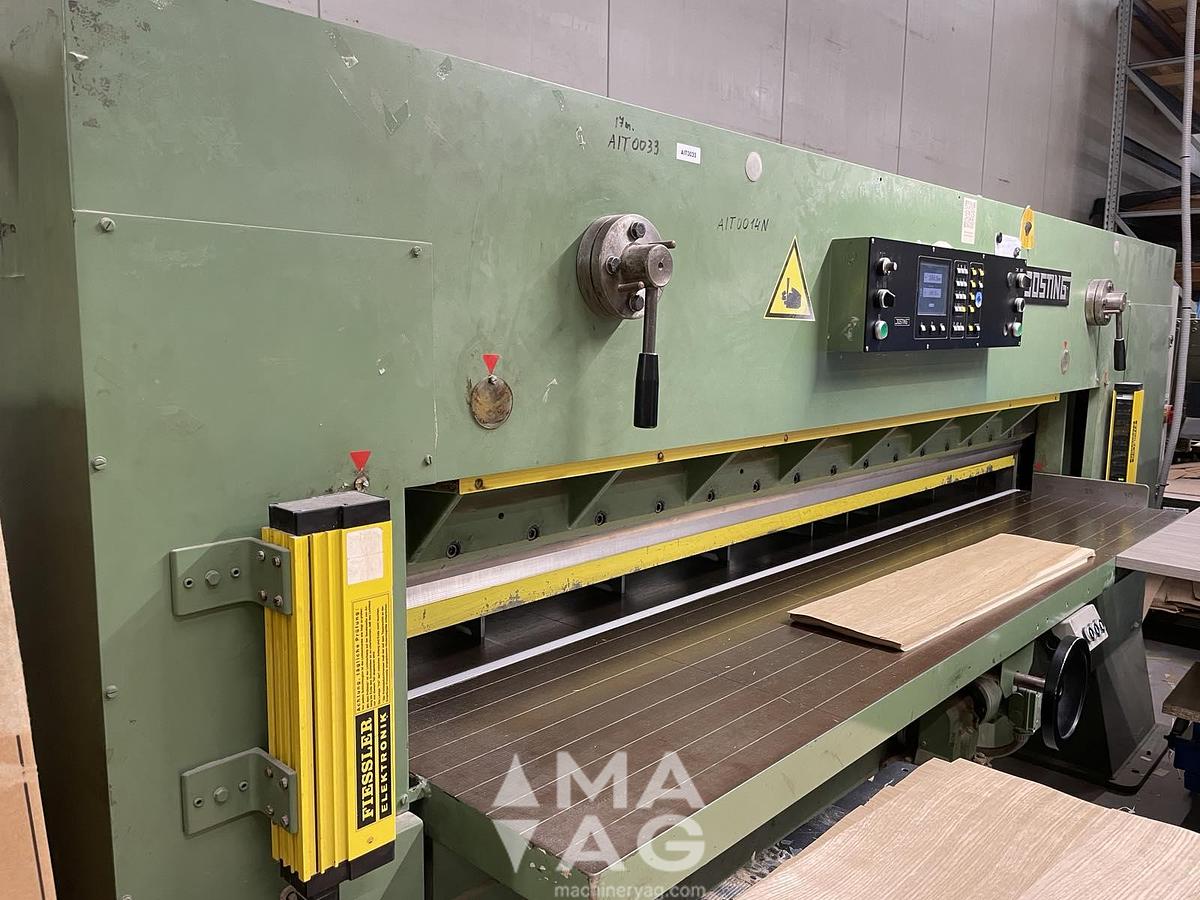

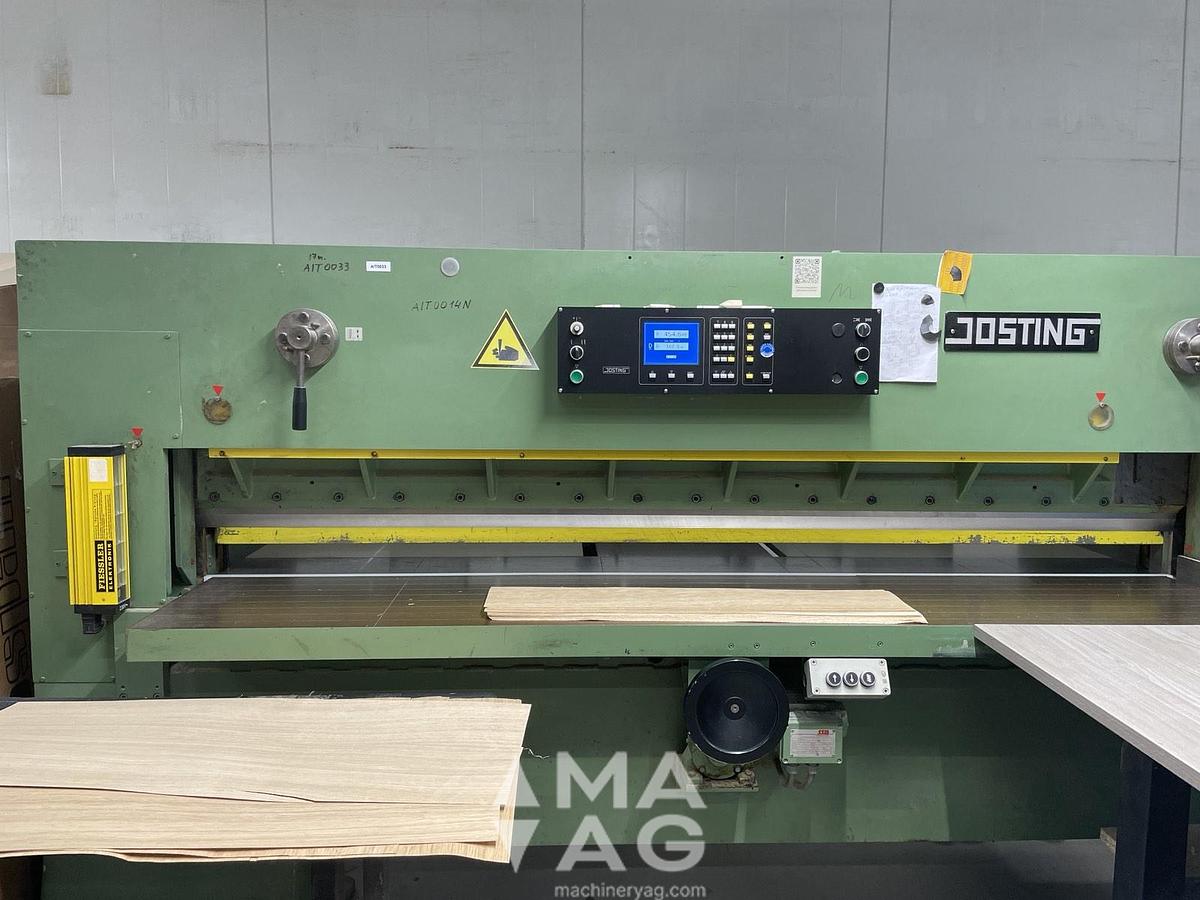

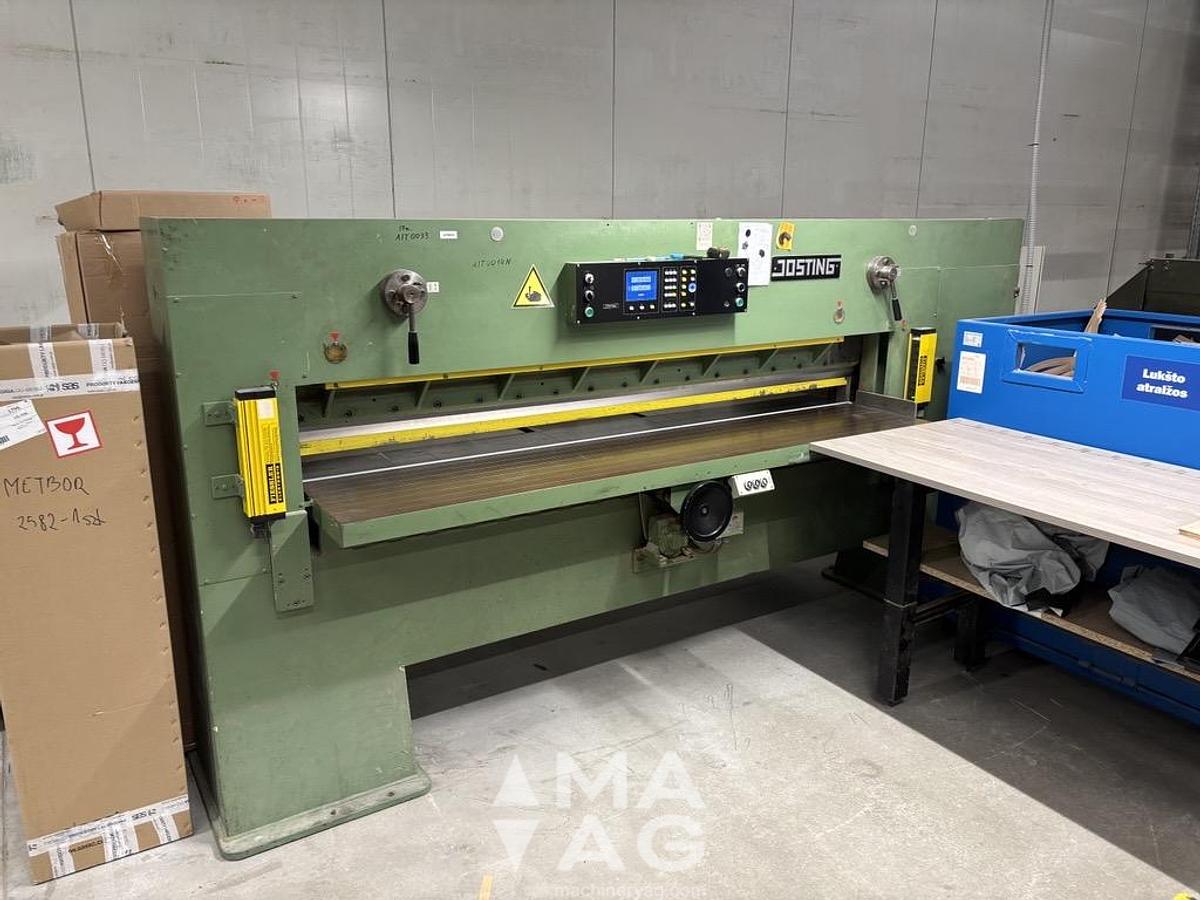

JOSTING EFS 2300 L – Modernized Veneer Guillotine

JOSTING EFS 2300 L is a heavy-duty single-knife veneer guillotine designed for accurate cutting of veneer sheets and veneer packs. The machine has been modernized and upgraded with an electronic positioning and control system, improving cutting accuracy, repeatability and ease of operation.

Manufacturer: JOSTING

Model: EFS 2300 L

Machine type: Veneer Jointing Guillotine / Veneer Pack Cutting Machine

Cutting length: 2,300 mm

Maximum insertion height: 80 mm

Parallel fence range: approx. 20–720 mm*

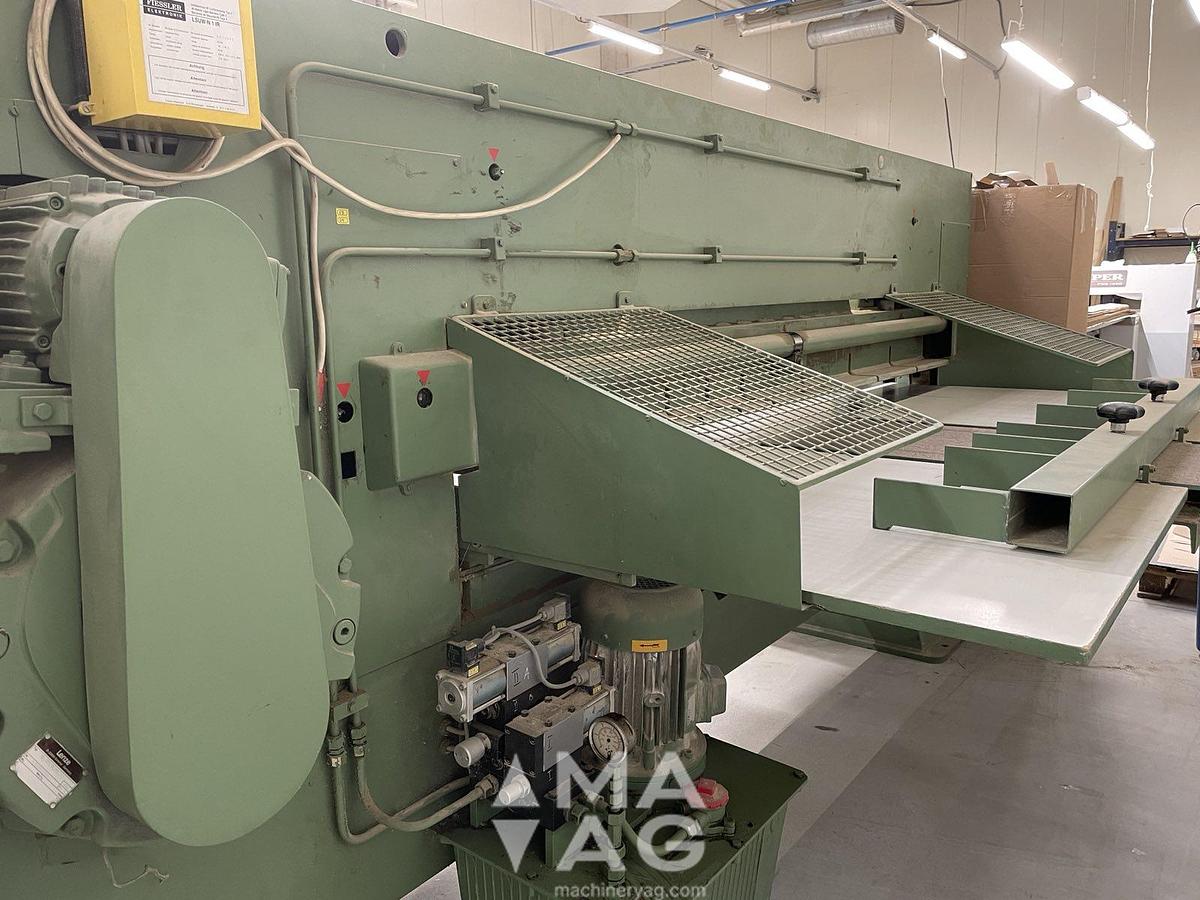

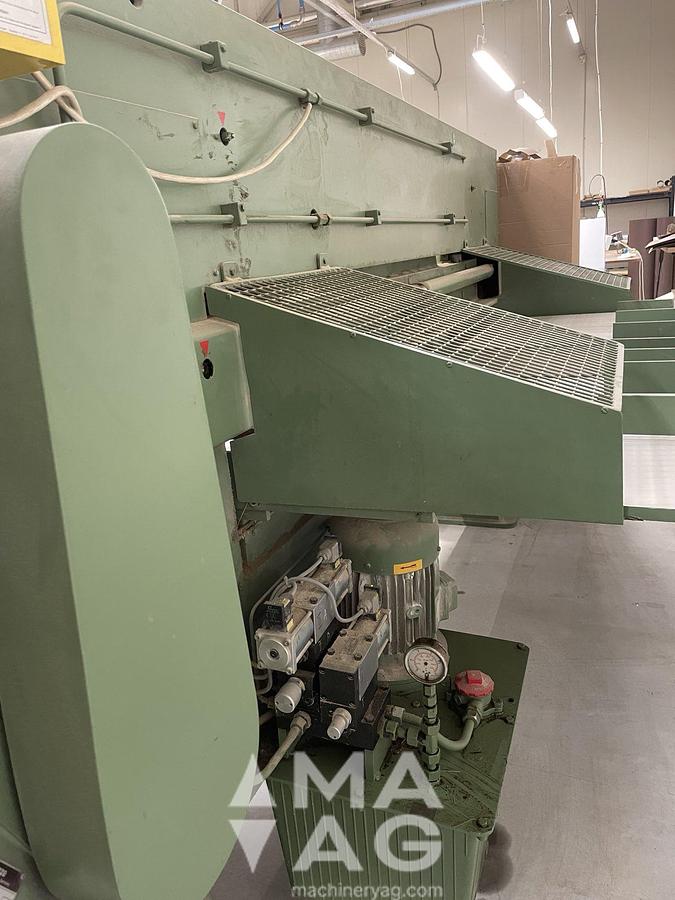

Pressure bar: Hydraulic cylinder with two pressure stages

Cutter bar drive: Brake motor, gearbox and crank drive

Parallel fence: Motor-driven positioning system

Connected load: approx. 7.7 kW

Machine footprint with parallel fence: approx. 3,640 × 1,700 mm

Machine height: approx. 1,700 mm

Net weight: approx. 3,000 kg

Modernization INCLUDES:

Digital LCD display

Electronic measurement display in millimetres

Numeric keypad for direct entry of required cutting dimensions

Automatic positioning of the parallel back fence

Programmable cutting dimensions

Cutting sequence / step programming functions

Electronic adjustment and positioning controls

Start/Stop control directly from the operator panel

Manual fine-adjustment controls

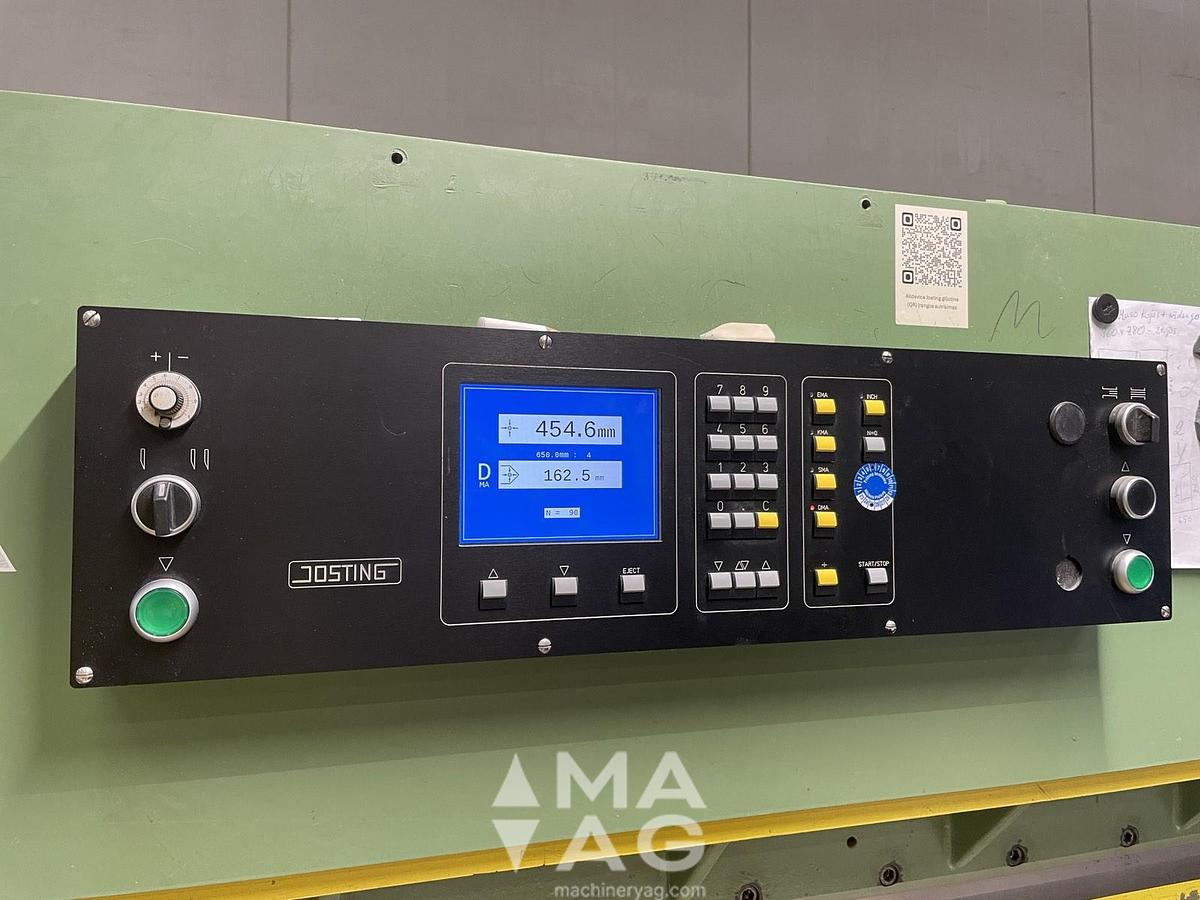

Centralized operator interface combining machine and positioning functions
