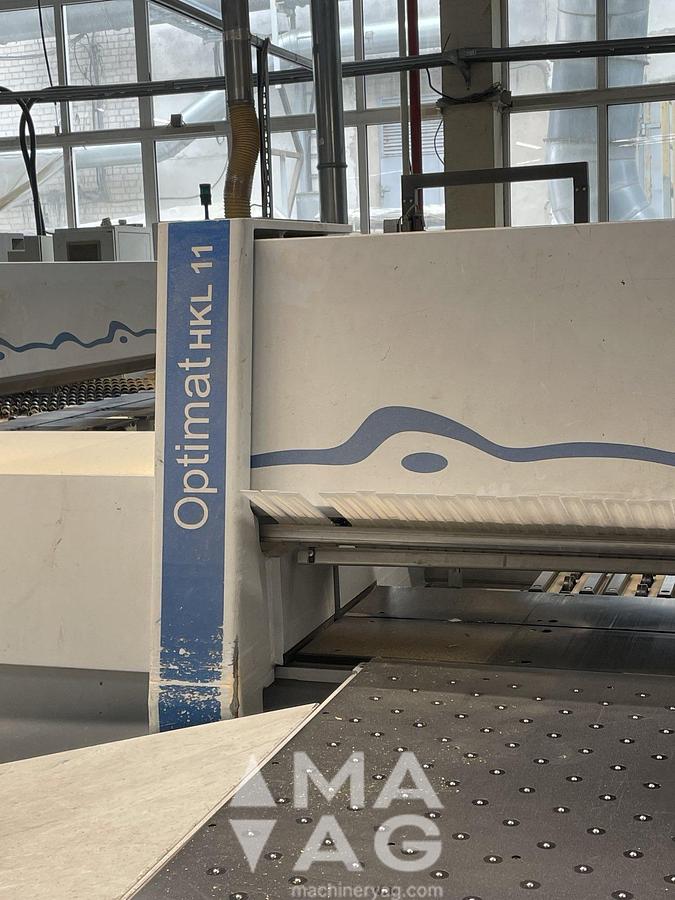

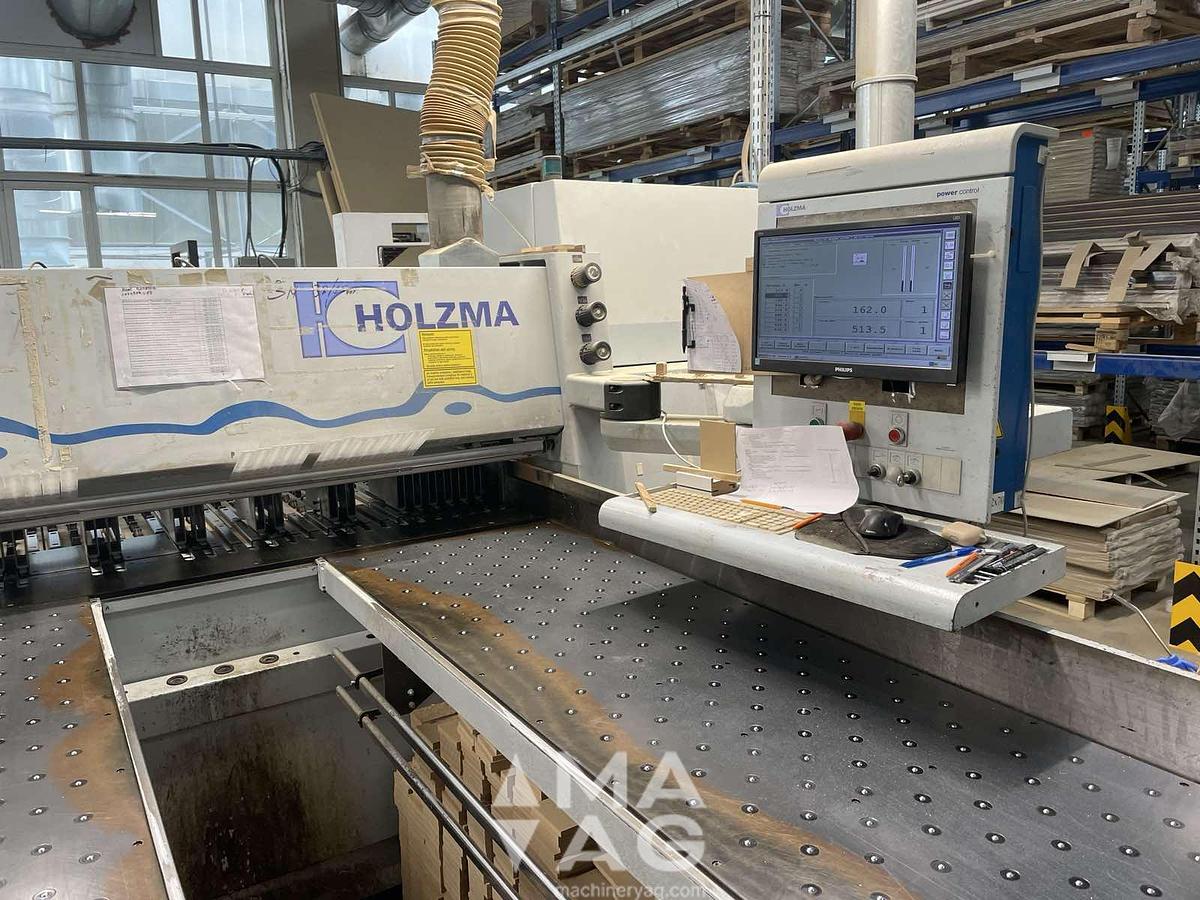

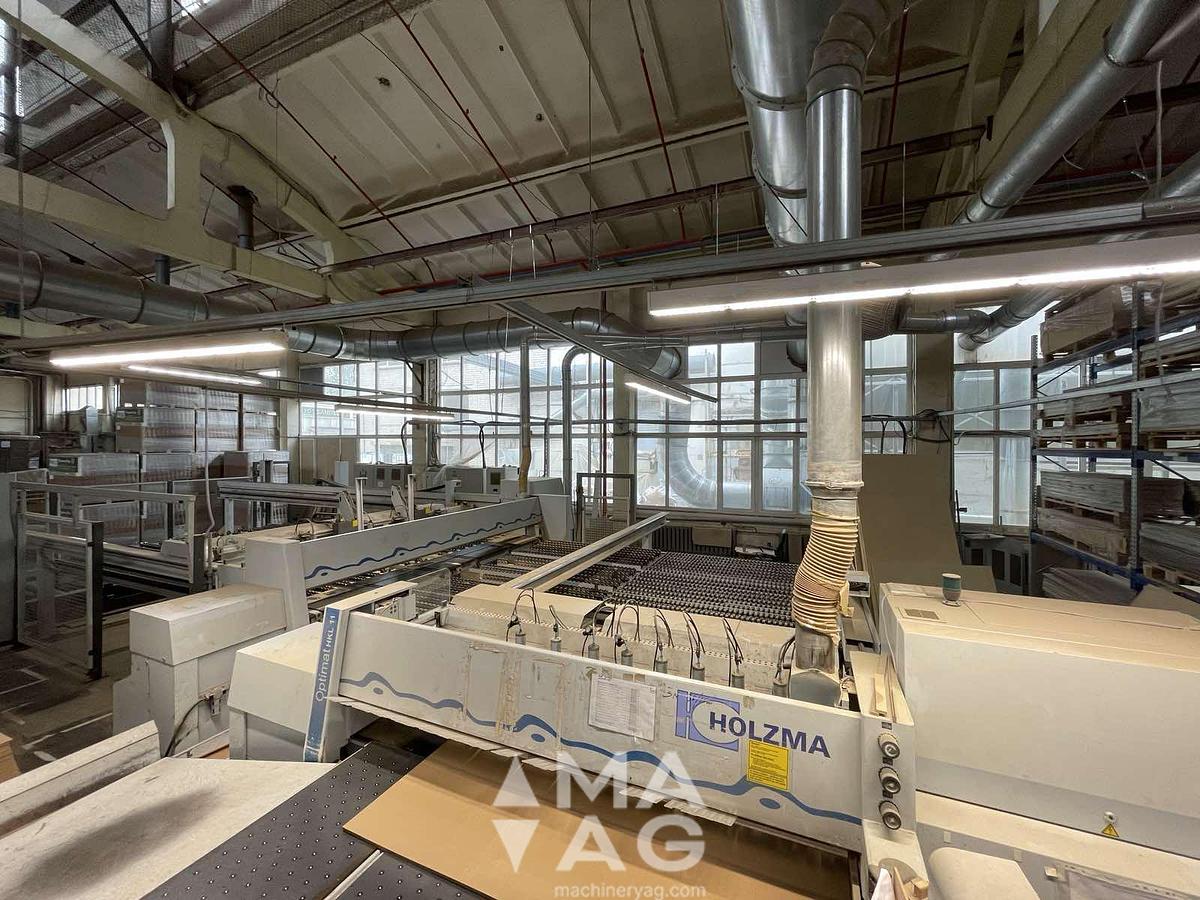

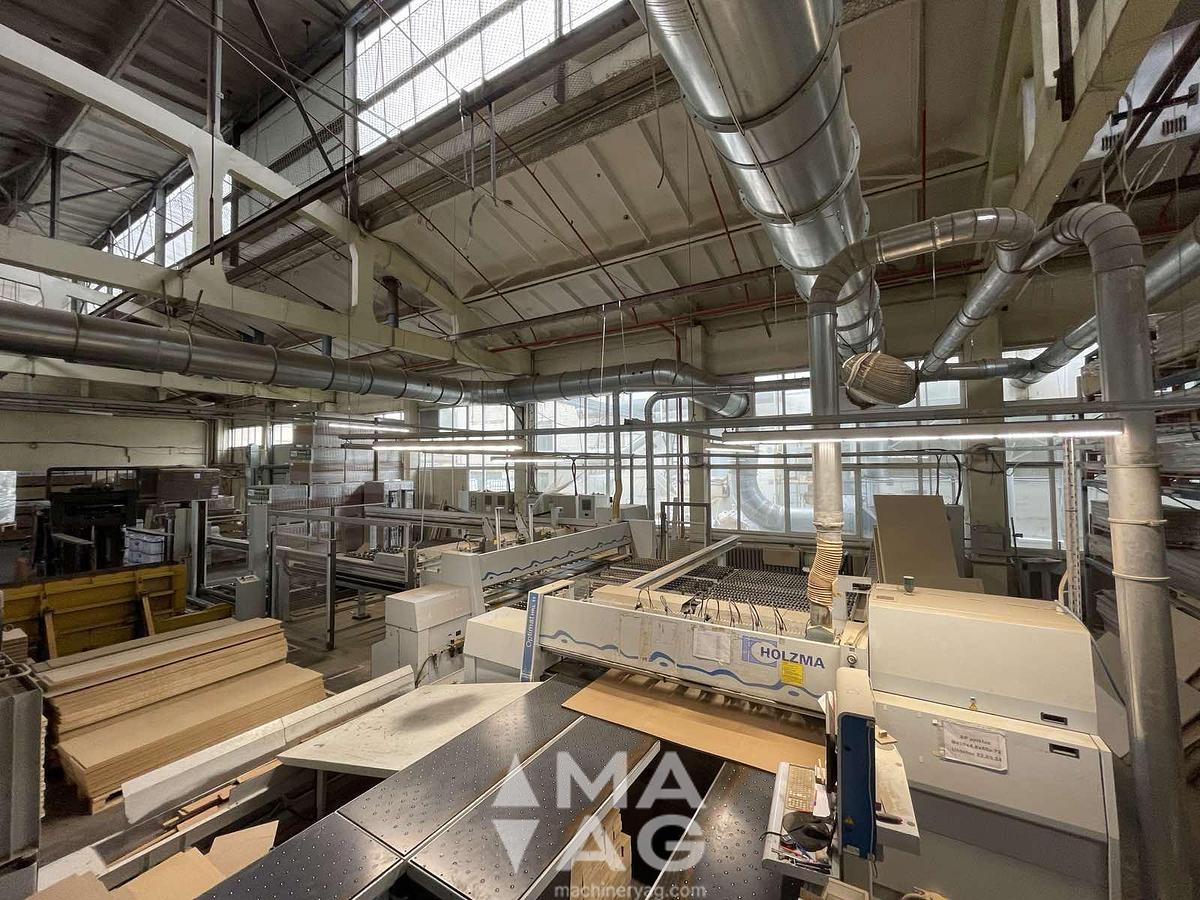

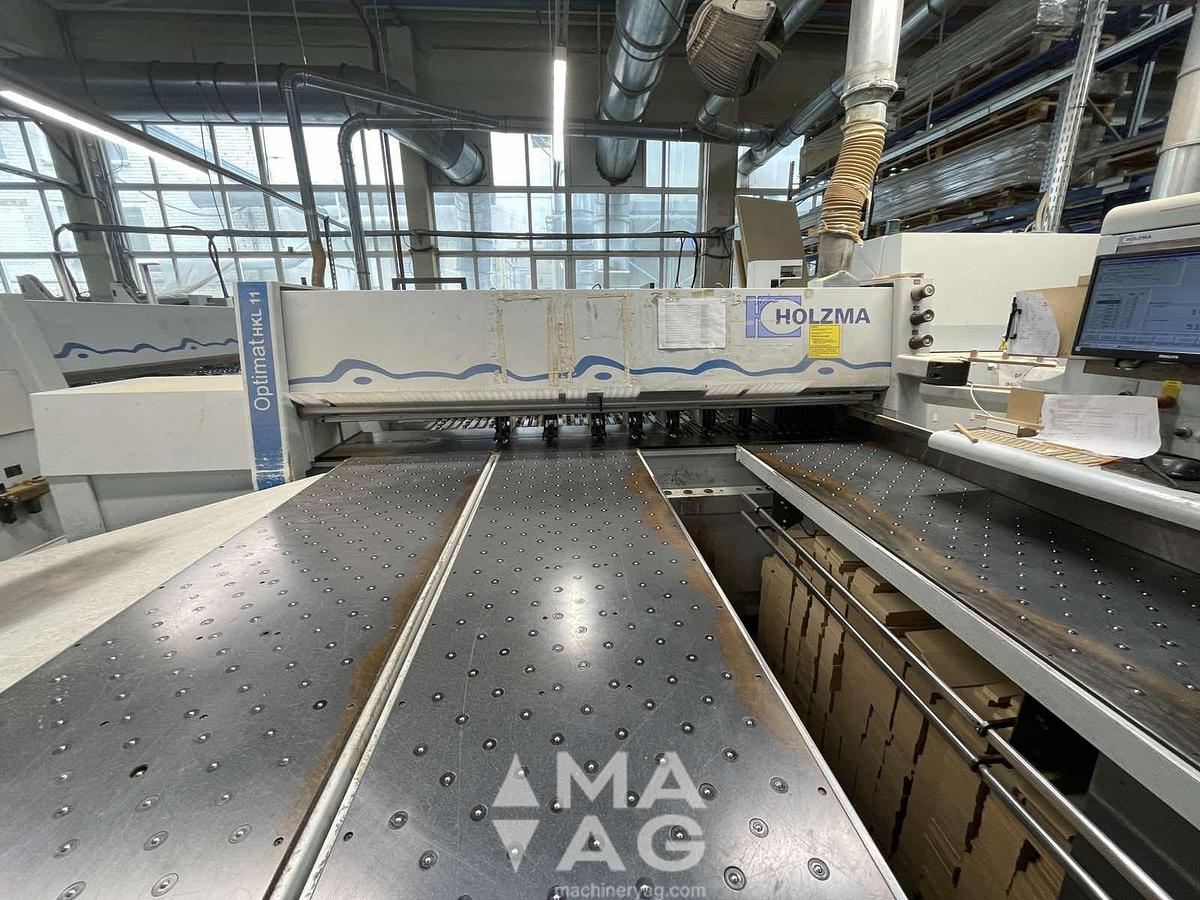

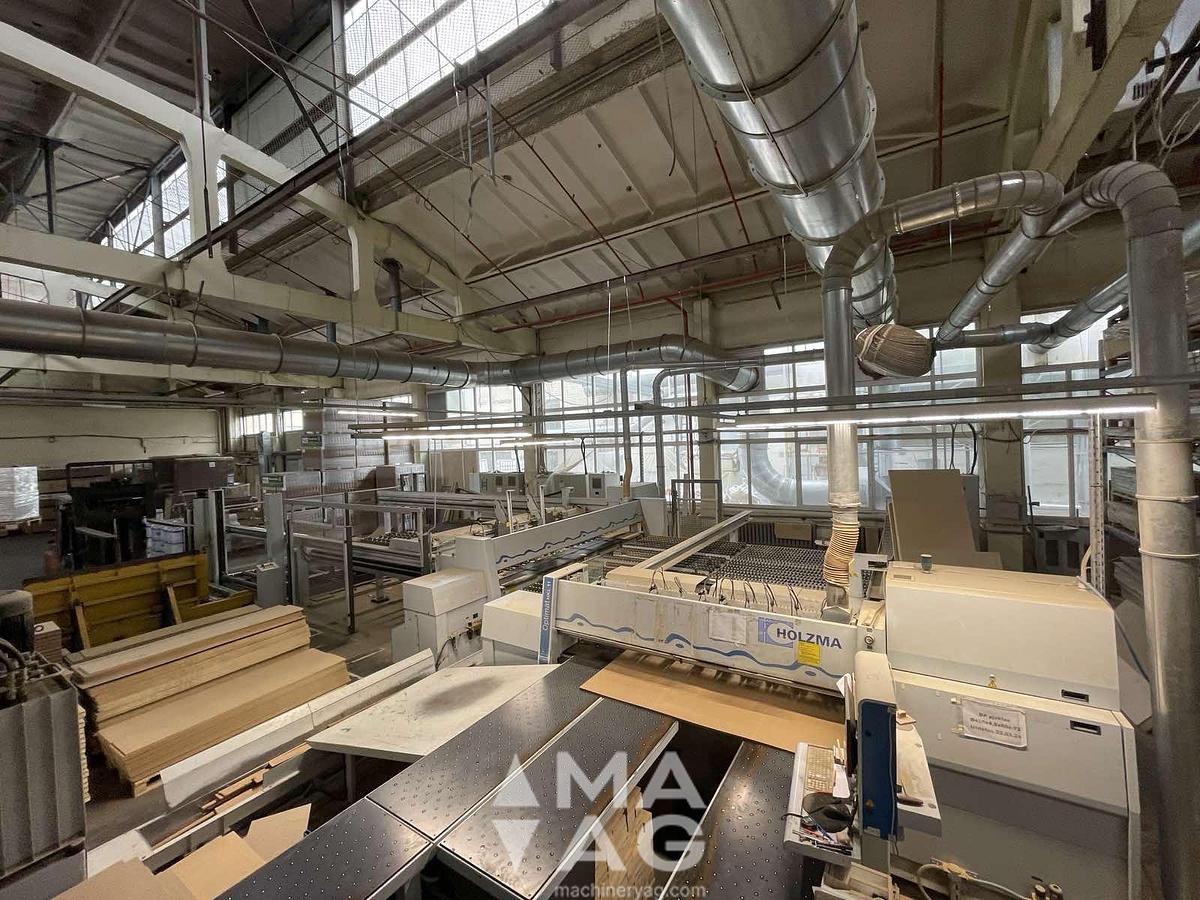

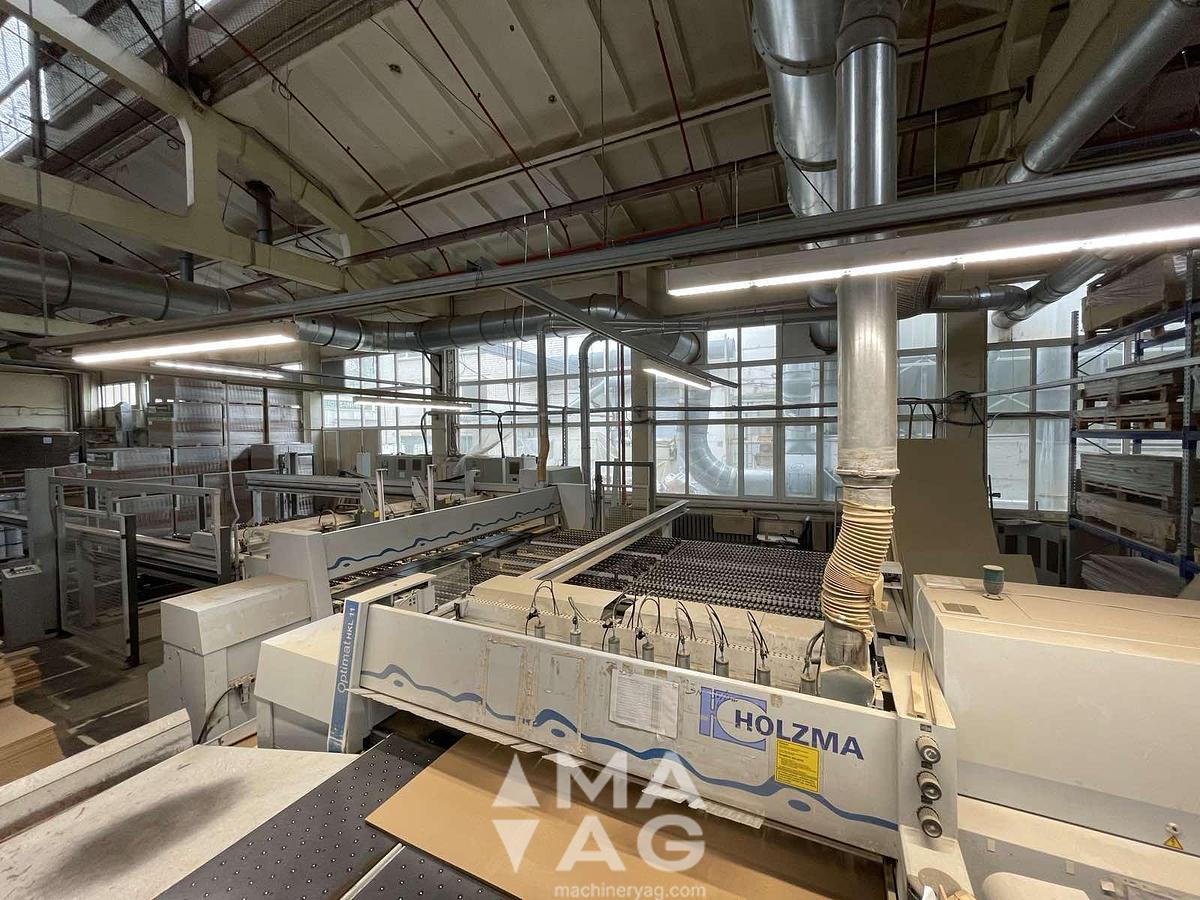

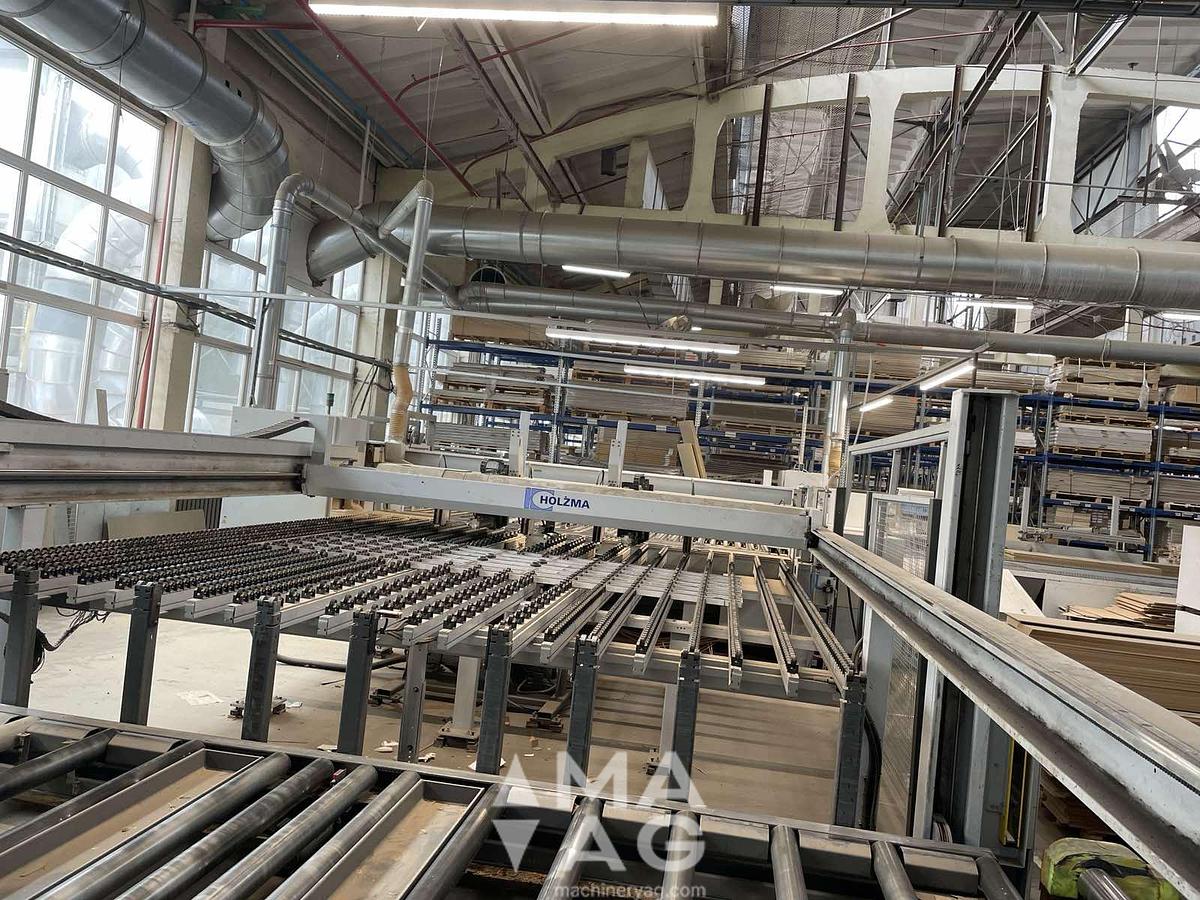

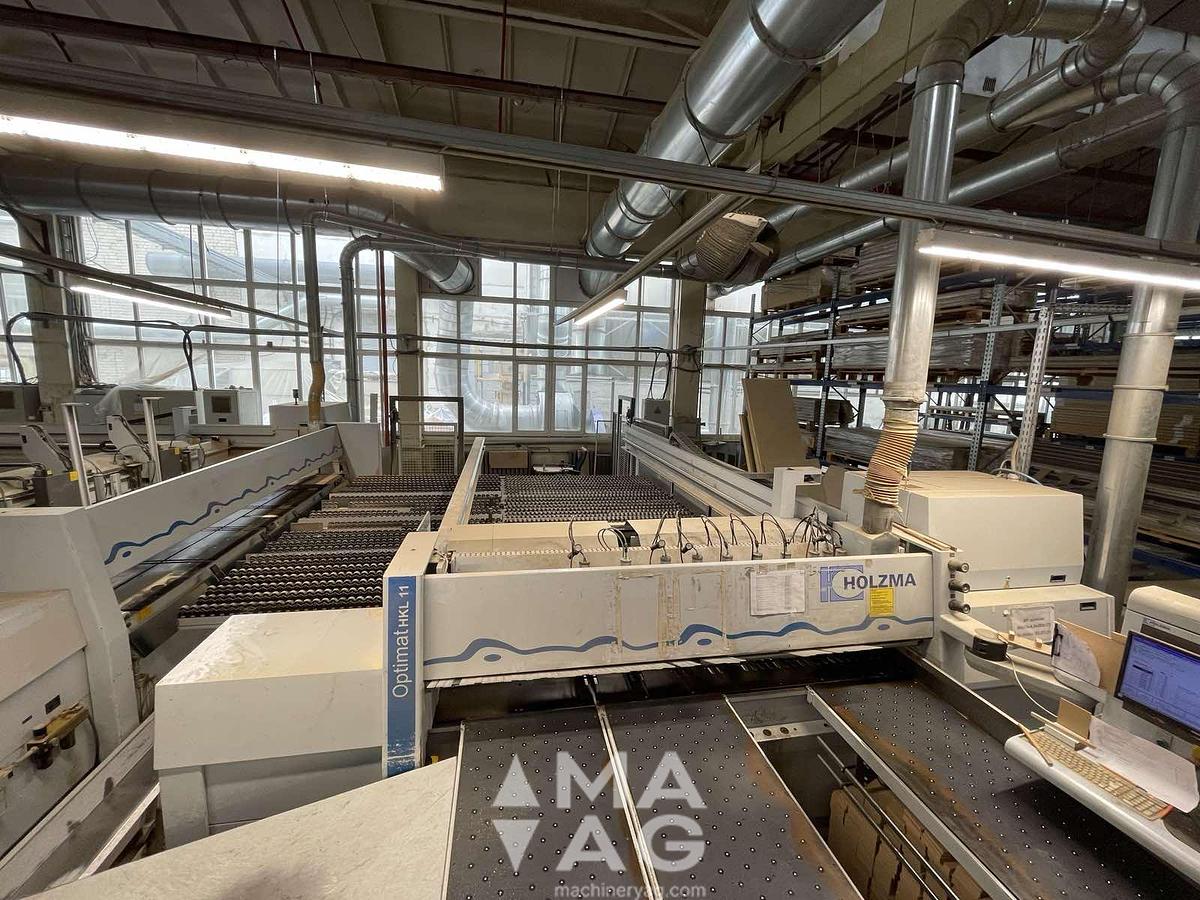

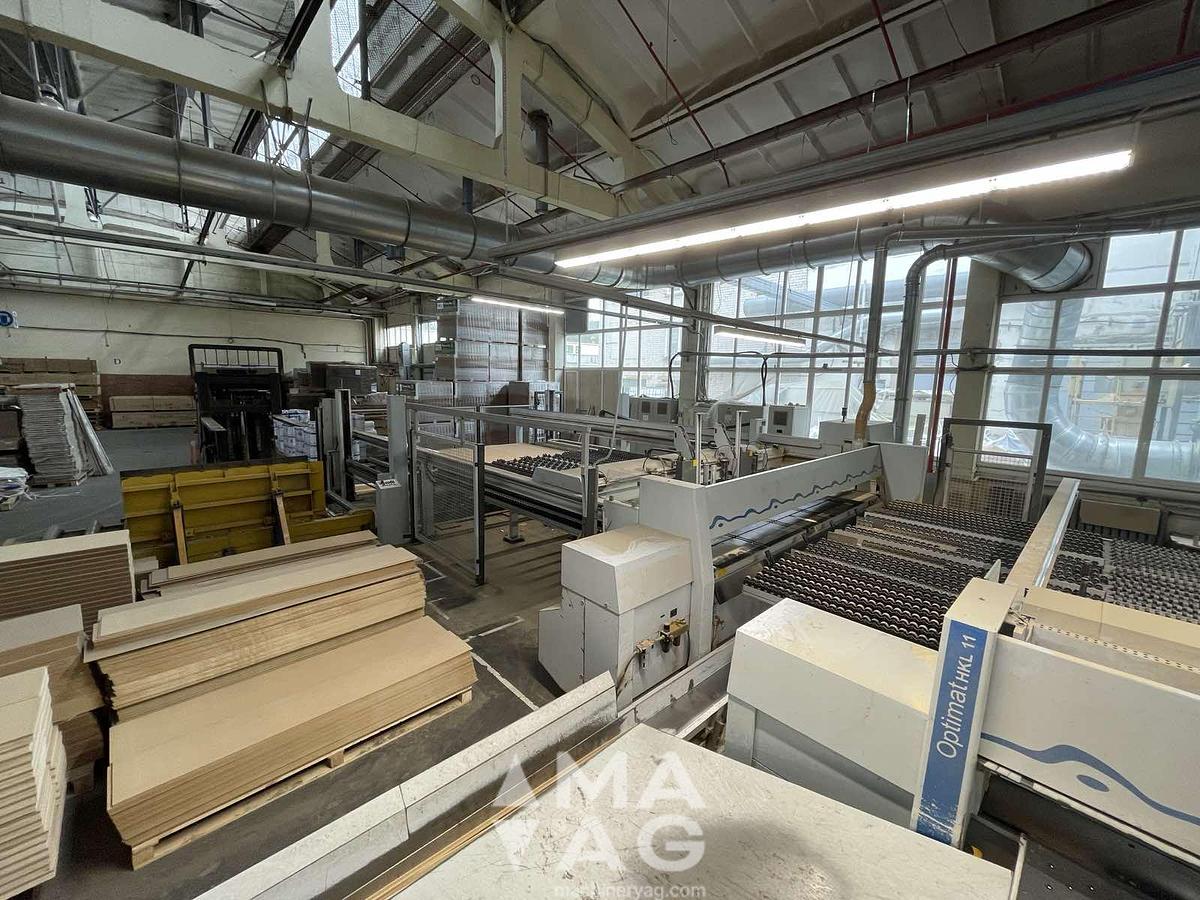

2004 Homag OPT HKL 11/43/22 Panel saw

HOMAG OPT HKL 11/43/22 – available in September!

Currently in production.

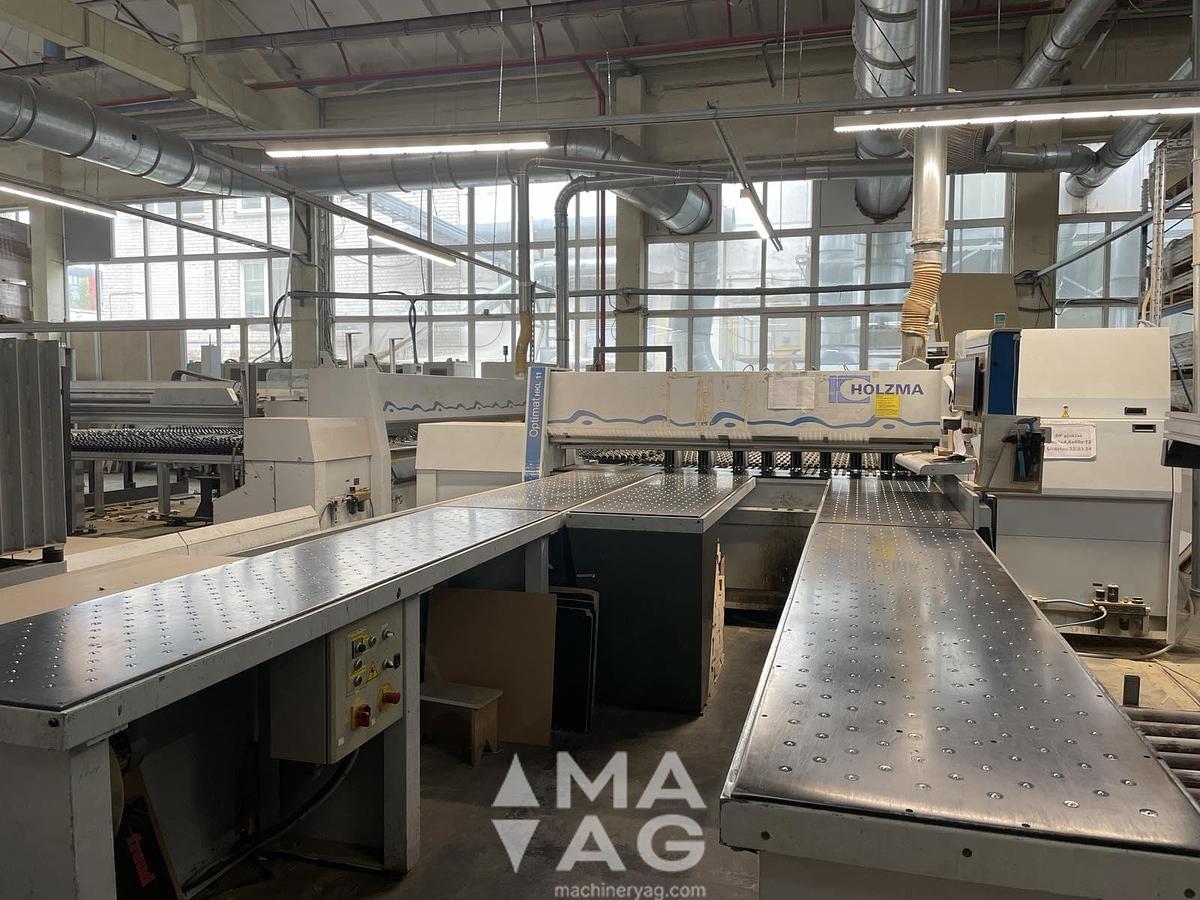

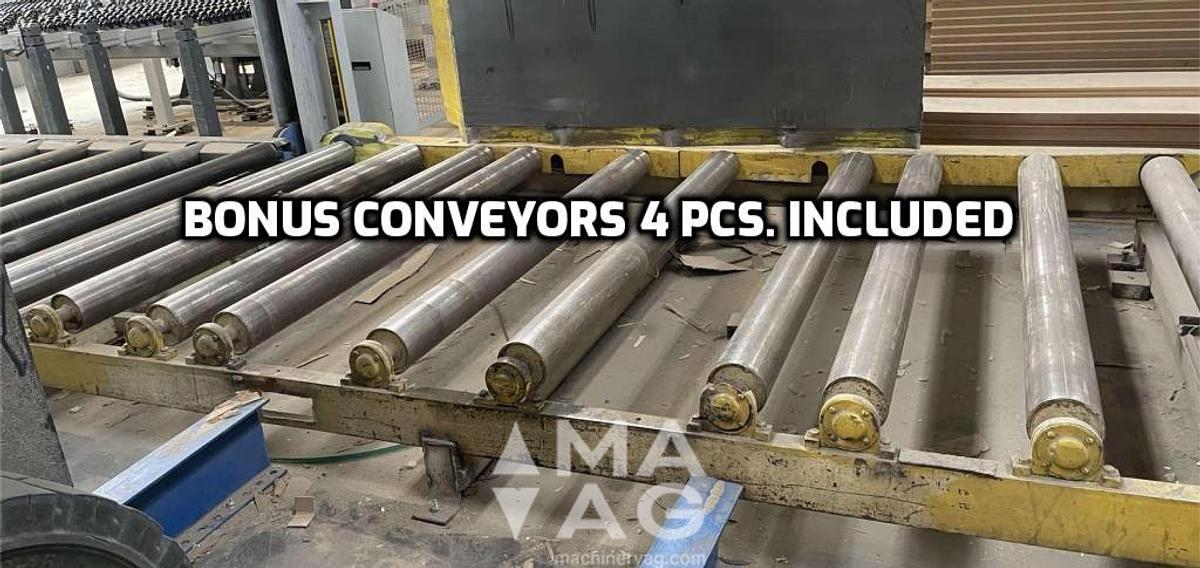

Bonus: 4 roll conveyors, each 4 meters long included!

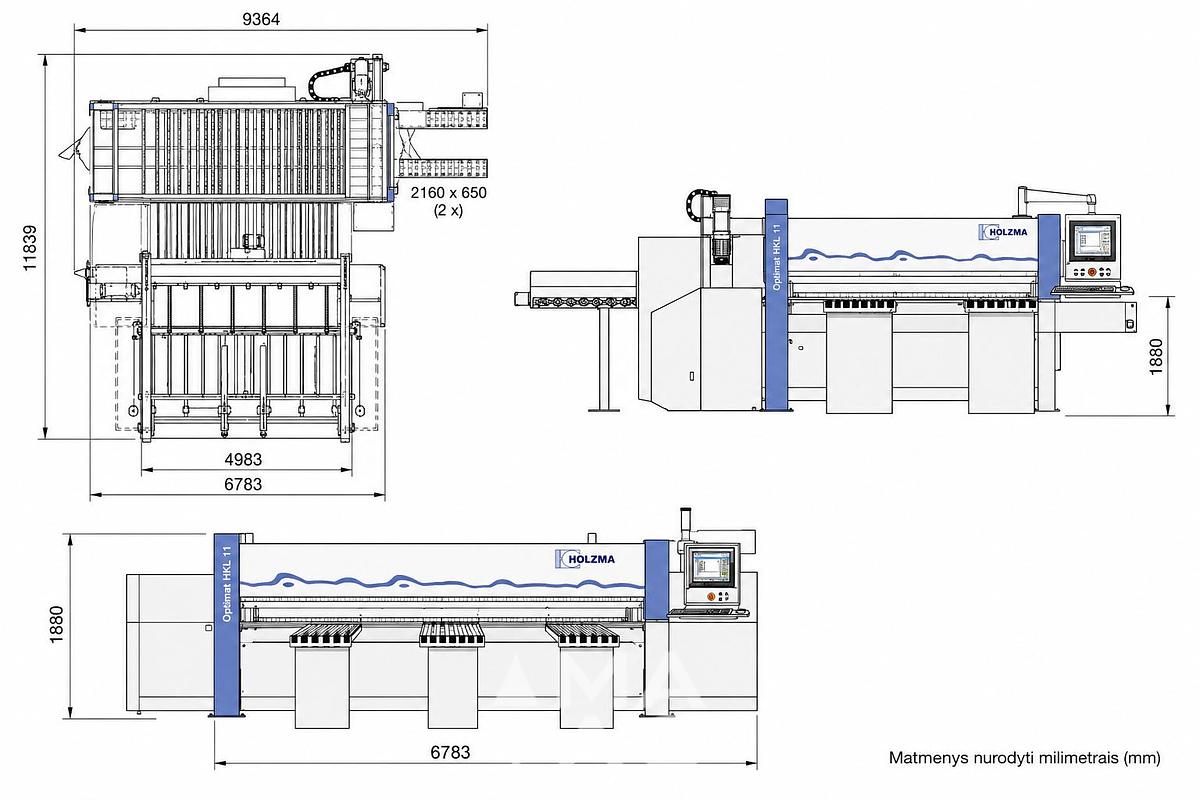

General layout drawing attached.

Technical Data

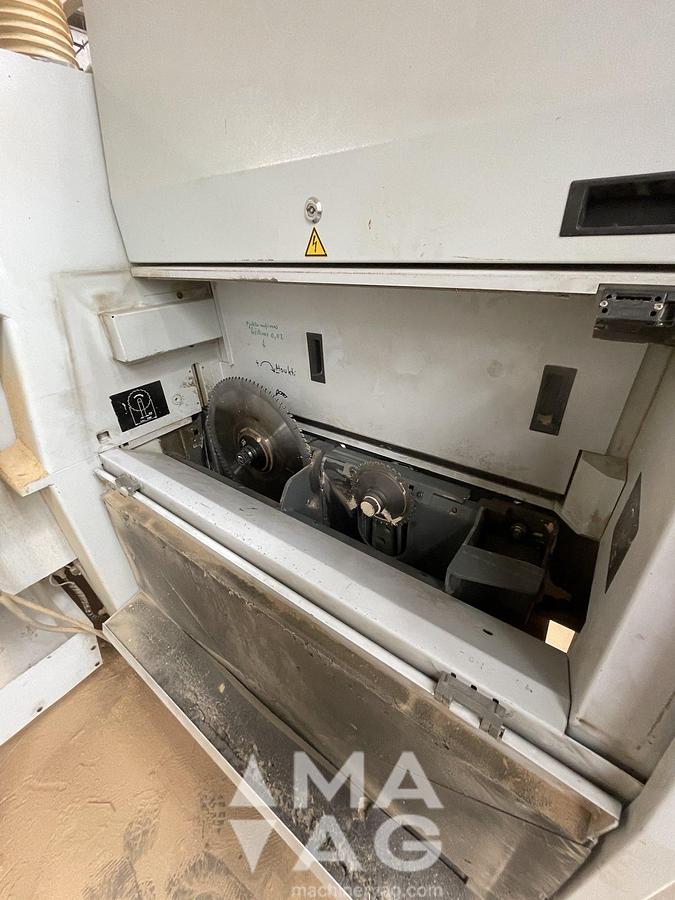

Saw blade projection: 125 mm

Cutting length / width: 4300 mm / 2200 mm

Max. stack height without pit: 680 mm

Max. stack height with pit: 880 mm

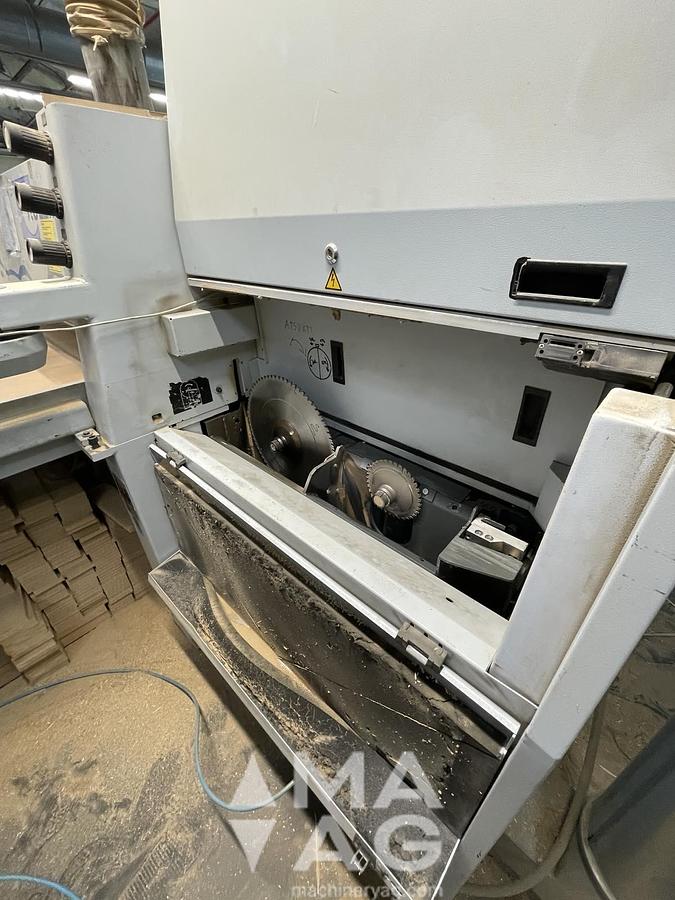

Main saw motor: 18.0 kW / 25.0 HP

Scoring saw motor: 2.2 kW / 3.0 HP

Saw carriage speed: 5–130 m/min

Program fences speed: 80–140 m/min

Total air volume (at 6 bar): 60 l/min

Air pressure required: 6 bar

Total connected load: 58 kW

Extraction: 10,000 m³/h (≈26 m/s)

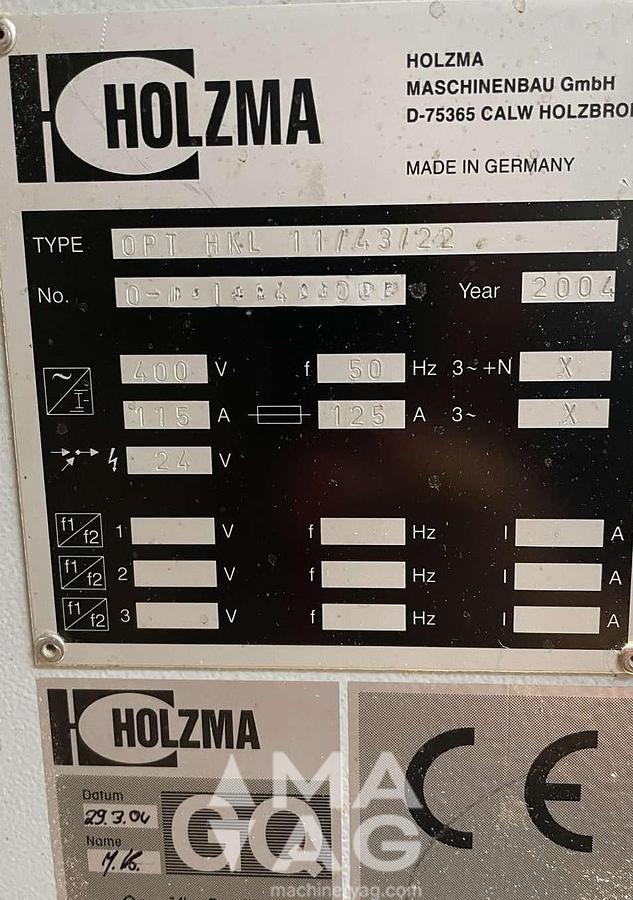

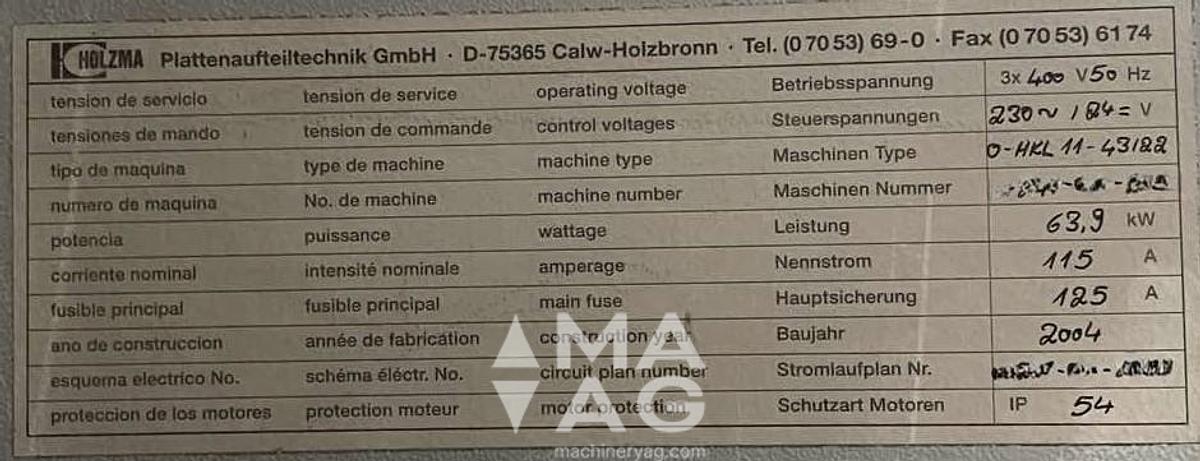

Operating voltage: 3 × 400 V, 50 Hz

Control voltages: 230 V / 24 V

Installed power: 63.9 kW

Rated current: 115 A

Main fuse: 125 A

Motor protection: IP54
