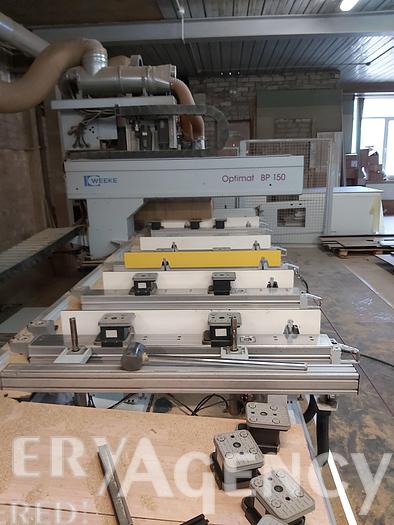

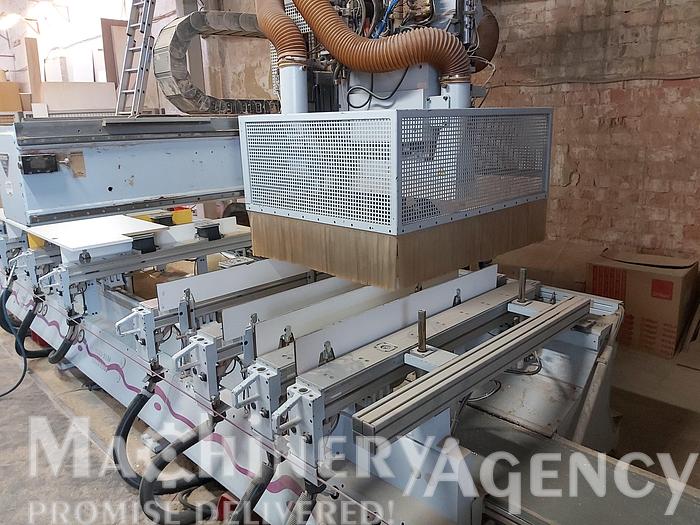

1998 WEEKE OPTIMAT BP150 K CNC machining center

Manufacturer: WEEKE (HOMAG Group)

Type: OPTIMAT BP150

Year of manufacture: 1998

Technical data

Travel Range:

X-Axis 3950 mm

Y-Axis 1844 mm

Z axis 400 mm

Velocity of axis:

X-Axis 80 m/min.

Y-Axis 65 m/min.

Z axis 20 m/min.

Max. Workpiece Thickness:

Up to 100 mm: no limits in applications

Up to 170 mm: with limitations

Up to 250 mm: with limitations

Dust Extraction:

Tube connection d = Ø 250 mm

Connection approx. 4950 m3/h

Air Velocity approx. 28 m/sec.

Electronics: connection approx. 20 kW

Pneumatic: connection R 1/2"

Machine weight: approx. 5500 kg

Available immediately!
