BIESSE FTT800 (2)+FHT+ADVANTAGE (2) Drilling, milling and dowel insertion CNC center

TECHNICAL DETAILS

Components

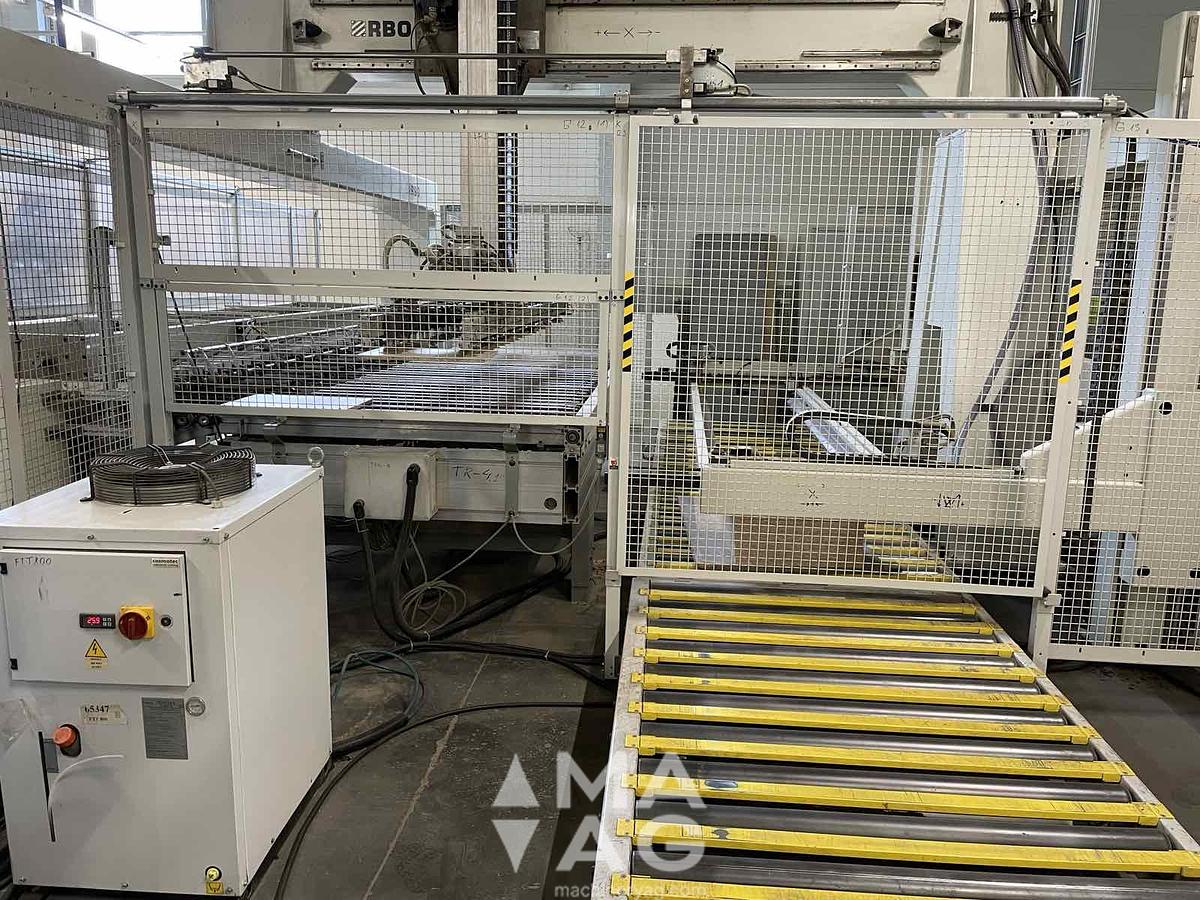

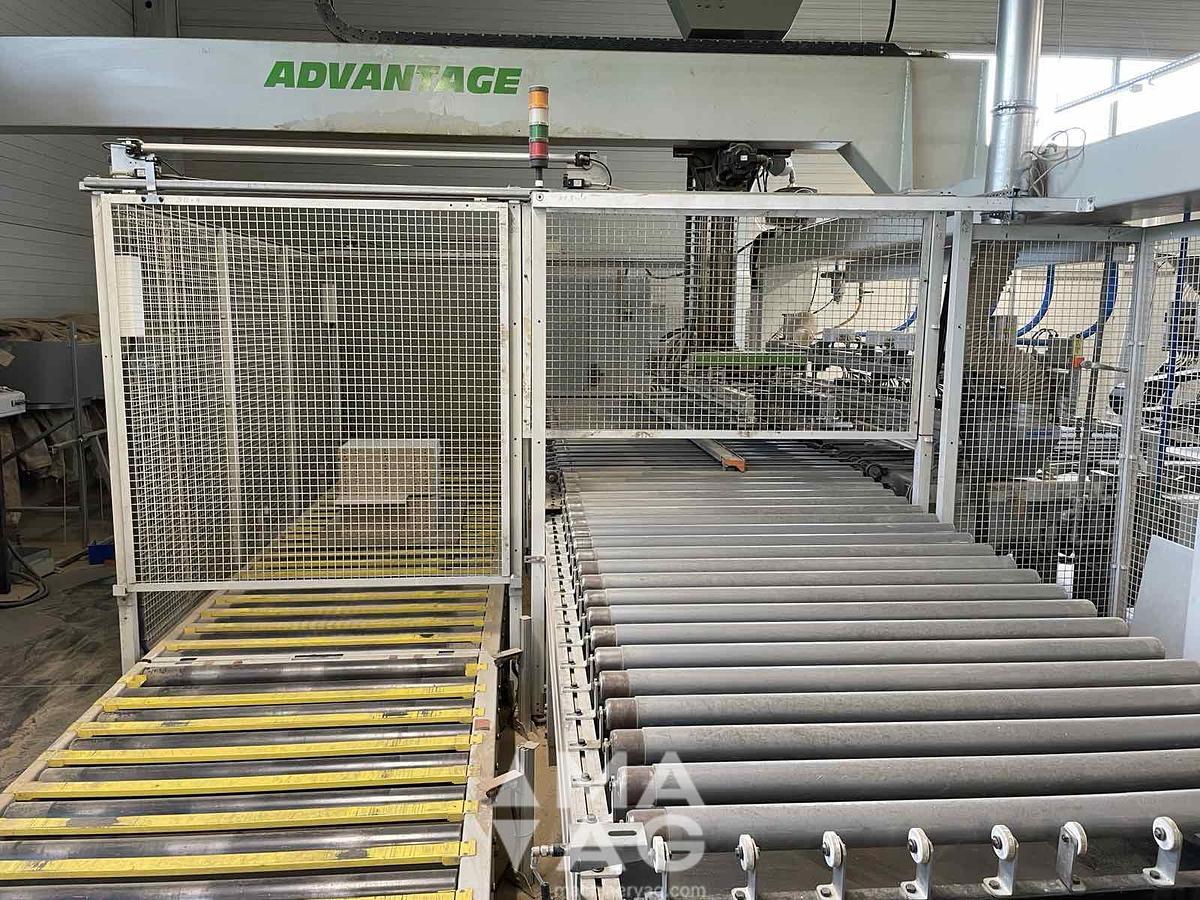

ADVANTAGE C transverse loader: automatic

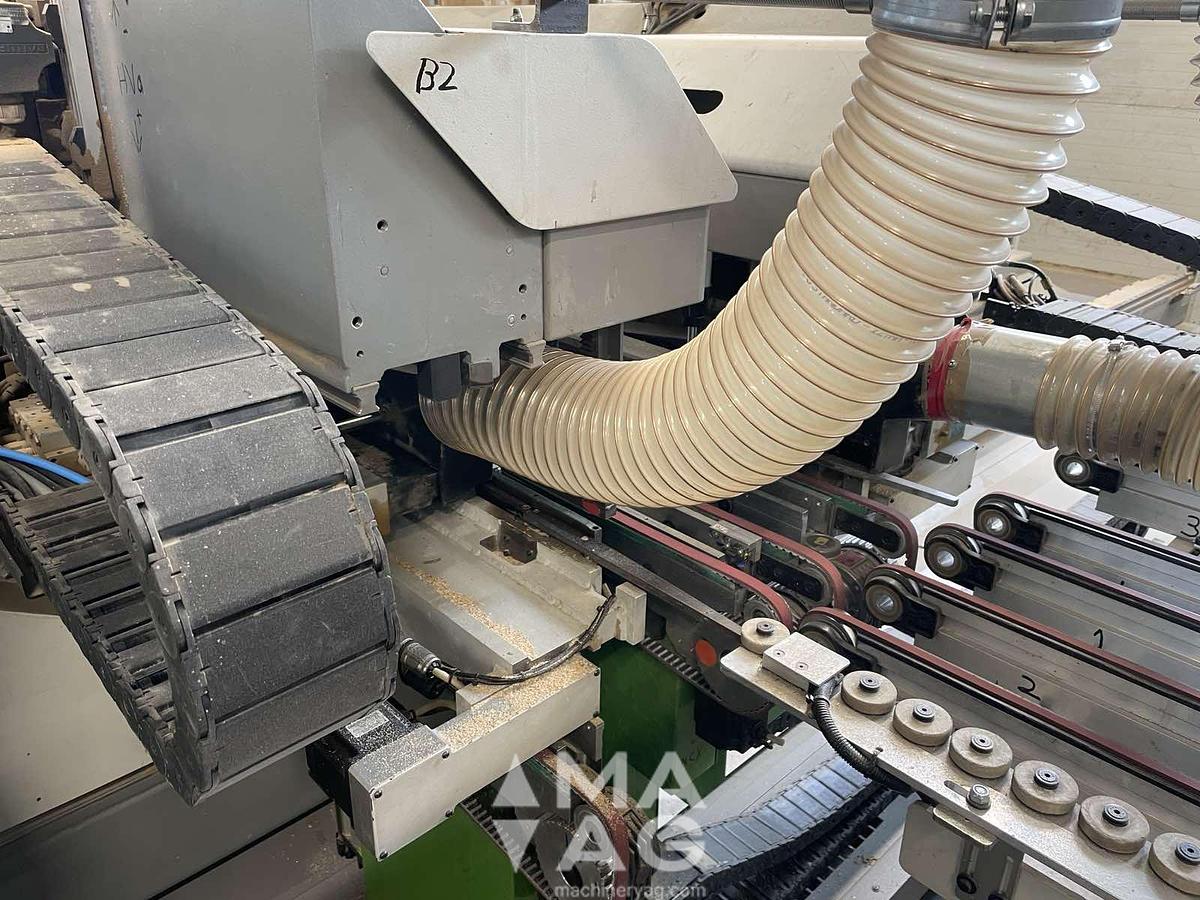

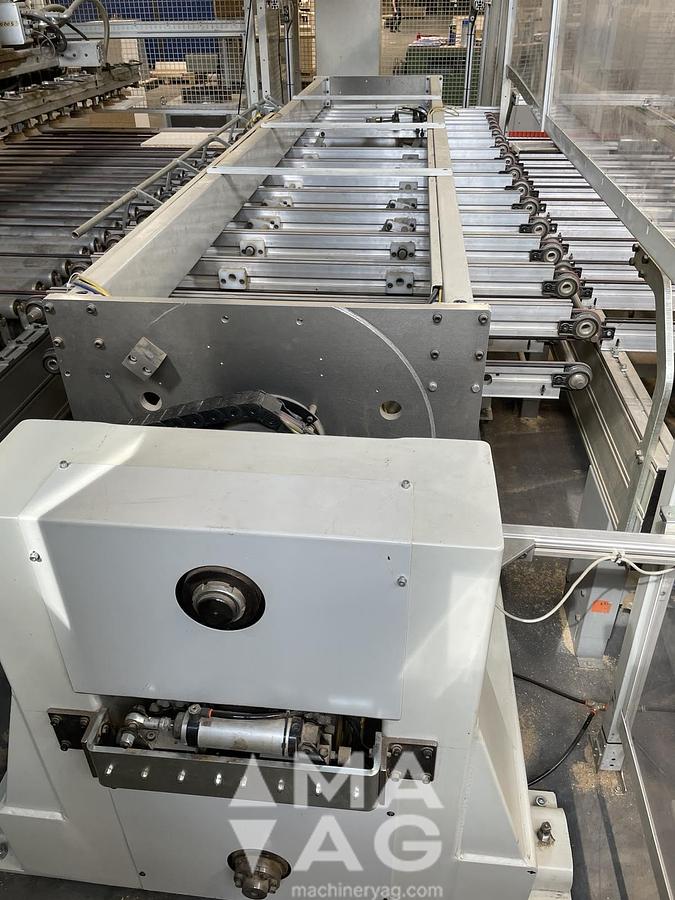

ROTATING DEVICE (flipper): available

BIESSE FTT: with 4 heads, drilling and milling, automatic tool change

BIESSE FHT: 2 WORKING UNITS horizontal drilling and dowel insertion

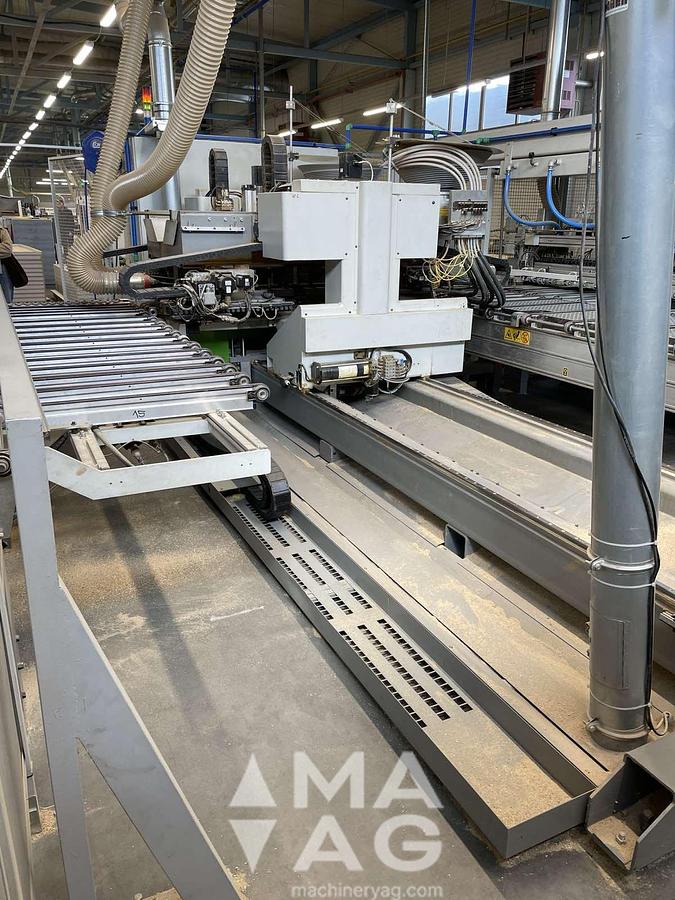

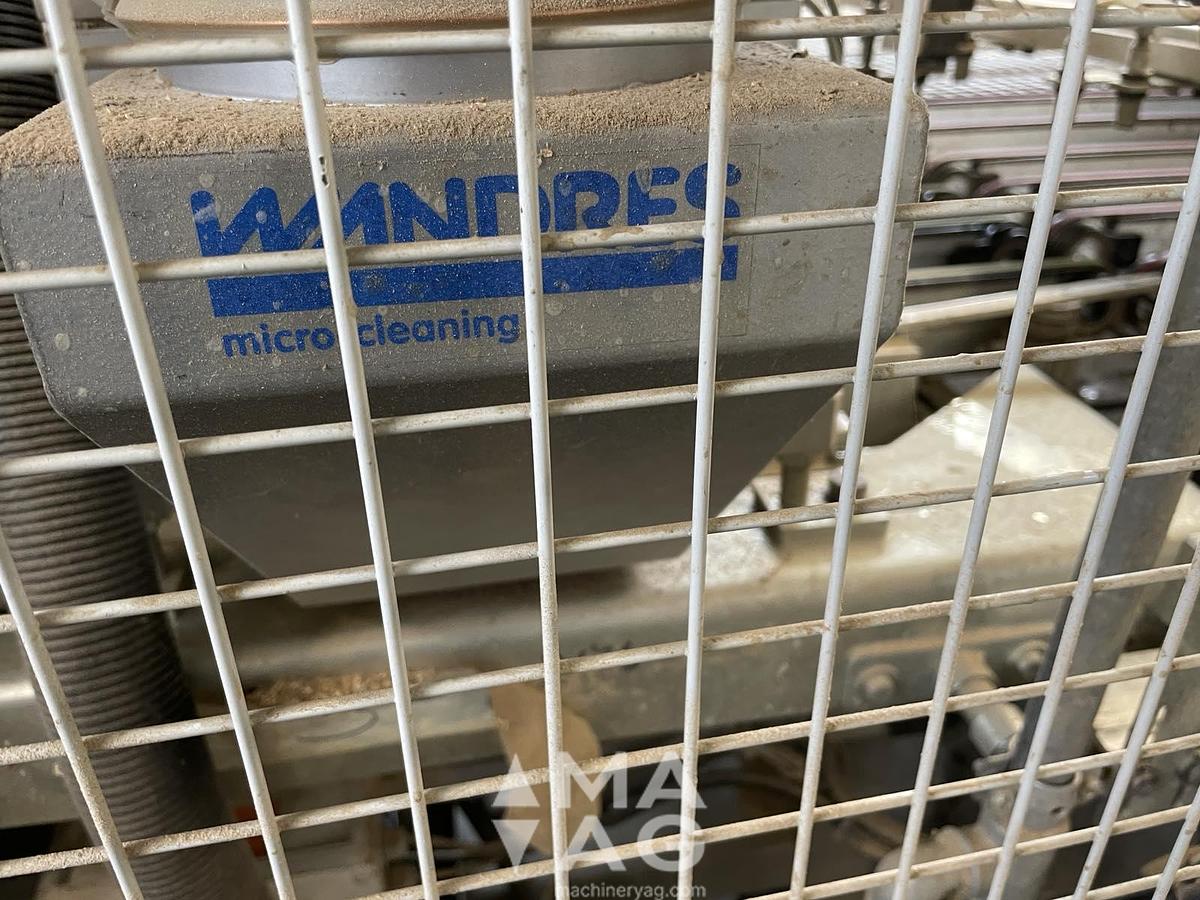

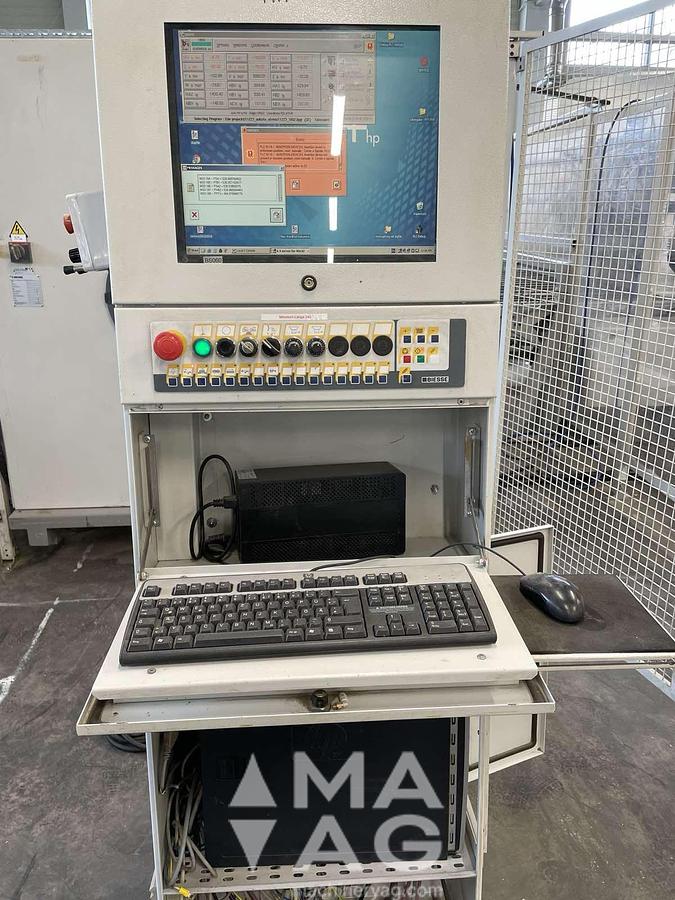

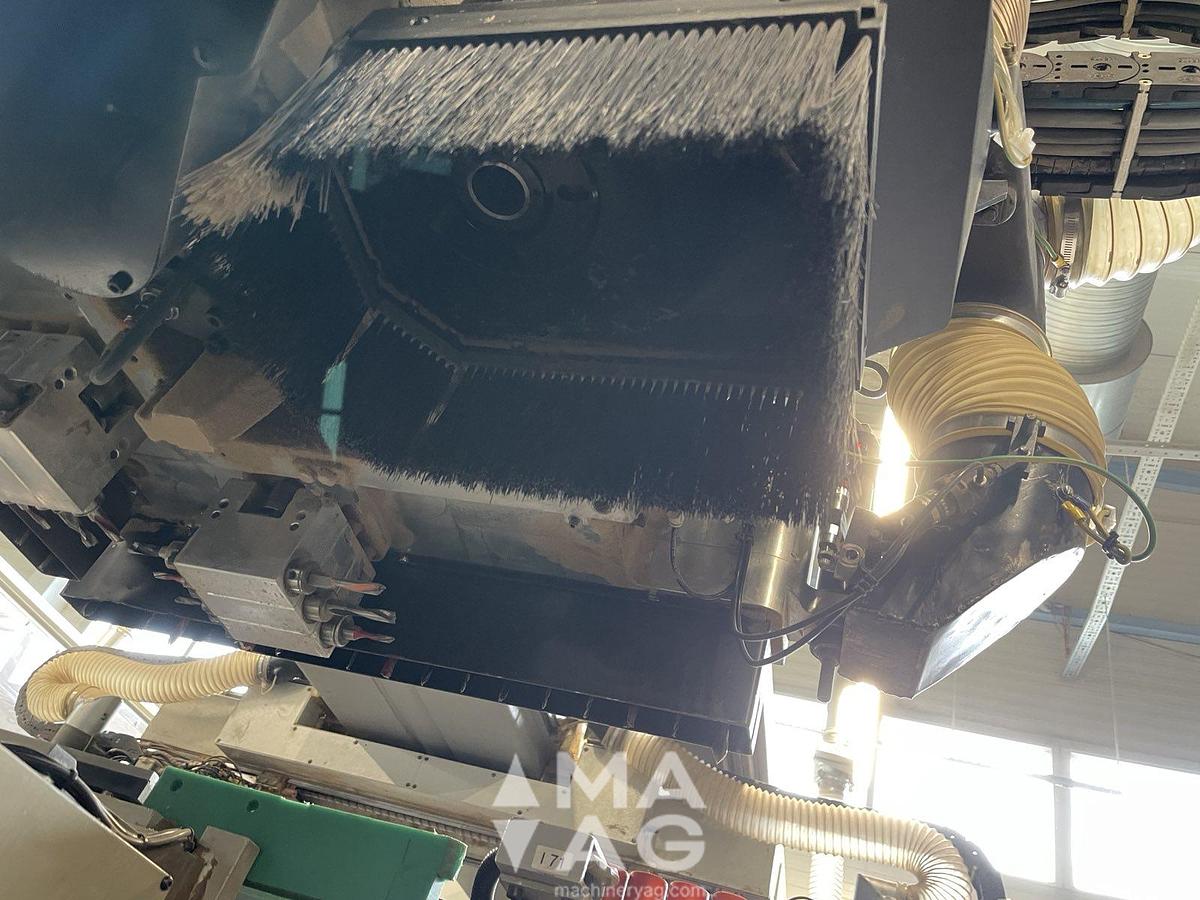

WANDRES: brush cleaning from top

ADVANTAGE SC transverse unloader: automatic

Plate dimensions

Plate length: 240 - 3,200 mm

Single panel width: 140 - 1,550 mm

Plate width: 140 - 800 mm

Plate thickness: 12 - 60 mm

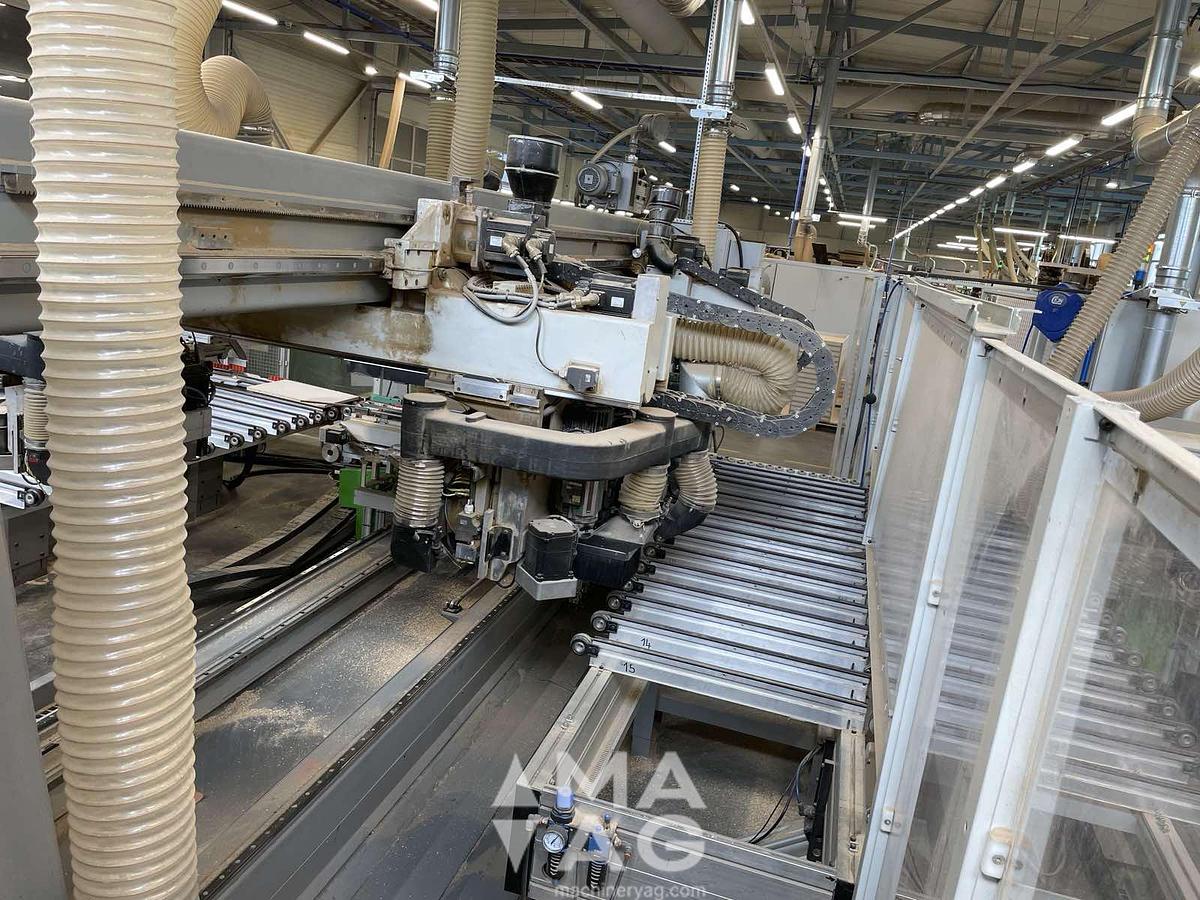

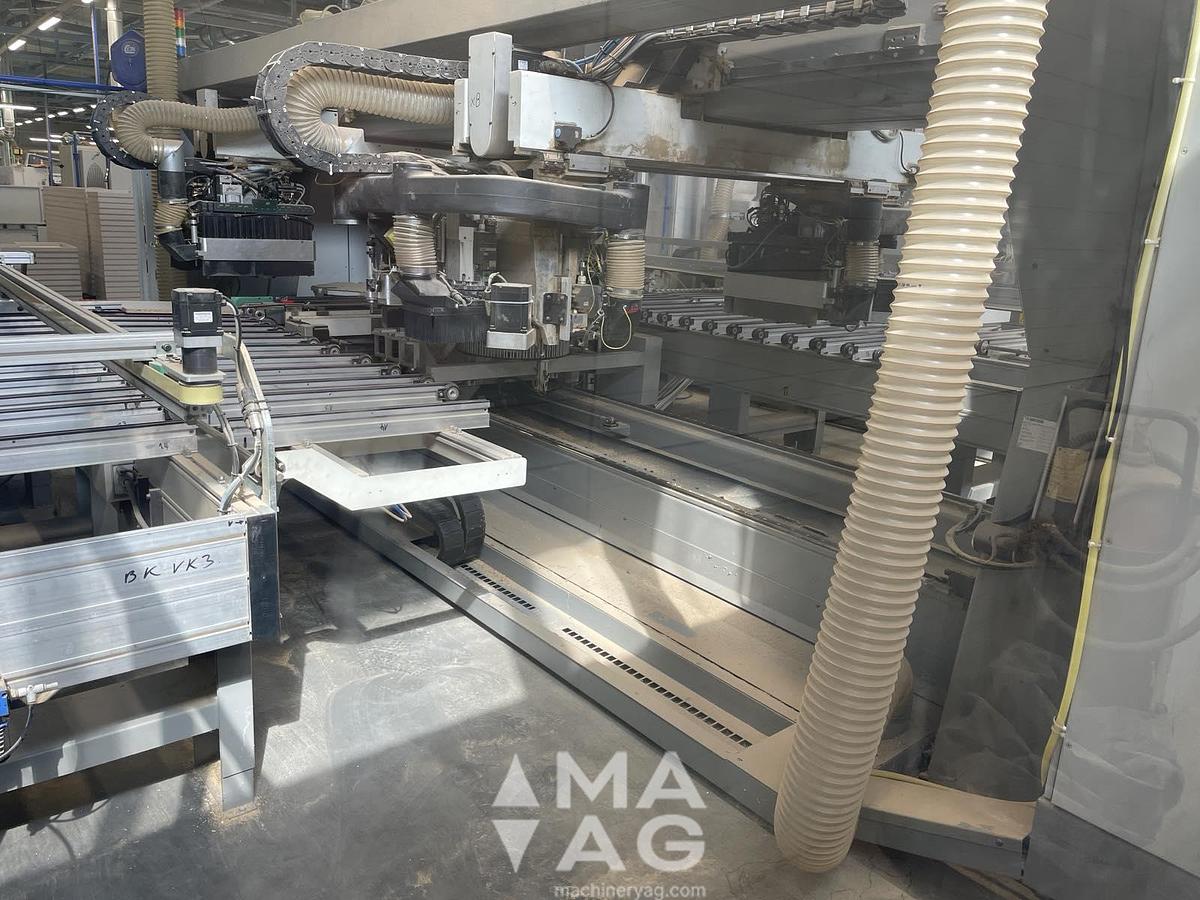

Drilling units

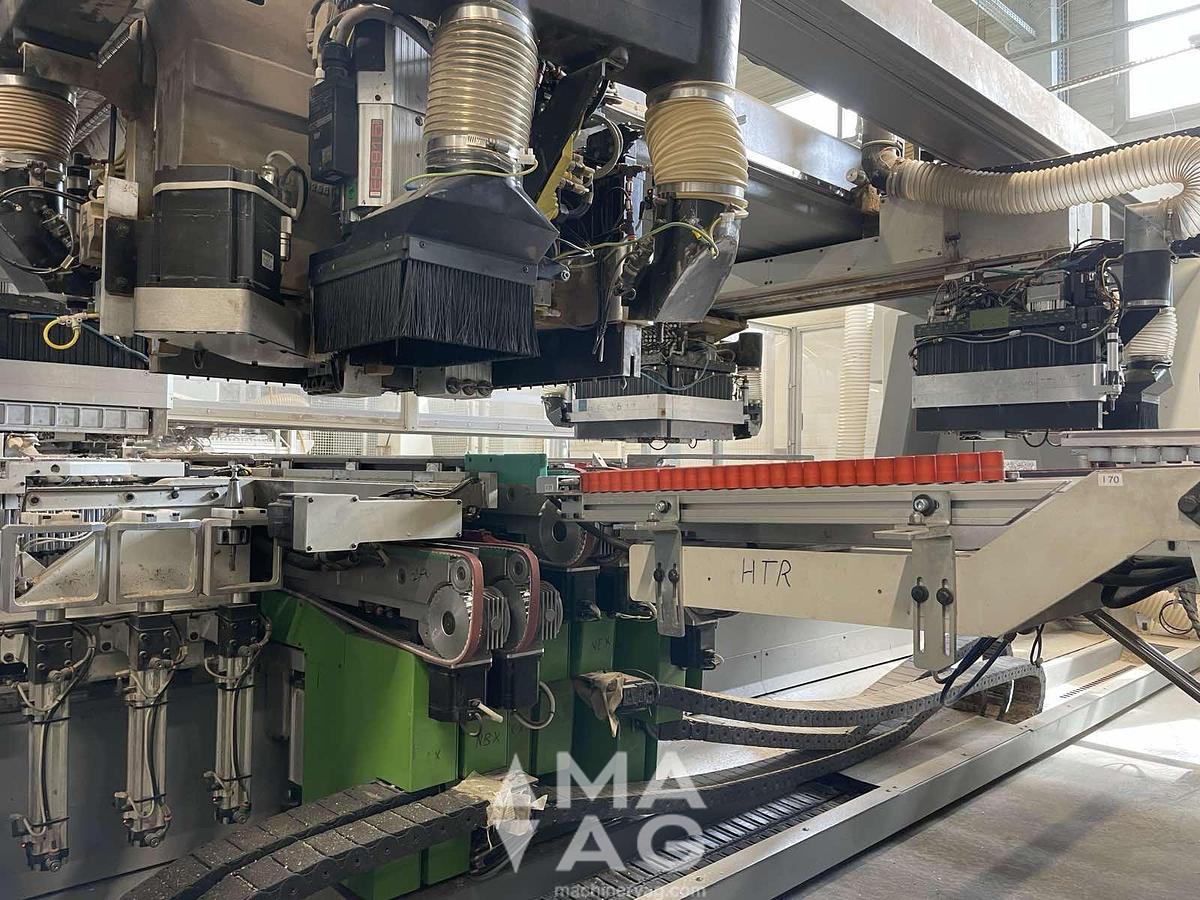

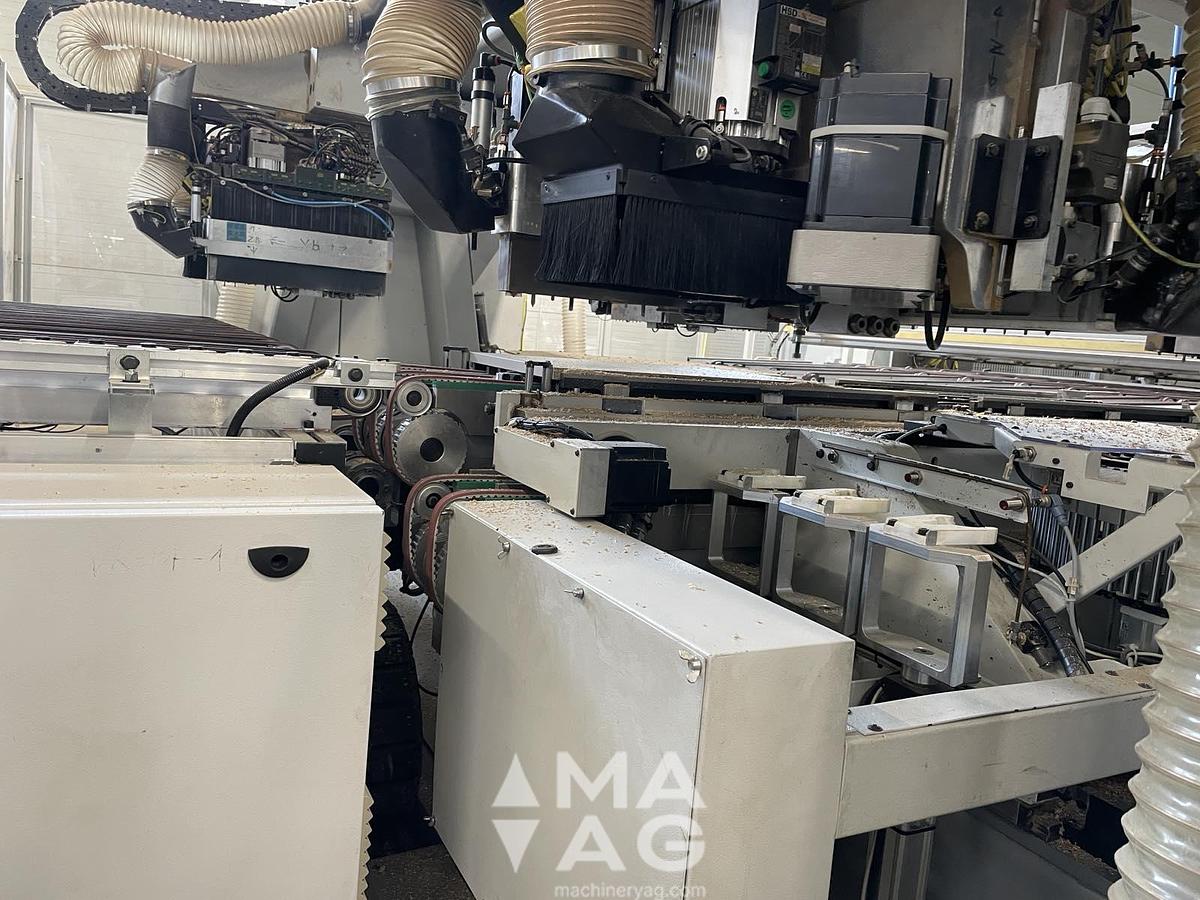

Drill heads FTT 800:

2 machining centres with 4 boring units - 5 working tables

Vertical spindles (X-direction): 14 independent per head

Vertical spindles (Y-direction): 18 independent per head

Horizontal spindles (X-direction): 3 independent, with double output

Horizontal spindles (Y-direction): 3 independent, with double output

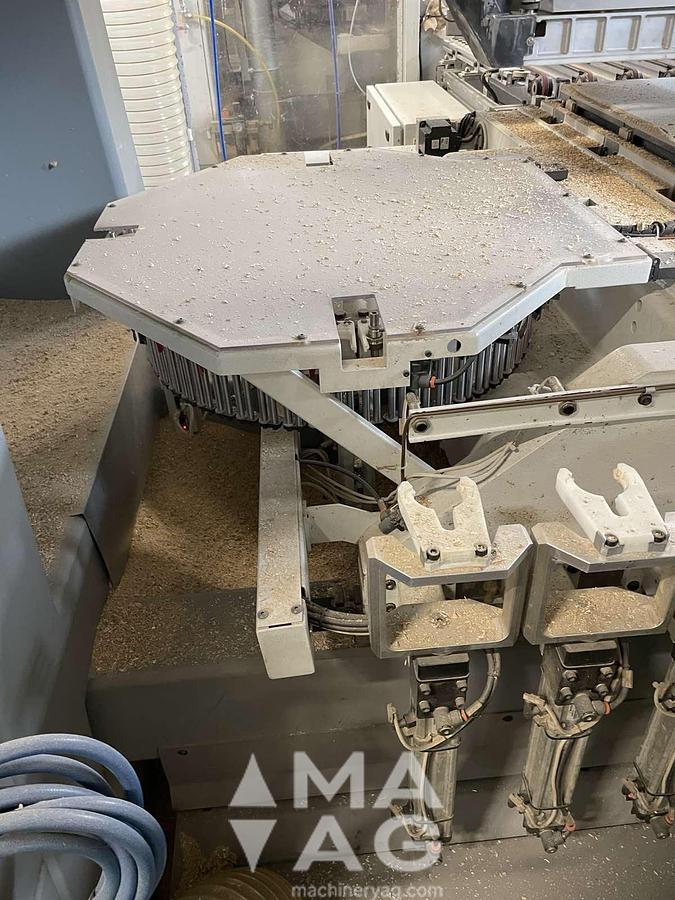

Tool change system

Revolver cartridges: 2

Positions per cassette: 56

Application: Automatic tool change of the vertical spindle centers on 4 drilling units of the two machining centers A and B.

Milling spindles

Electro spindle 1: 3.7 kW (5 HP), ISO 30, with inverter and 3-way tool change rack

Electro spindle 2: 3.7 kW (5 HP), ISO 30, with inverter and 3-way tool change rack

Lateral positioning units

Workstations: 2 for parallel processing of identical or mirror-inverted panels

left positioning element: fixed for lateral reference

Right positioning element: movable in X-direction, on lower supports, linearly guided

Adjustment: automatic according to the X-dimension of the panel

Drive: Brushless with digital control

Function: Detection of the actual X Length in the machining center, automatic correction of the drilling positions.

Max. travel speed: 120 m/min

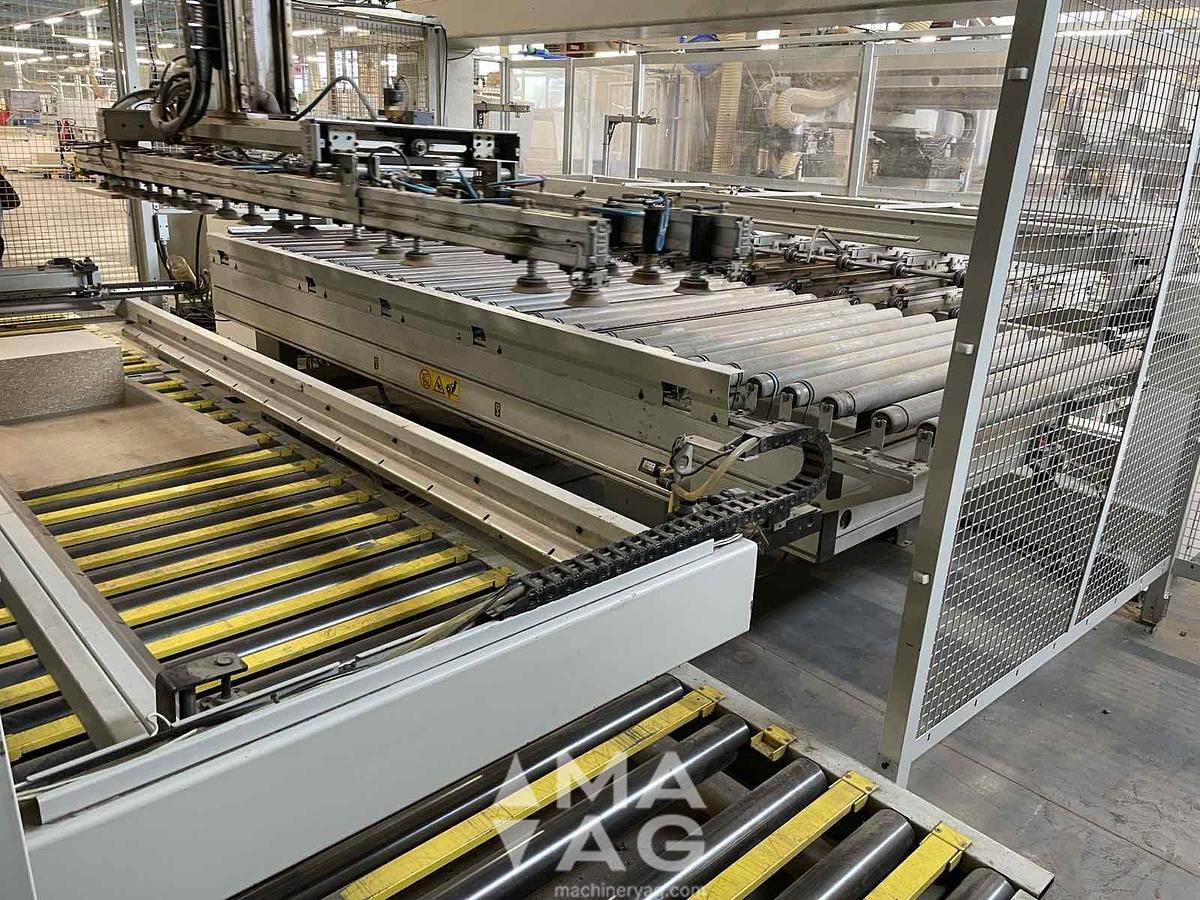

Loading and unloading

Infeed system: 1 belt conveyor with cross feed, single drive

Unloading system: 1 belt conveyor with cross feed, single drive

Additional: Cleaning fan in the unloading area

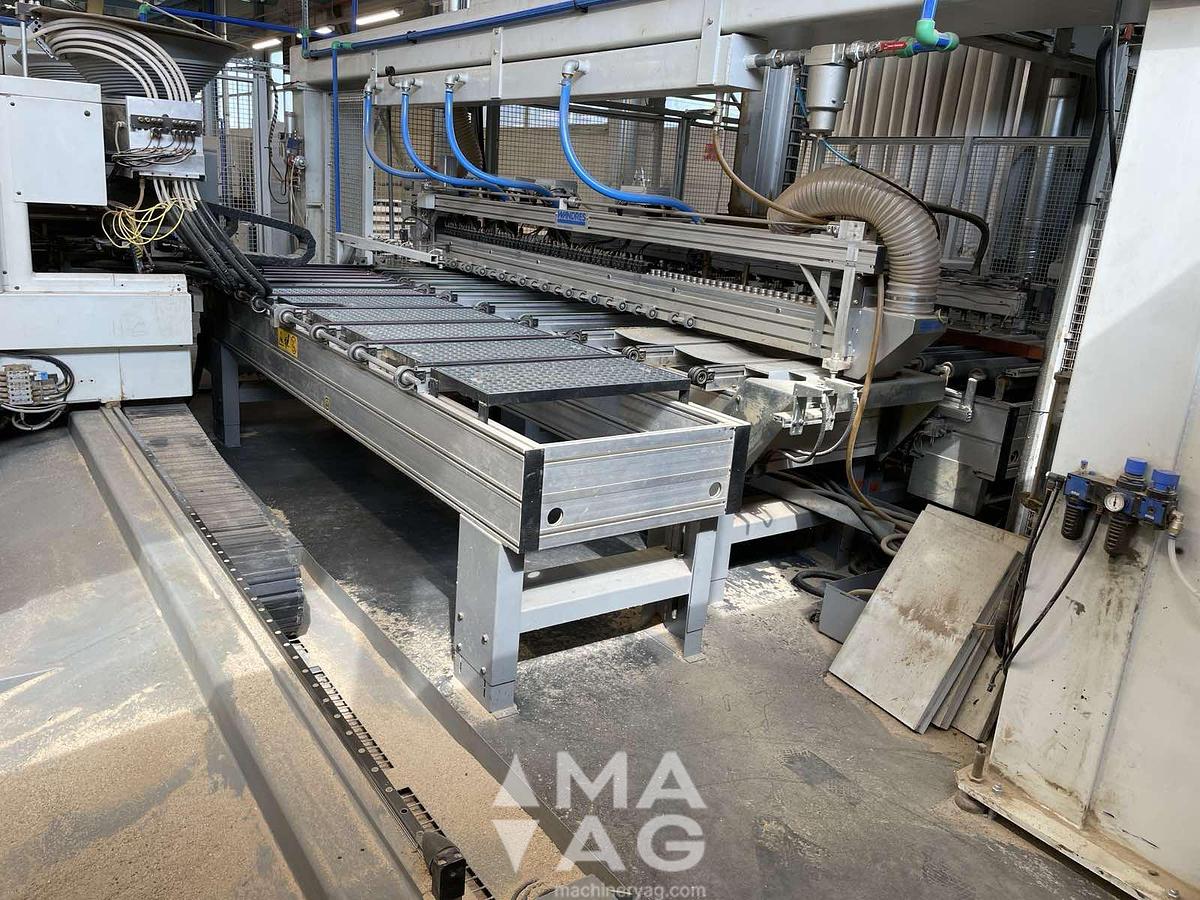

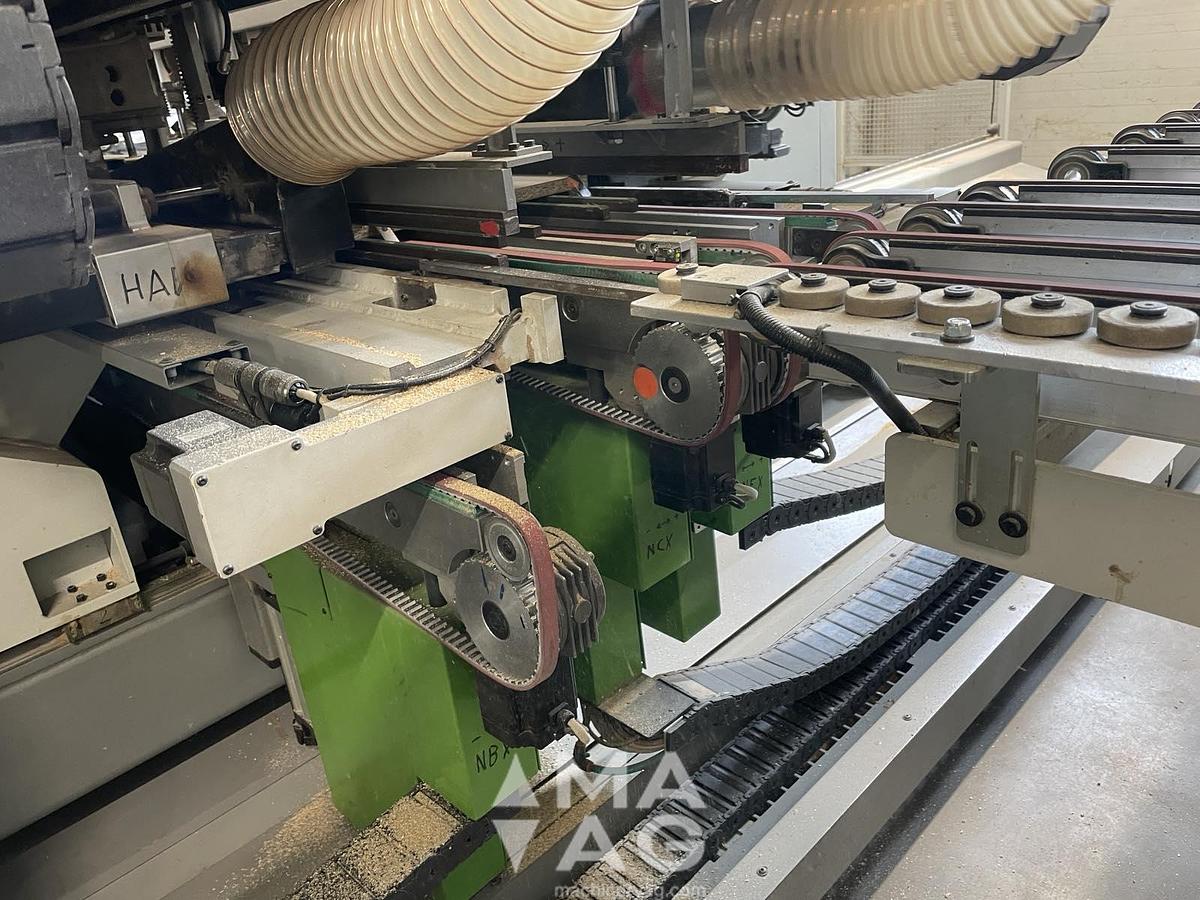

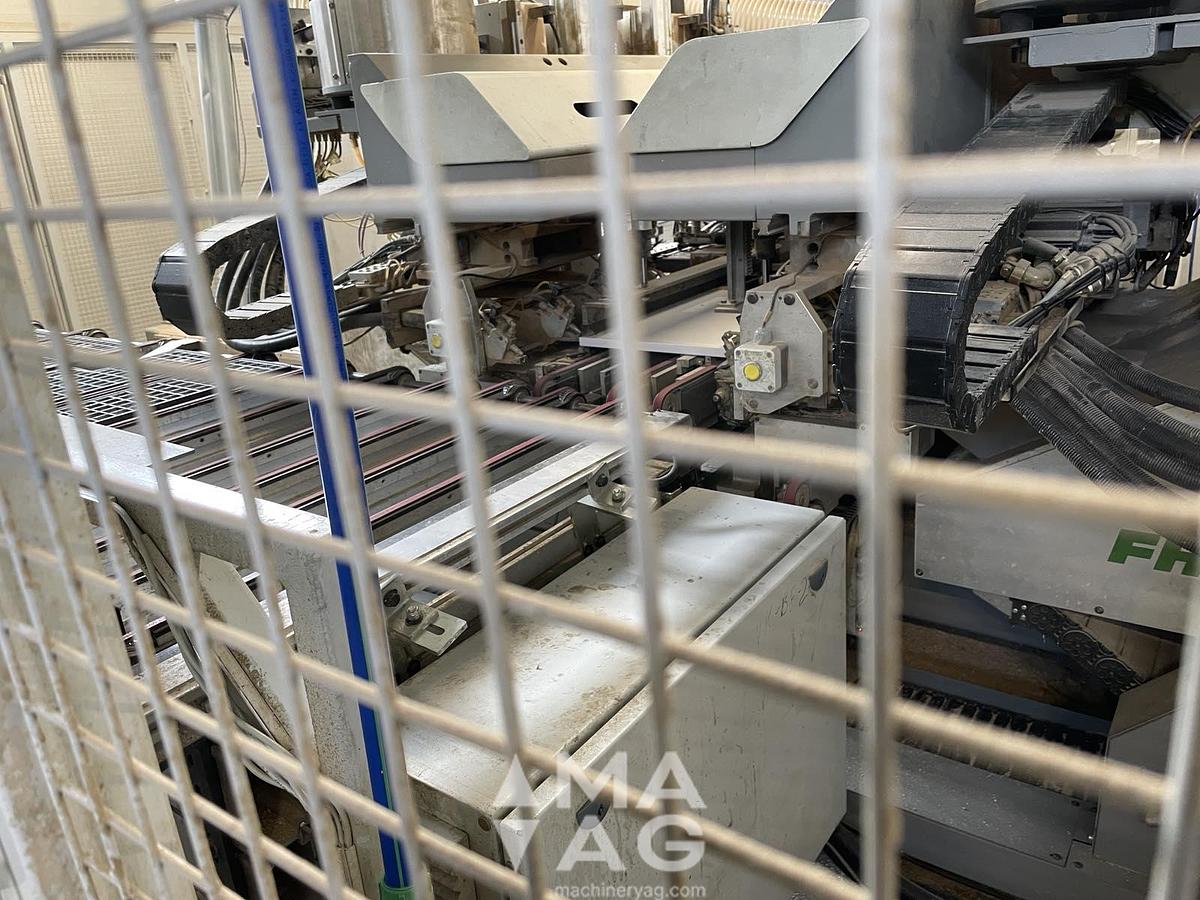

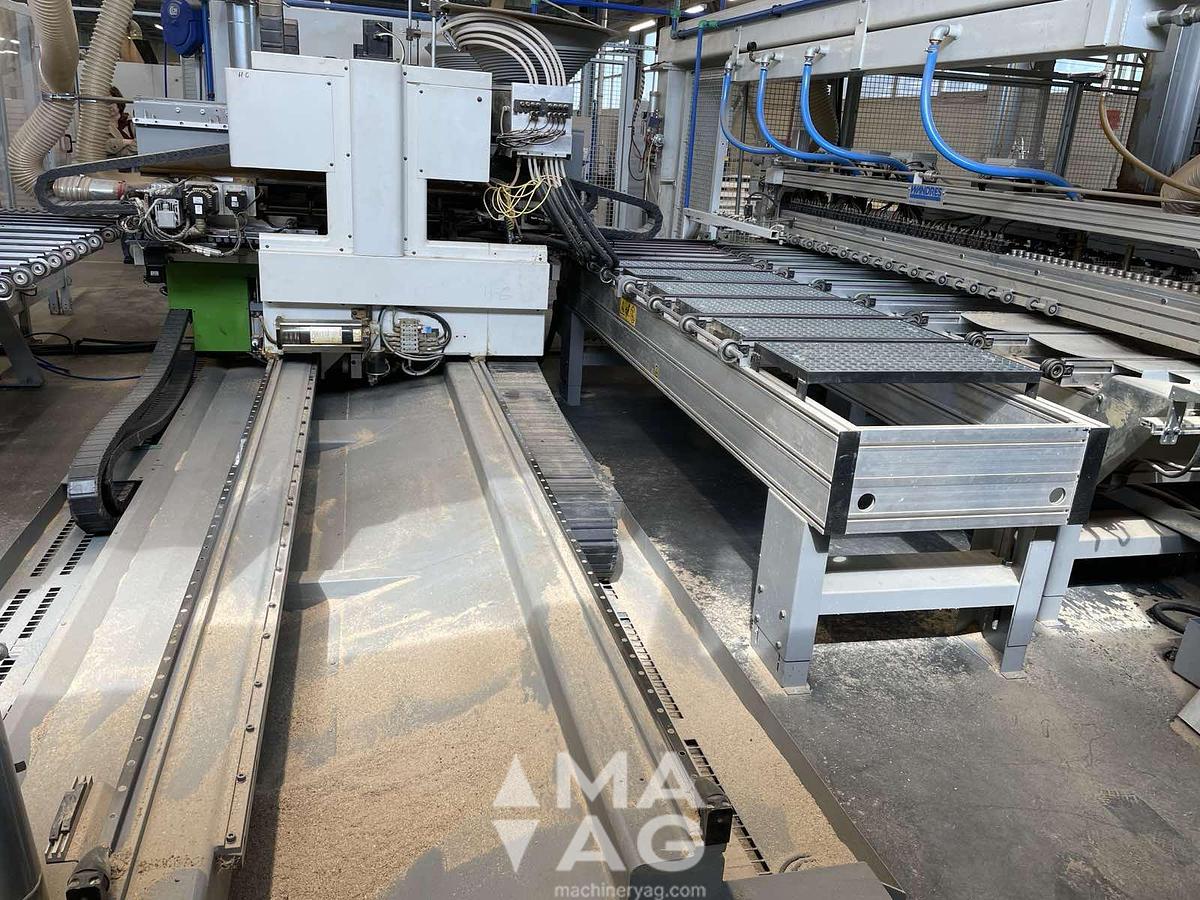

Drill heads FHT (horizontal):

Machining centres with 2 working units (1 LH unit / 1 RH unit) - 3 working tables.

HORIZONTAL BORING UNITS with 24 independent spindles to be installed onto 2 operating units

HORIZONTAL INSERTING UNITS WITH 5+5 GLUE INJECTORS AND 8 mm. DIAMETER DOWEL INSERTERS

TOOL-HOLDER ADAPTOR for the quick change spindles of the boring units.

GLUE INJECTION AND DOWEL INSERTING UNIT for 8 mm. dia. dowels to be added to the standard ones. The unit is prearranged for the insertion of 8 mm. diameter and 25-35 mm. long dowels.* The 8 mm. diam. dowel inserting units are required.

NOTE: Dowel inserting unit was never used and not tested. Not possible to be tested

ADVANTAGE C 3200 TRASV. 1 POS - loading

ADVANTAGE SC 3200 TRASV. 1 POS - unloading

Security features

Standards: CE compliant

Safety equipment: Extensive protective enclosures
