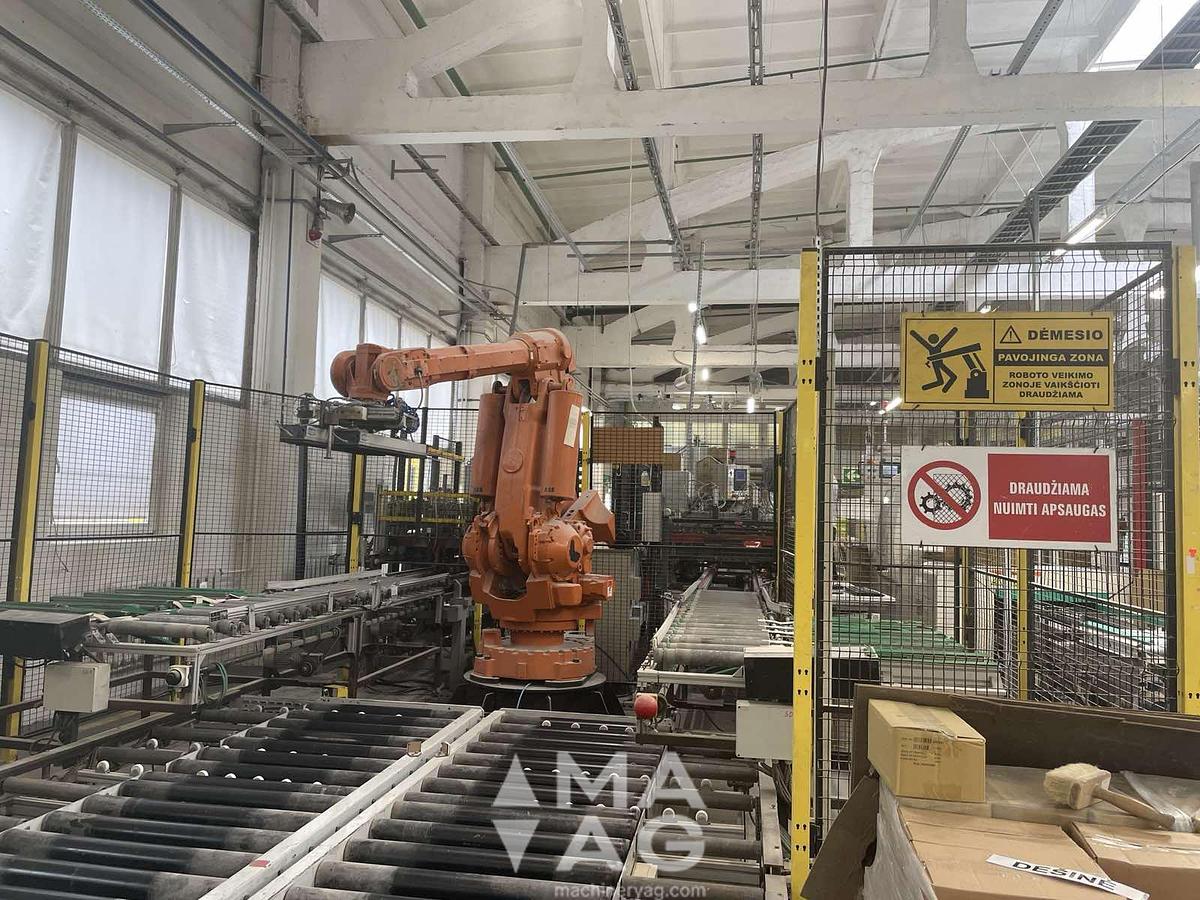

Automatic drawer slide insertion line of 3 machines and robot

Automatic drawer slide insertion line of 3 machines and robot

Contact us for price

Description

We present an Automatic drawer slide insertion line of 3 machines and robot (currently in production):

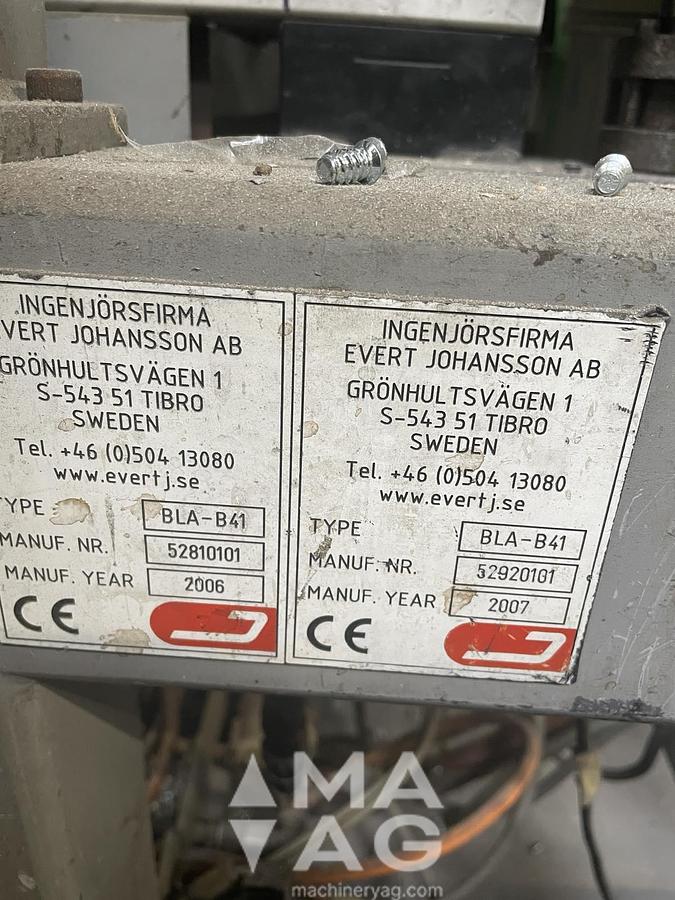

  • BLA - B41, manufactured 2006/2007 (Sweden)
  • BLA - B28, manufactured 2006 (Sweden)
  • Screwdriver 3RL, manufactured 2018 (Lithuania)
  • Robot

TECHNICAL SPECIFICATIONS

Inserting of Drawer Slides

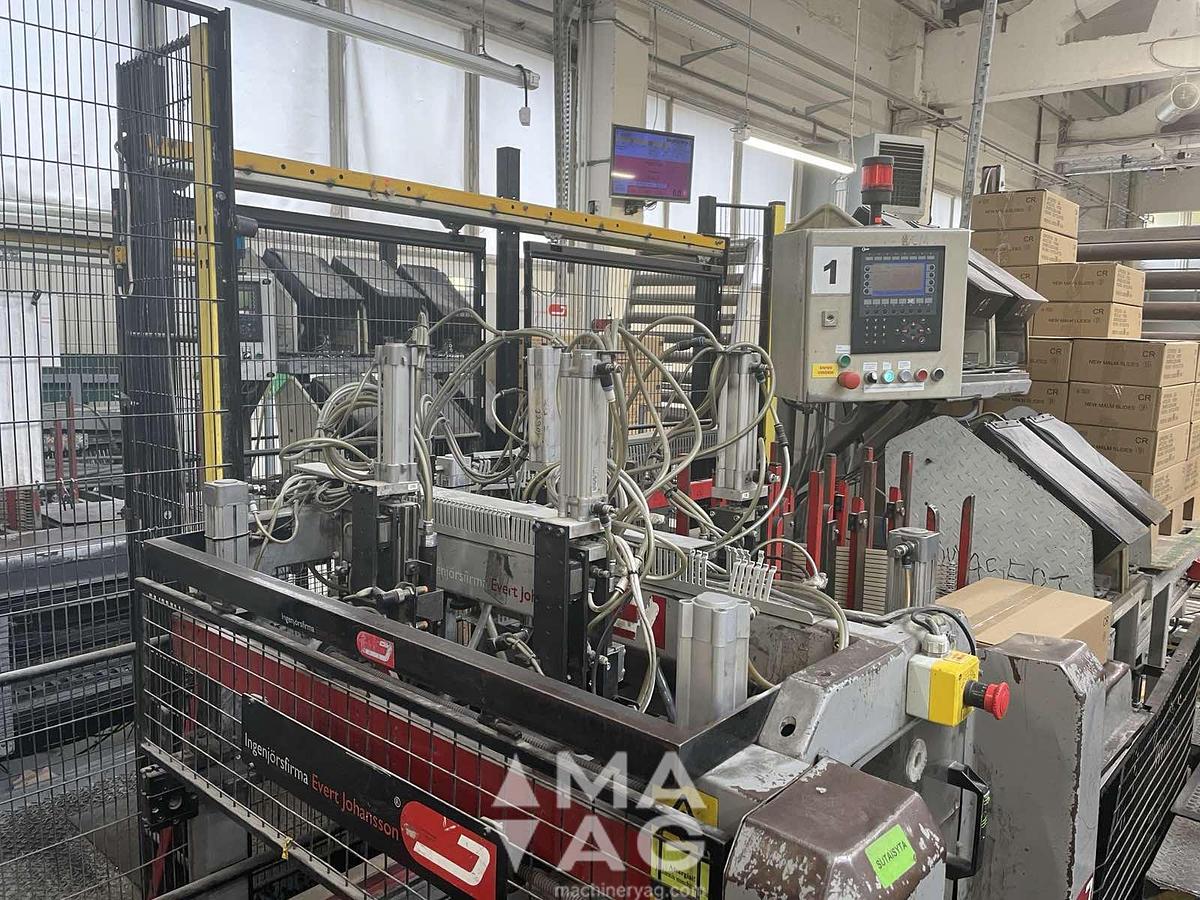

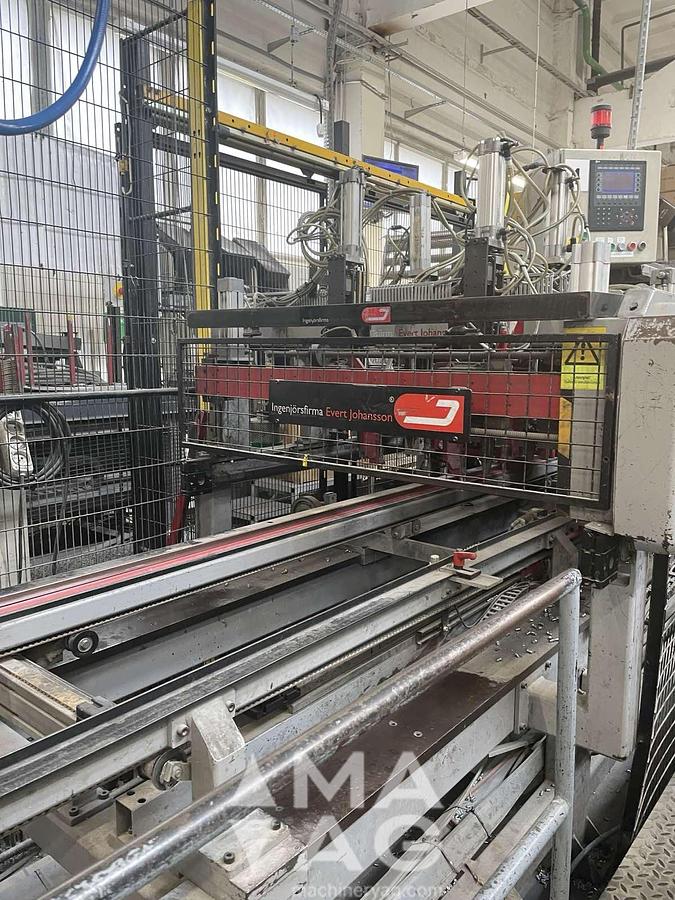

Fitting machine BLA-B41 – pos. 1

Fitting machine in pass-through outfit, equipped with positioning stop, designed for automatic screwing of drawer slides.

The fitting machine is designed for following sizes of material:

  • Deep: 300–600 mm, servocontrolled adjustment
  • Height: 400–1500 mm, servocontrolled adjustment
  • Thickness: 16 mm

Dimensions

  • Machine length: 4100 mm
  • Pass-through height: 900 mm

Screwdriver equipment

Screwdriver beams, 2 units, each equipped with 2 screwdrivers and corresponding screw feeders for Ø6.3x13 screws.

A suiting screw is the type 84 FSX, delivered by www.svenskskruv.se

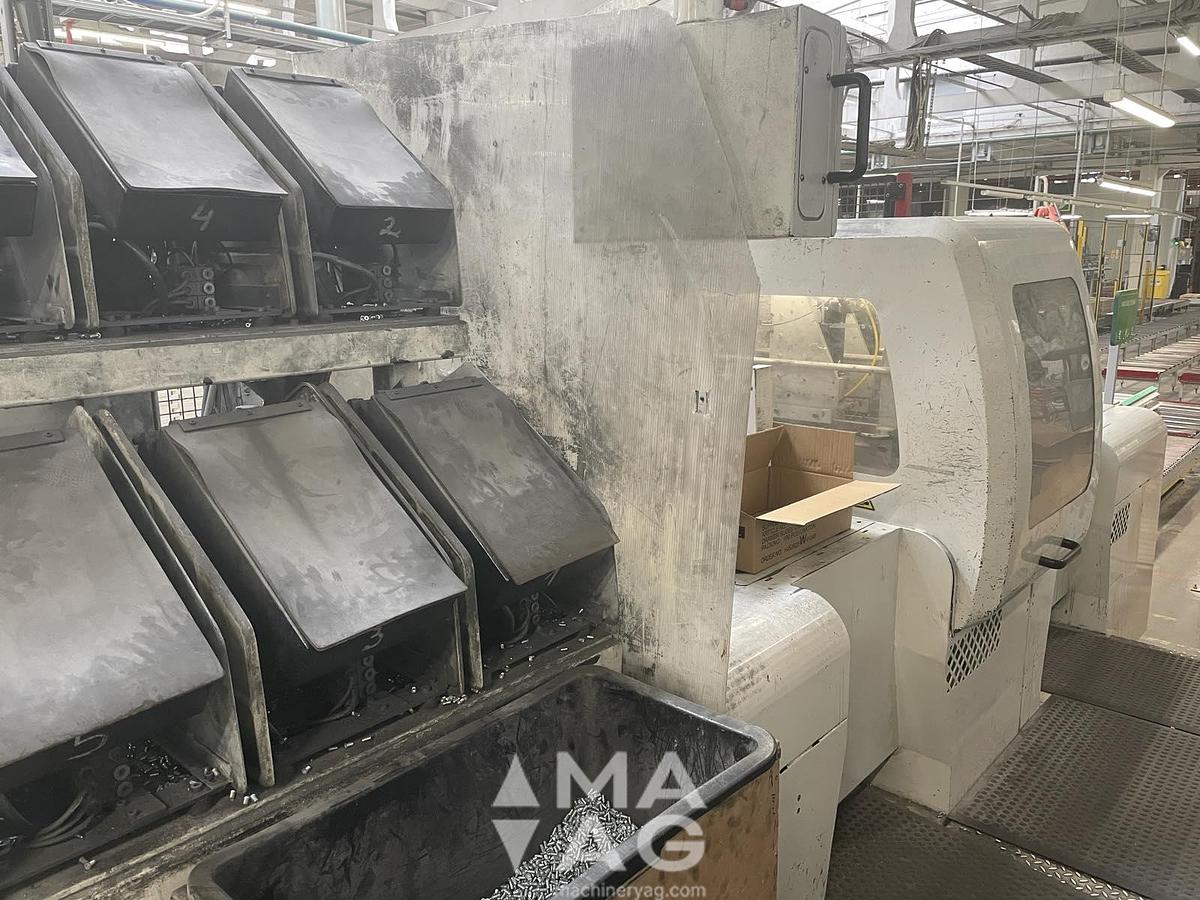

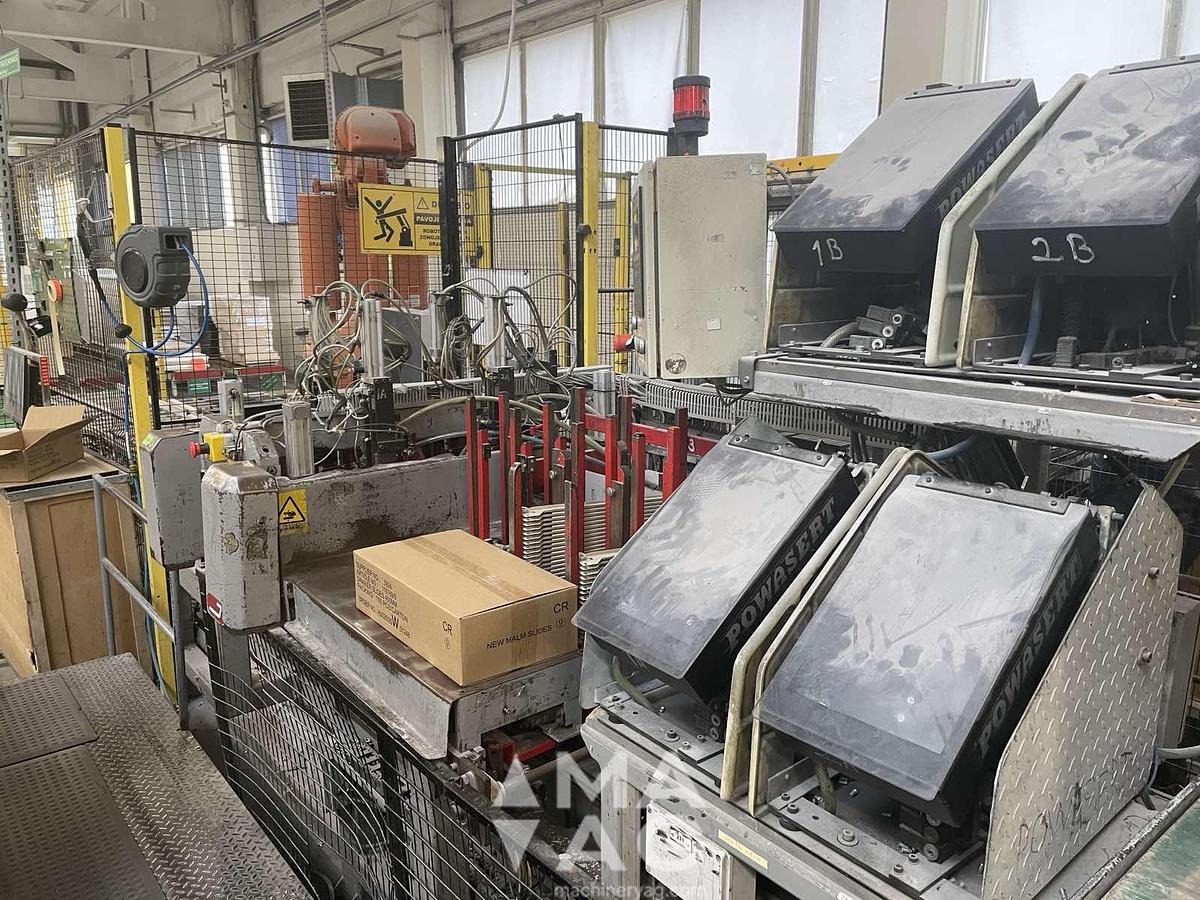

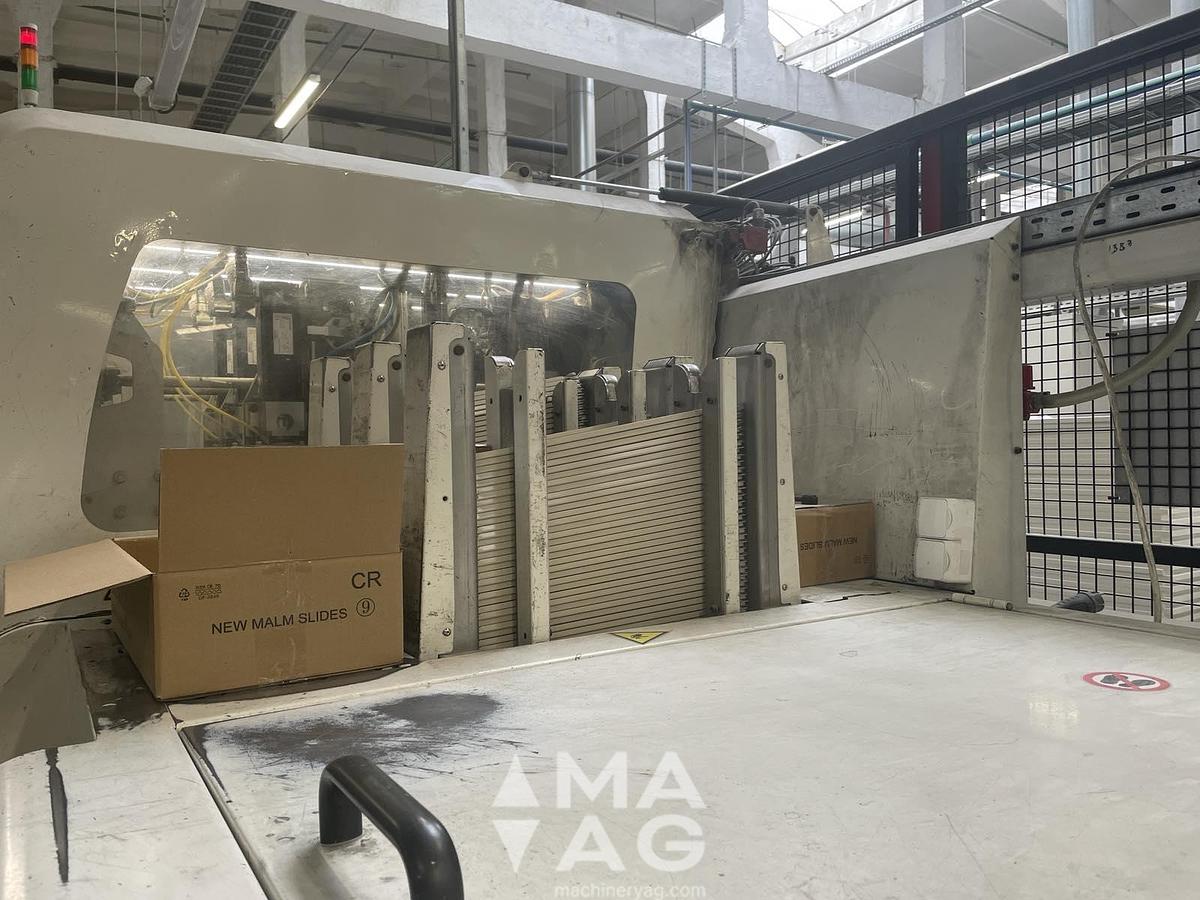

Magazine units

  • 2 magazine units designed for left drawer slide
  • 2 magazine units designed for right drawer slide

·        Each magazine contains approximately 40 drawer slides.

·        The length of the slides are 450 mm and the width 21.5 mm.

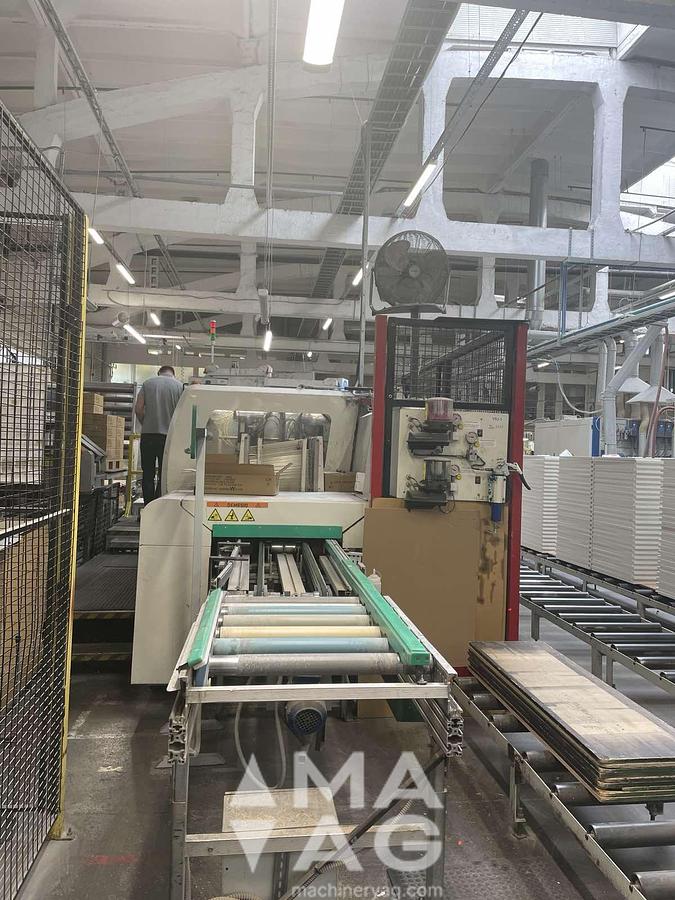

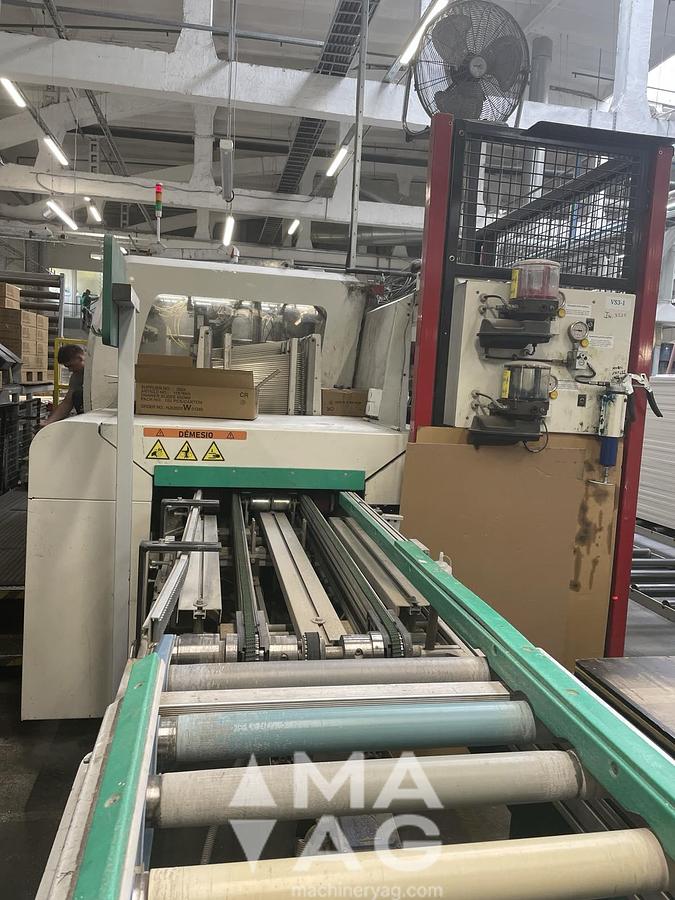

Buffer conveyor TPB – pos. 2

Driven roller conveyor

  • Total length: 2150 mm
  • Other specifications are the same as for pos. 3 above.

Buffer conveyor TPB – pos. 3

Driven roller conveyor

  • Total length: 2450 mm
  • Roll length: 600 mm (620 mm inside conveyor frame)
  • Roll pitch: 150 mm
  • Roll type: Ø50 mm steel, coated with thermoplastic rubber
  • Speed: 0.78 m/sec. at 50 Hz (frequency controlled)
  • Height: 900 mm

Returning Conveyor System TPT-US – pos. 4

Sideway section with four belts

  • Speed: 0.5 m/sec. at 50 Hz (frequency controlled)

Driven roller conveyor

  • Total length: 8900 mm
  • Roll length: 600 mm (620 mm inside conveyor frame)
  • Roll pitch: 150 mm
  • Roll type: Ø50 mm steel, coated with thermoplastic rubber
  • Speed: 0.50 m/sec. at 50 Hz
  • Height: 900 mm

Additional specifications

Sound pressure level

  • Lower than 70 dB(A)

Connection facts electrical

  • With reference to the electrical drawings

Connection facts pneumatic

  • 0.63 MPa (6.3 bar), ½”




Specifications

ModelBLA-B41+BLA-B28+Screwdriver 3RL
Year2006
ConditionUsed
Stock Number78658
