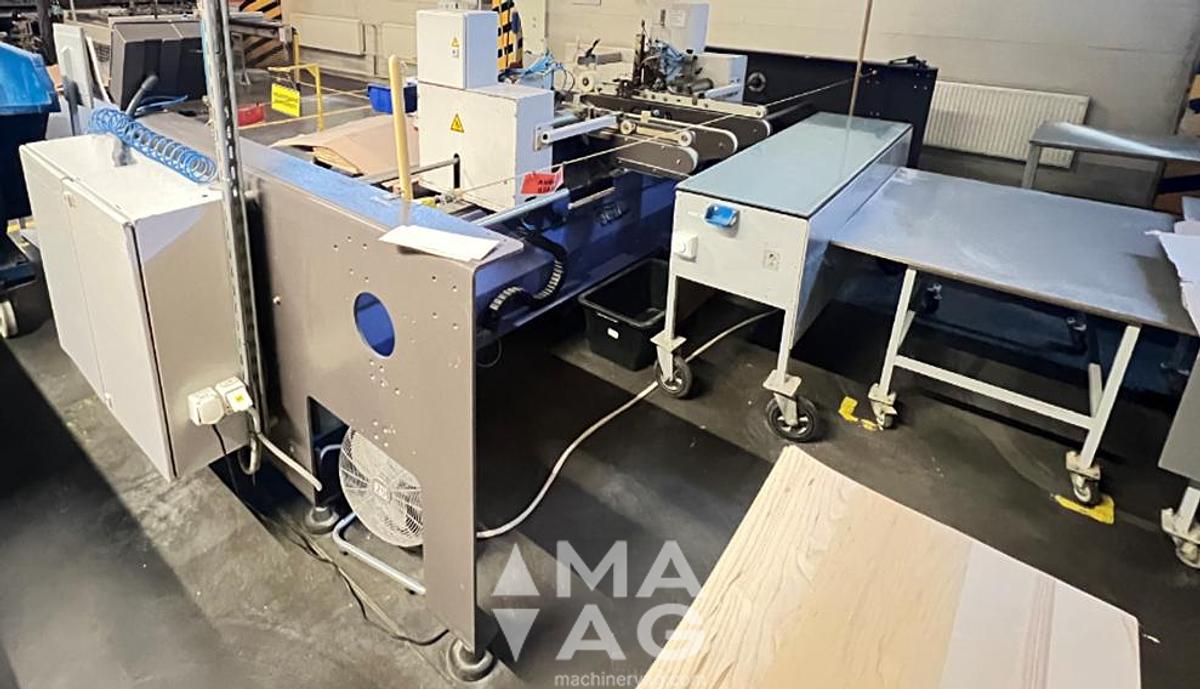

2009 Fisher+Rueckle EDGEMASTER EMF-28

Edge Strengthening and Trimming Device EDGEMASTER EMF-28 for sale!

Technical Data

Veneer specifications

Veneer strip length (grain direction) 420 - 2800 mm

Veneer sheet width (cross grain) 400 - 4200 mm

Veneer strip thickness (incl. trimming) 0,3 - 1,5 mm

Veneer strip thickness 0,3 - 2,0 mm

Machine capacity

Production speed (continuous) 15 - 35 m/min.

Machine specifications

Cut-off each side 10 - 350 mm

Tape (paper) width 6 mm

Tape (paper) thickness 0,16 mm Type CP-99

Roll (core in- and outside) ∅ 75 mm, ∅ 325 mm

Roll (width) 65 mm

Tape running meter 3200 m

Connection data

Electric energy 1,1 kW

Compressed air 6 bar

Power consumption

Compressed air consumption 5 NL/min

Dimensions / weight

Measurements

Length 4755 mm

Width 1868 mm

Height 1690 mm

Working height 930 mm (+50/-0 mm)

Net weight, approx. 1350 kg
