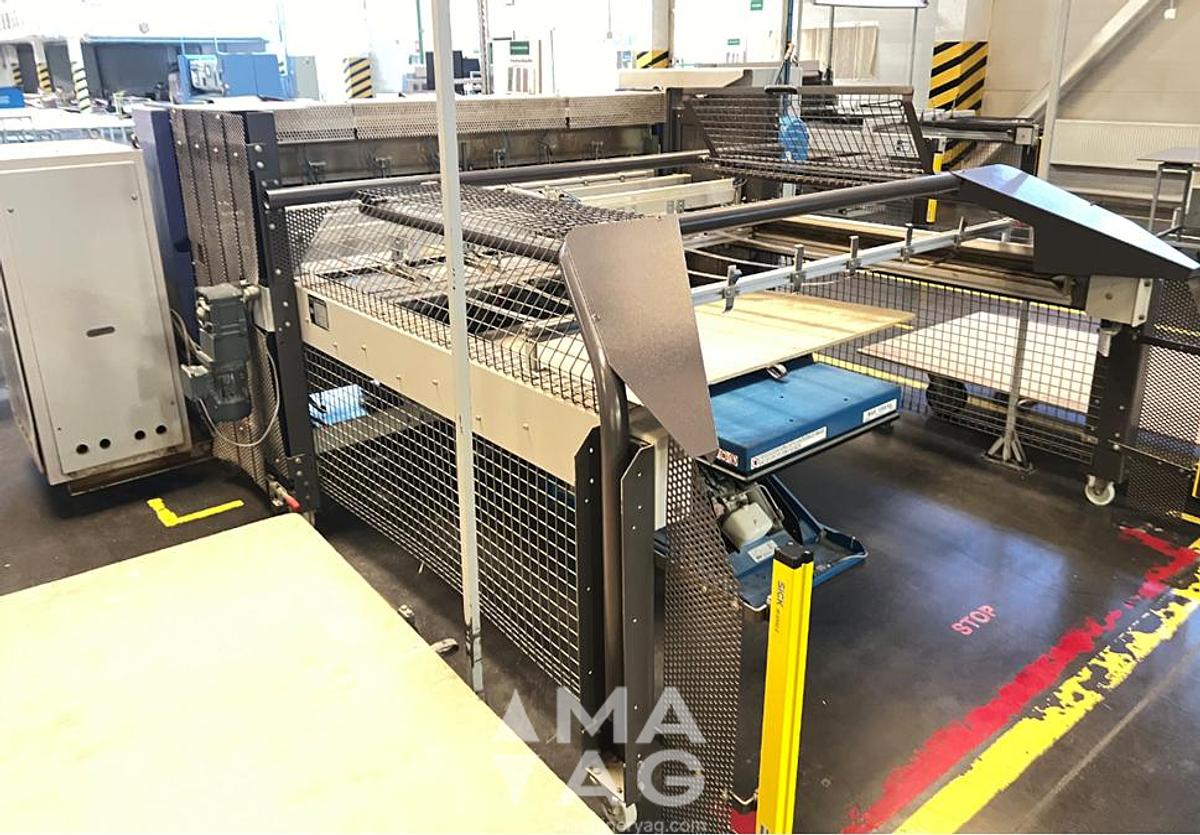

2015 Fisher+Rueckle FURNIMASTER FZR-21+DA-12R

Machines connected in one line (all three machines are only sold together):

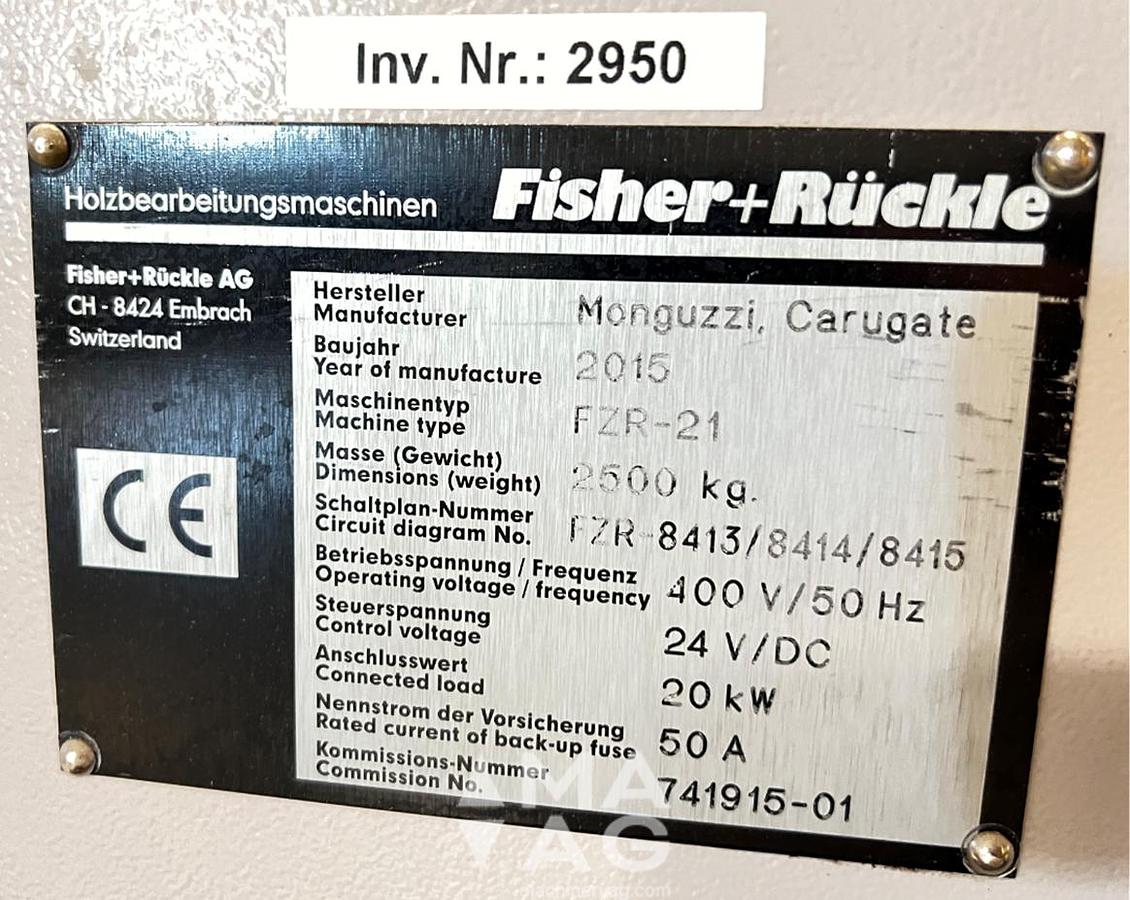

• Veneer cross-jointing machine FURNIMASTER FZR-21

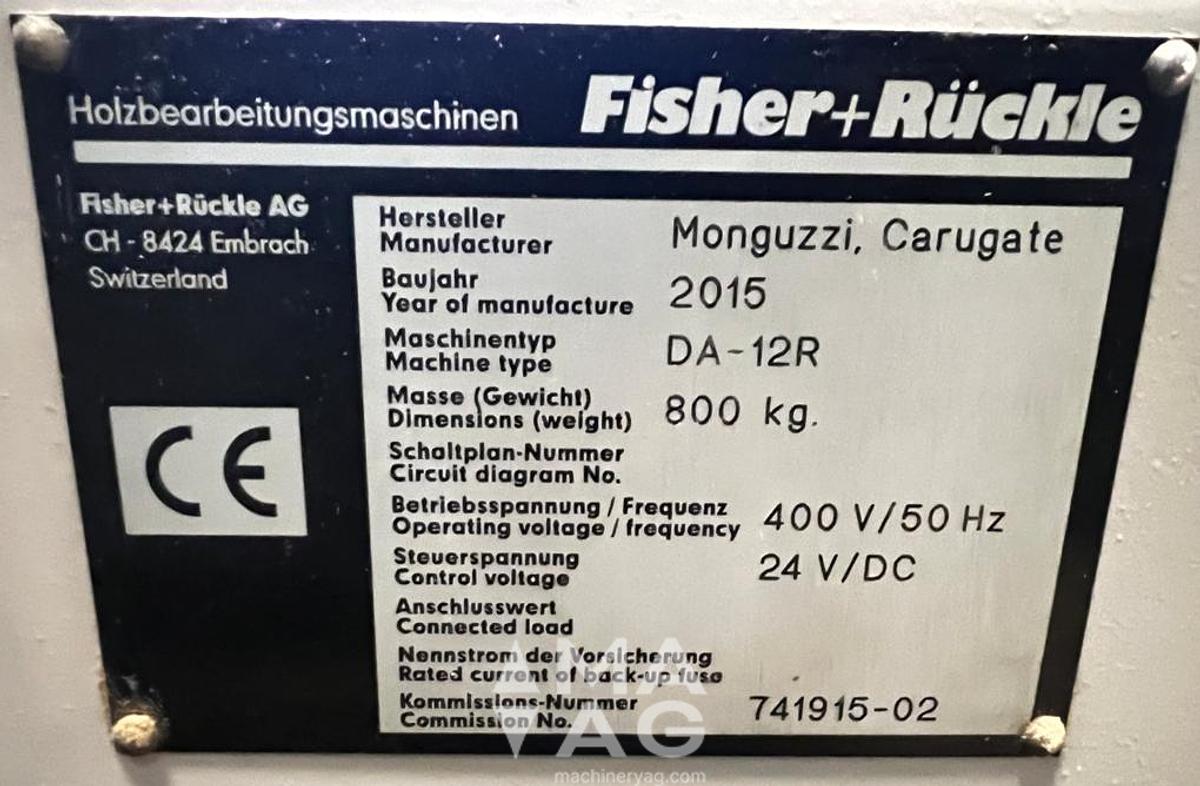

• Direct unloading device DA-12R
• Scissor lift INCLUDED

Veneer specifications

Veneer strip length (grain direction) 350 - 2100 mm

Veneer strip width (cross grain) 50 - 500 mm

Veneer strip thickness 0,3 - 1,5 mm

Power data

Maximum nominal output / machine cycles 30 cycles/min.

Average production speed 17 - 20 cycles/min.

Connection data (Basic machine)

Connection power 9 kW

Compressed air 6 bar

Power consumption

Electric energy 6,2 kWh

Compressed air 15 NL/min.

Dimensions and weight (Basic machine)

Length 3500 mm

Width 1500 mm

Height 1530 mm

Working table height 930 mm (+50/-0 mm)

Net weight, approx. 2500 kg
