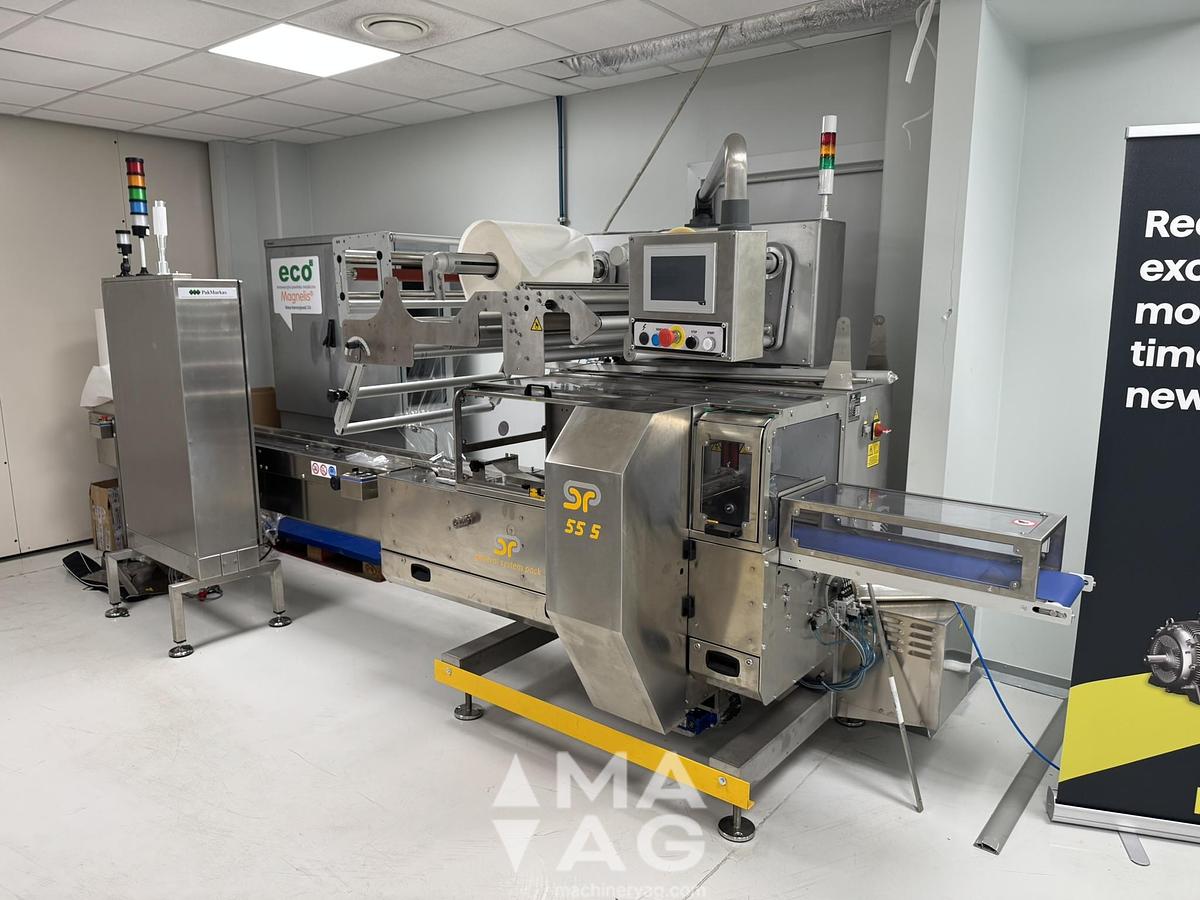

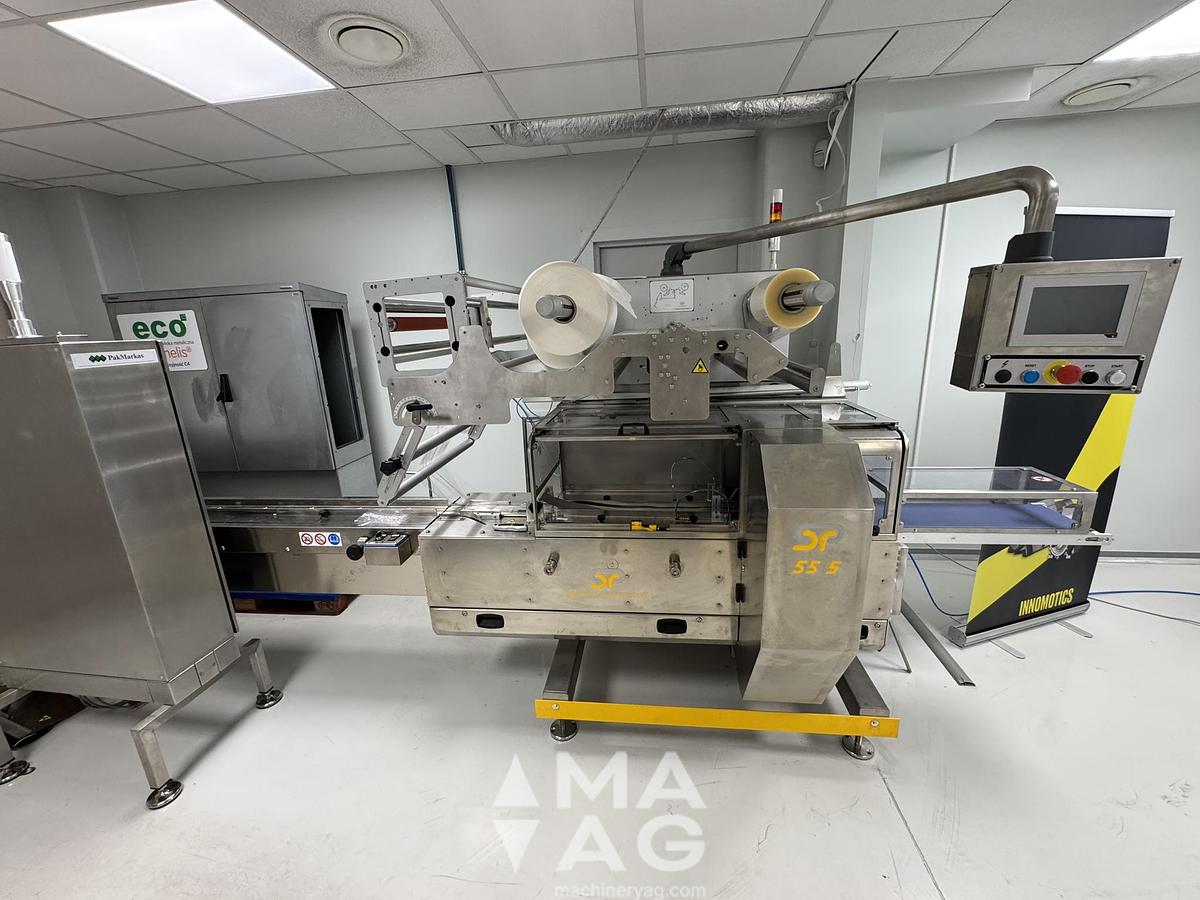

2021 General System Pack GSP 55S Horizontal Wrapper

HORIZONTAL WRAPPER GSP 55 S for sale!

Machine condition: like new, used only in a showroom for demonstration purposes.

The machine is supplied as follows:

- Cantilever main frame and guards manufactured in anticorrosive steel plates painted RAL 9007, machine on adjustable feet.

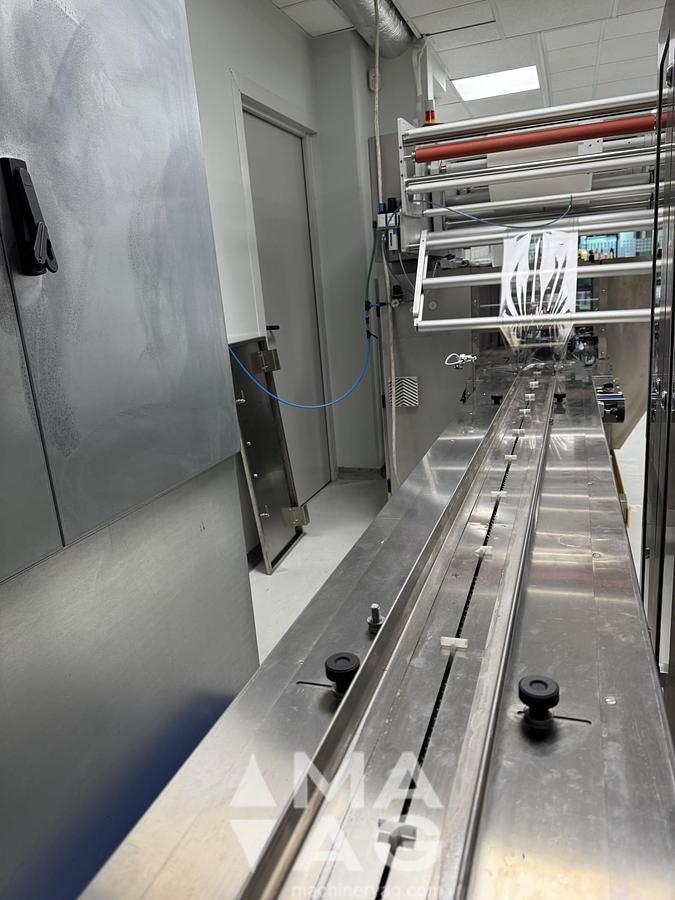

- 2.000 mm length infeed conveyor with stainless steel product contact surfaces (AISI 304);

- Quick replaceable plastic pushers suitable for food use.

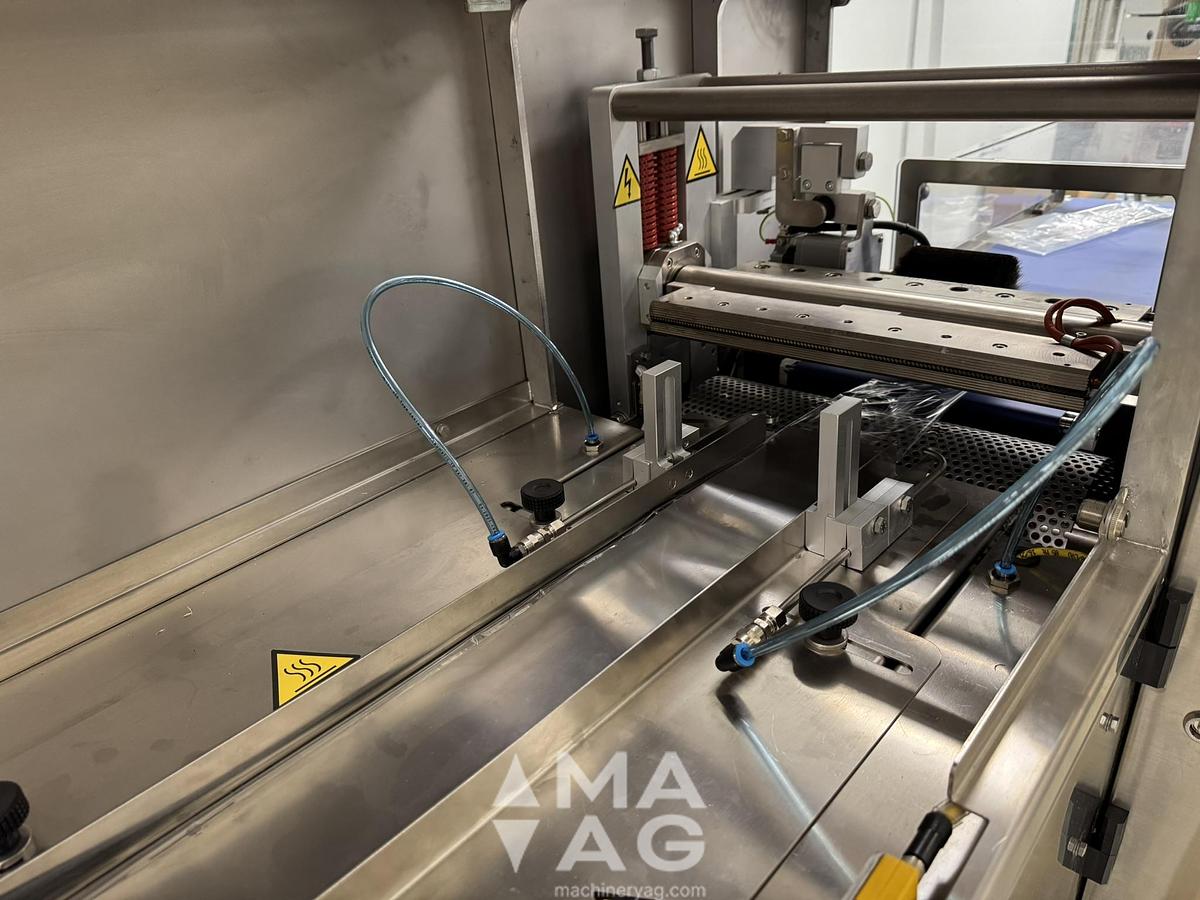

- Longitudinal sealing unit, made by three sets of fin wheels: the first one cold, diam 100 mm to pull the film, the second one heated, diam 100 mm to seal the film; the third one cold and conical, diam 60 mm, used to drive the film; film cooling air blow.

- First set of wheels opening through touch screen

- Pneumatic opening of heated wheels by machine stop

- Easy opening of deck plates over fin seal without any tools

- 190 or 270 mm one up jaw width, rotating one with inclined knife and transversal or longitudinal welding pattern.

- Safety device fitted onto the cross welding unit

Motorization:

- Multi-axes drive technology with :

- n. 1 brushless motor for the infeed conveyor control

- n. 1 brushless motor for the back seal rollers control

- n. 1 brushless motor for the transversal sealing unit control

- n. 1 dc brushless motor for the outfeed conveyor control

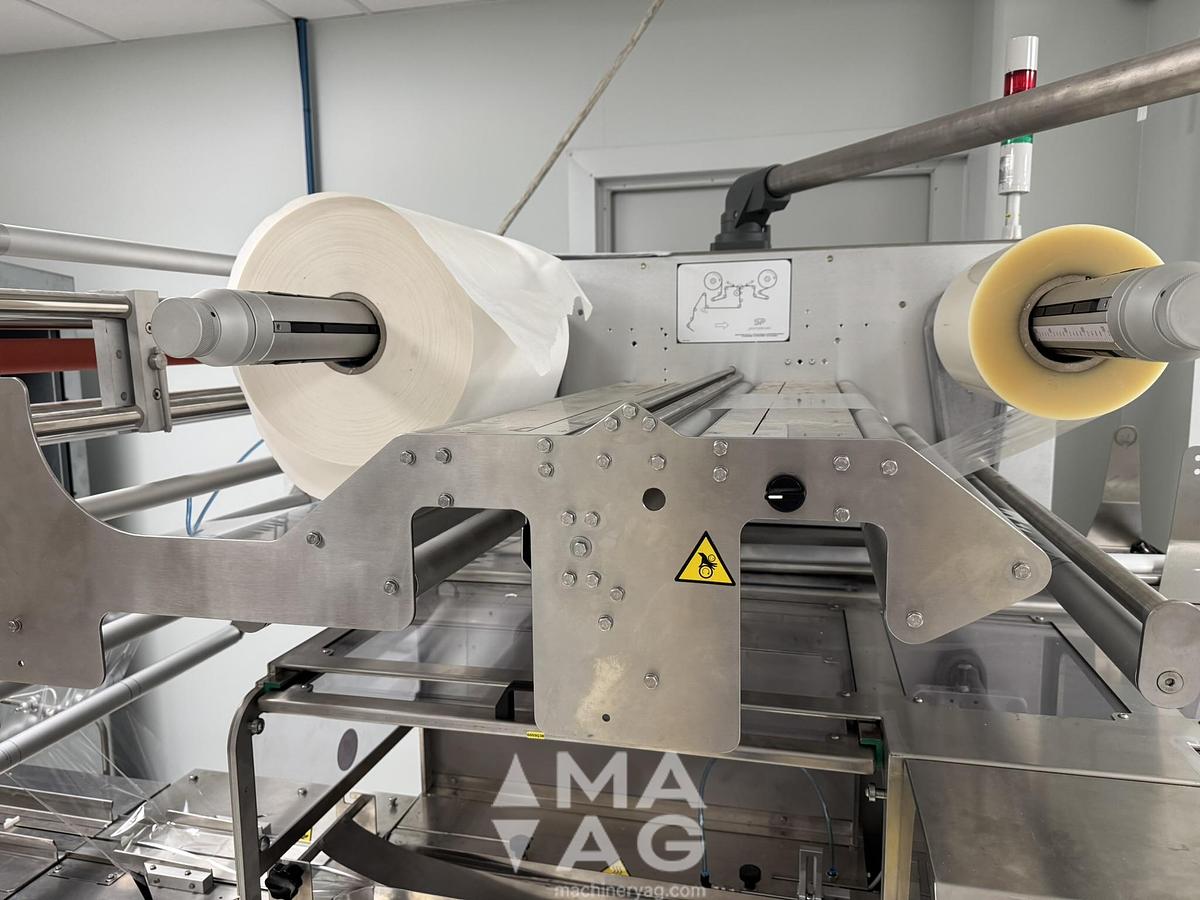

- Cantilever single reel film holder for 520 mm film width, with expansion blades pneumatically activated to hold the film reel

- 1.000 mm powered out-feed belt

- Machine stop in phase with open cross sealing jaws.

- Safety covers manufactured in anticorrosive steel plates painted RAL 9007, with safety micro-switches

- Electrical cabinet

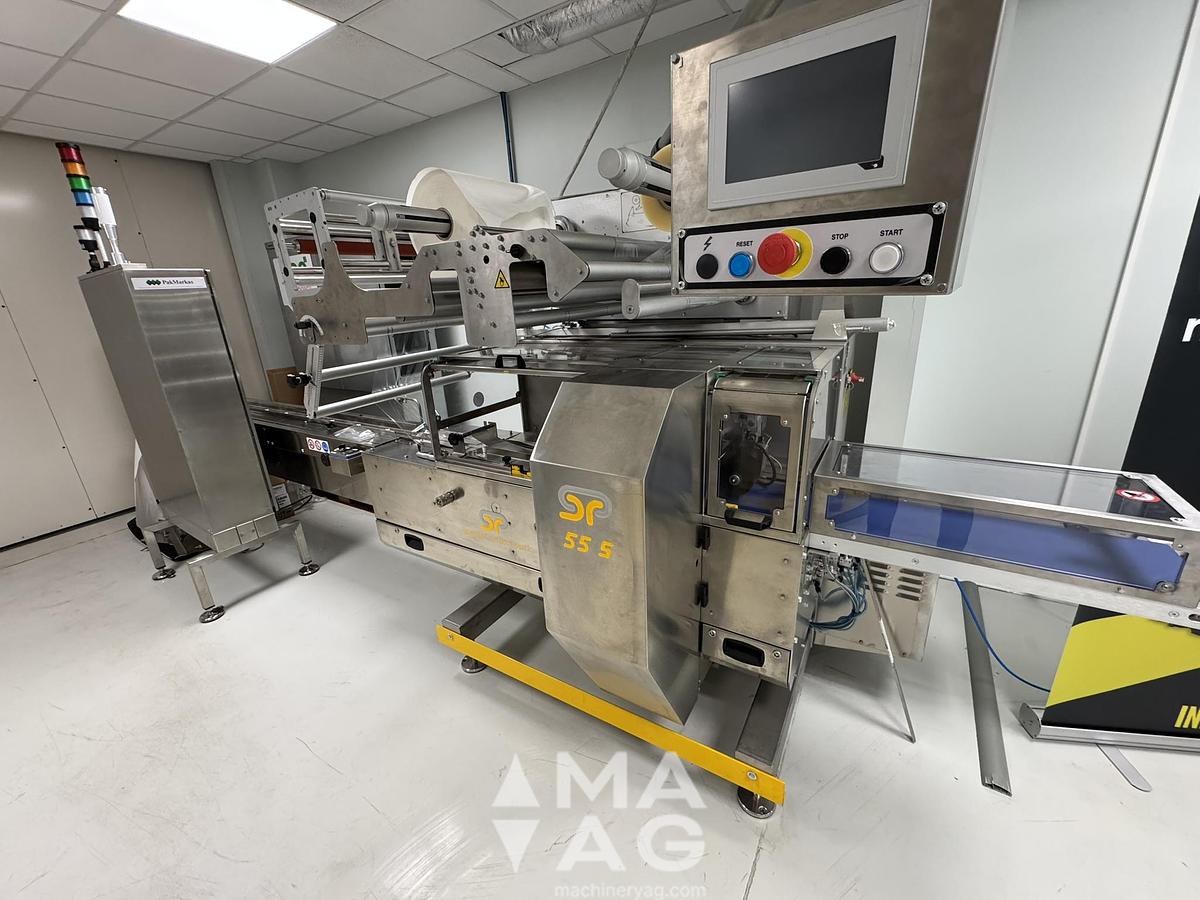

- Control panel equipped with:

- start button for continuous run

- reset button

- e-stop button

- positional stop button

- power presence led

- 7” touch screen display with following functions:

- speed setting-up

- bag length setting-up

- sealing units temperatures setting-up

- product phase

- sealing jaws speed

- (possibility of storing up to 100 programs)

- One fixed or adjustable forming box

- Set of spare parts.

- Machine in left hand execution: products are loaded from the left side and are discharged to the right. (Right hand execution upon request).

- Machine manufactured according to the latest CE regulations.

Machine is equiped with following additional options:

Main frame and infeed conveyor in stainless steel execution

Gear shift on electronic machines (up to GSP 65 EVO)

Photocell for print reg. film for electronic machine

Product support on infeed conveyor (up to GSP 65 EVO)

Each additional meter of products carrying plates (for GSP 600 EVO, GSP 600 EVO BB e GSP 75 EVO)

1.000 mm stainless steel infeed conveyor extension

Provision for printer

No product - no bag photocell

Motorised film unwinding with Brushless motor

Motorised cross jaws H adjustment

Pre-heating film

Two-up jaws

Removable sealing jaw

Cantilever sealing jaw

Reel holder for 720 mm film width

Double self-supporting reel holder

Air blow to reject empty/double or spliced packages

Adjustable pusher drop-down position

Gussetting device (rotary machines)

Handwheel for film reel holder centering

Pre-cutting unit for rotary machines

Two-up jaws extra cost - Pre-cutting unit for rotary machines
