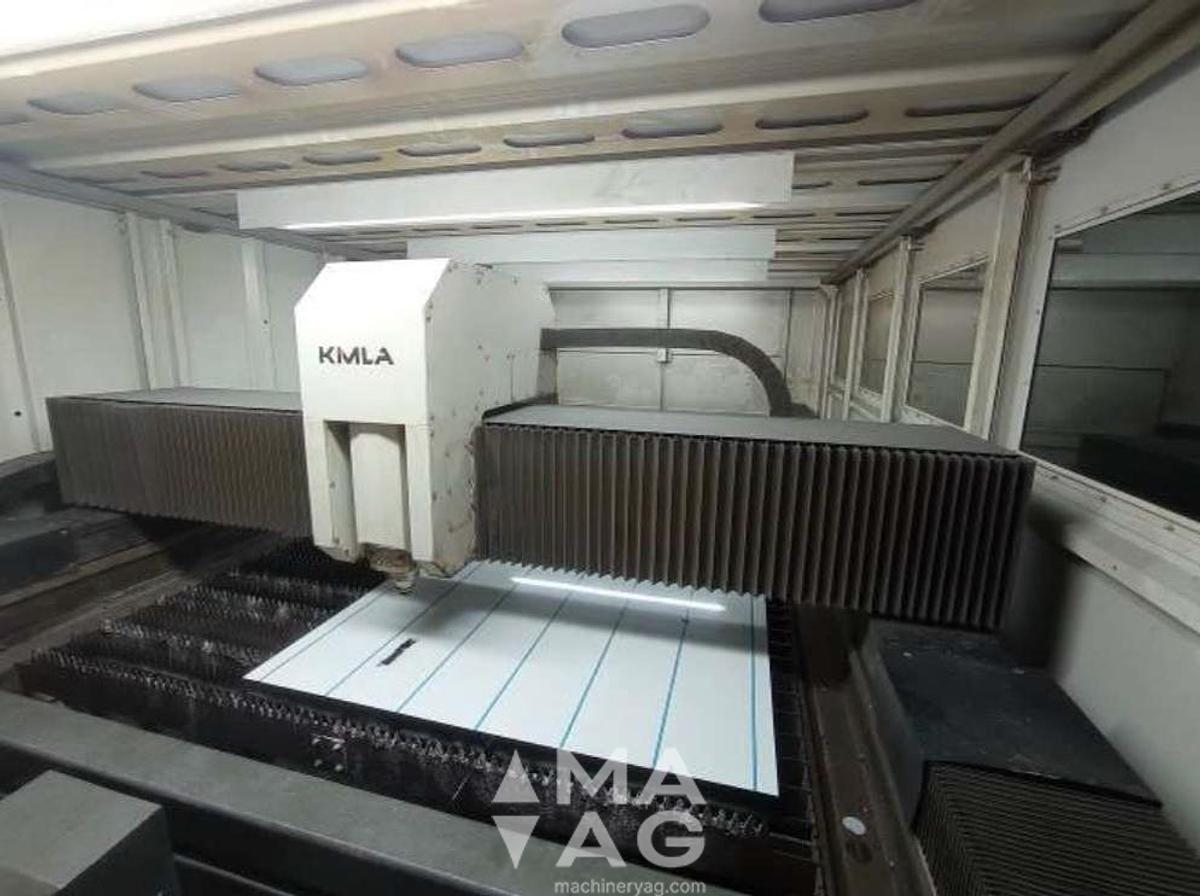

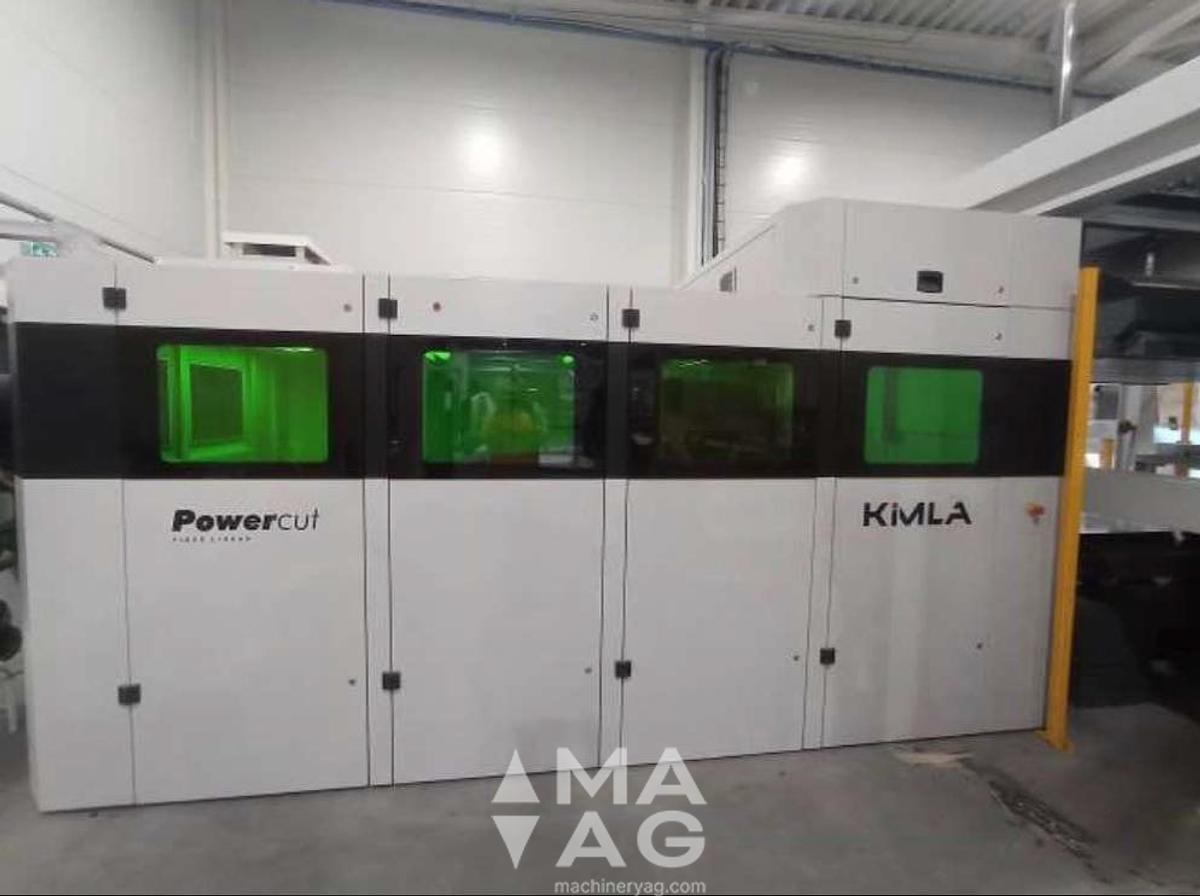

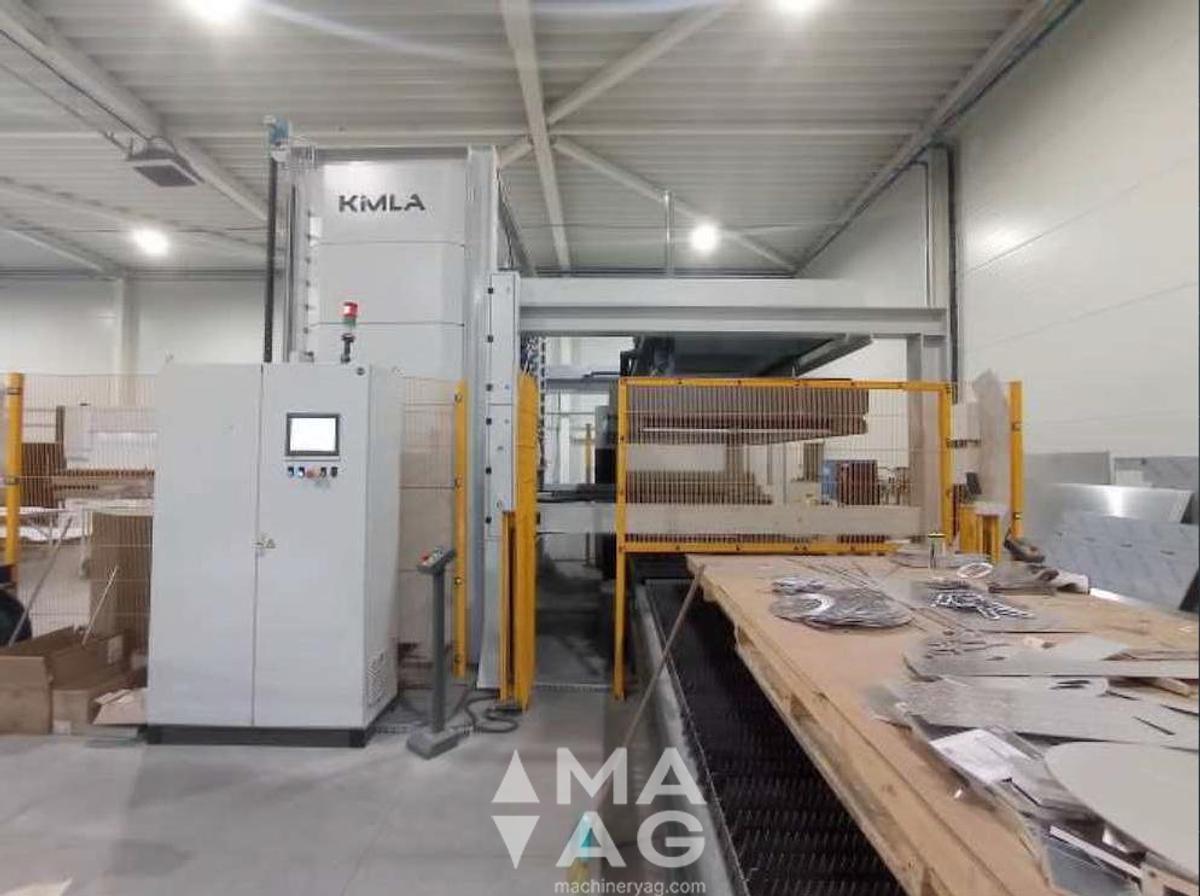

KIMLA POWERCUT LF1530 Fiber Laser Cutting System (Fully Automated Line)

We present a fully automated fiber laser cutting system with integrated storage, robotic handling, and high-speed precision performance, designed for industrial production environments.

KIMLA POWERCUT LF1530 Fiber Laser Cutting System (Fully Automated Line)

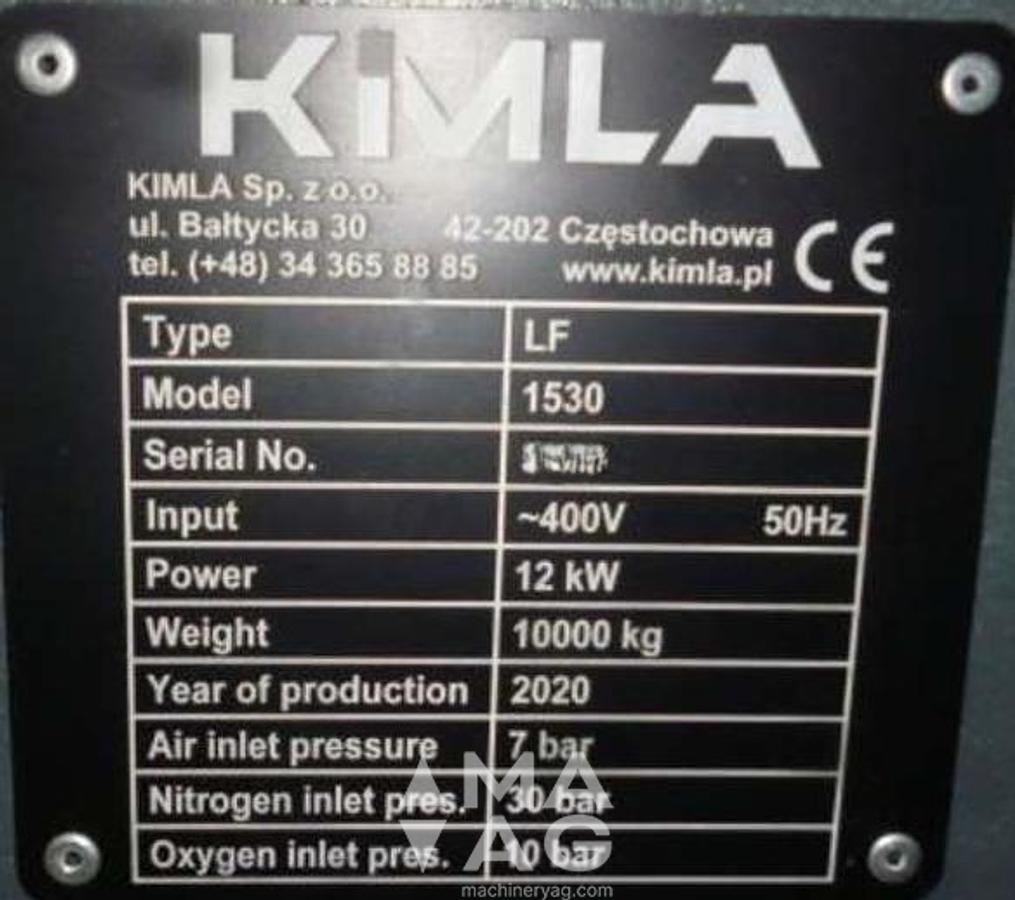

• Model: KIMLA POWERCUT LF1530
• Manufacturer: KIMLA
• Year of manufacture: 2020
• Compliance: CE certified

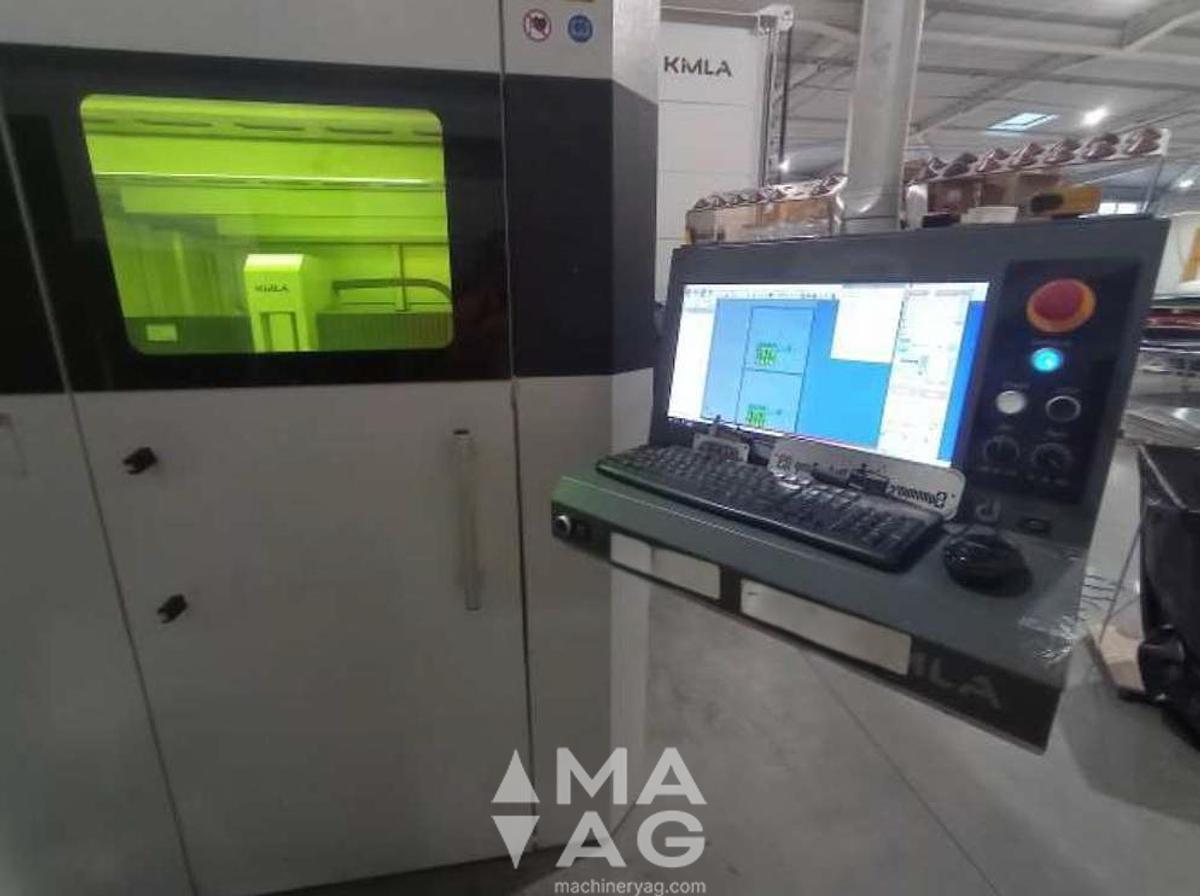

• Control system: Full CNC digital control

Technical Specifications

Installation length 12,500 mm

Installation width 7,200 mm

Installation height 3,000 mm

Nominal sheet size (X axis) 3000 mm

Nominal sheet size (Y axis) 1500 mm

Cutting area X axis 3050 mm

Cutting area Y axis 1550 mm

Cutting area Z axis 120 mm

Max positioning speed (all axes) 230 m/min

Max positioning speed (X/Y axes) 230 m/min

Max positioning speed (Z axis) 70 m/min

Acceleration (X/Y axes) 6G

Repeatability 0.001 mm

Positioning accuracy 0.002 mm

Max workpiece weight 900 kg

Laser source Fiber laser, 4000 W (IPG)

Pulse frequency ±1–2500 Hz

Total power consumption (excluding extraction & chiller) 30 kW

Drive system Linear drives on all axes

Optical linear encoders Yes

Part measurement/scanning system RENISHAW or equivalent, inductive

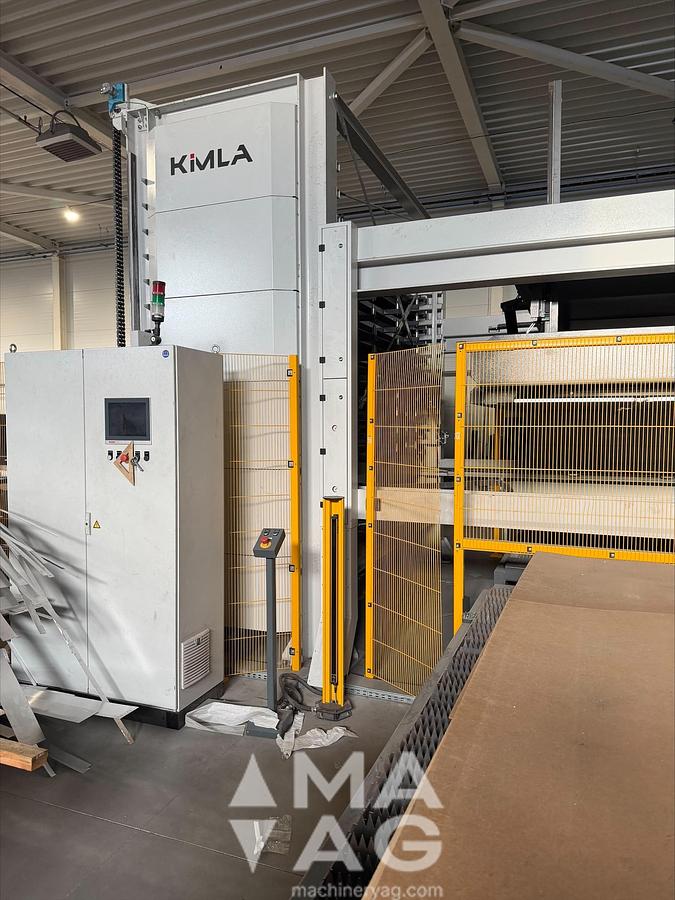

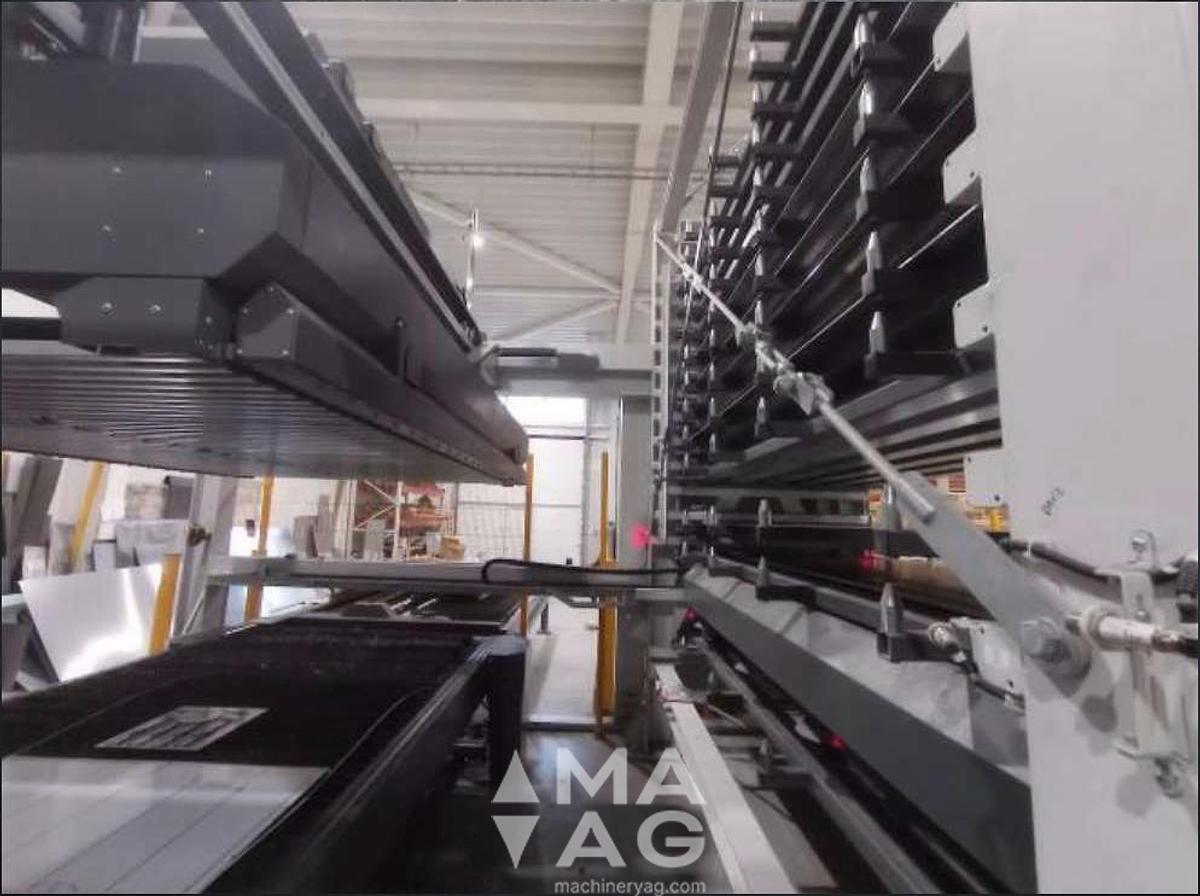

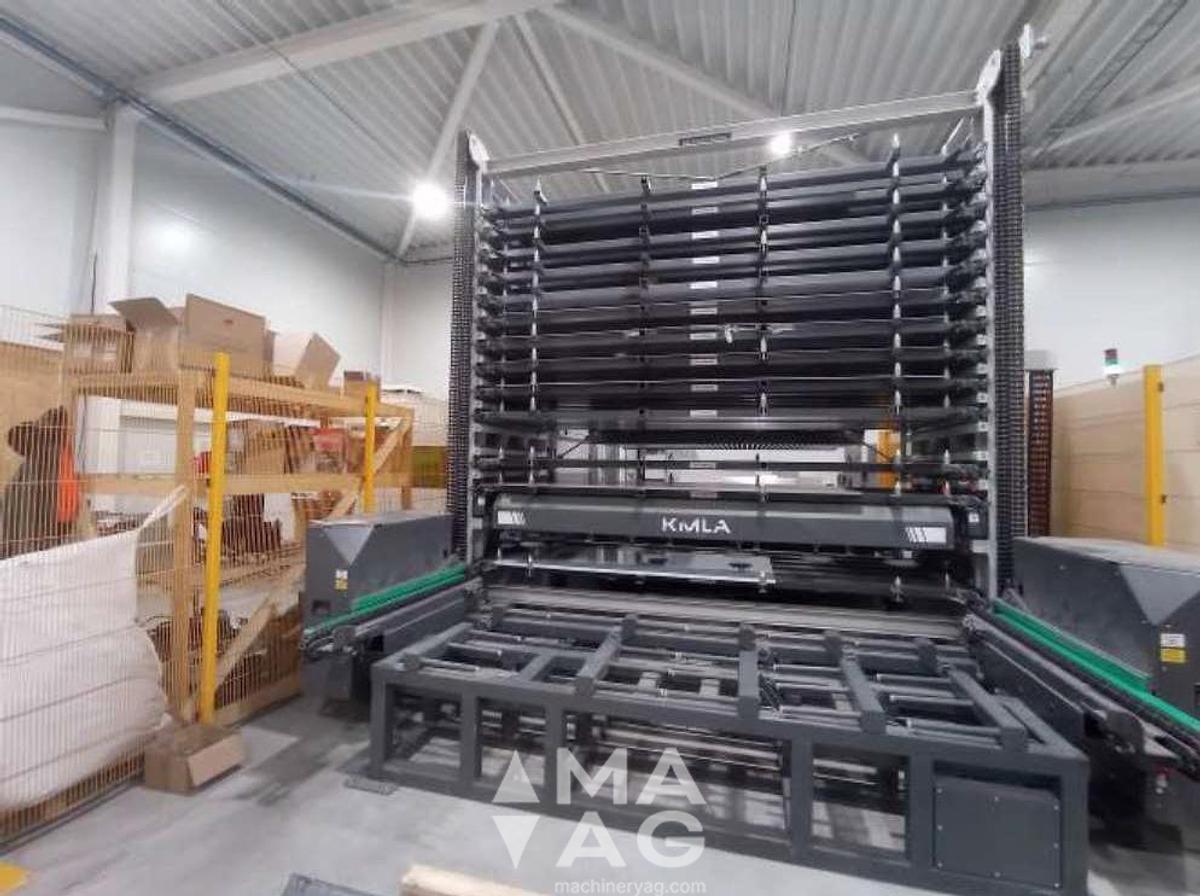

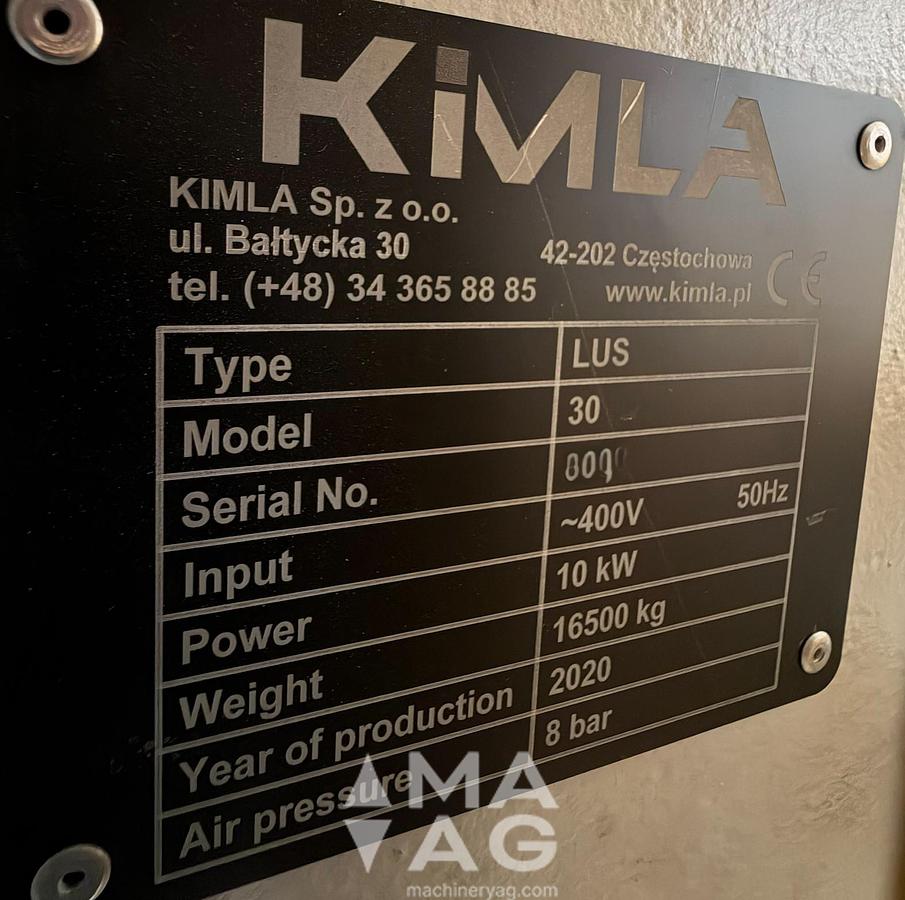

Automatic sheet loading/unloading & storage system Integrated, 12 positions, 2000 kg each

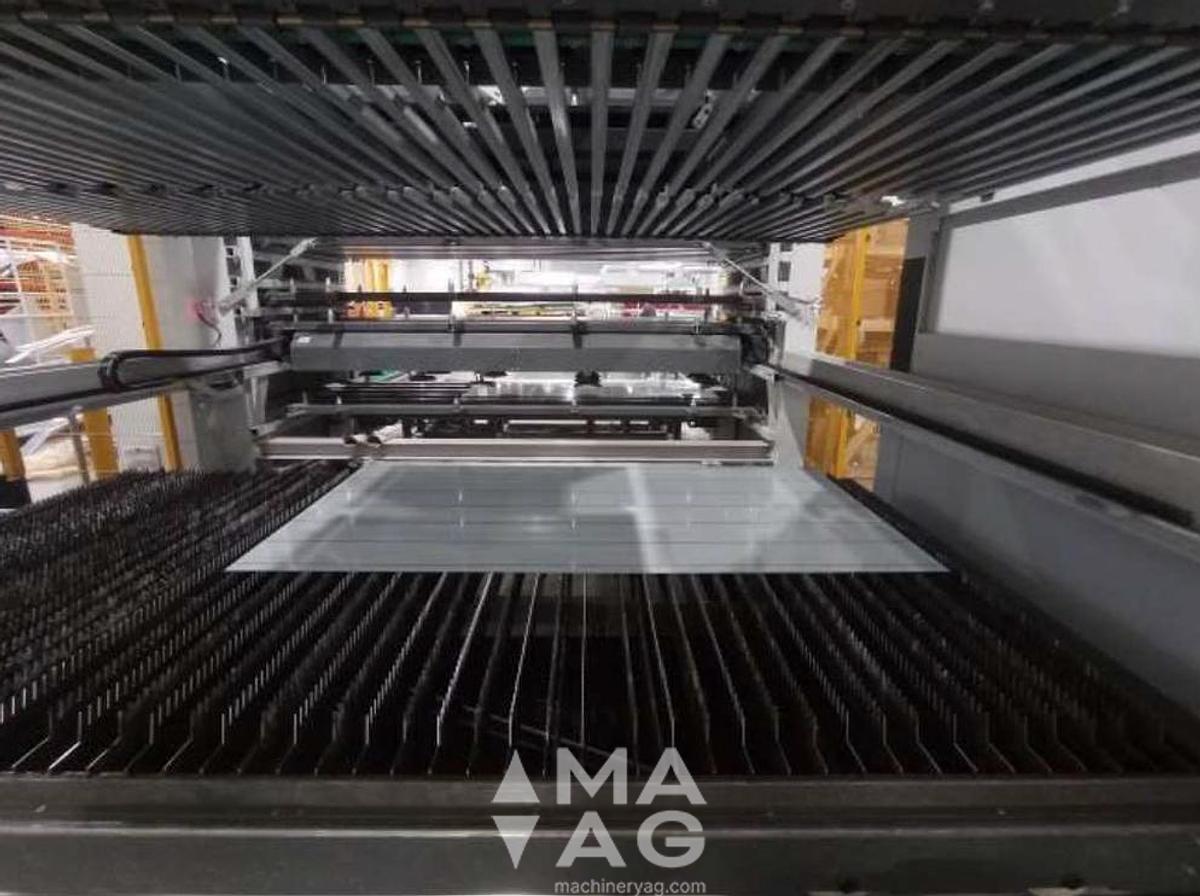

Shuttle tables Yes, 3

Table exchange speed 1 m/s

Tube cutting option Yes, on third pallet

Dynamic motion control (trajectory optimization) Yes

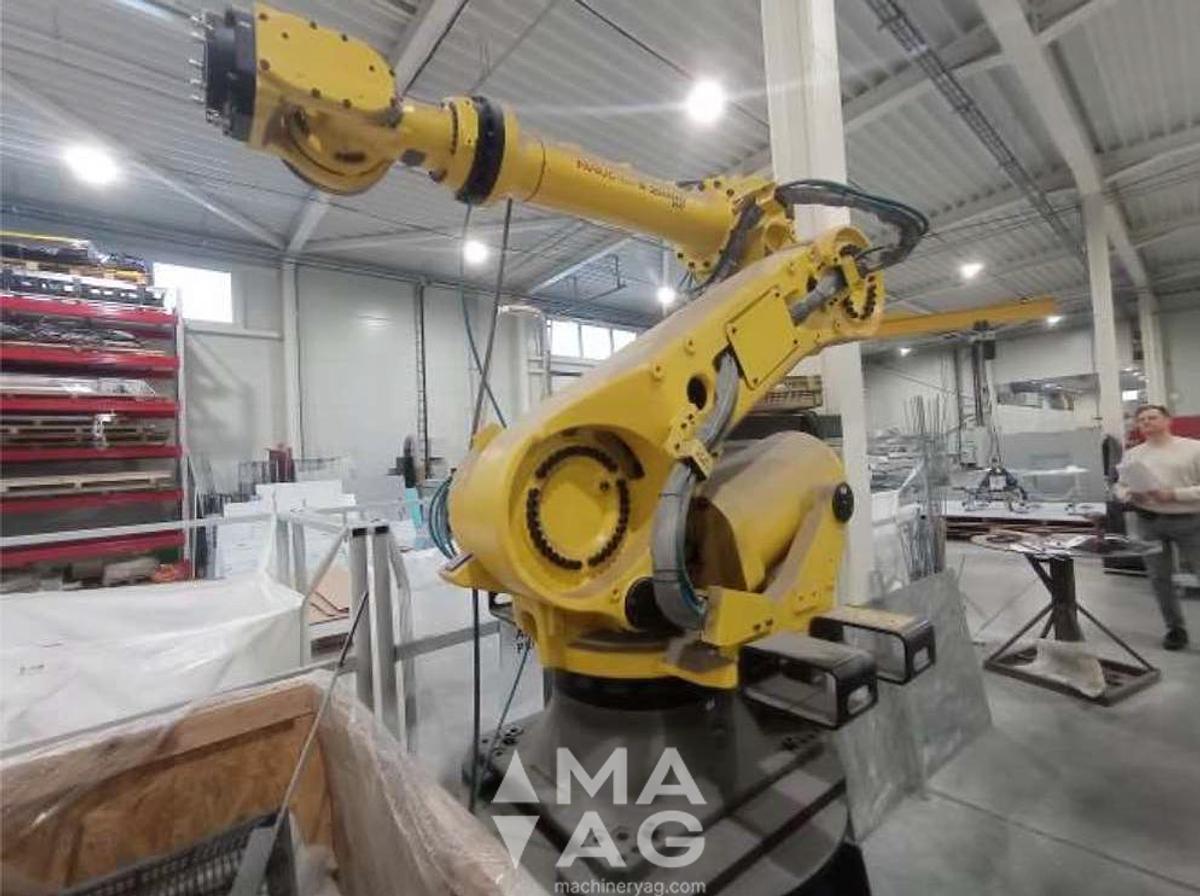

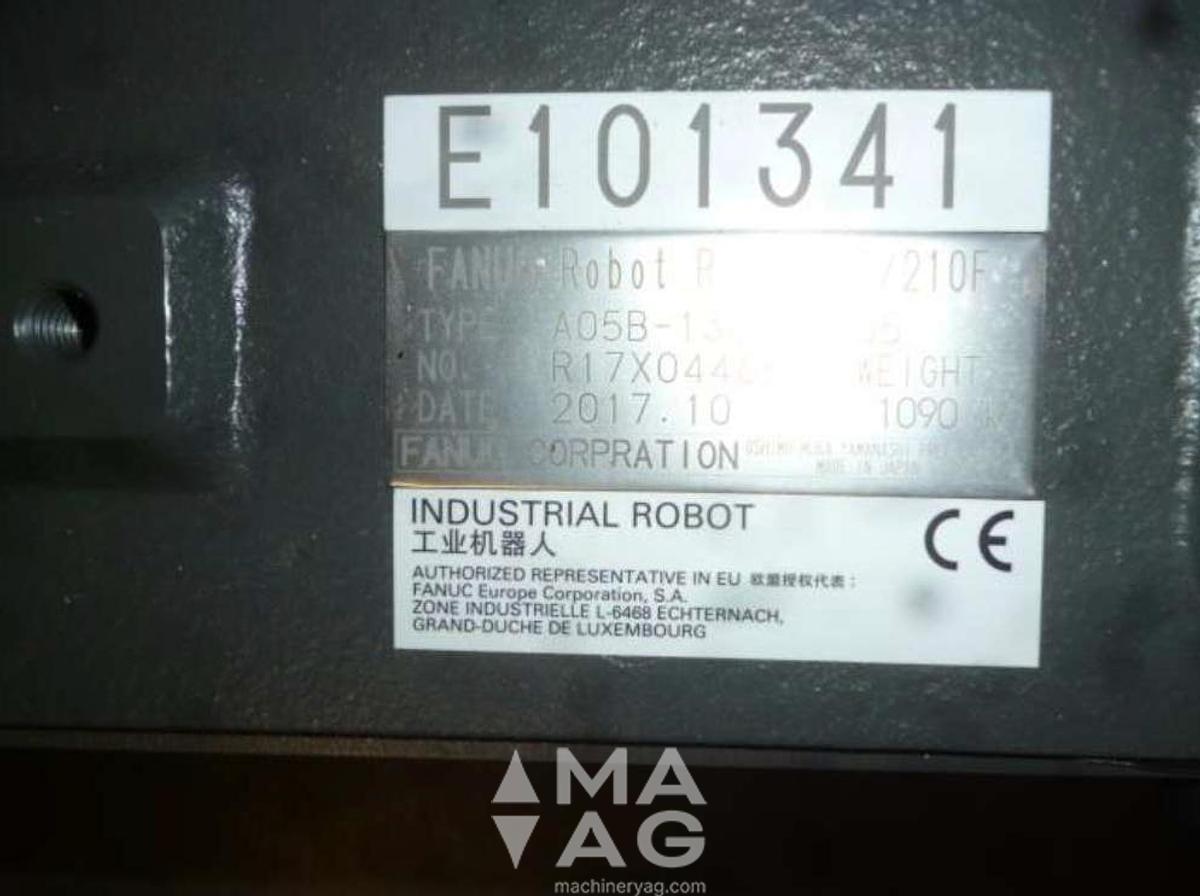

Robotic part handling system Yes, robotic arm with full integration

Documentation English

CE compliance Yes

Control system Digital (CNC)

Spare parts and tools Yes
