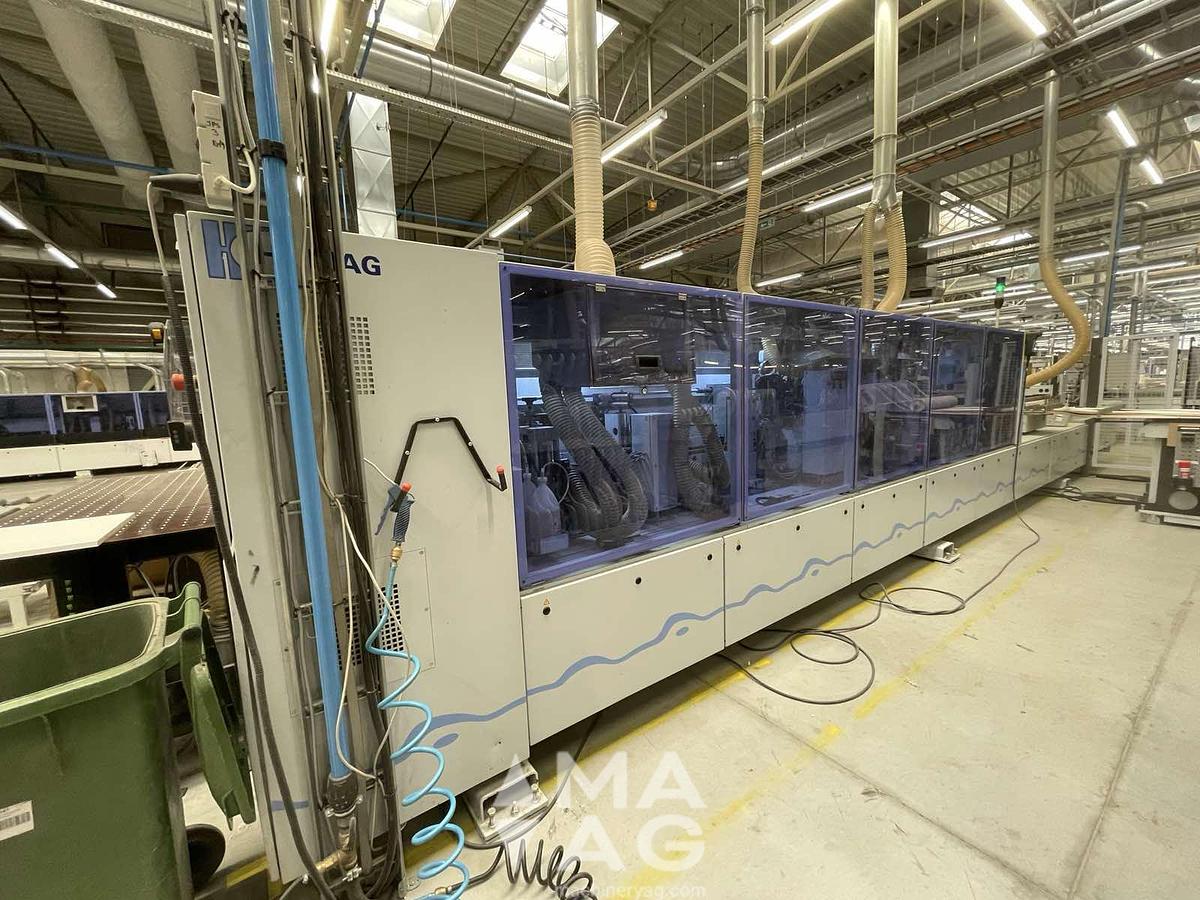

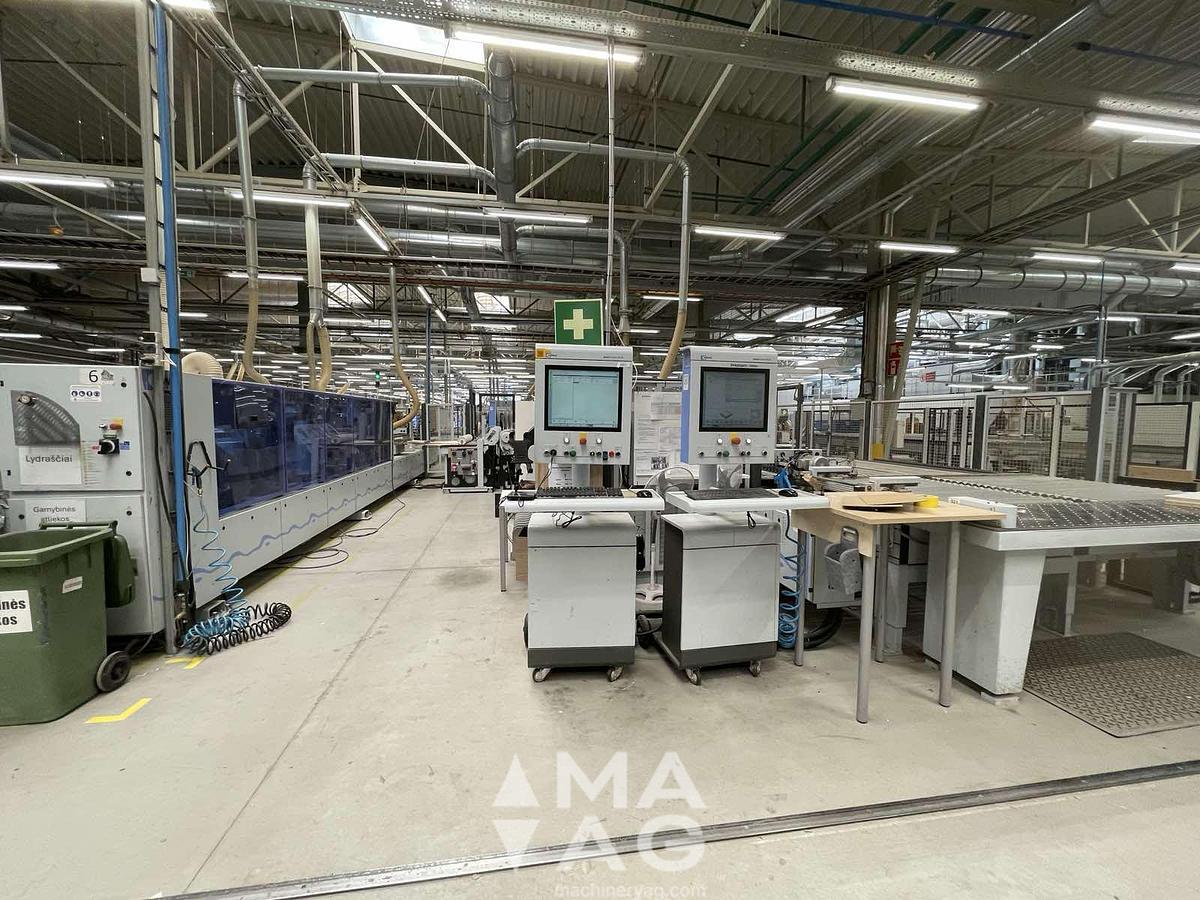

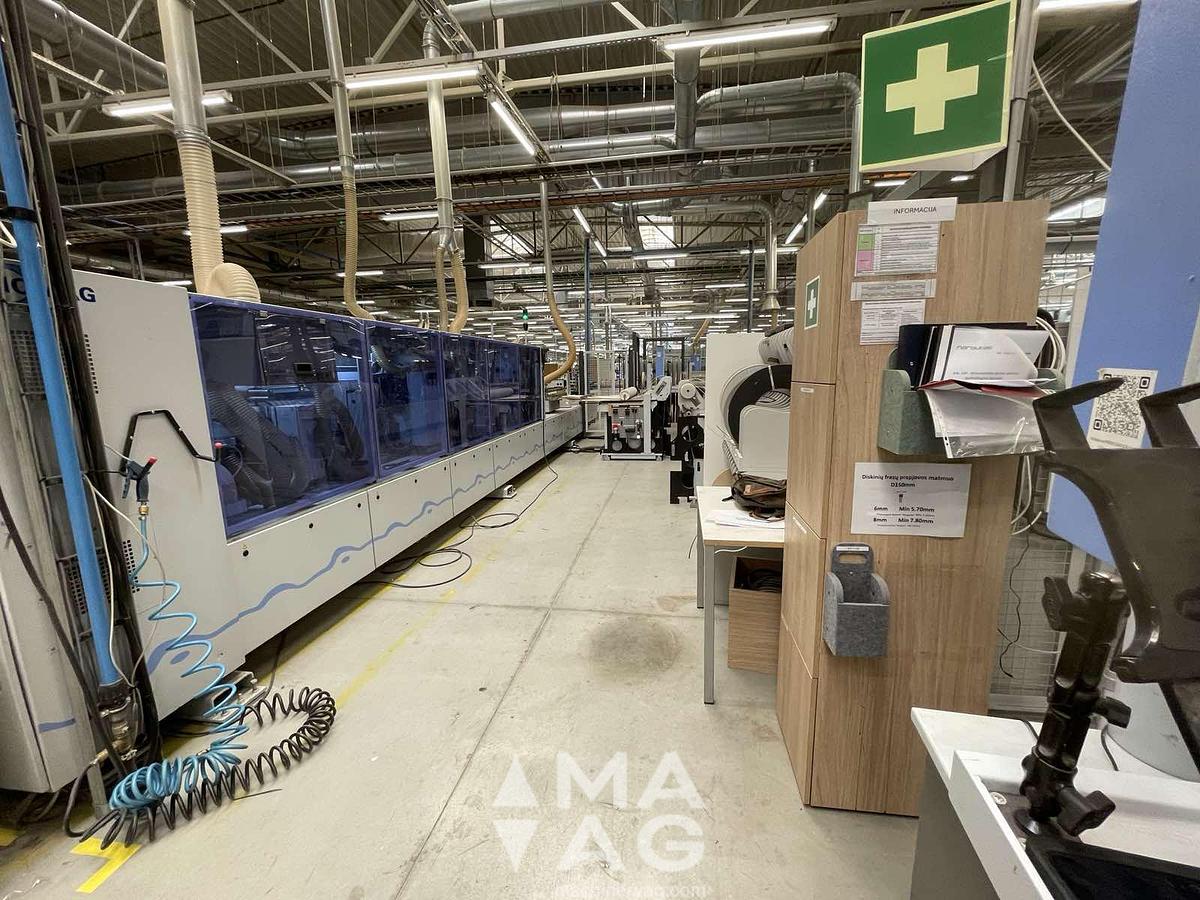

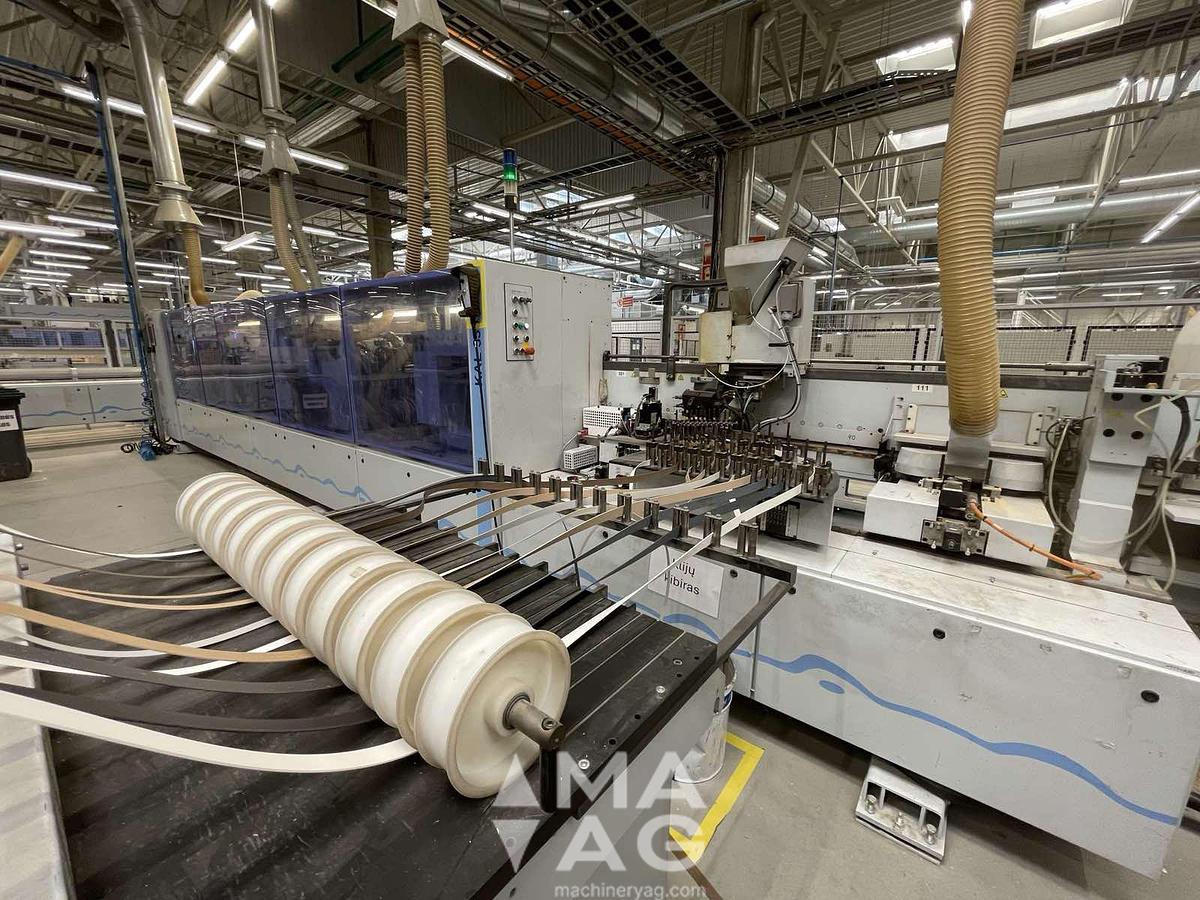

Full automatic Edge banding line: KAL Profi 330/ KAL Profi 370/ Profi TBL100/ POWER TWL410

We present a high-volume furniture manufacturing line for sale.

The line can be inspected in production at any time and is available immediately!

• HOMAG SINGLE-SIDED EDGE BANDING MACHINE PROFI KAL330/9/A3/WZ, year 2013
• HOMAG FEEDING TABLE FLEXLINE PROFI TBL100/20/30/F, year 2013
• HOMAG SINGLE-SIDED EDGE BANDING MACHINE PROFI KAL370/8/A3/WZ, year 2016
• HOMAG DOUBLE ANGULAR TRANSFER CROSSWISE POWER TWL410/25/LQ, year 2016

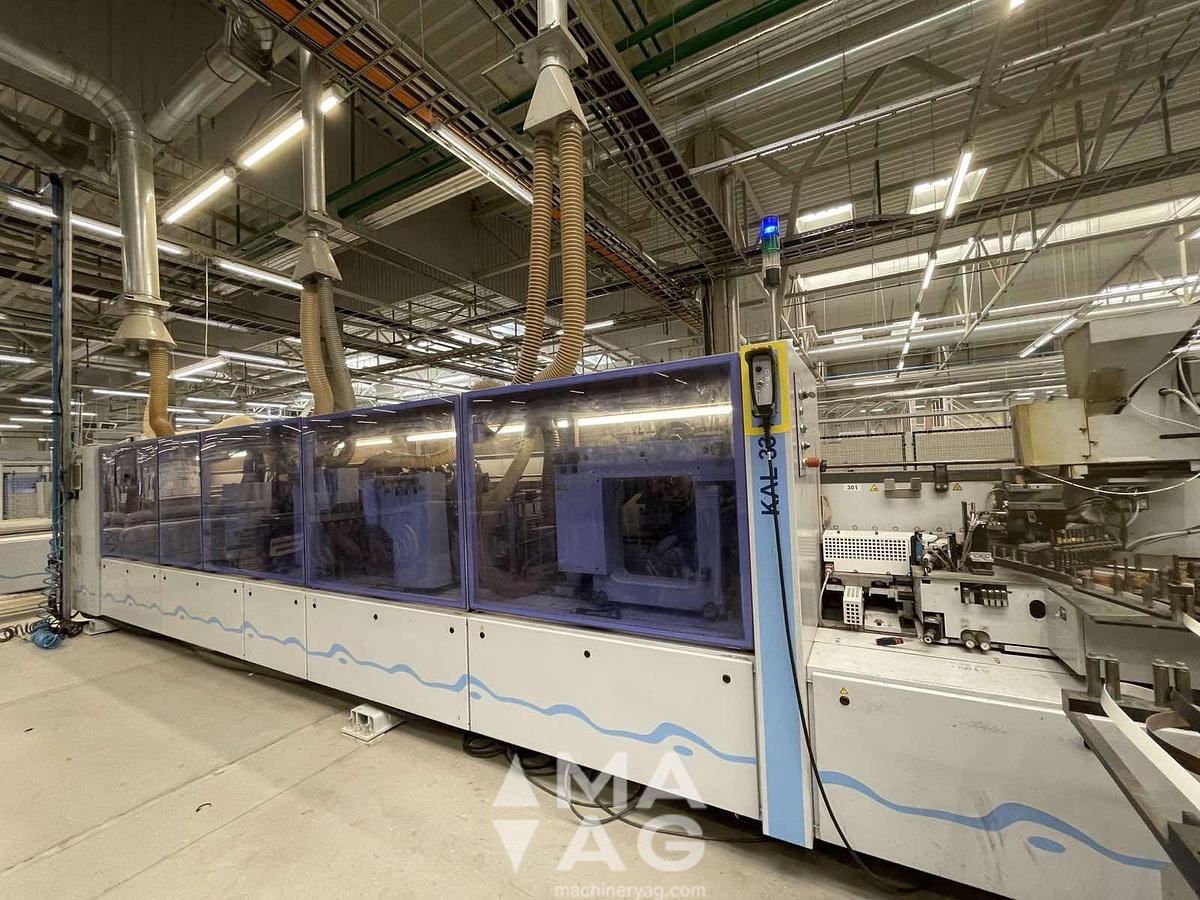

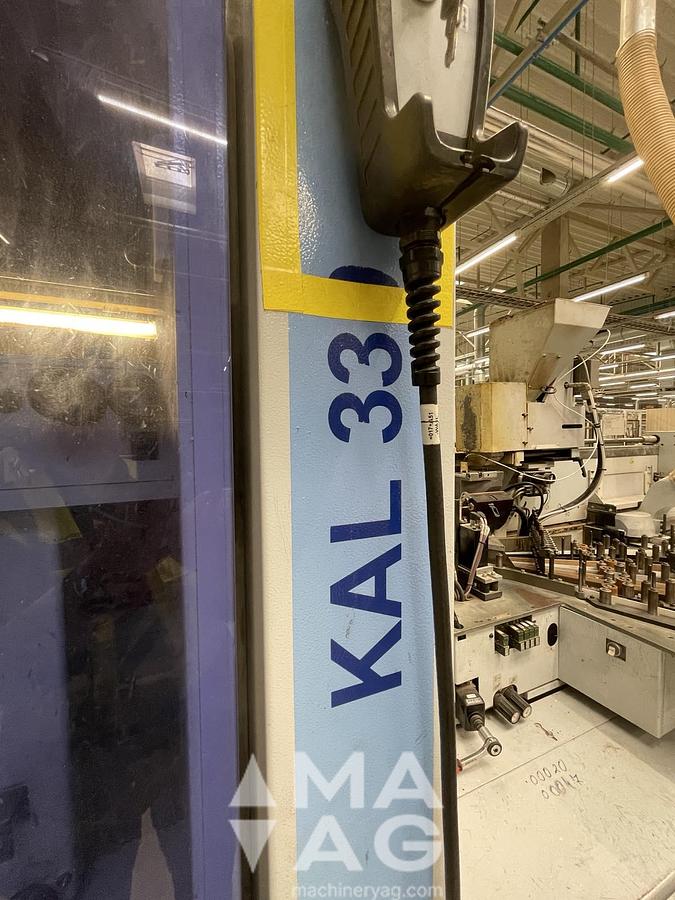

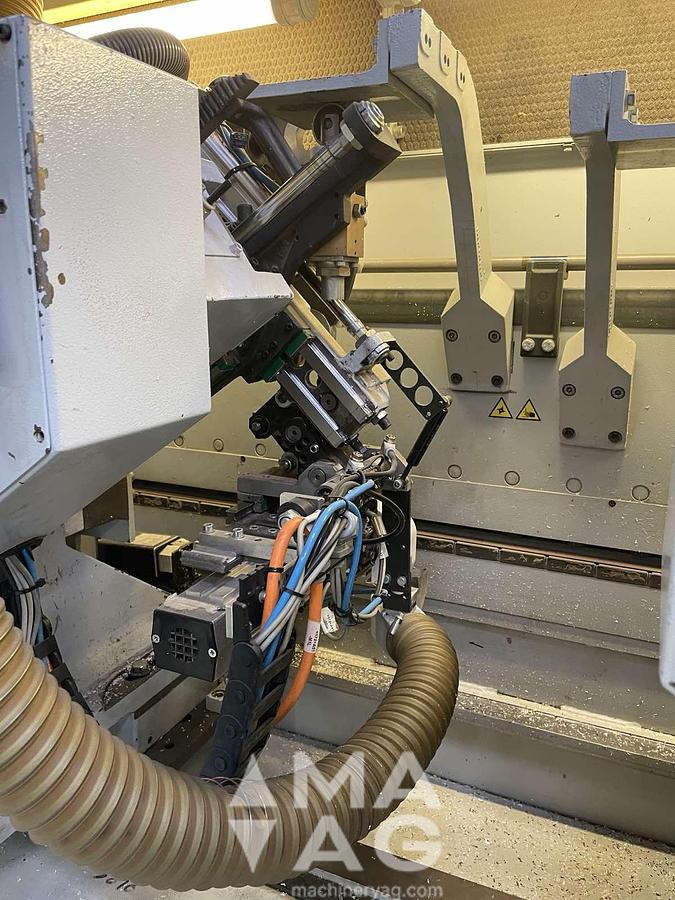

PROFI KAL330

- Free Space Jointing Trimming Unit

- Gluing Part A3 Basic

- Free Space Processing Units

- Finishing Unit FA11

Workpiece and edge parameters:

- Workpiece width without edge min:

in case of workpiece 60 mm* Thickness 12-22 mm

in case of workpiece Thickness 23-60 mm 100 mm*

*depends on the workpiece length.

- Workpiece overhang 30 mm

- Workpiece thickness 12-60 mm

- Edge height max. = workpiece + 4 mm Thickness

- Edging material on coil 0,3-3 mm

- Edging mat. cross section max. (PVC 135 mm², Veneer 100 mm²)

- Coil diameter 830 mm

PROFI TBL100/20/30/F

Fixed stop side on the left

- incl. transport rollers

- roller diameter 54 mm

- roller distance approx. 60 mm

- incl. lateral conveyor belt

- electro pneumatically controlled crosswise fence

- adjustable infeed fence, manually via counter

- incl. kit for small parts

- incl. integrated air cushion table

Workpiece parameters:

- Panel length: min. 240 mm/ max. 2500 mm

- Panel width: min. 120 mm/ max. (TBL../20/30) 3000 mm

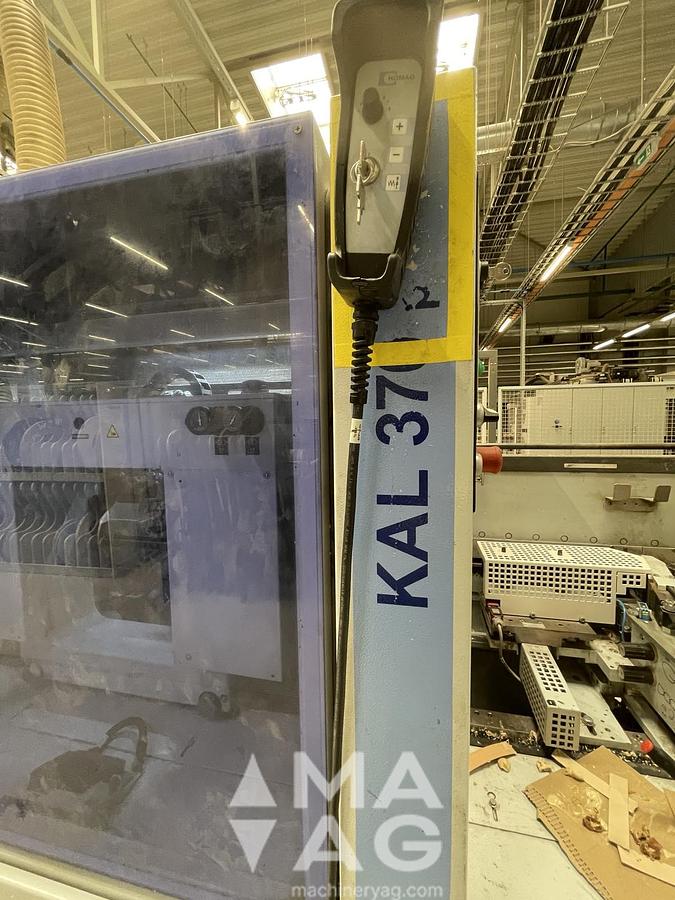

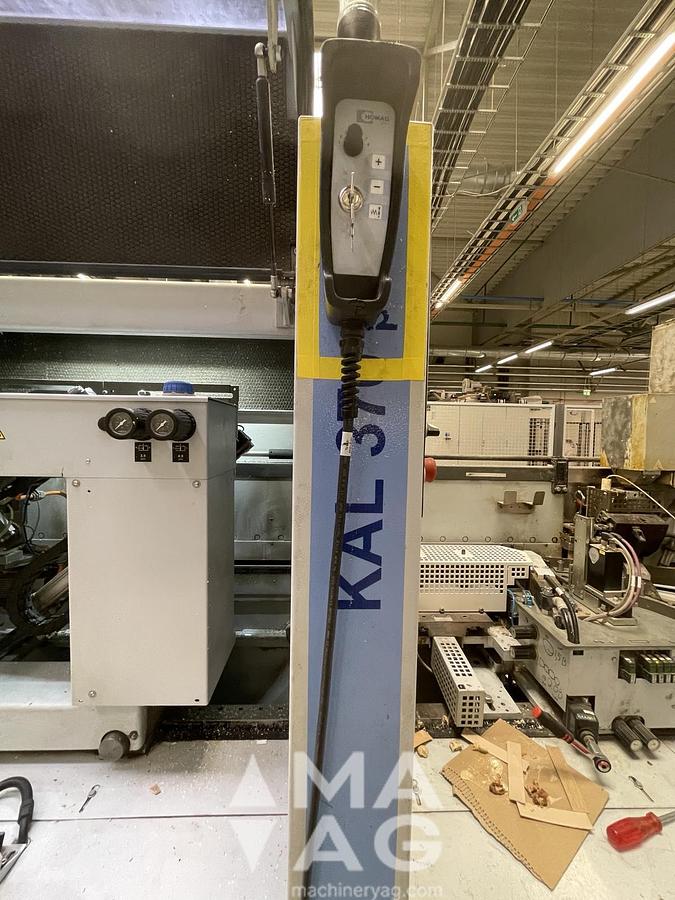

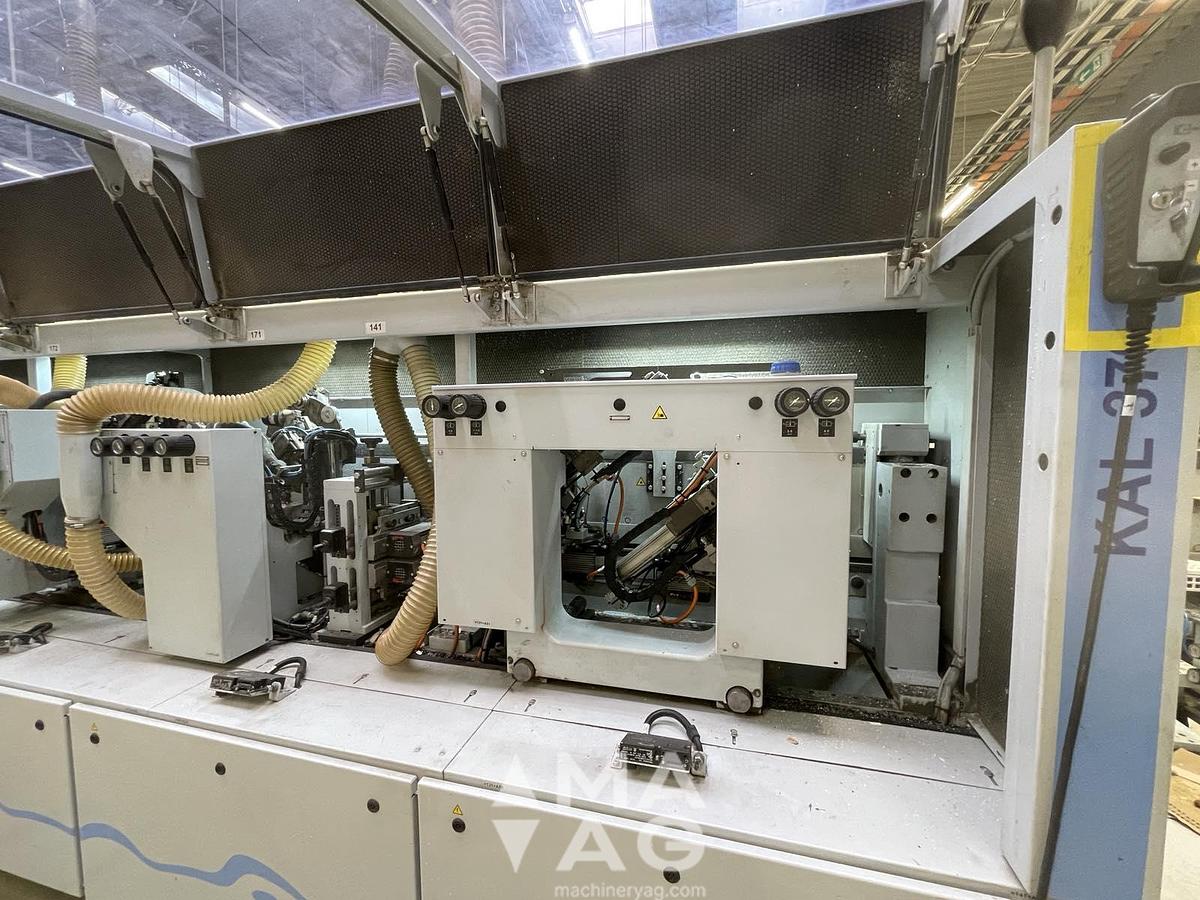

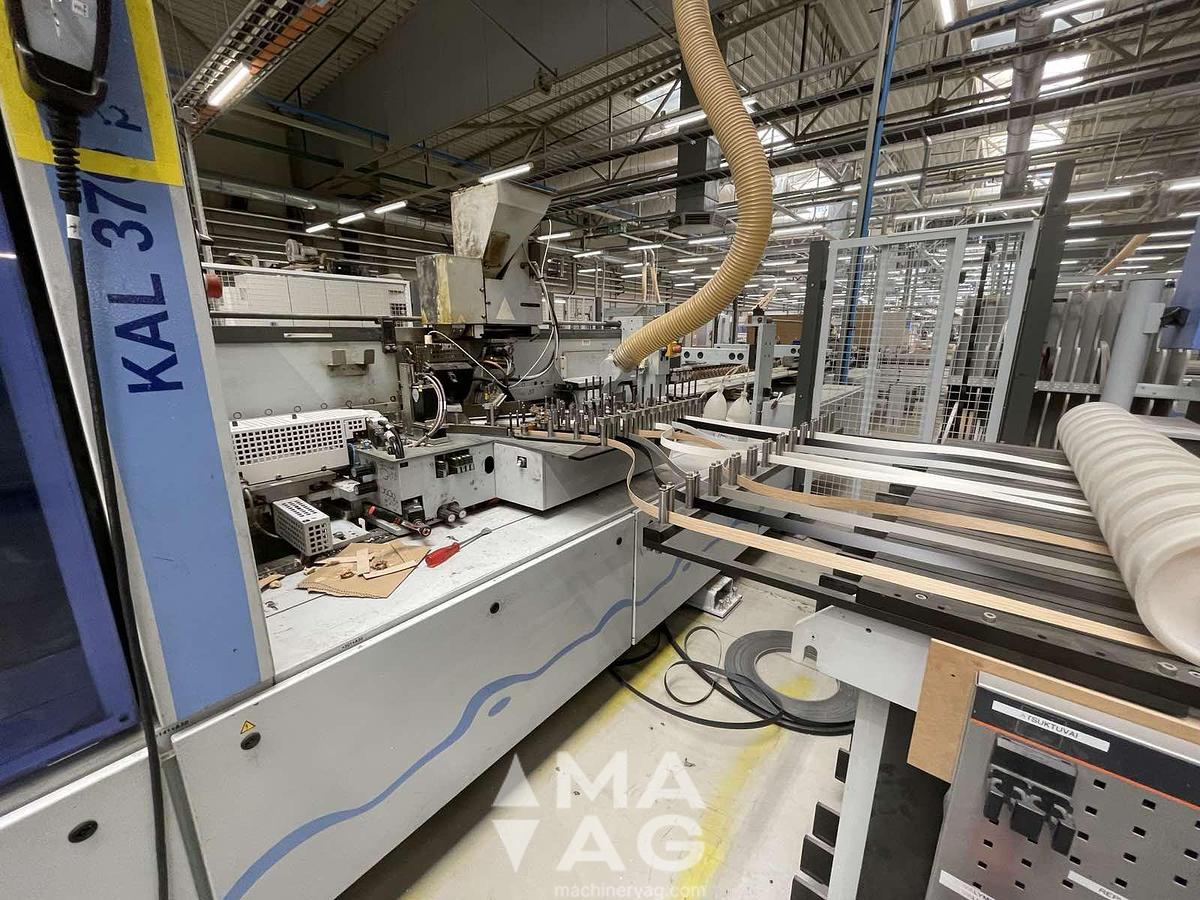

PROFI KAL370

- Free space Jointing Trimming unit

- Gluing part A3 basic

- Free space processing units

- Finishing unit FA21

Workpiece and edge parameters:

Workpiece width without edge min:

in case of workpiece 60 mm* (thickness 12-22 mm)

in case of workpiece 100 mm* (thickness 23-60 m)

*depends on the workpiece length

- Workpiece overhang 30 mm

- Workpiece thickness 12-60 mm

- Edge height max. = workpiece + 4 mm thickness

- Edging material on coil 0,3-3 mm

- Edging mat.cross section max. (PVC 135 mm², Veneer 100 mm²)

- Coil diameter max. ¦ 830 mm

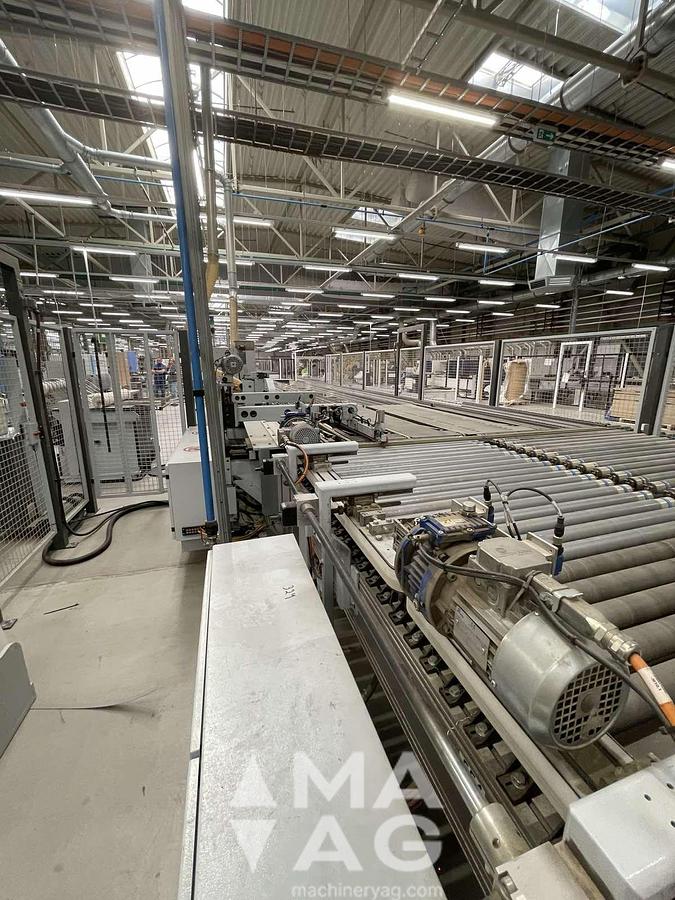

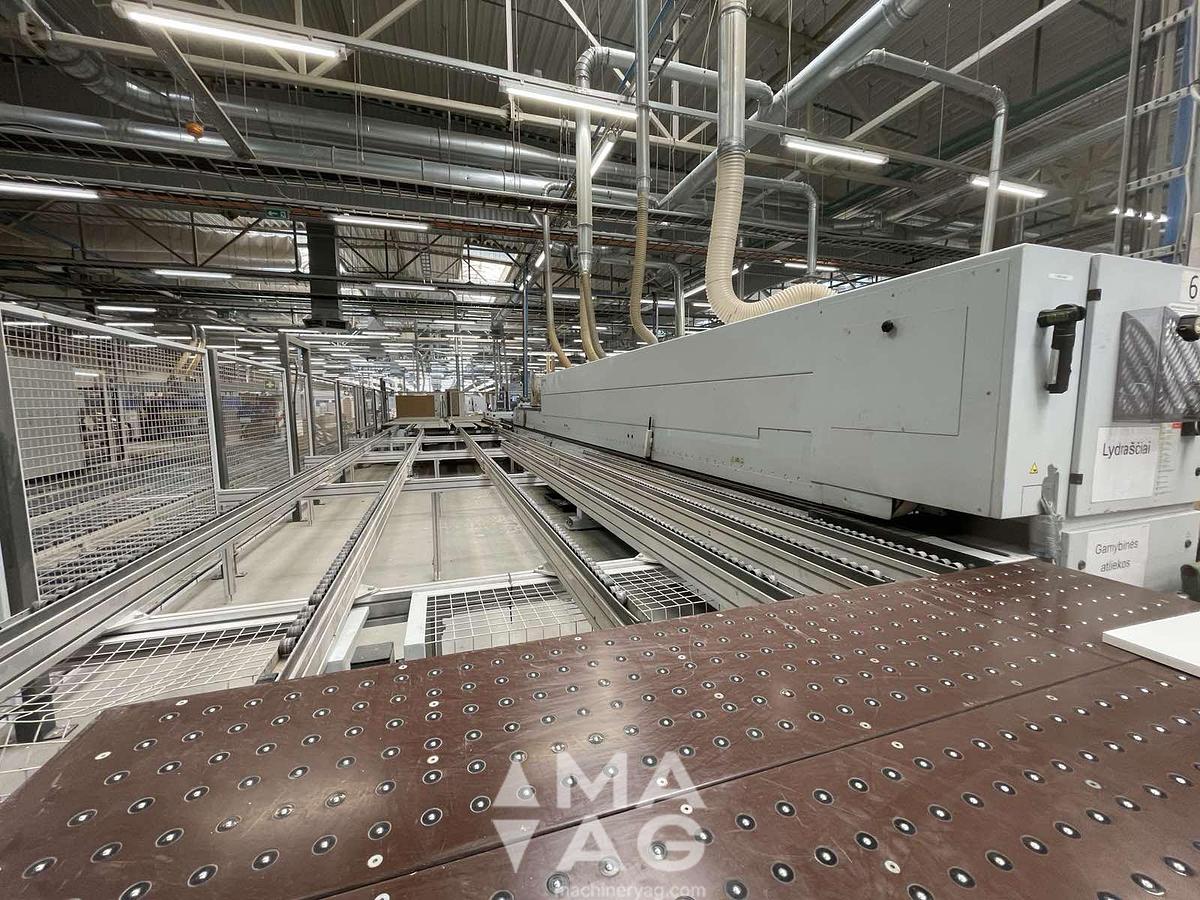

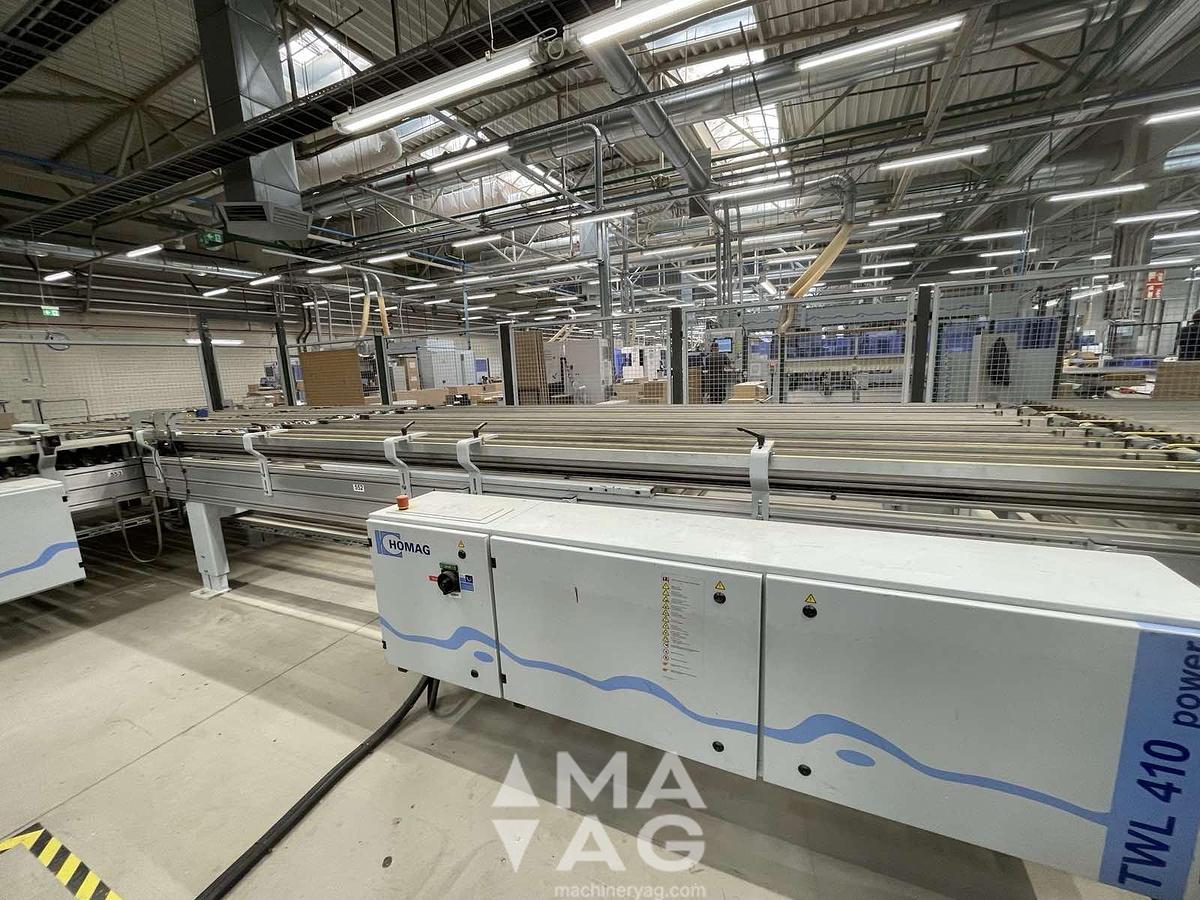

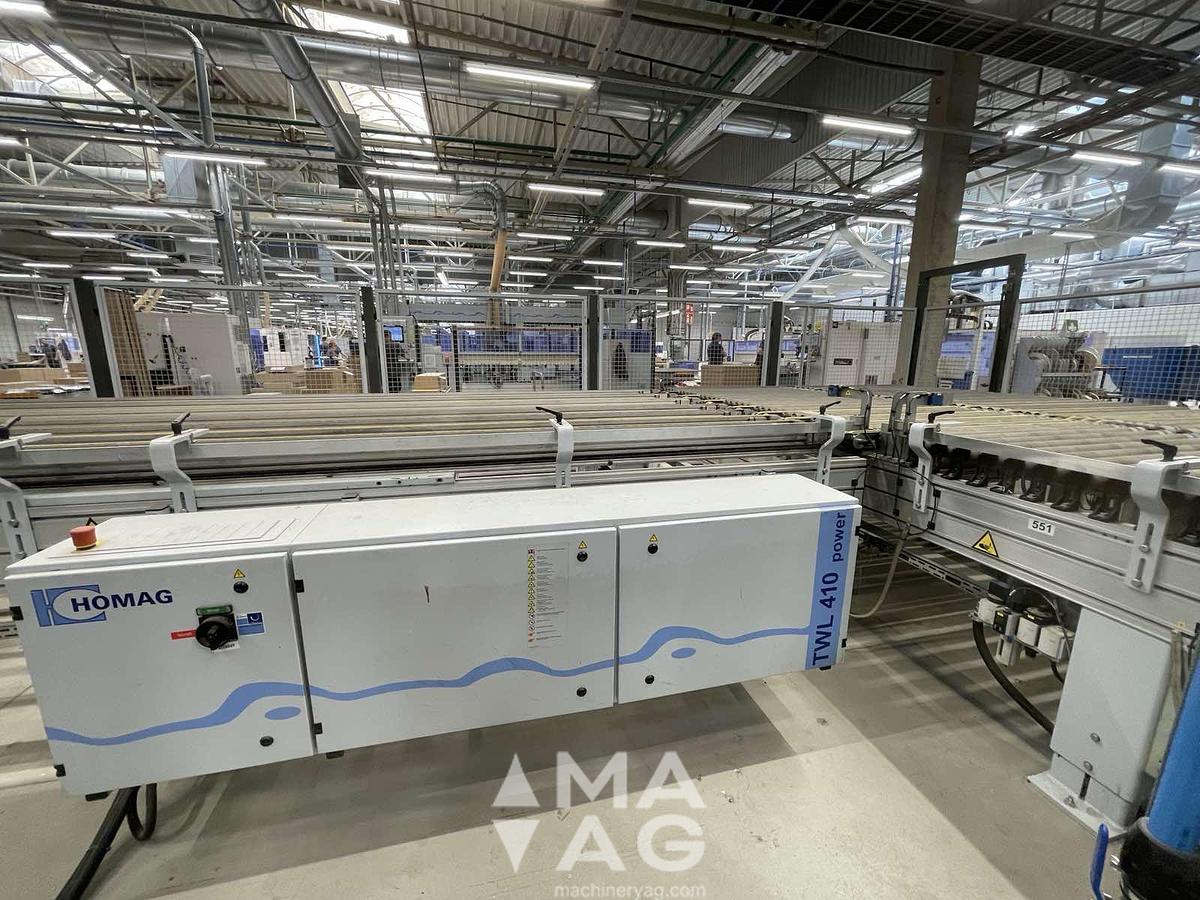

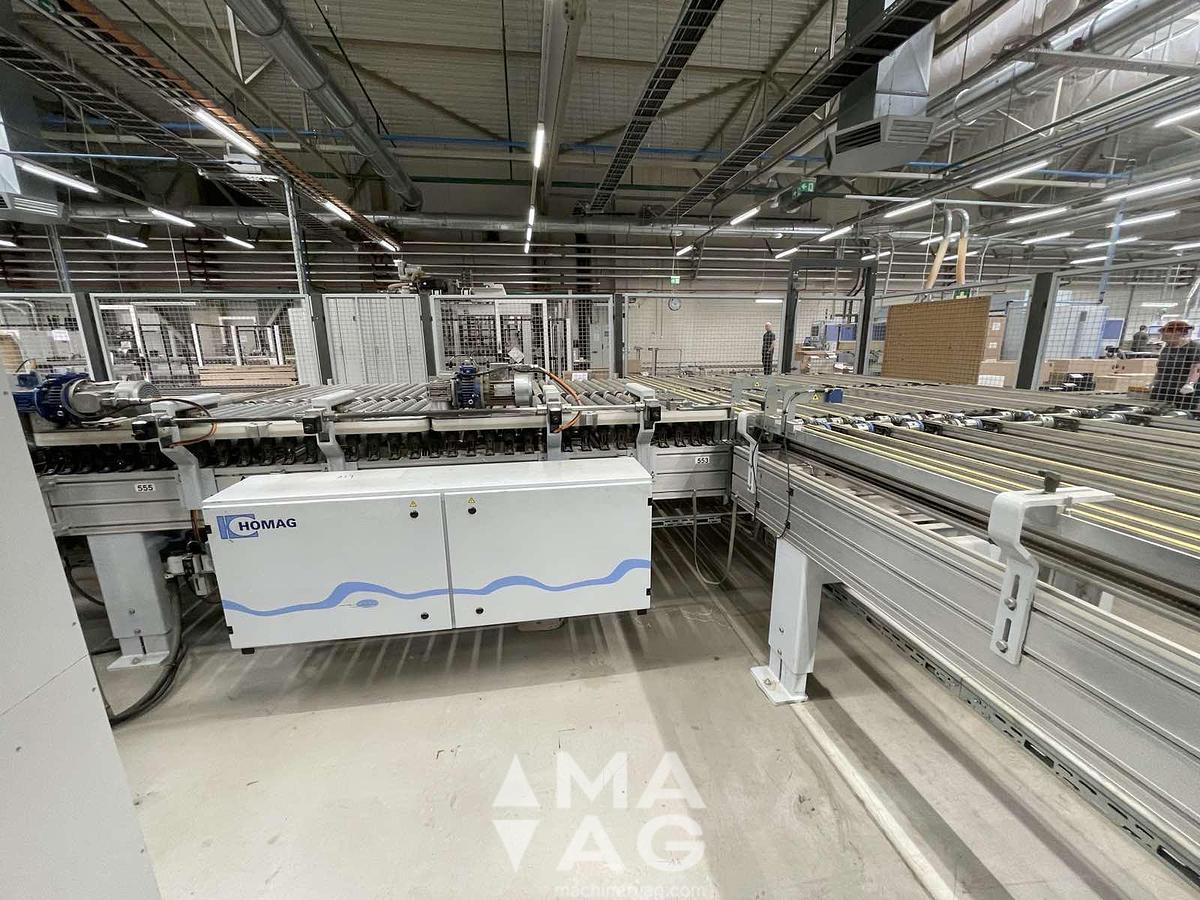

POWER TWL410/25/LQ

- Fixed stop side infeed: left, outfeed: left

- Roller diameter 64 mm

- Roller distance 110 mm

- Infeed roller track with belt conveyor and cross transport

- Cross conveyor belt controlled

- Outfeed roller track

- Cross conveyor belt controlled

- Stop fence electro pneumatically controlled

- Transport belt lateral

- Modification of panel overhang manually adjustable

Workpiece parameters:

- Panel length min. 240 mm/ max. (TDL../25/..) 2500 mm

- Panel width min. 240 mm

- Panel thickness min. 8 mm/ max. 60 mm

- Panel weight max. 80 kg
