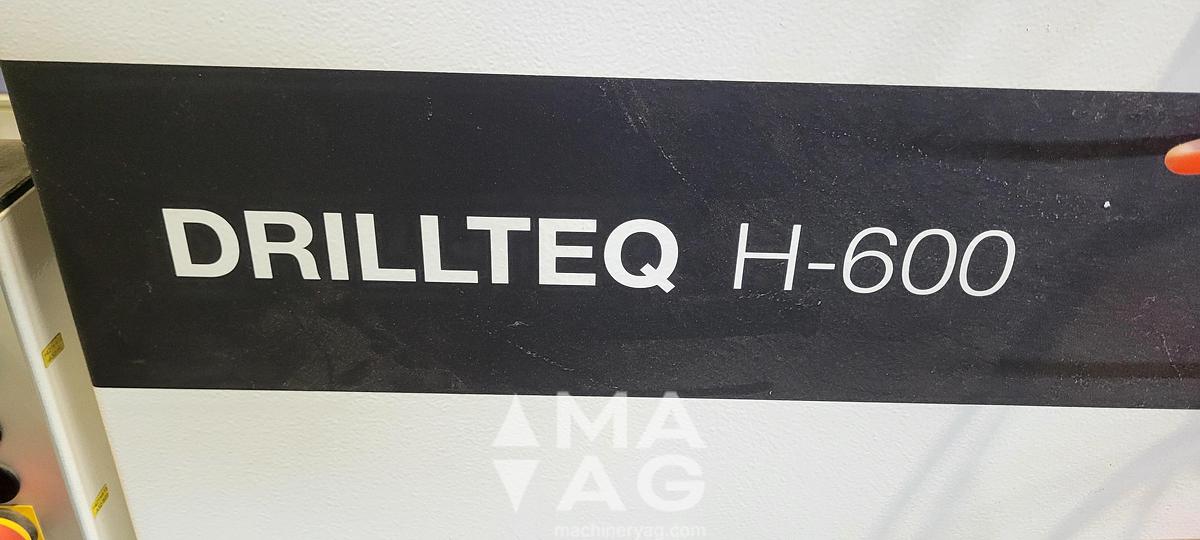

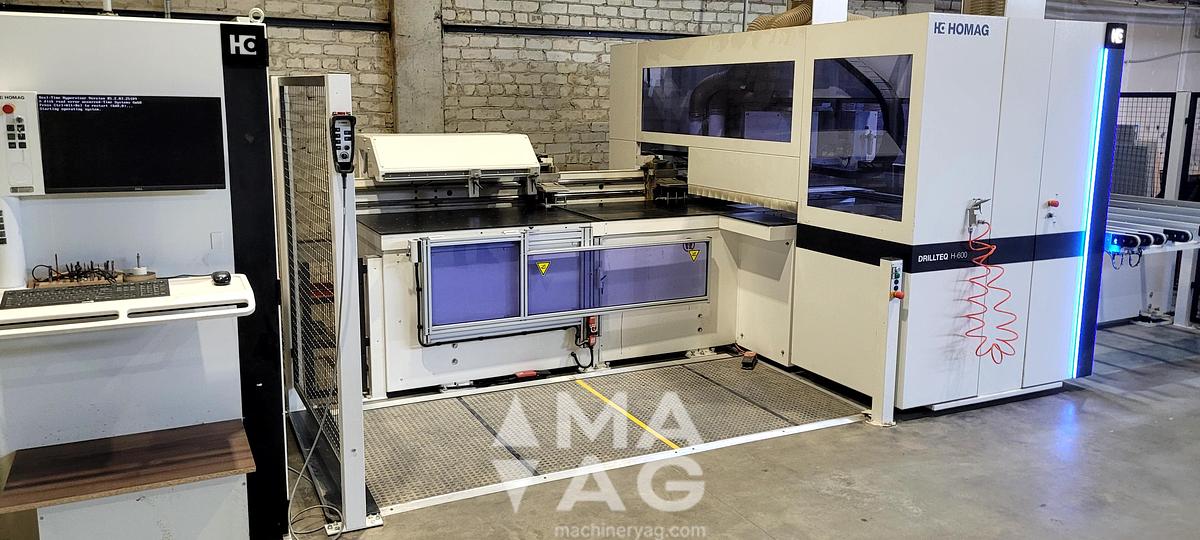

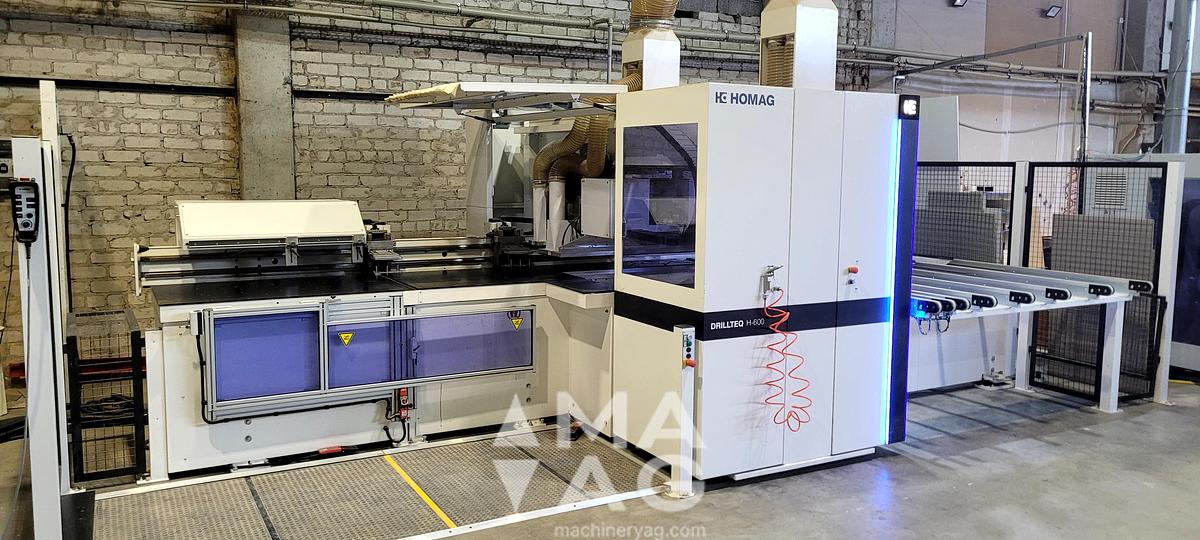

2020 Homag Drillteq H-600 Multi-spindle drilling machine

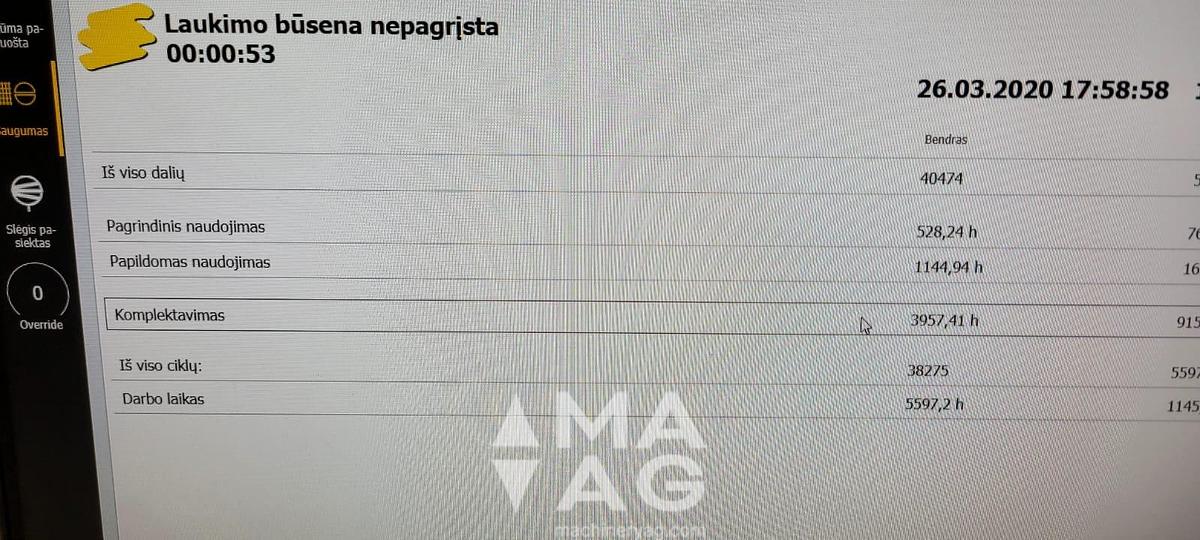

Homag Drillteq H-600 Multi-spindle drilling almost new machine (working hours 3957,41) for sale!

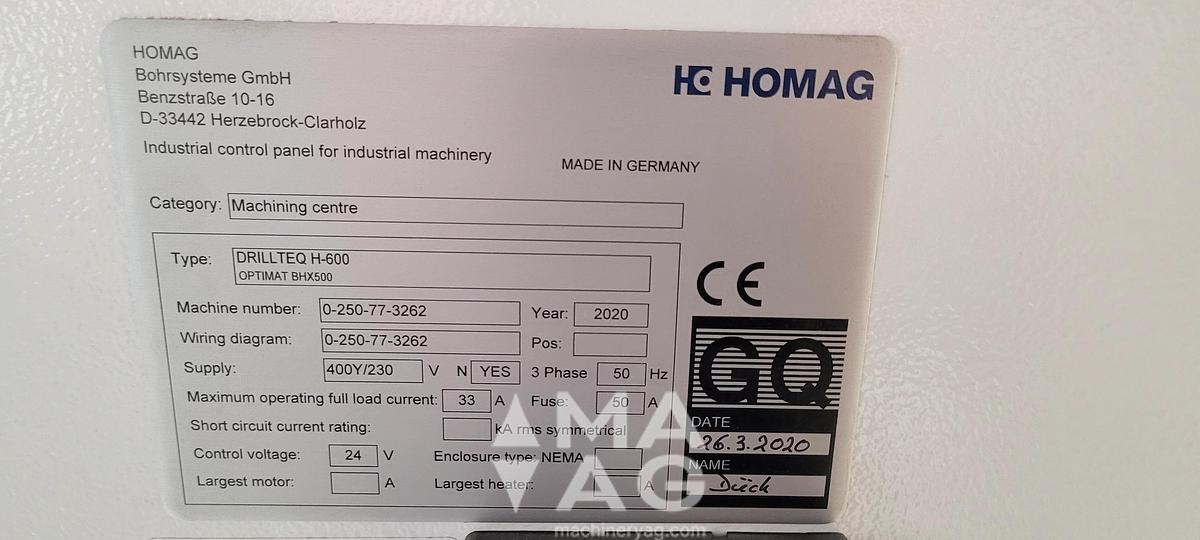

Year of manufacture 2020

WORKPIECE DIMENSIONS

workpiece length: min. 200 mm

workpiece length: max. 2500 mm

workpiece width: min. 70 mm

workpiece width: max. 1000 mm

- with restrictions

in processing: 1300 mm

workpiece thickness: min. 8 mm (2 x 4 mm)

workpiece thickness: max. 80 mm (2 x 40mm)

workpiece stacking: max. 2 pieces

- same workpiece dimensions

BASIC MACHINE

- rigid steel frame construction

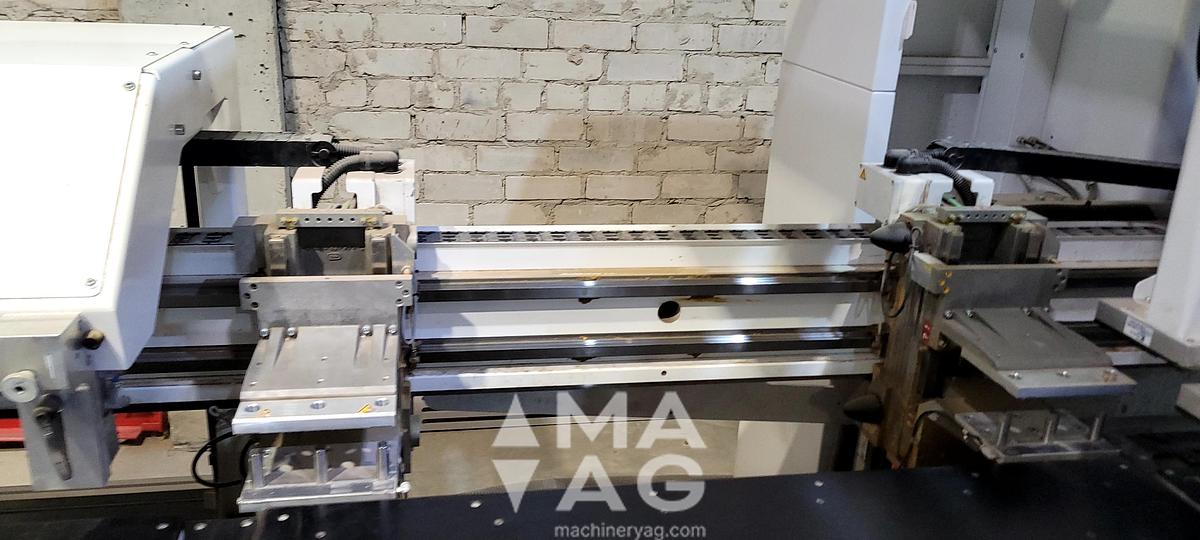

- 2 workpiece clamping devices with integrated

stop system

- Separate adjustment of the clamping devices

via rack and pinion gear in X-direction

- Digital AC servomotors

- The position of the clamping devices

at the workpiece is program-controlled

- Adjustment of the clamping devices between

the separate processing steps in the

processing area is possible.

- Automatic measuring of the workpiece

thickness and lengths by the clamps and the

stop system

- Blowing nozzle for safe removal of residual
