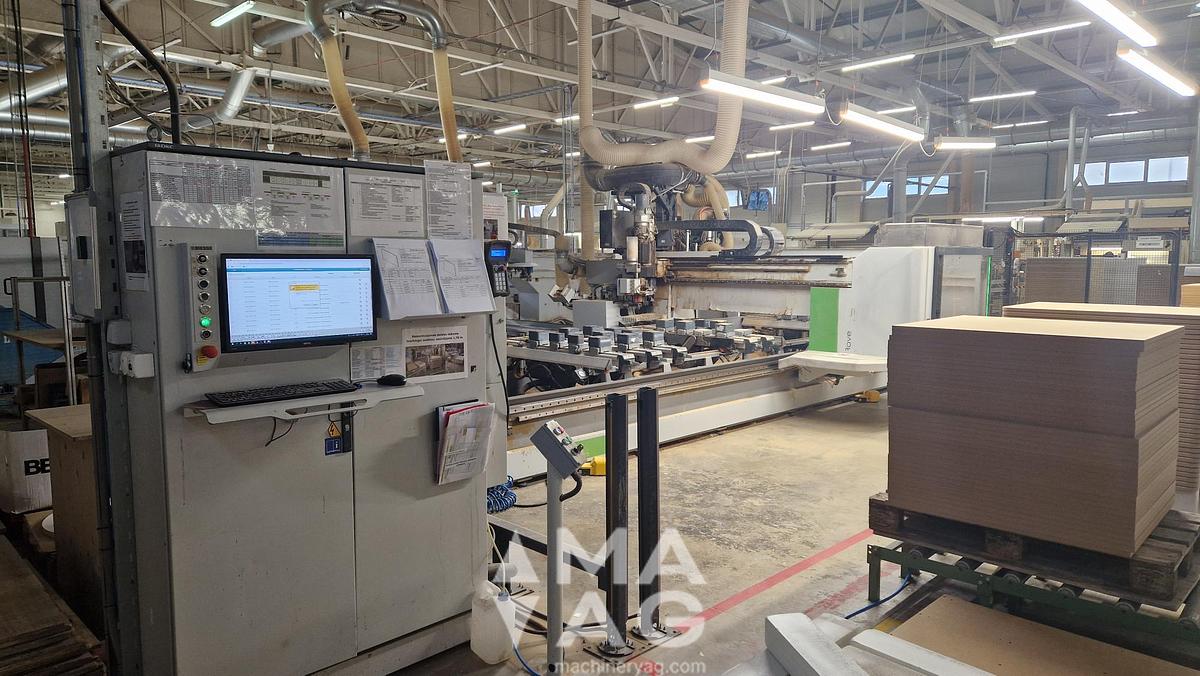

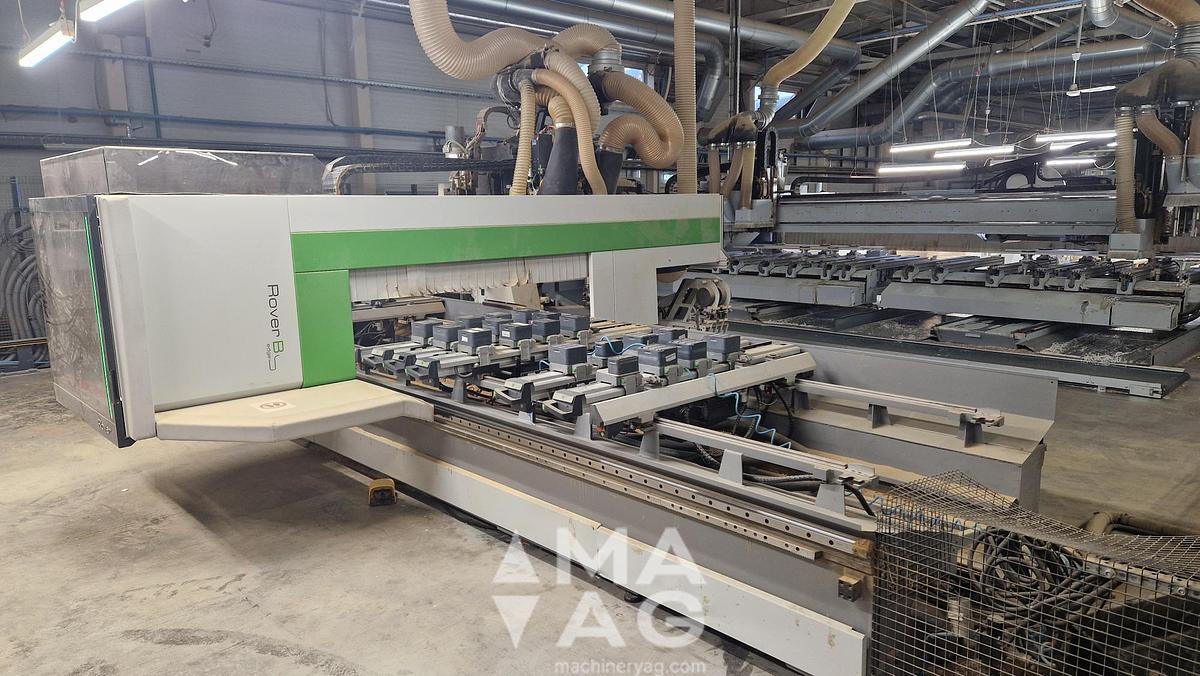

BIESSE Rover B Edge 1667, year 2018 CNC Machining Center

• X axis working area: 6735 mm

• Y axis working area: 1650 mm

• Working Table: Pod and Rail

• Main Electro spindle Power: 13.2 kW

• Number of Controlled Axes: 4 axes

• Max Edge Height: 60 mm

• Total Number of Drilling Spindles: 20

• Total Number of Tool Changer Positions: 16

• Subfamily: CNC Machining Centers for Routing, Drilling, and Edgebanding

• Type of Work: Edgebanding, Drilling, Routing

• Maximum Panel Passage: 60 mm

• Number of Working Fields: 2

• Working Table: Pod and Rail

• Number of Rails: 10

• Pod Position Indicators

• Vacuum Cups for Securing Workpieces

• Number of Vacuum Cups: 40

• Clamps for Securing Workpieces

• Vacuum Pump

• Number of Pumps: 1

• Single Pump Capacity: 250 m³/h

• Boring Units: 1 (Top)

• Vertical Boring Spindles: 20

• Horizontal Boring Spindles in X: 4

• Horizontal Boring Spindles in Y: 4

• Router Spindles: 1 (Top)

• Number of Controlled Axes: 4

• Automatic Tool Changer

• Motor Power: 13.2 kW

• Edgebanding Operating Units: 1

• Gluing Unit: Mounted on Main Beam

• Glue Pot for Hot-Melt Adhesive

• Edge Coil Magazine

• Number of Magazine Positions: 4

• Grooving Unit: 2 Top Units, Fixed for Grooving in X and Y

• Tool Magazine: 1, with 16 Positions

• Tools Positioned on the Machining Head

• Combination Head for Edge Scraping and Glue Scraping

• Air Jet Panel Edge Cleaning Unit

• Control System: PC Control

• Machine Programming Software: Bsolid

• Protective Structure for Operating Units with Safety Sensors

• Waste Chip Conveyor
