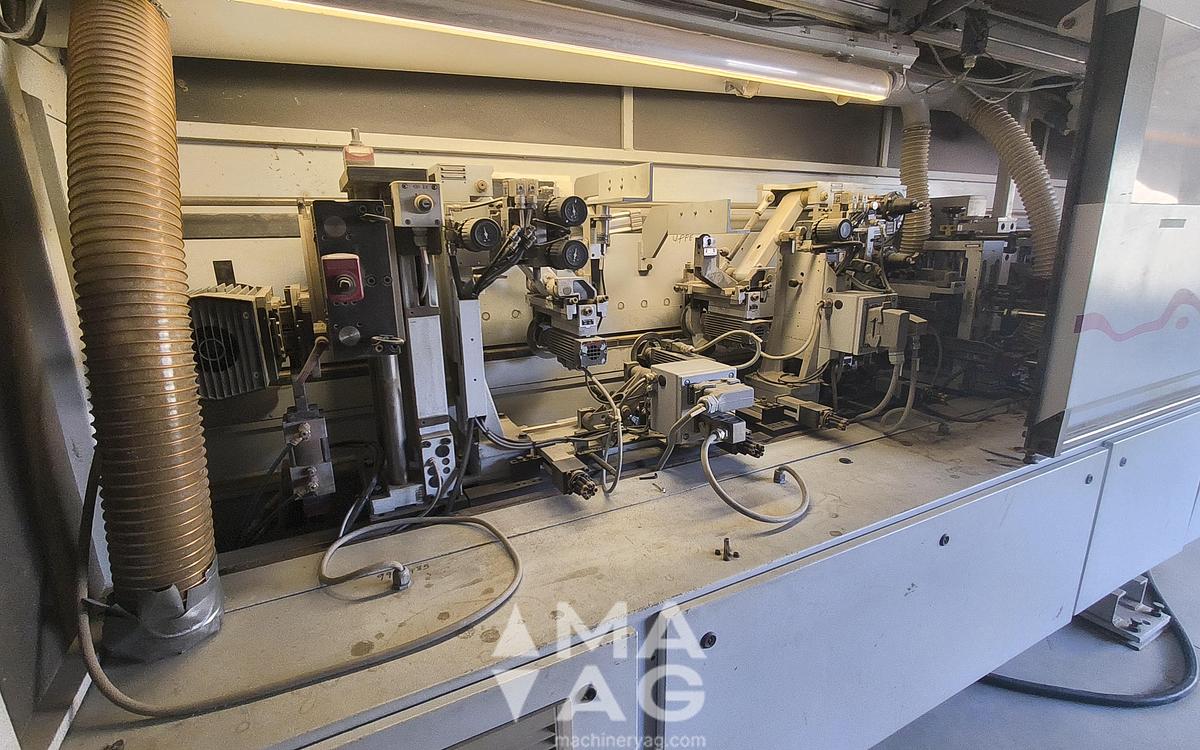

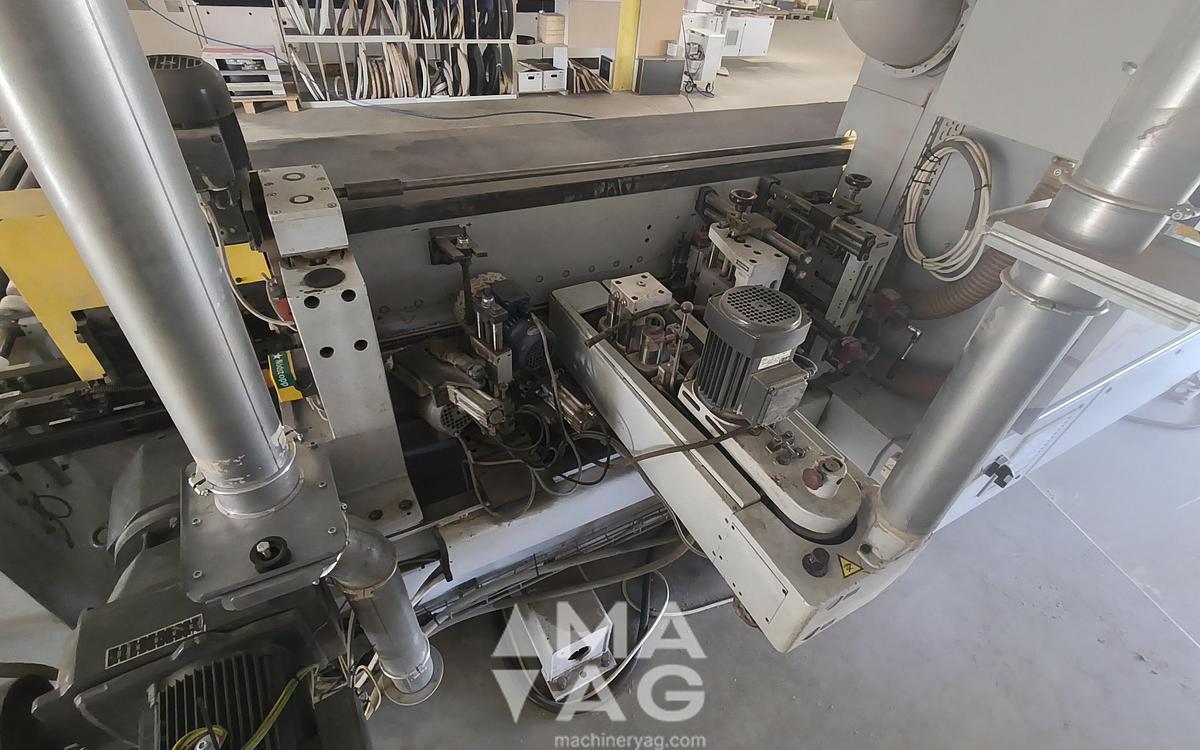

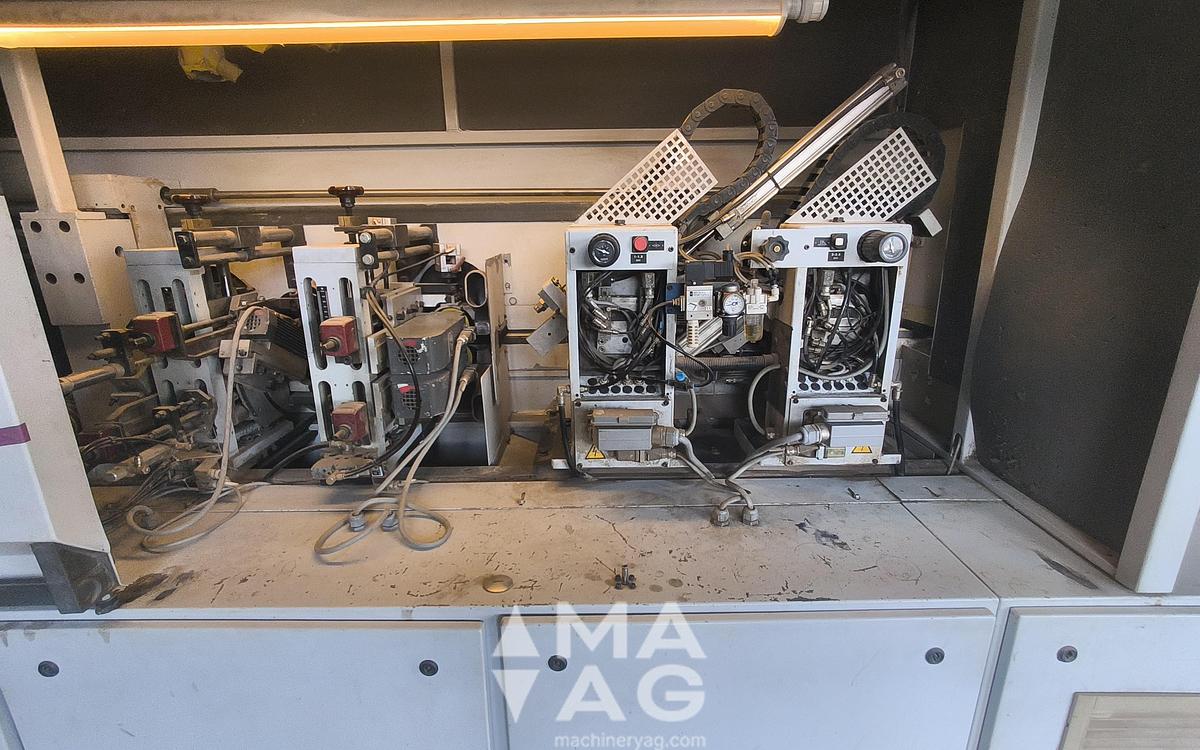

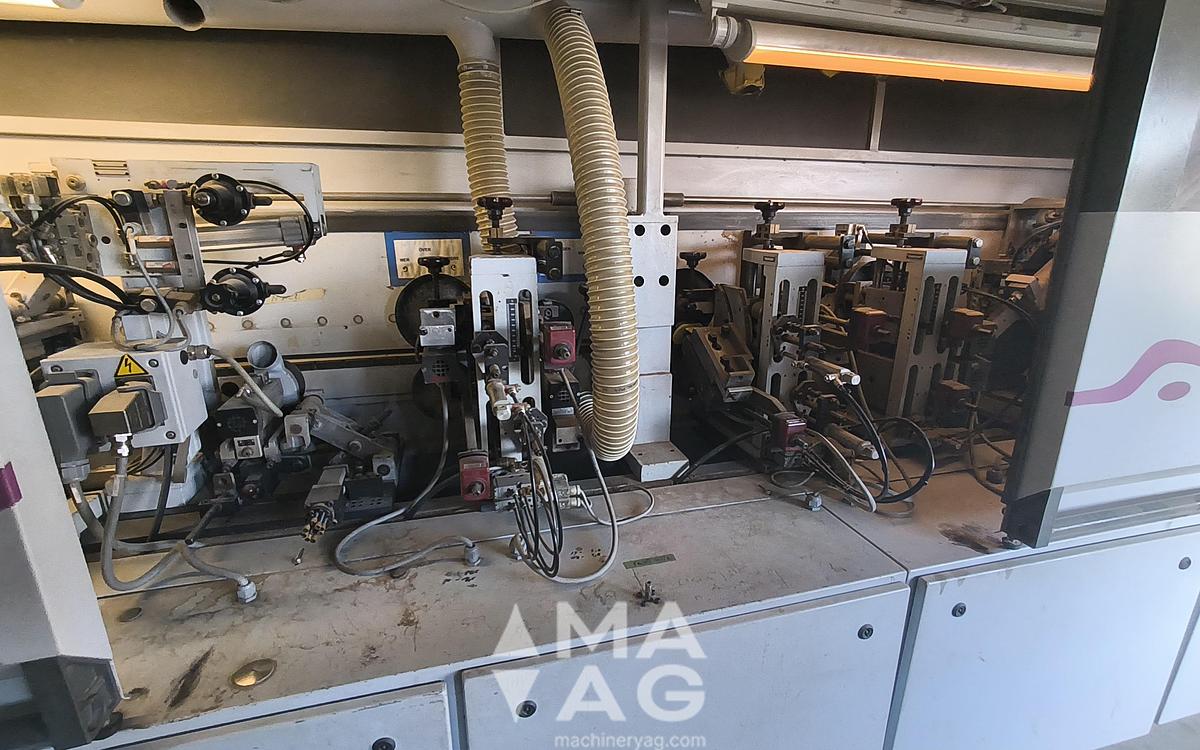

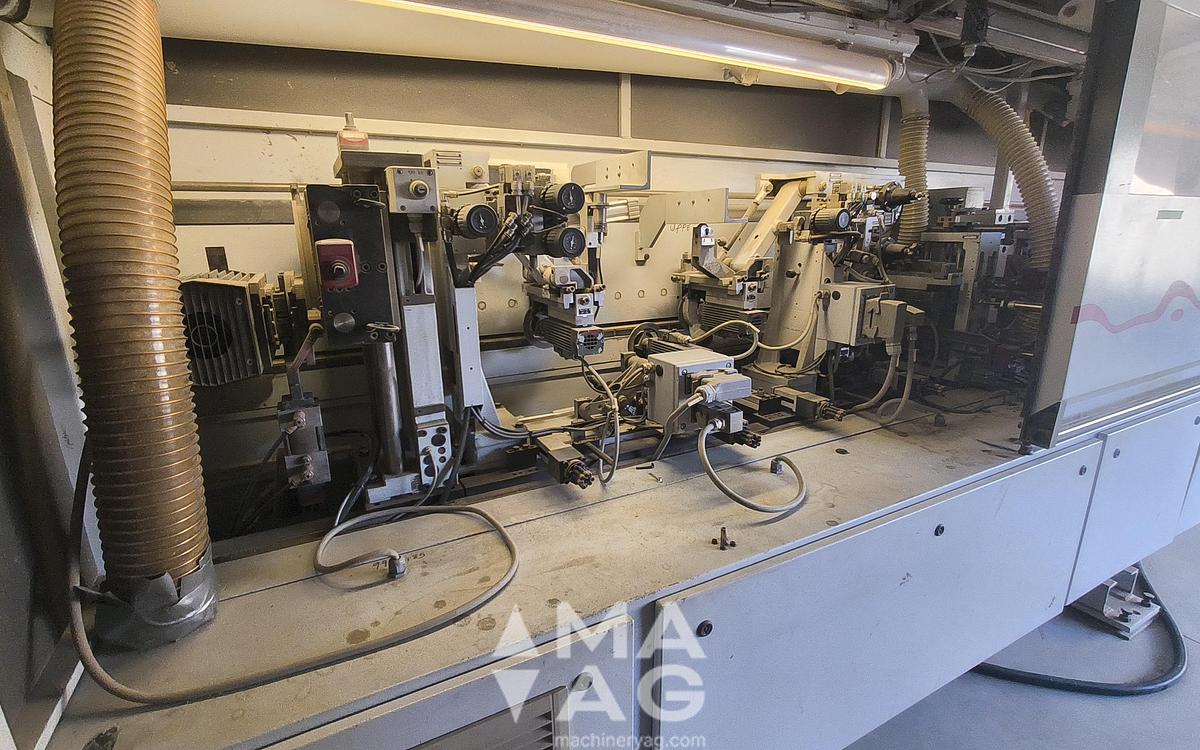

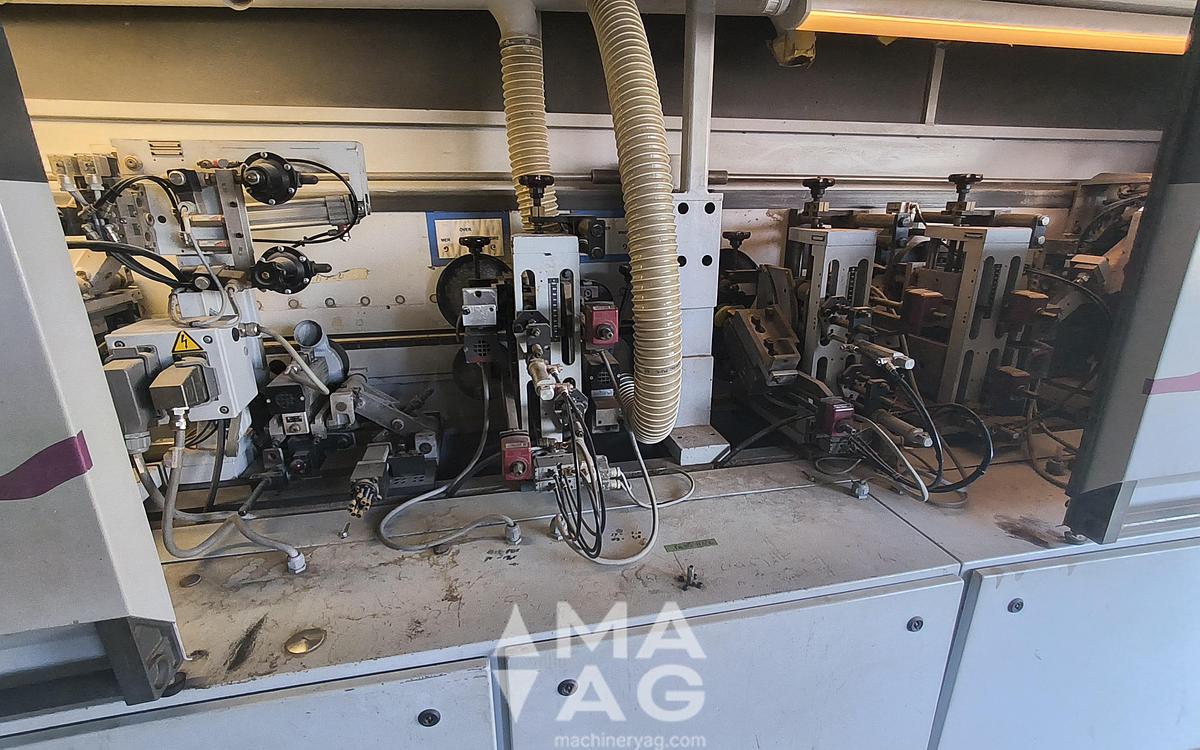

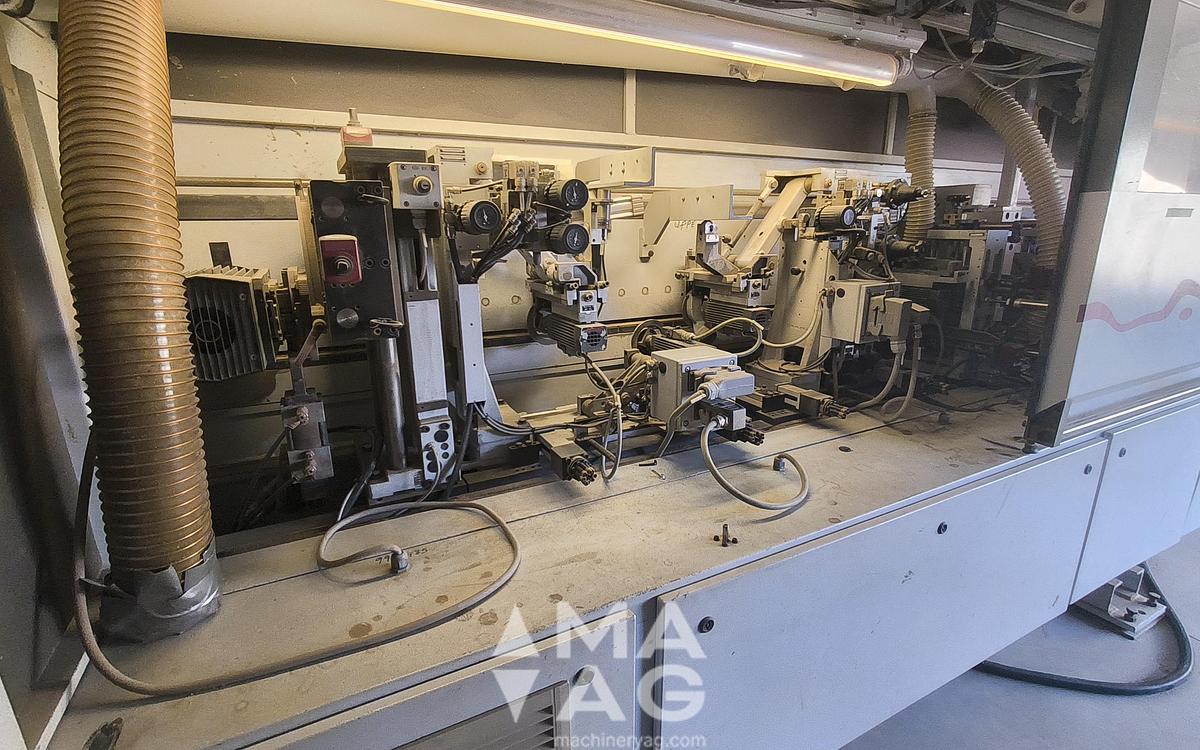

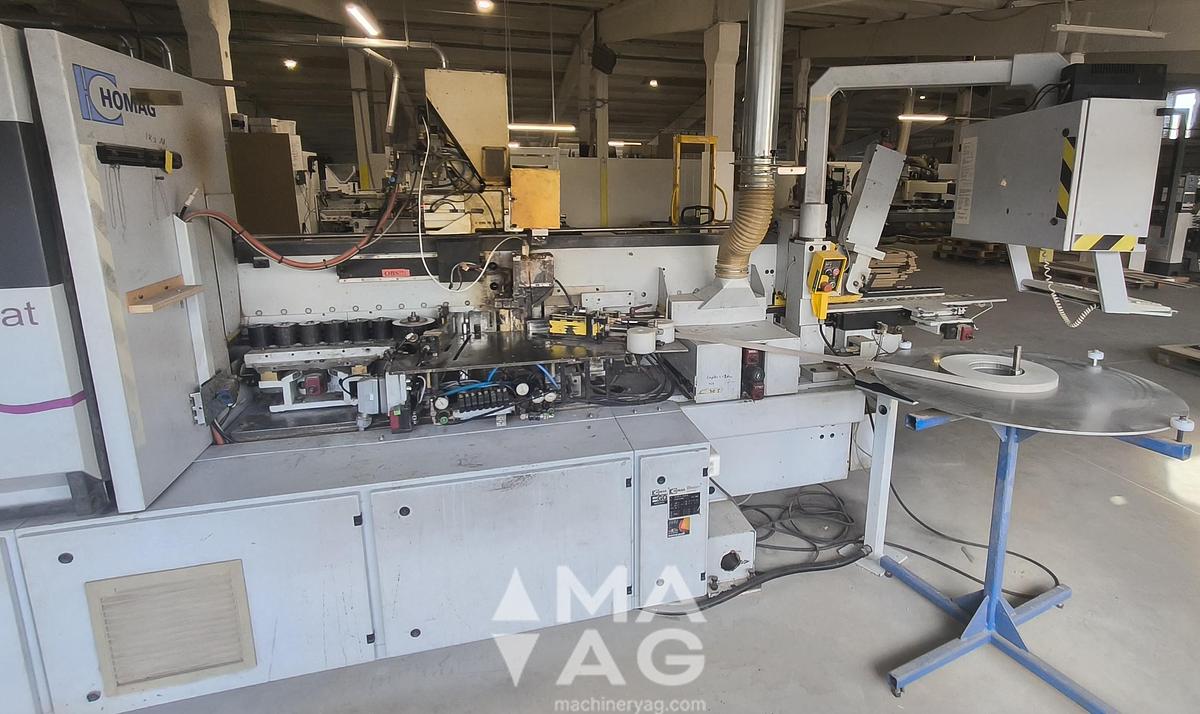

HOMAG Optimat KL 79/A20/S2 Edgebander, 2002

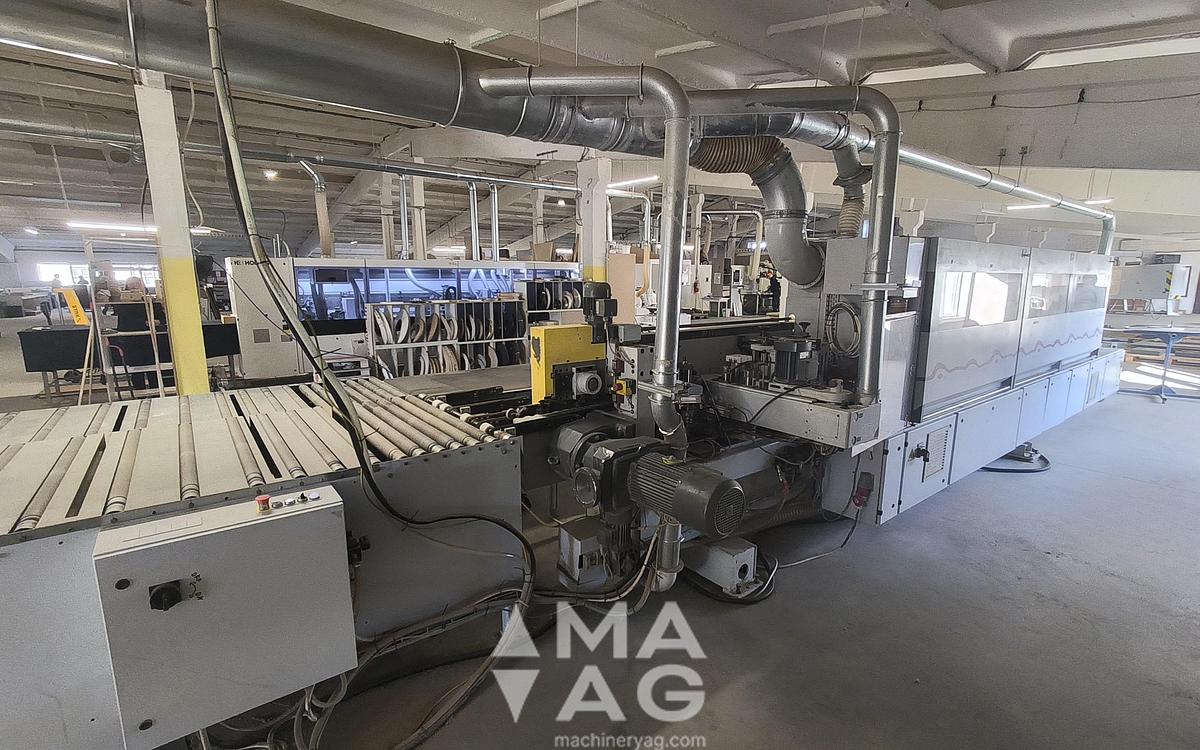

LIGMATECH ZHR 15 Transfer Unit / Roller Conveyor (Workpiece Return Conveyor / Boomerang) – will be sold separately from the edgebanding machine.

HOMAG Optimat KL79 A20/S2 (2002)

Installed Units:

• A20/S2 gluing station (edge thickness up to 20 mm)

• Edge feed magazine

• Front/rear end trimming units (two saw modules)

• Top and bottom trimming units

• Corner rounding units (two heads)

• Profile scraper units (top/bottom)

• Glue joint scraper

• Buffing/polishing units

• Pneumatic control and vacuum extraction system

Technical Data (from manufacturer specifications):

• Feed speed: 18–24 m/min

• Edge thickness: 0.3–20 mm

• Workpiece thickness: 12–60 mm

• Minimum workpiece width: 55 mm (22 mm thickness) / 100 mm (60 mm thickness)

• Machine length: 10,115 mm

• Weight: ~6,200 kg

• Power supply: 400 V, 50/60 Hz

• Compressed air: 8 bar
