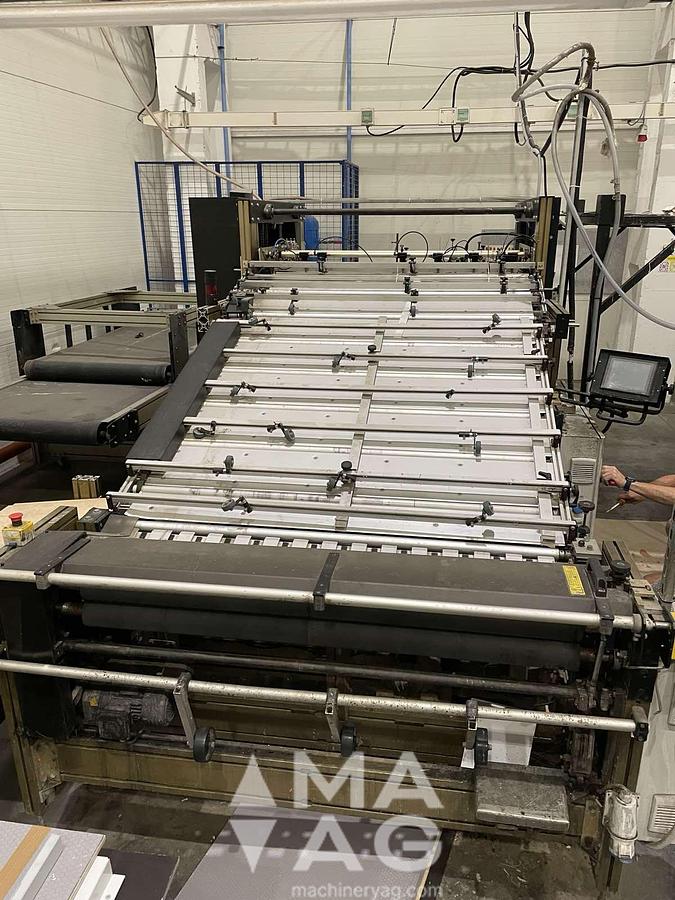

Laminating 1420 FA Automatic sheet-to-sheet

Type: Automatic sheet-to-sheet laminating machine

Manufacturer: Lamina system AB, Sweden

Model: Laminating 1420 FA

Technical Specifications

Max. sheet size: Width 1420 mm

Min. sheet size: Width 200 mm /Length 350 mm

Top sheet: 130 - 450 gm/m2, 1 pts = 28.25 g/m2

Bottom sheet: from 250 gm/m2

Thickness: 0.6 - 10mm (0,016 - 0,39*)

Glue: PVA type or as specified

Feeder height: Top: 500 mm

Bottom: 800 mm

Registration accuracy:* < +/- 0.50 mm

Operating speed:* Up to 3000 sheets/hour

Total installed power: 4.0 kW

Electrics: 400 V, 3-Phase, neutral, 50/60

Air requirements: 6 bar; 0.6 MPa or 80 psi

Approximately 500 lpm* Oil- and waterfree air
