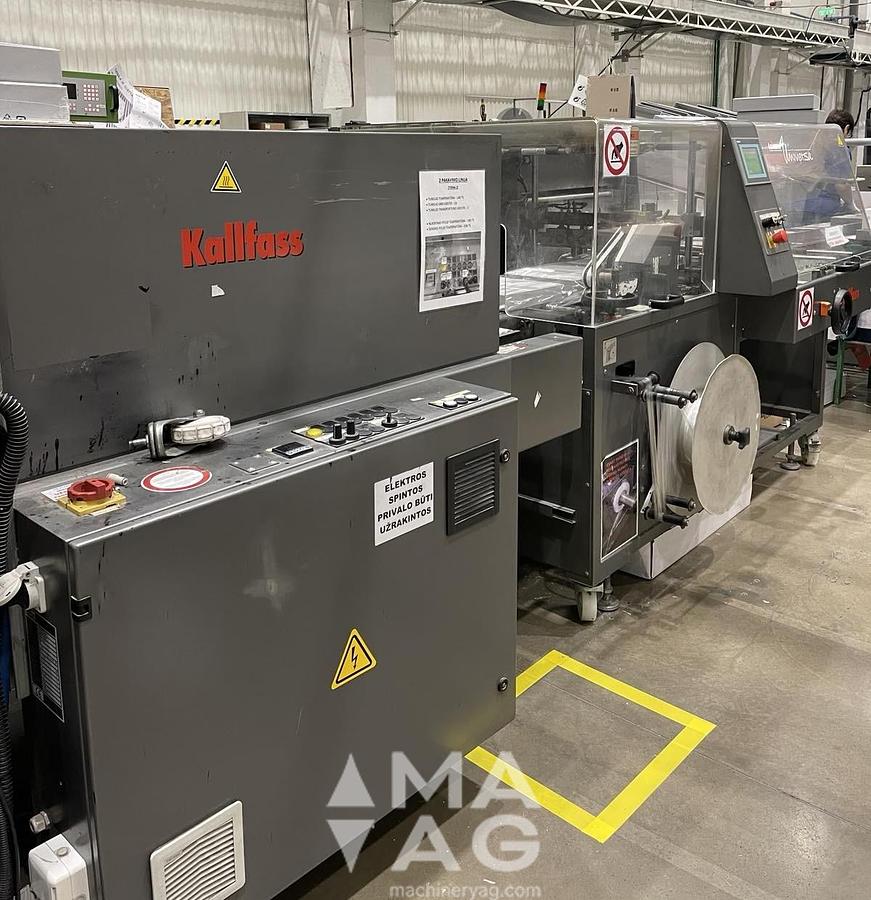

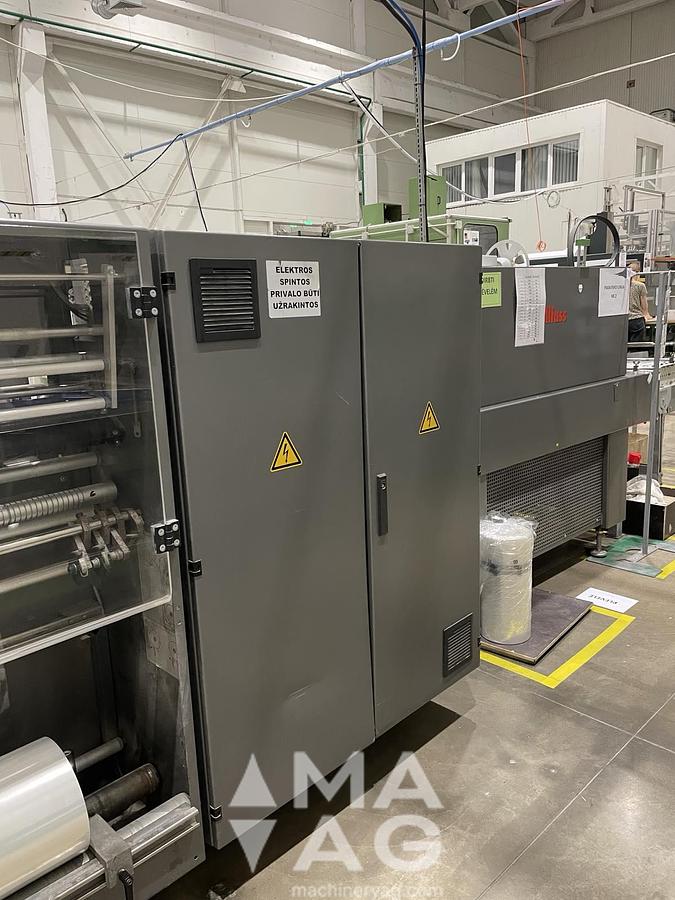

KALLFASS UNIVERSA 500+COMPACT 650 SO, year 2010

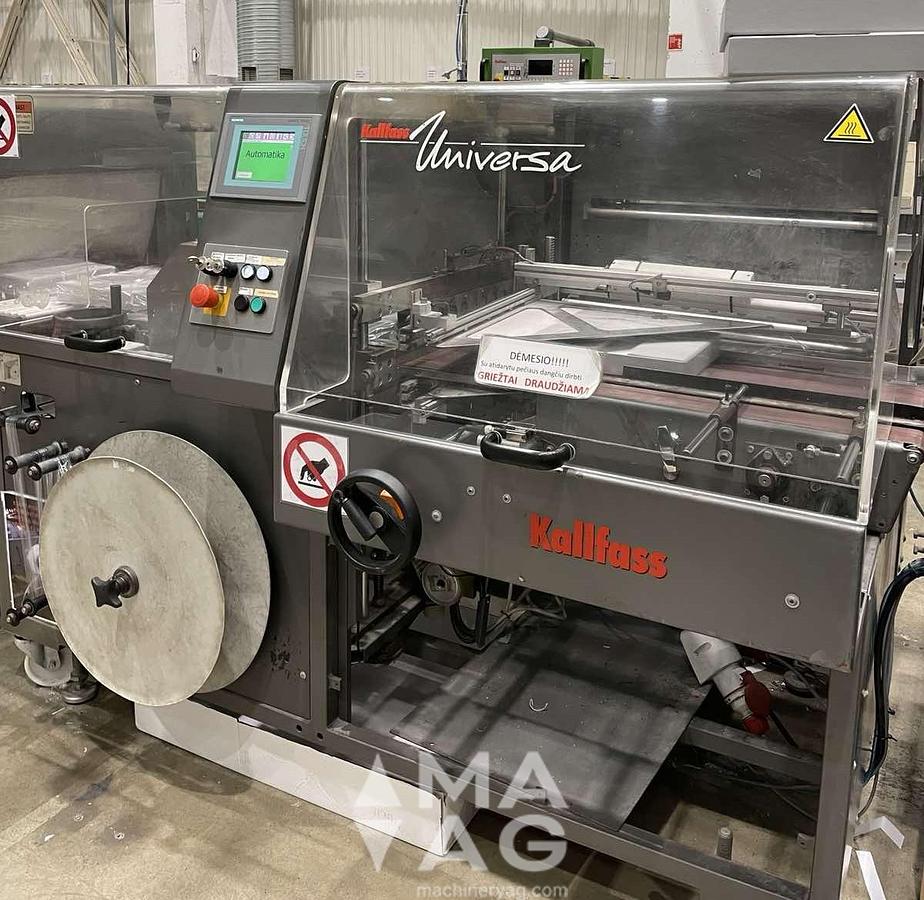

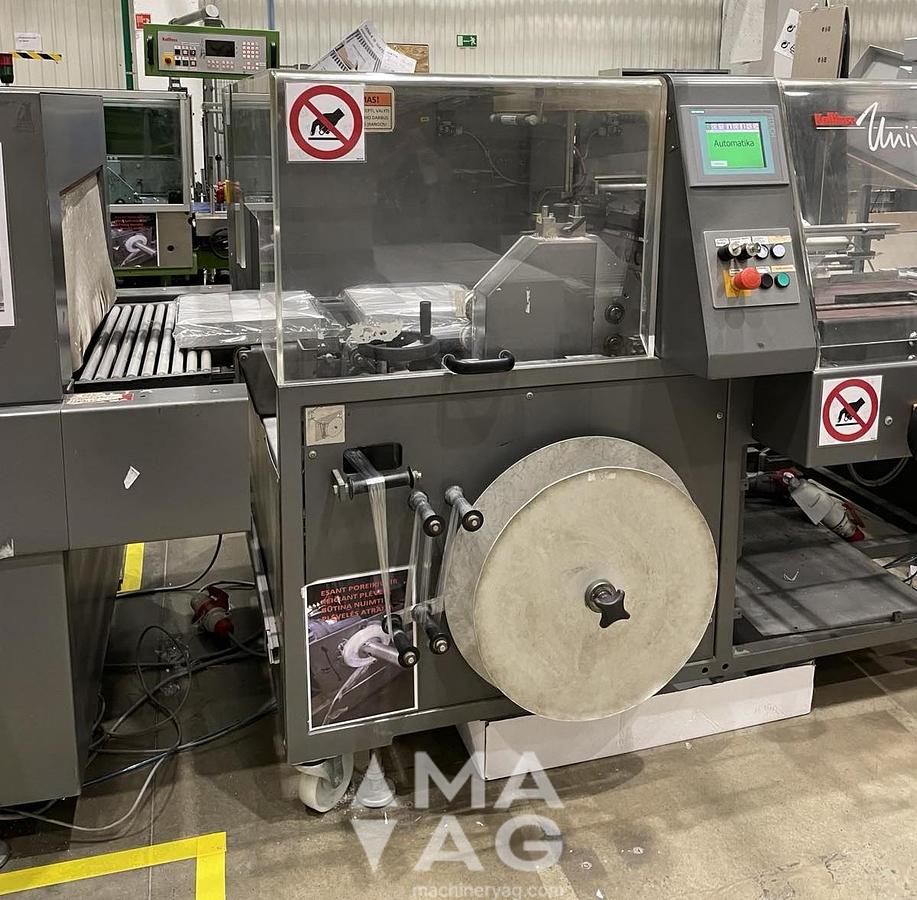

SPECIFICATIONS KALLFASS UNIVERSA 500 - fully-automatic side sealer

Transverse seal bar, length: 500 mm

Product clearance height: up to 200 mm

Power supply: 208 - 480 volt

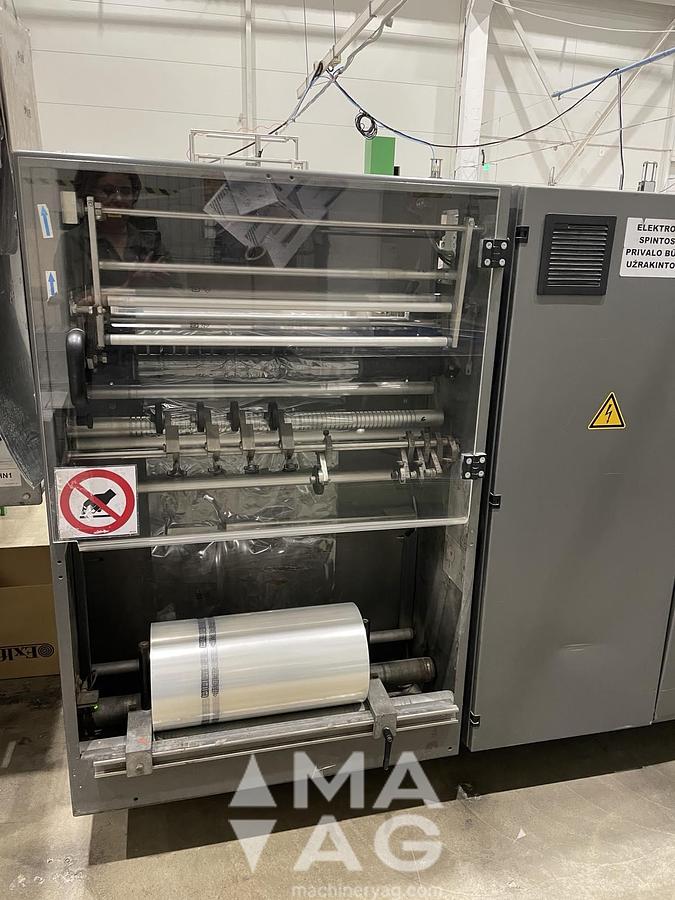

Film, center-folded film: 12 - 80 μm

Transport speed: 10 - 35 meter / minute

Packaging capacity, max.: 85 cycles / minute

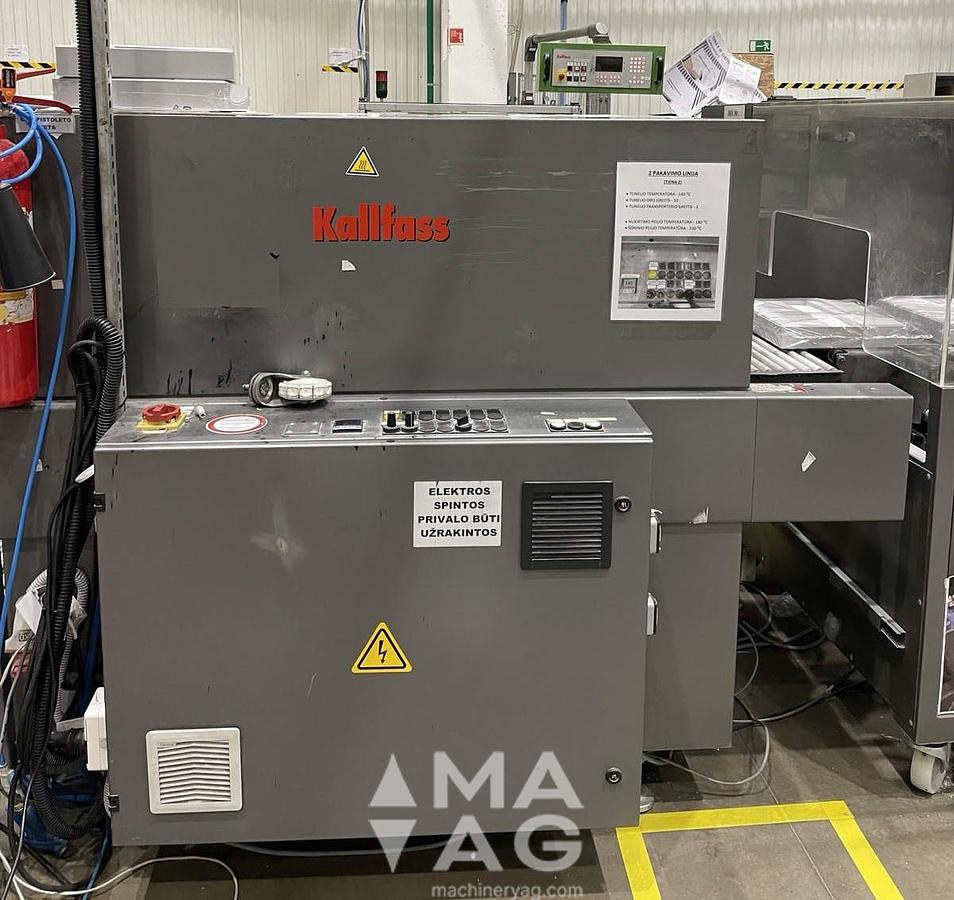

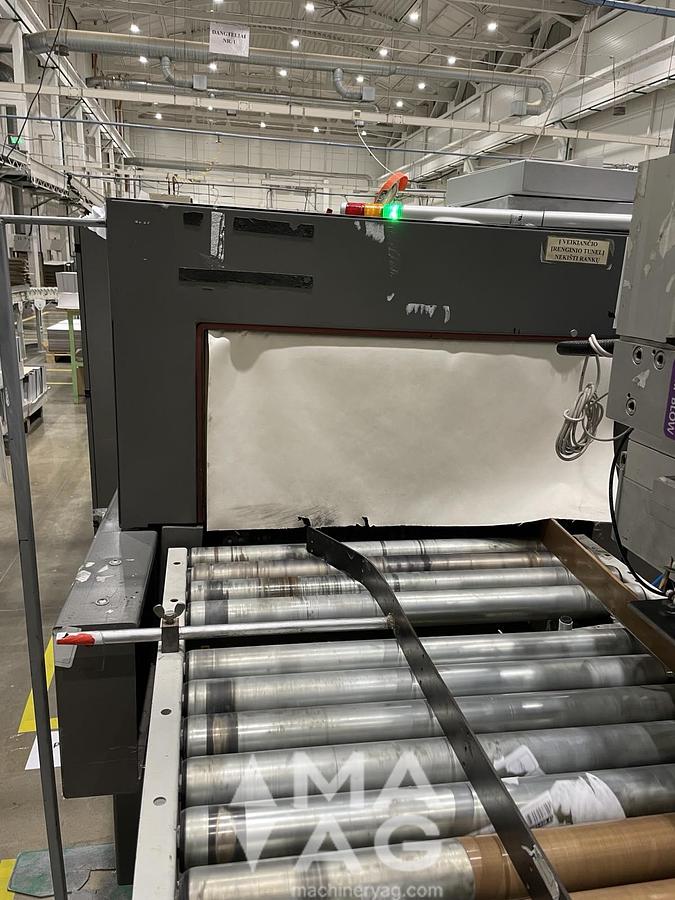

Technical Data Compact 650 SO

Tunnel clearance in width: 650 mm

Tunnel clearance in height, adjustable: 100 - 400 mm

Length of the heated tunnel hood: 1100 mm

Air-flow regulation with patented ring nozzle system: standard

Maintenance free plastic-mesh-belt: standard

Transport speed infinitely variable, frequency controlled: approx. 10 – 35 m/min.

Capacity of the tunnel blower infinitely variable, frequency controlled: standard

Energy saving 2-stage heating with special insulation in tunnel hood: standard

Temperature control by means of electronic thermostat: switching precision +/- 0.2° C

Wear resistant and contactless temperature control: standard

safety device according to EC regulation machines EN 60204: limit temperature control: standard

Working height, adjustable: 800 - 900 mm

Power supply: 400 Volts, 50 Hz, with protective earth conductor

Heating capacity, installed, 2-stage switchable: 9.0 + 4.5 kW

Rated capacity: 14.5 kVA

Nominal current at 400 V: 21.0 amps

Total connected load: max. 37.0 amps (incl. add. three phase power supply)

Position of control cabinet and operating side: left hand side in working direction
