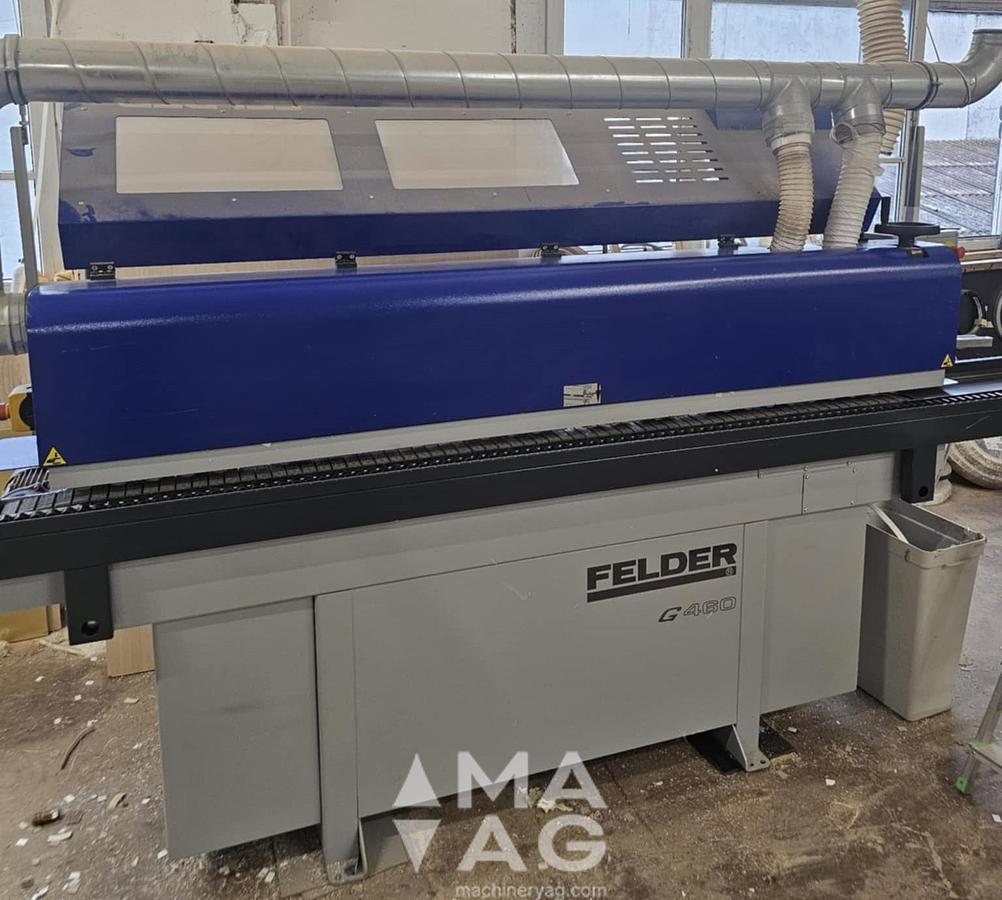

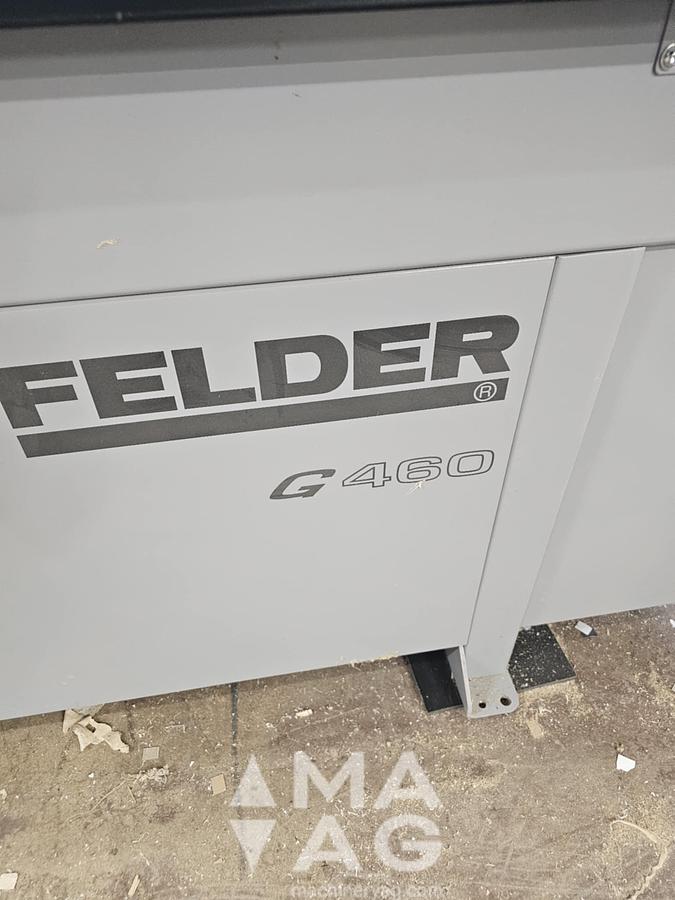

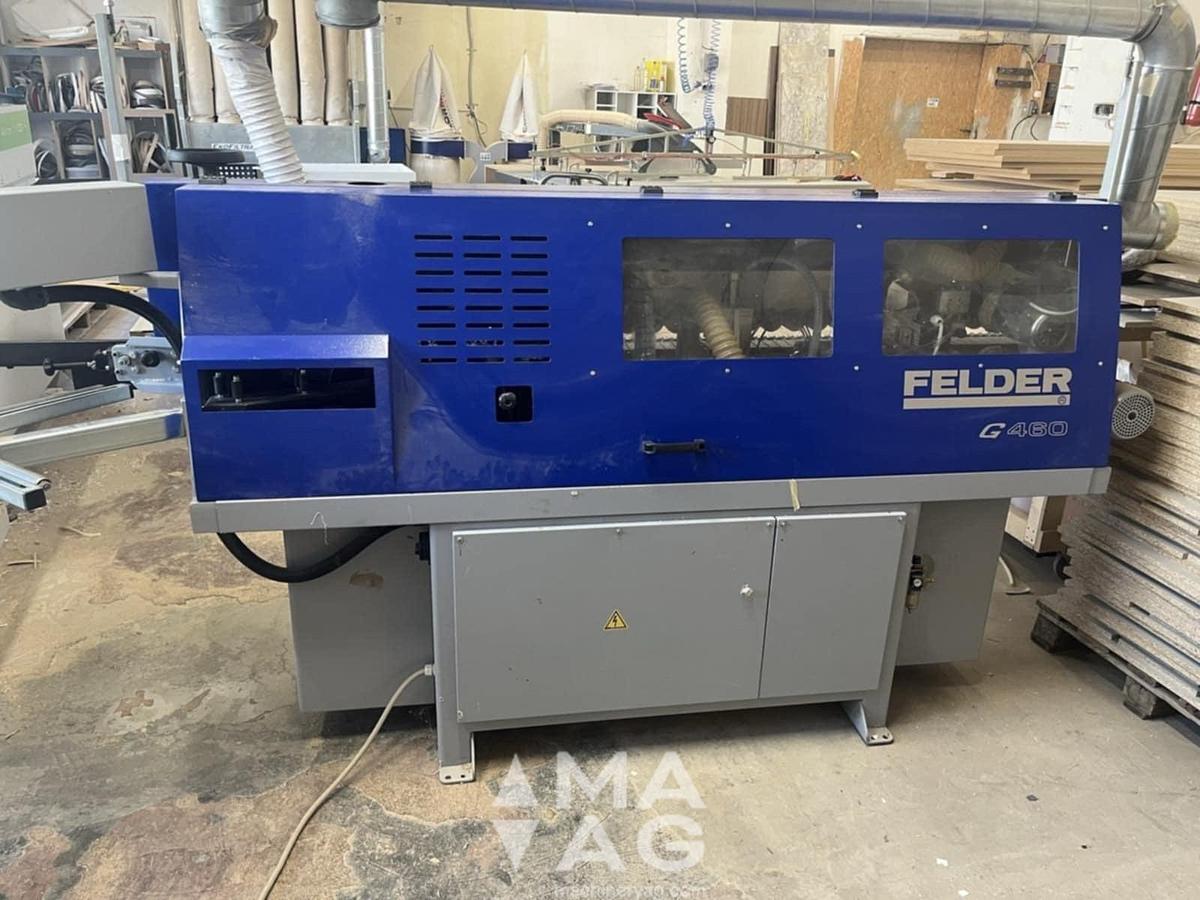

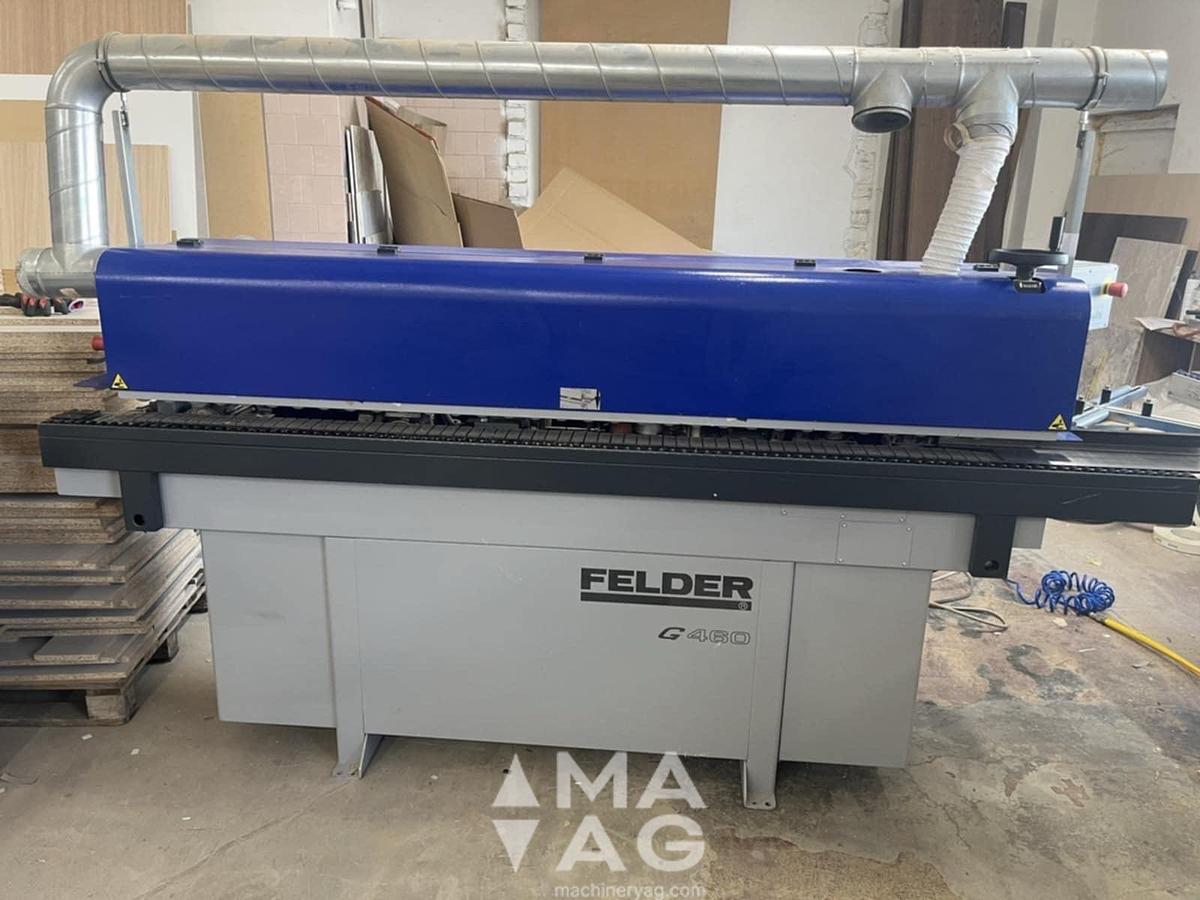

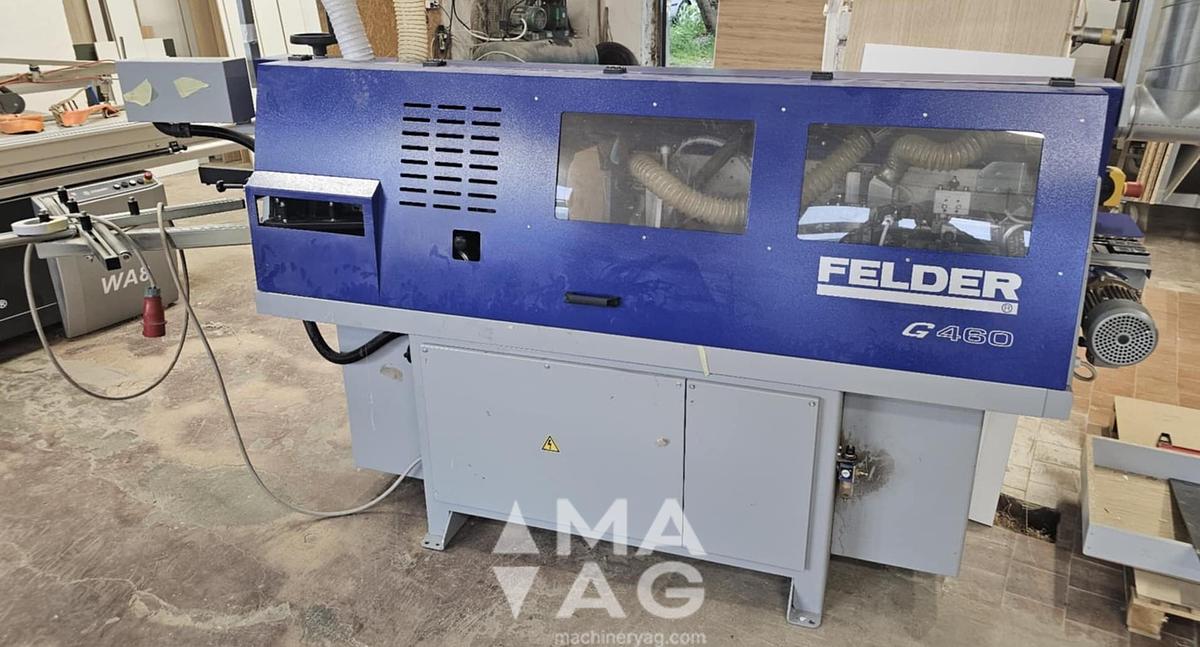

Felder G460 Edgebander, 2014

Edgebander FELDER G460, year 2014 for sale!

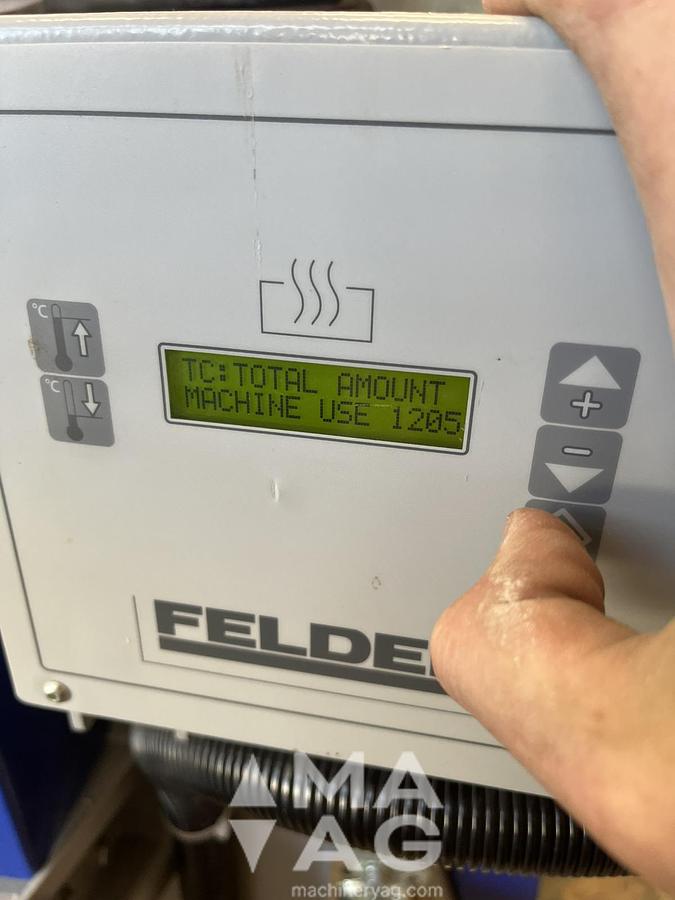

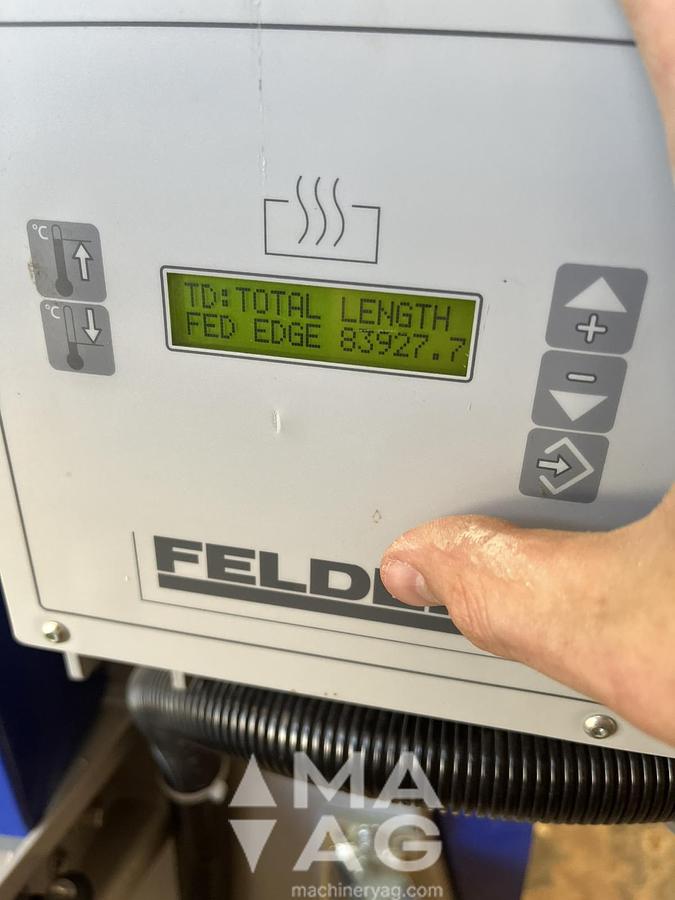

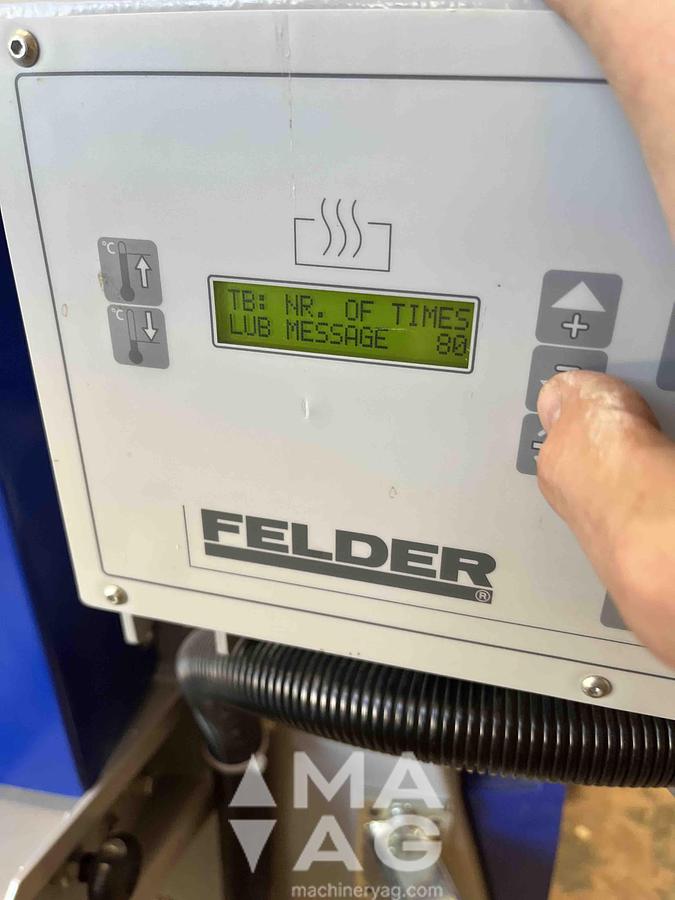

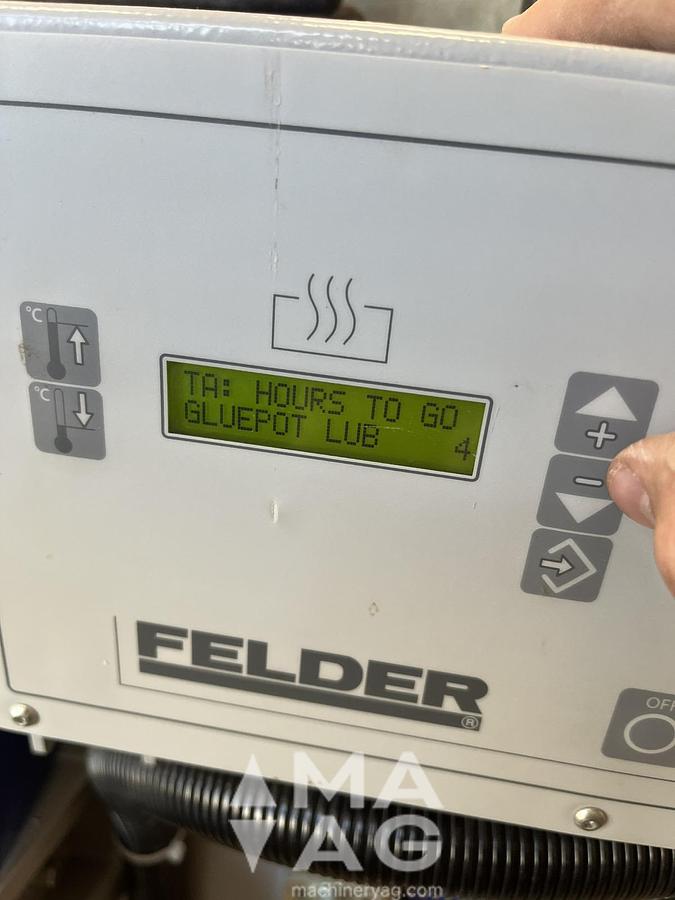

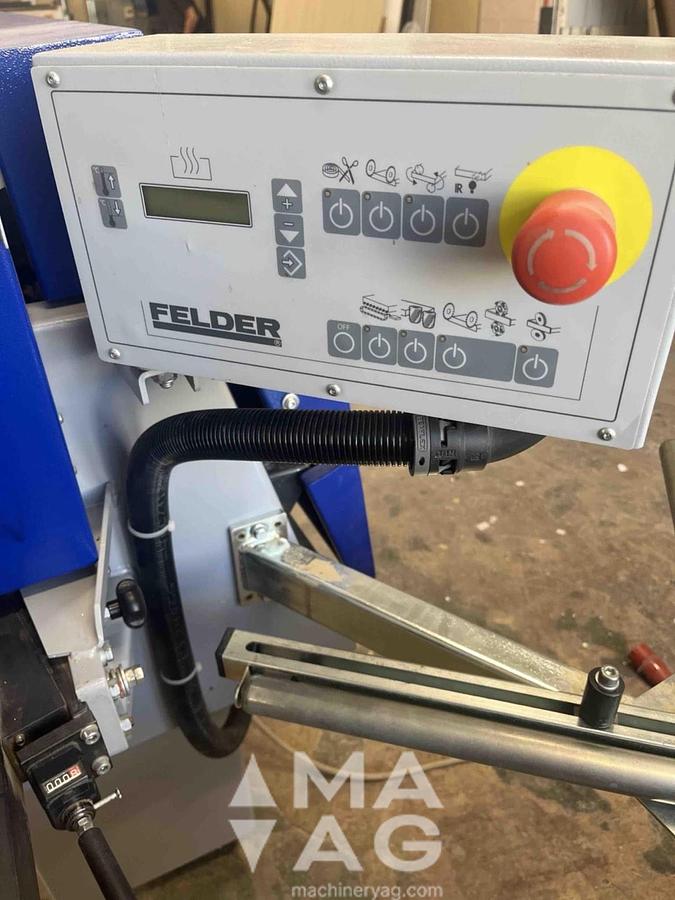

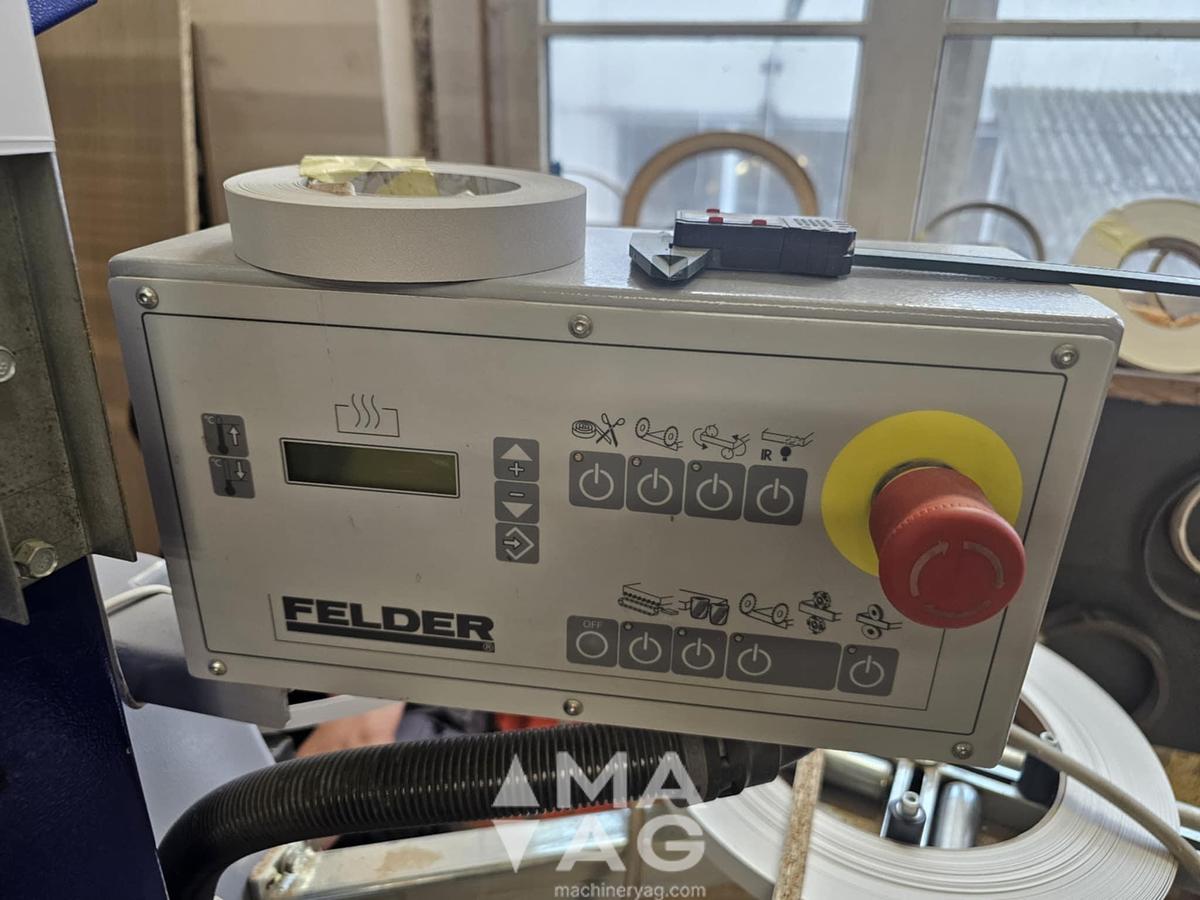

• Operating panel with LCD display and keypad

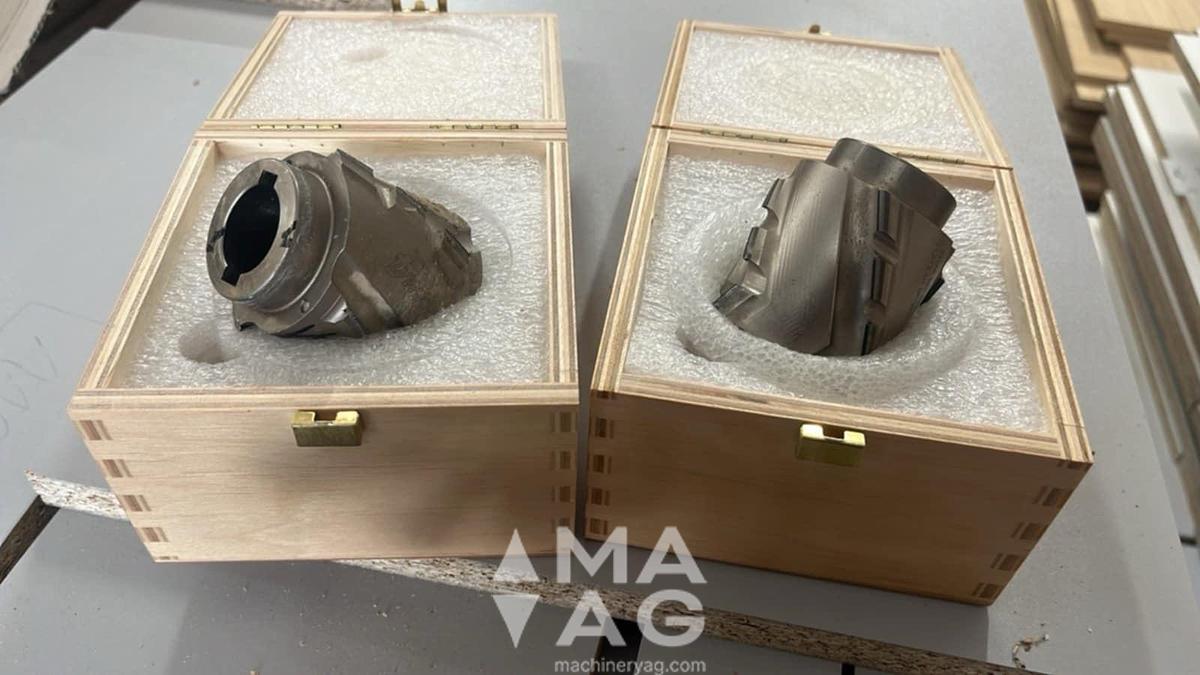

• Premilling unit with 2 diamond spindles rotating in opposite direction

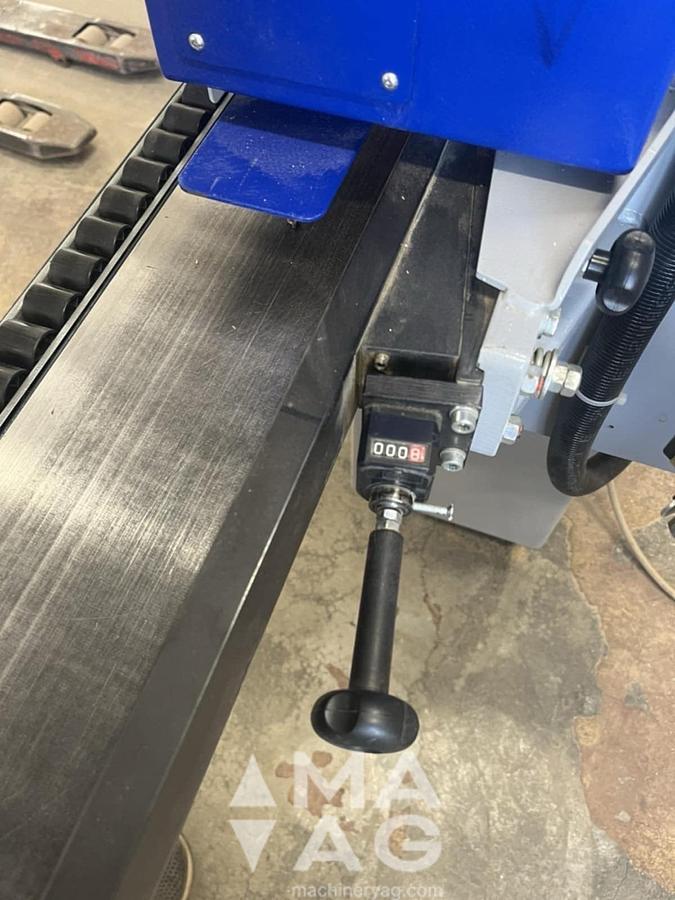

• Manual unit adjustment
• Tape thickness 0.4 - 3.0 mm
• Workpiece height 8 - 45 mm
• 9 m/min feed speed
• 2 available slots for additional finishing units

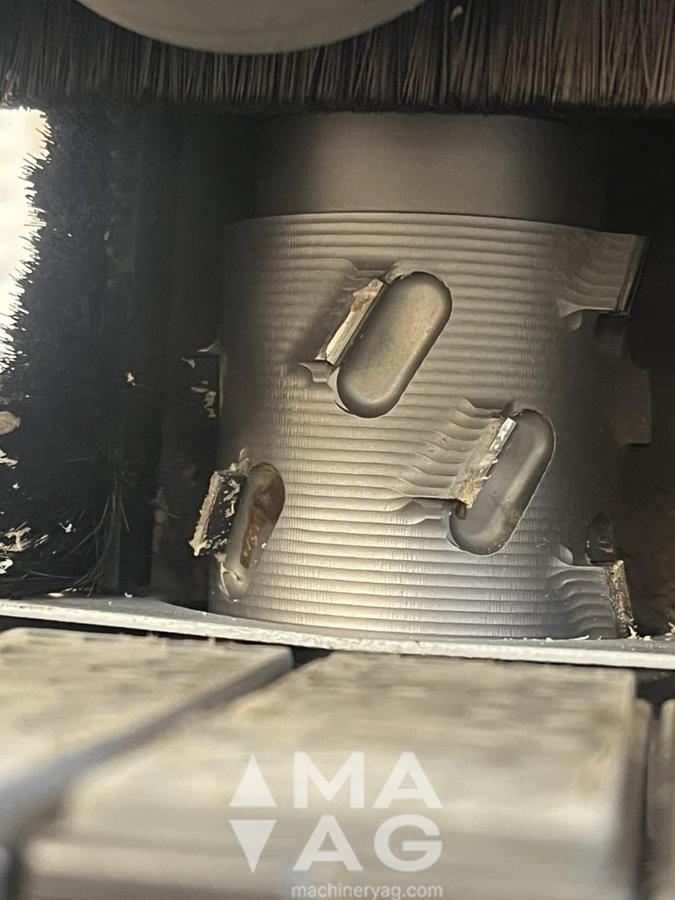

Premilling unit (centrally controlled - can be disengaged)

Adjustable cutting depth 0-2 mm

Tool diameter 60 mm

Max. processing height 45 mm

No. of asymmetrical diamond tipped V-cut milling units 2+2

Rqm 12000

Power (kW) of each motor 1.1

Working dimensions

Edge thickness min.-max. 0.4-3.0 mm

Work piece thickness min.-max. 8-45 mm

Min. workpiece width 70 mm

Min workpiece length 210 mm

Units

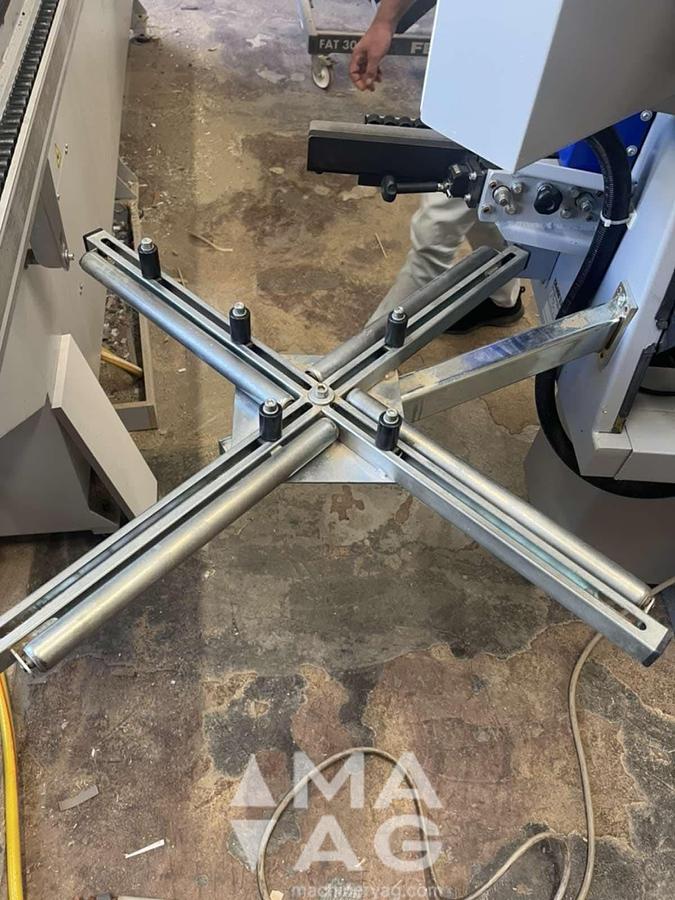

Coiled edge band feed suport plate Ø 800 mm, for PVC/ABS

Edge feeding is automatic for roller materials with a thickness of 0.4-3 mm, strip glue in separate feed

Guillotine shears for cutting coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS

Glue unit for glue granulate from the teflon coated glue pot

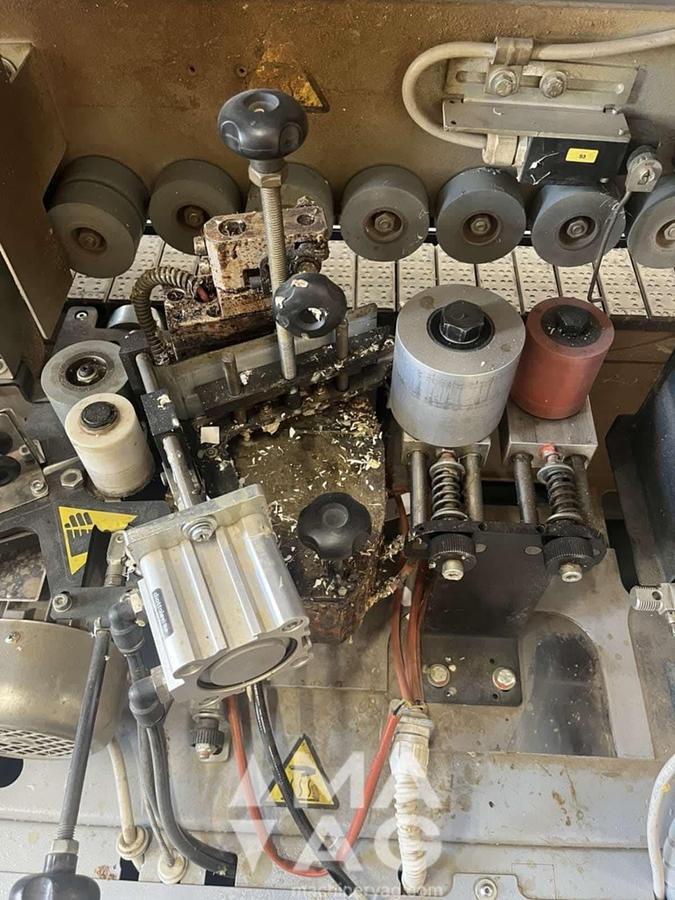

Spring loaded pressure unit with 1 pressure roller and 1 free moving roller

12000 rpm 0.27 kW end trimming unit with Ø 100 mm 24 tooth HW-Saw blades

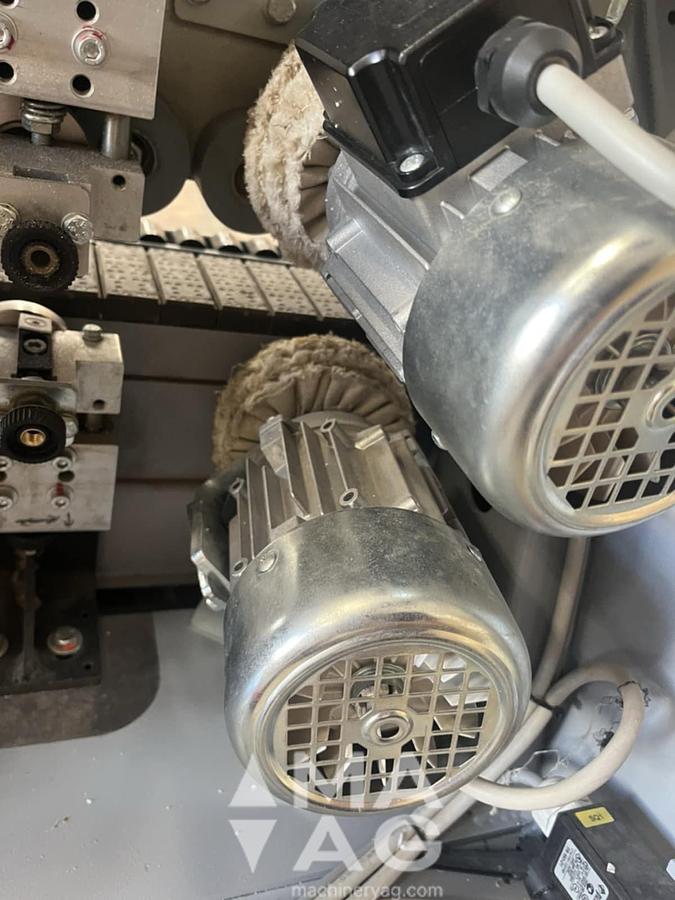

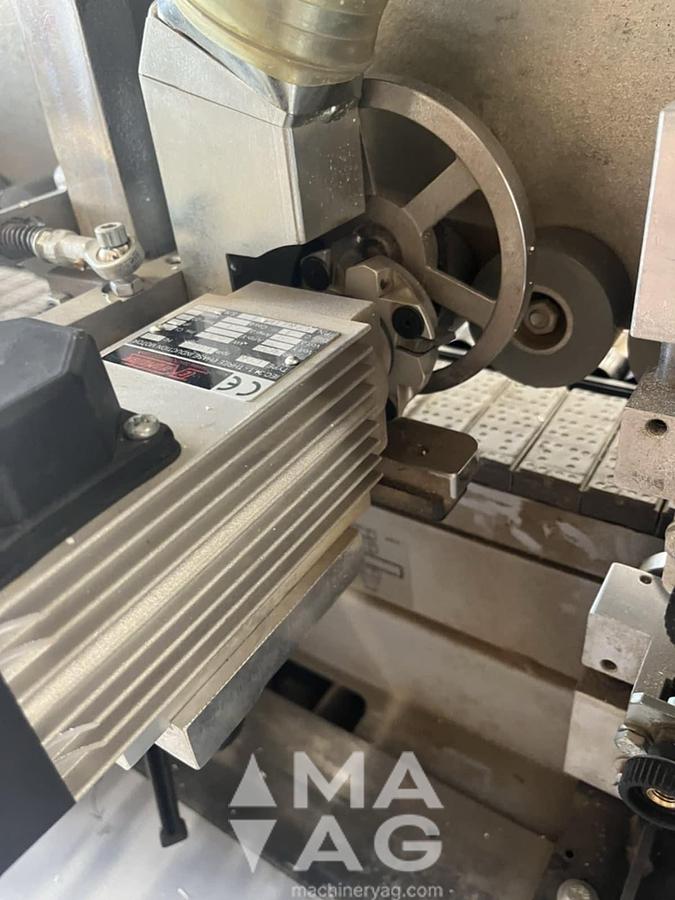

12000 rpm 0.37 kW Flush trimming radius trimming and bevel trimming

Tooling for 2 mm radius

General

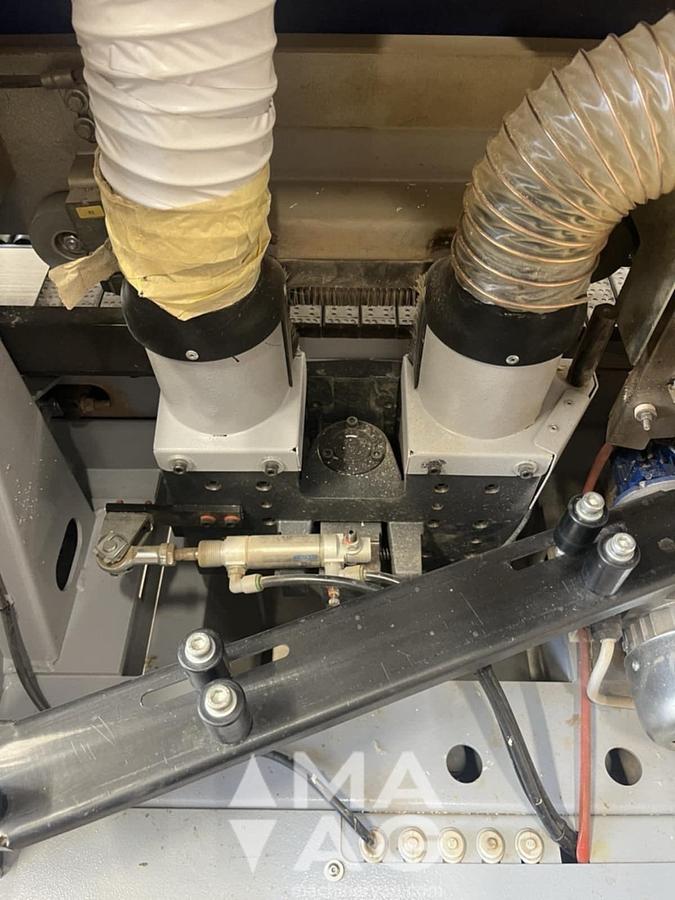

Extraction connector Ø in mm 120+2x80

Machine Weight 560 kg

Machine Length 3200 mm x Width 1100 mm x Higth 1550 mm
