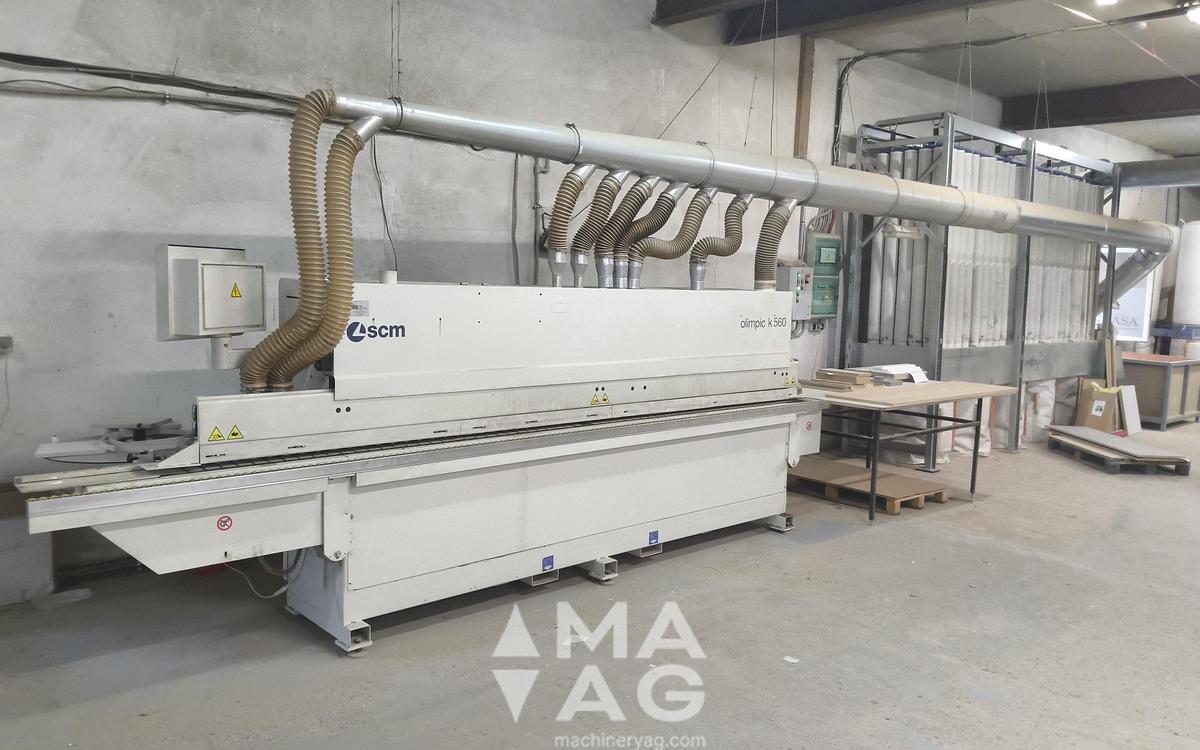

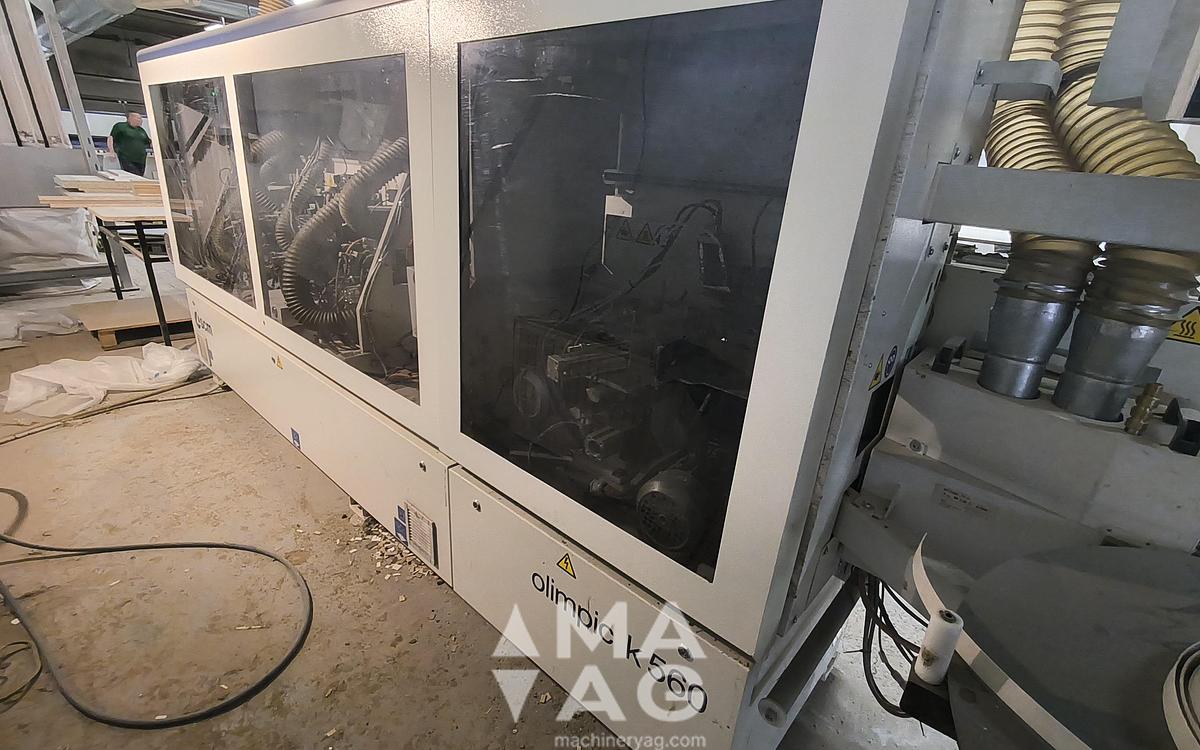

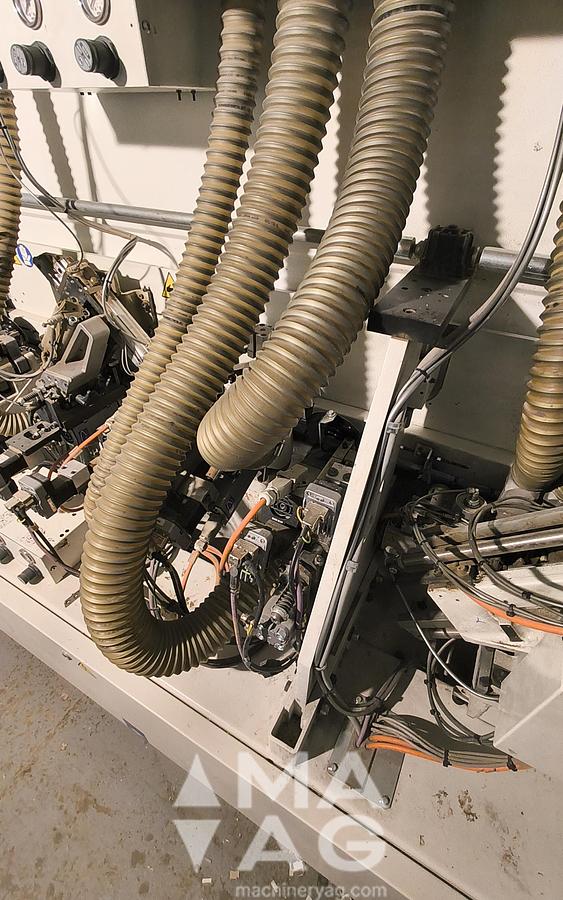

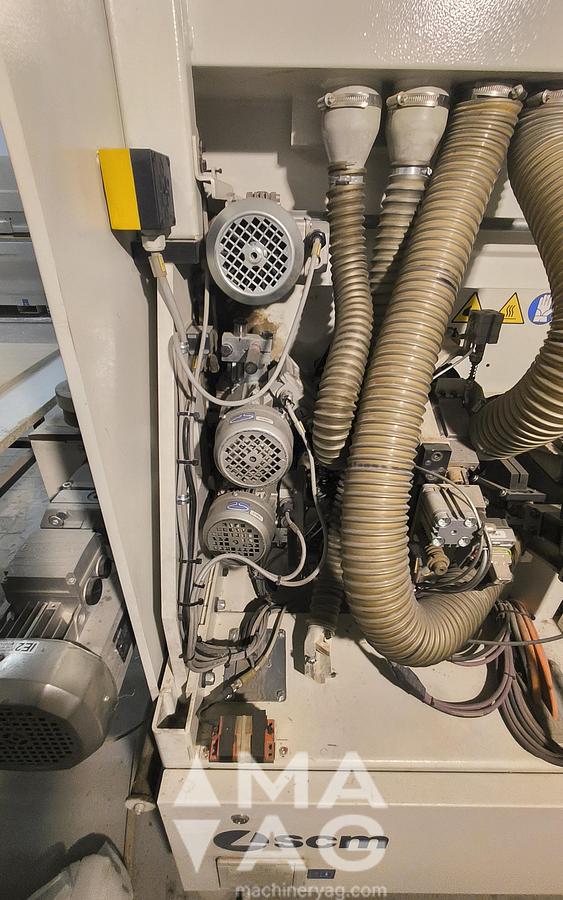

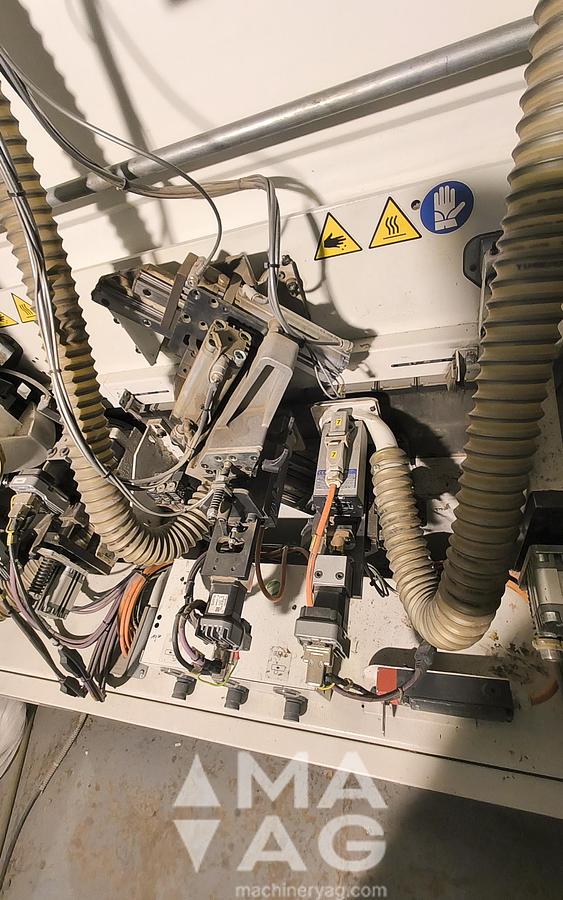

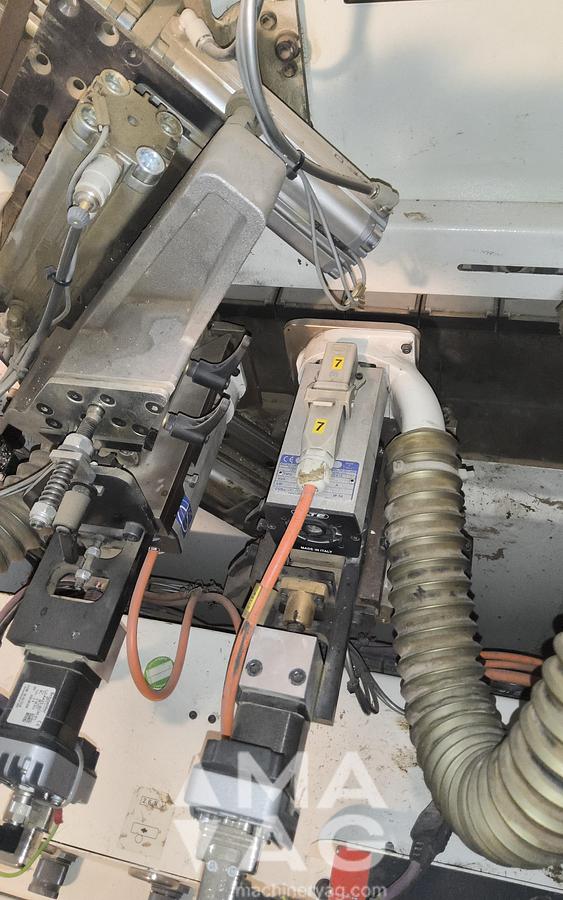

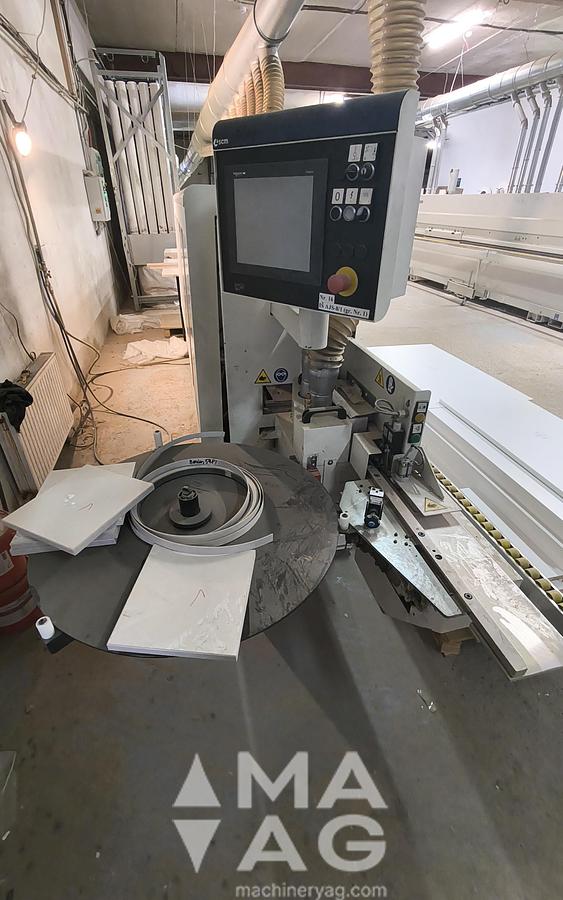

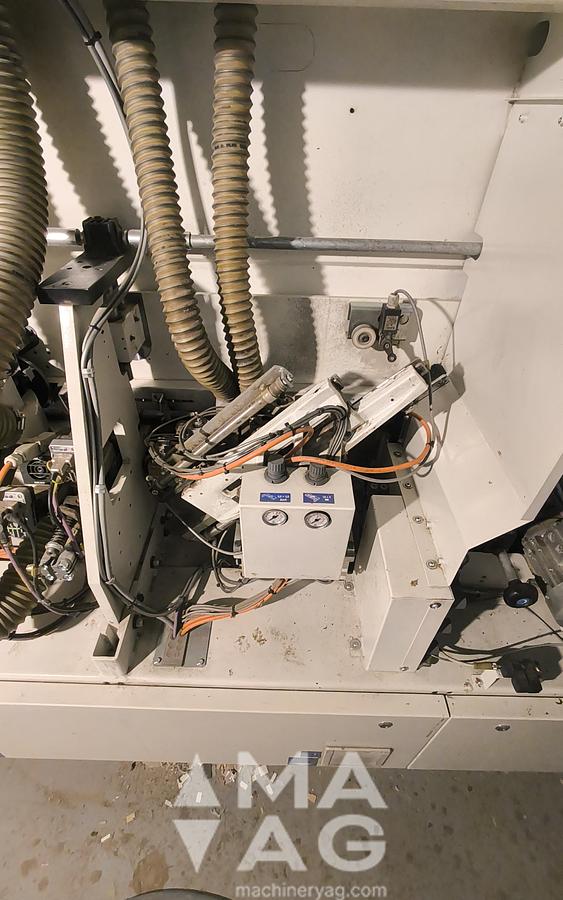

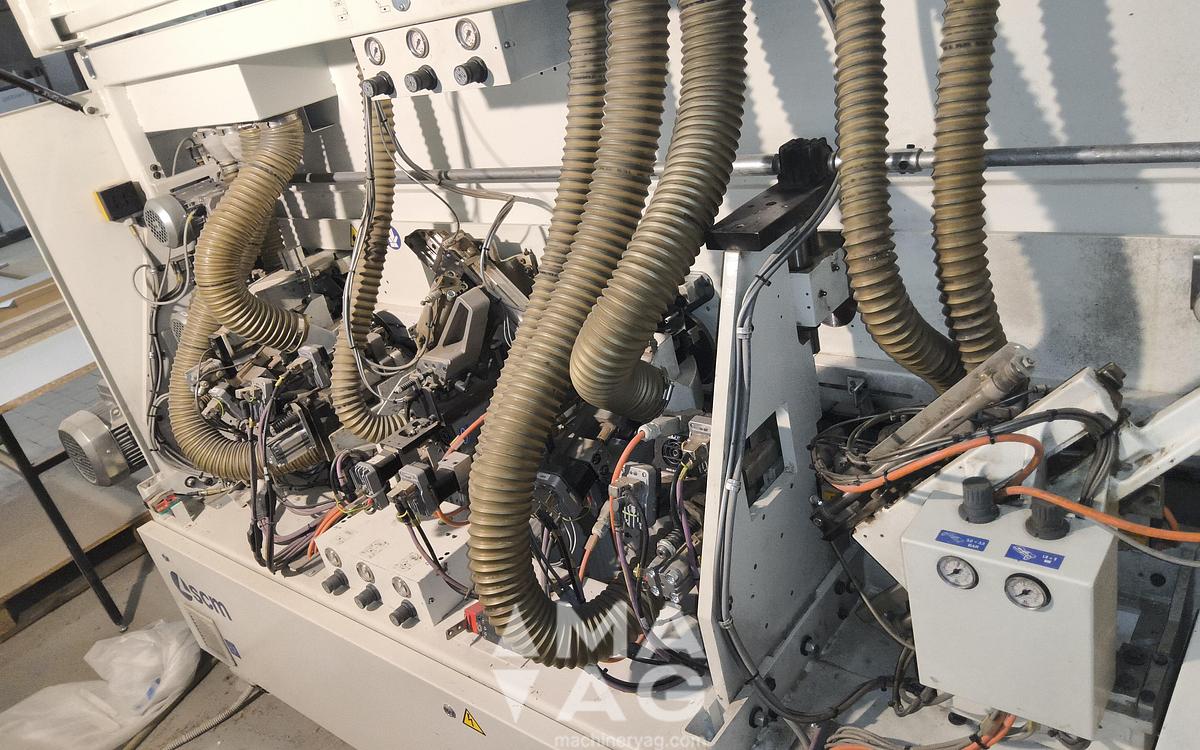

SCM Olimpic K 560 Automatic Edge Gluing, 2018

SCM Olimpic K 560 Automatic Edge Gluing, year 2018 for sale!

Complectation

Chain feed speed 12/18m/min

Edge thickness 0.4/3mm

EVA glue

Panel milling unit "RT-V"

Glue application unit "VC-S4.1"

Edge trimming unit "K-SEL"

Edge milling unit "R-K"

Edge corner rounding unit "ROUND X"

Edge scraping unit RAS-K

Polishing unit SP-V

Technical characteristic

Conveyor speed (two speeds) m/min 12 - 18

Min / max part thickness mm 8 - 60

Thickness of glued wooden edge mm 0.4 - 6 (8mm HP composition)

Thickness of glued roll edge mm 0.4 - 3

Maximum area of ​​glued roll edge mm² 135

Diameter of reel support "plate" mm 780

Maximum overlap of glued edge, relative to the part mm 2+2

Minimum distance between transported parts mm 600

Minimum length of part (when the width of the part is min. 100 mm) mm 140

Minimum length of roll edge mm 180

Minimum length of wooden edge mm 220

Minimum width of the part (when the length of the part is min. 210 mm) mm 95 (60mm opc.)

Width of the extension support mm 560

Height of the worktable from the floor mm 900

Plate milling unit "RT-V"

Max. chip removal area mm2 55

Max. milling thickness mm 3

Min. / max. thickness of the part mm 8 - 45 (60mm opc.)

Motor power kW 2 x 1.5

Mill diameter mm 100

Mill height mm 49 (64mm opc.)

Tool rotation speed rpm 9000
