Bernardo TB2020 Sheet metal bending, 2017

Bernardo TB2020 Sheet metal bending, 2017

€2,500 (EUR)

FCA

Description

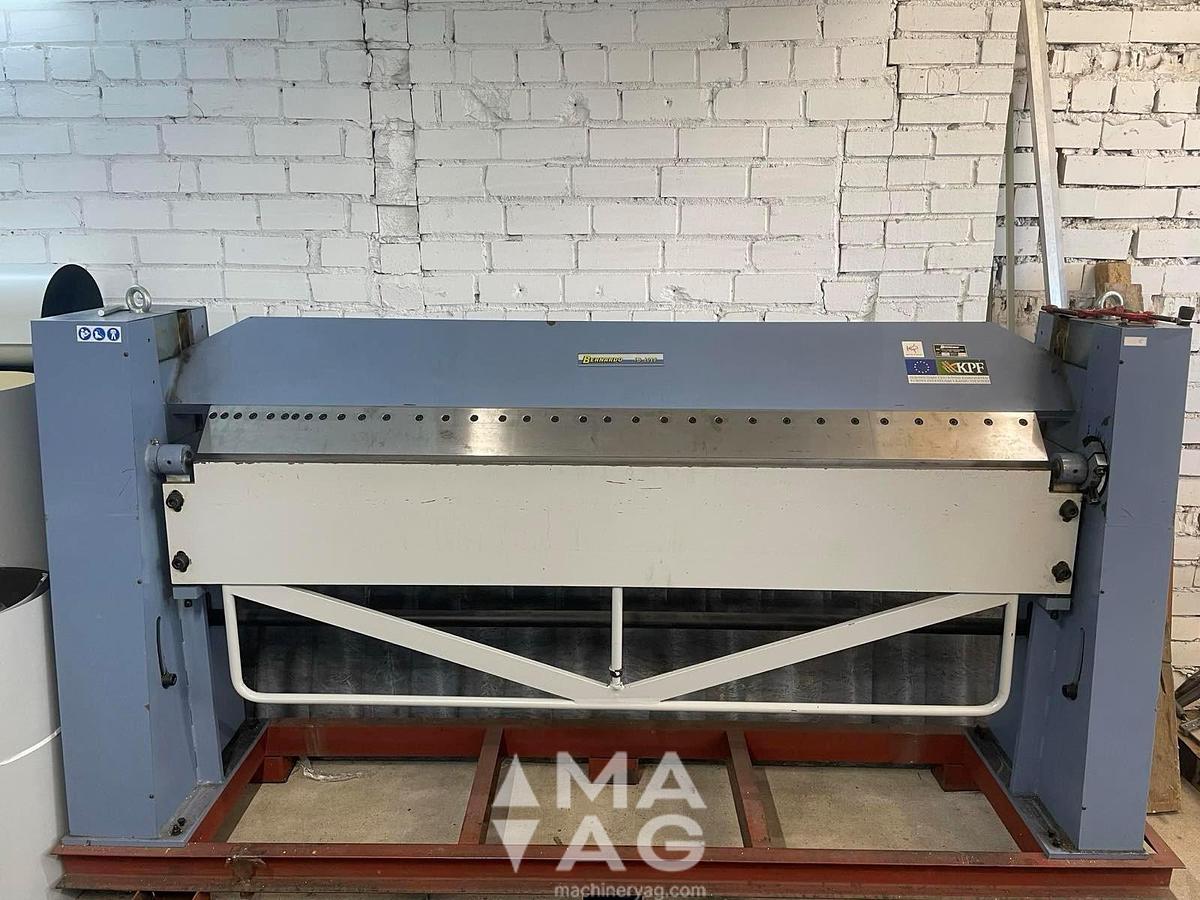

Sheet metal bending machine Bernardo TB2020 for sale! Fully operating!

Width 2750 mm

Depth 560 mm

Height 1260 mm

Working height920 mm

Working length2020 mm

Sheet thickness max. (400 N / mm2) 2,0 mm

Bending angle 0 - 135°

Weight approx. ca.1025 kg

Max. opening with segments 122 mm

Max. opening without segments144 mm

Max. clearance closed 22 mm

Properties

  • Segmented upper beam for a large number of bending possibilities
  • Universal bending machine for plumbers and repair shops
  • High upper beam for the production of high folded profiles
  • Quick and easy bending process by means of bow handle
  • Easy adjustment of the upper beam for efficient work
  • Setting of the bending angle by means of scale
  • Separately removable segments for bending boxes
  • Large opening for machining large workpieces
  • Solid construction in modern design

Standard accessories

  • Segmented upper beam
  • Bending segments 25 | 30 | 35 | 40 | 50 | 75 | 100 | 150 | 200 | 300 | 500 | 510 mm



Specifications

ManufacturerBernardo
ModelTB2020
Year2017
ConditionUsed
Stock Number78570
