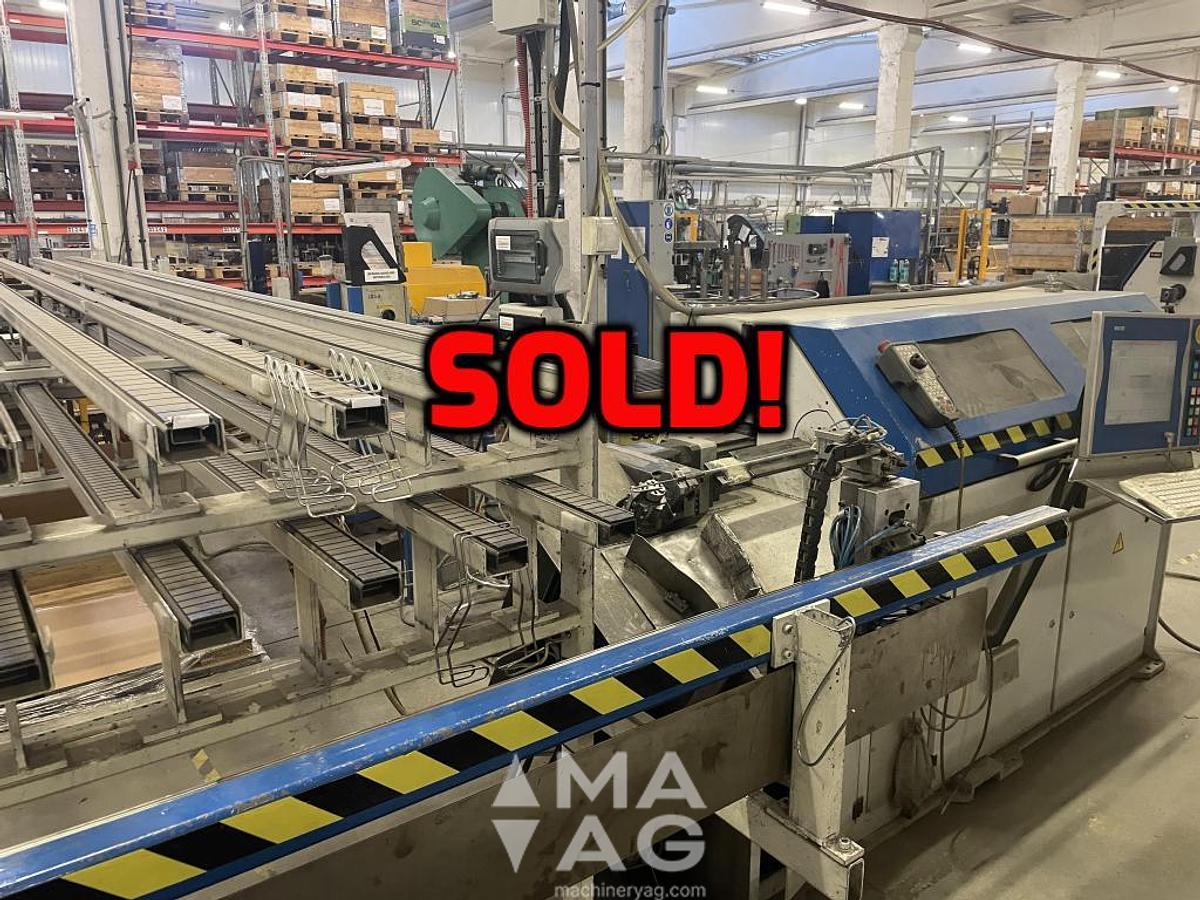

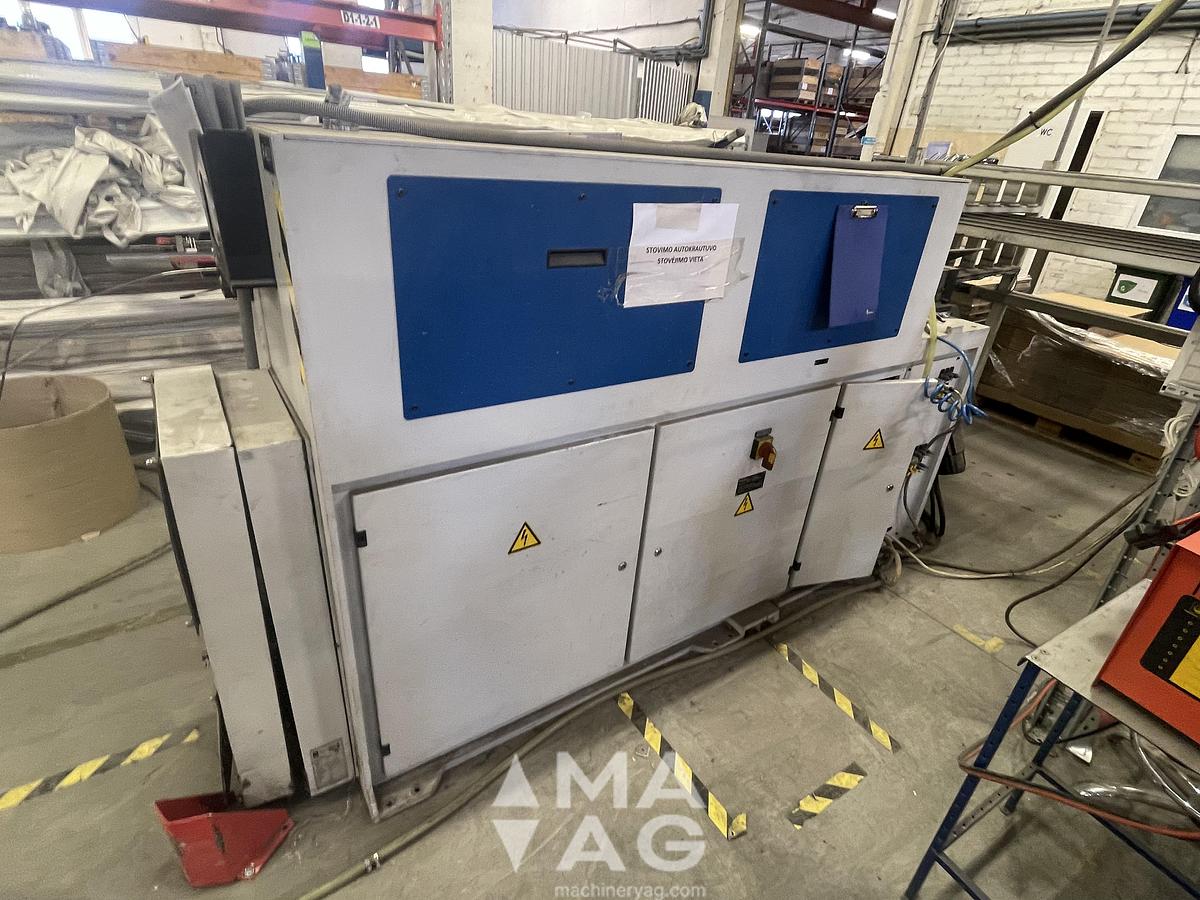

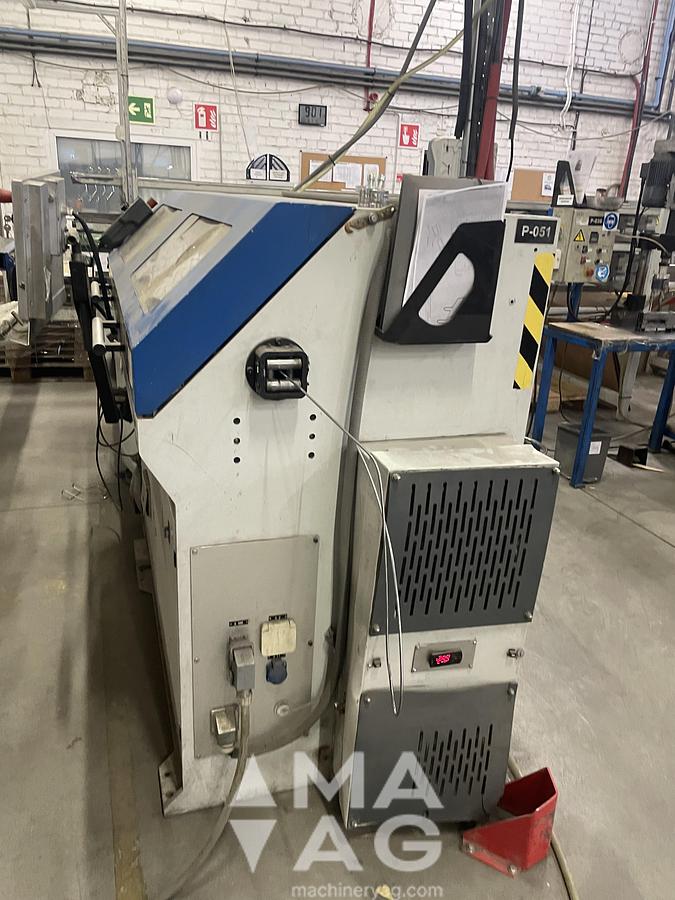

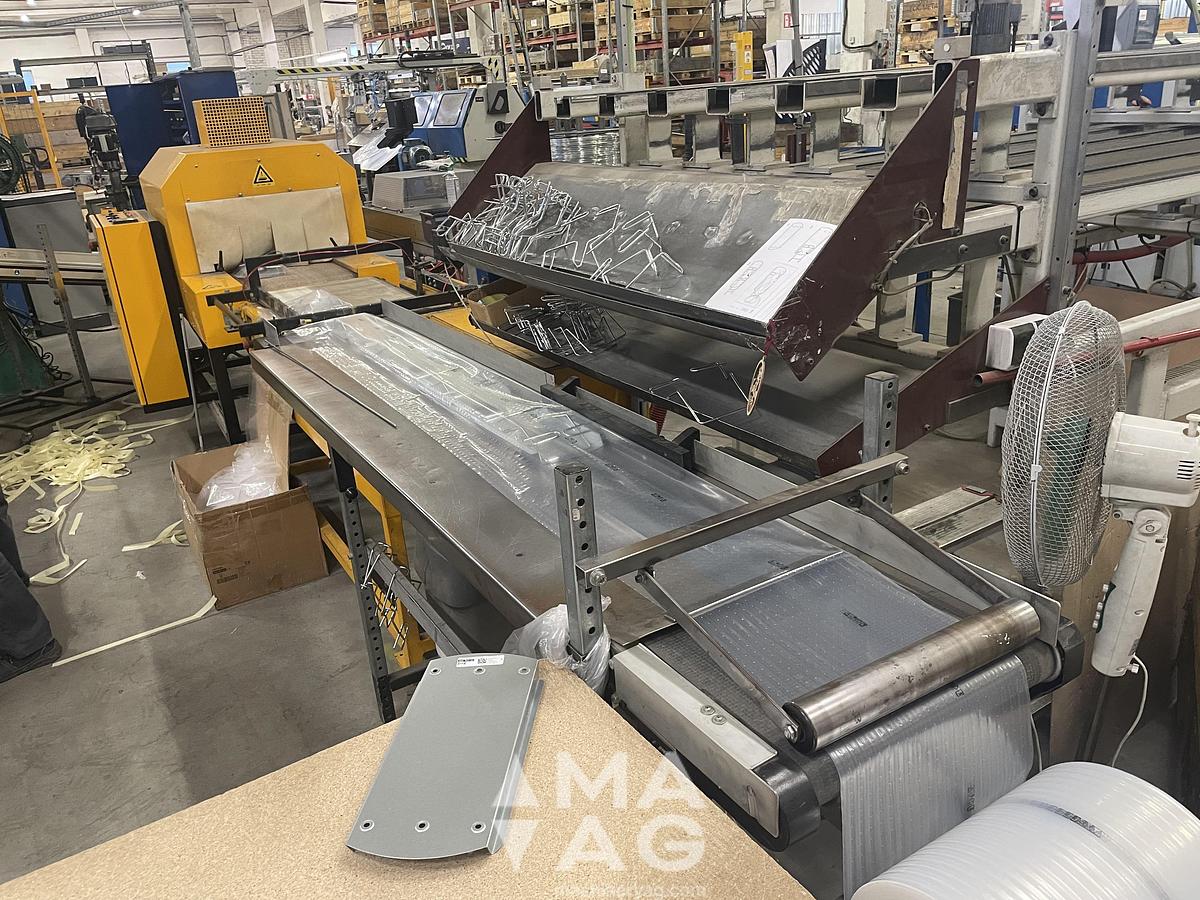

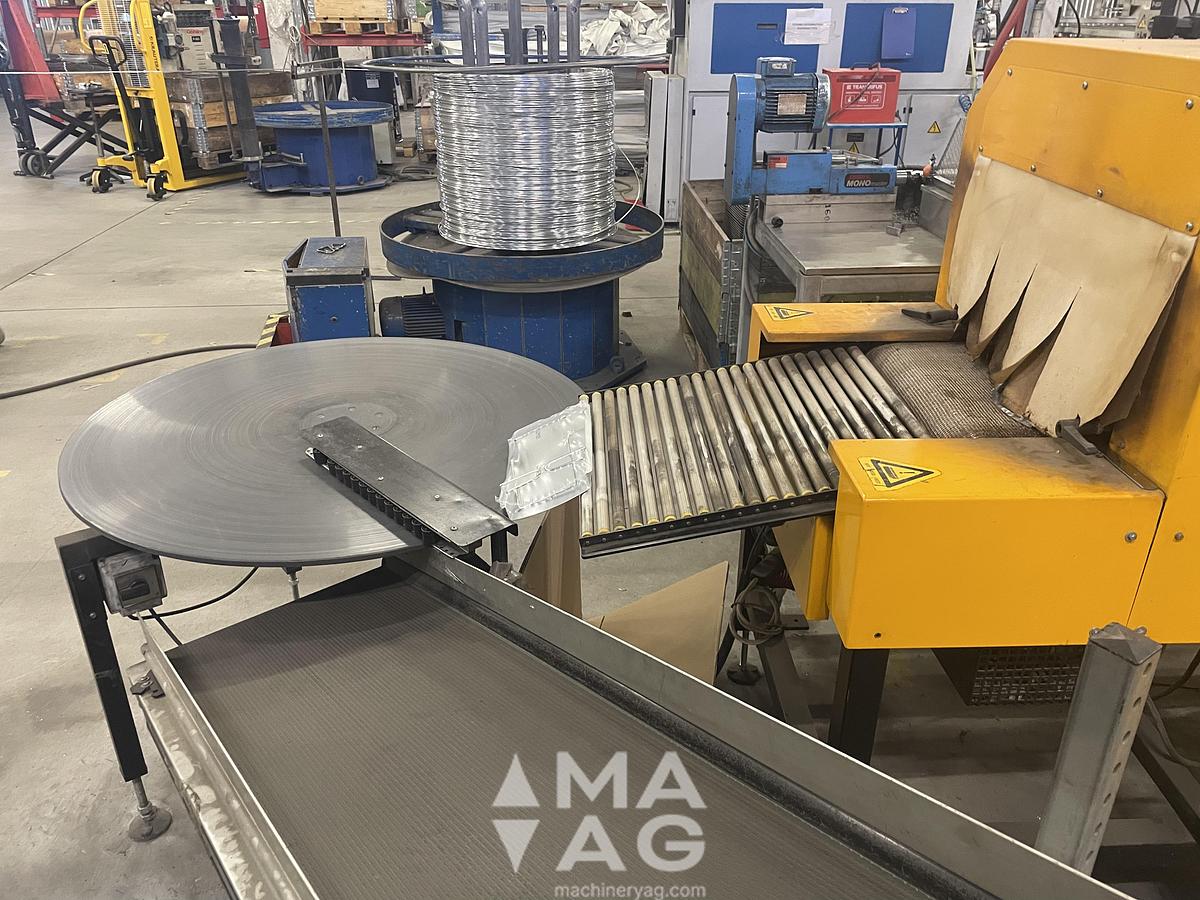

WAFIOS BM 41 L, 2004 CNC Bending & Coiling center

CNC Bending and Coiling center for sale!

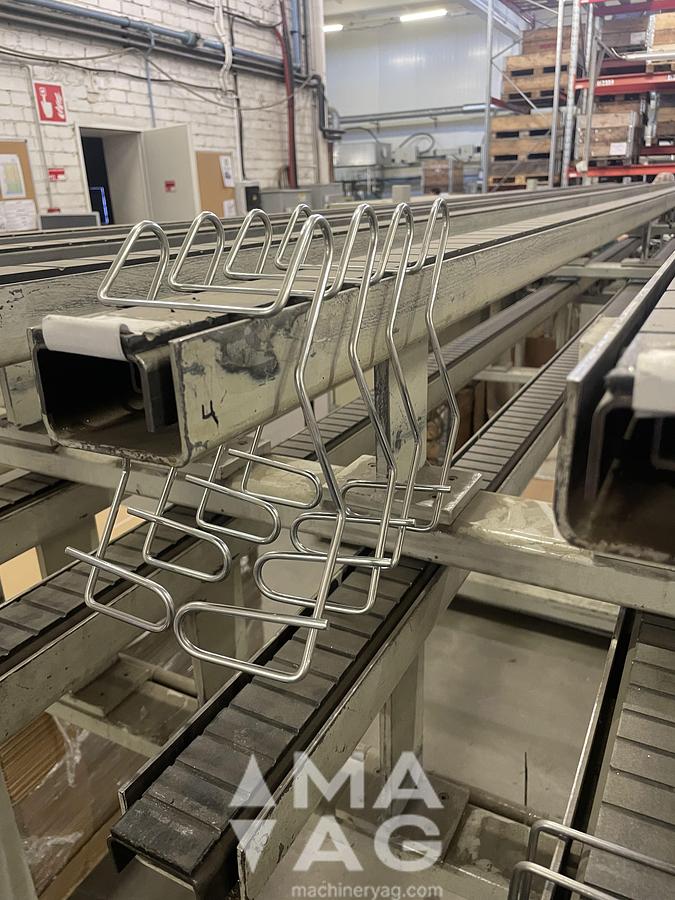

The machine is used for the manufacture of two- and three-dimensionally bent components.

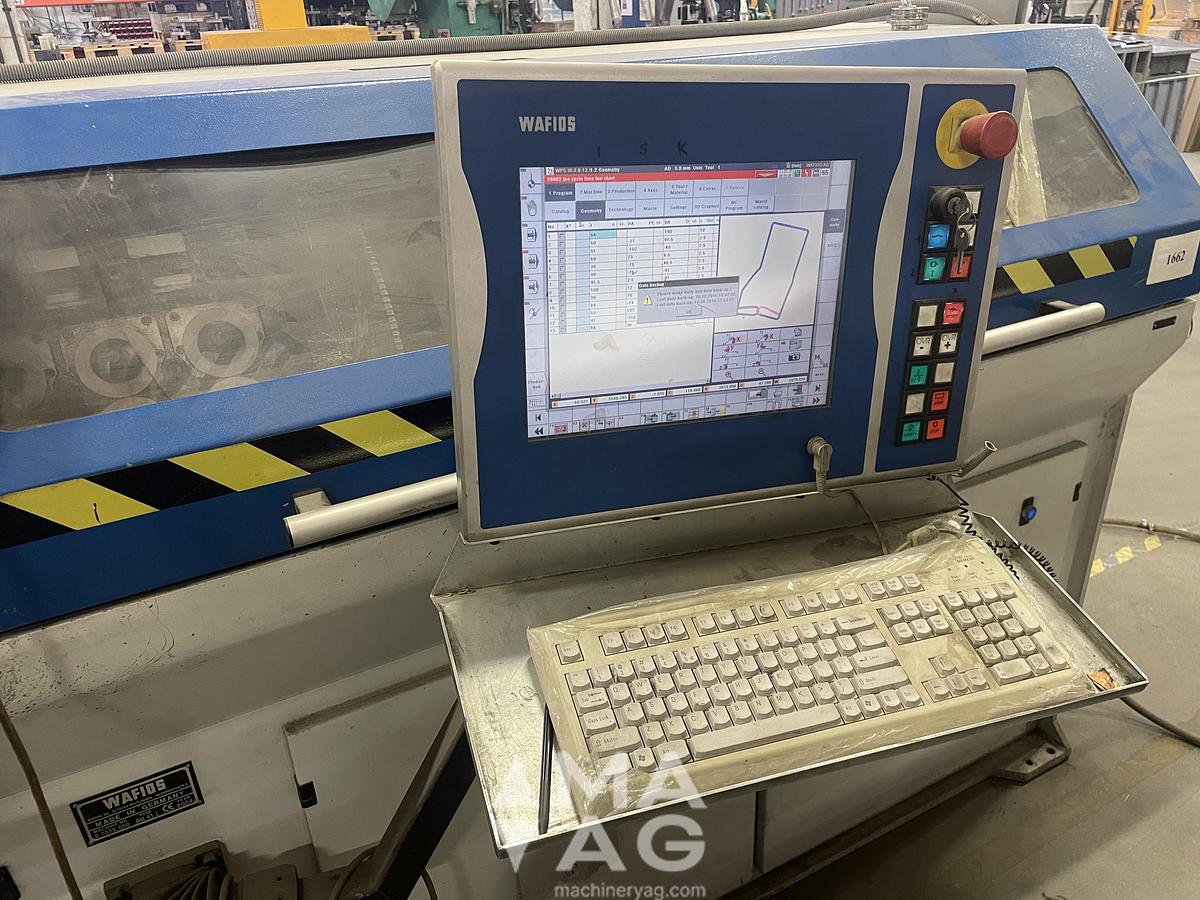

The machine works fully automatically. CNC control for wire feed and bending.

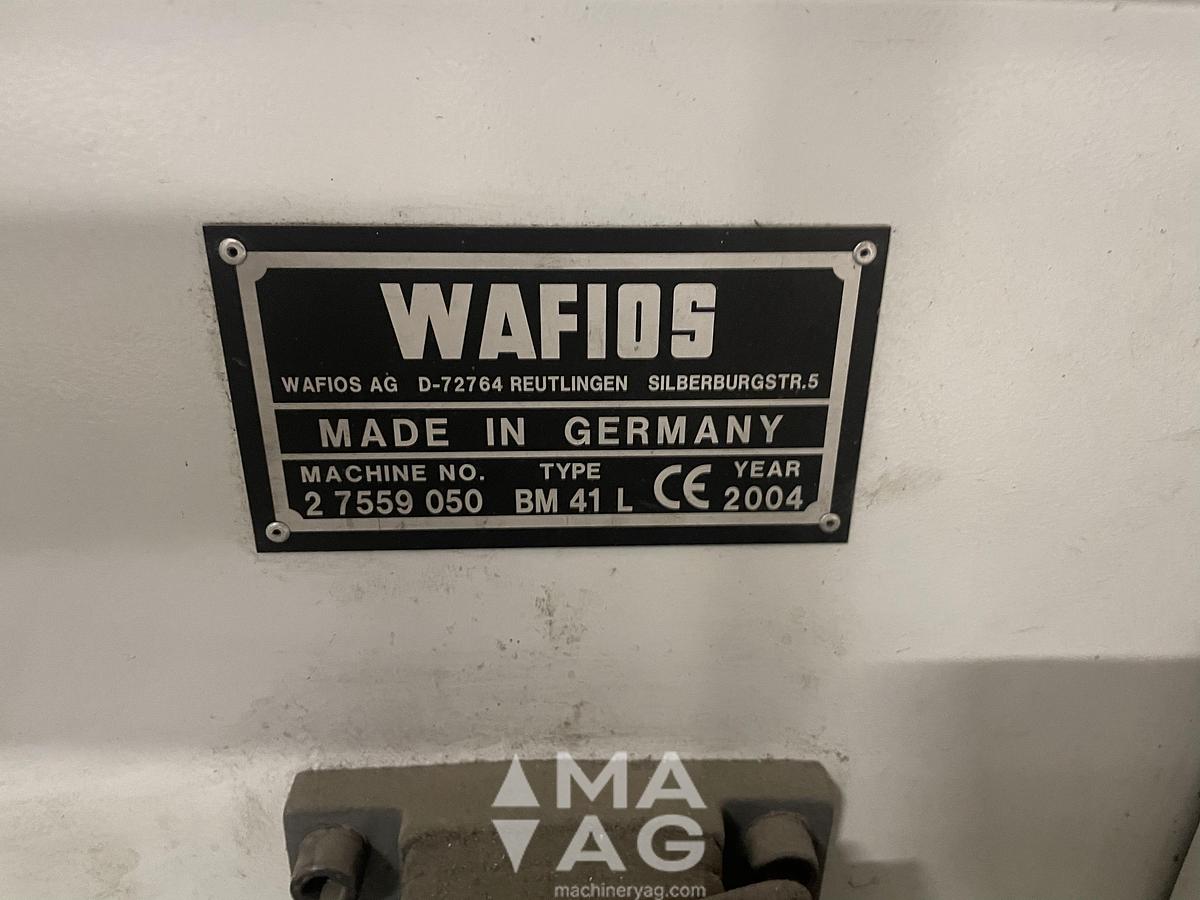

Manufacturer: WAFIOS

Type: BM 41 L

Year of manufacture: 2004

Specifications

Operating Range Wire diameter 3-8 mm (at < 600 N/mm2)

3-6 mm (at < 800 N/mm2)

3-5 mm (at < 1200 N/mm2)

3-4 mm (at < 2000 N/mm2)

Wire infeed length: unlimited

Feed speed: up to 120 m/min

Distance of the feed unit to the bending head: appr. 650 mm

Bend-back clearance: appr. 600 mm

Bending head stroke: max. 25 mm (to the top), max. 120 mm (to the bottom)

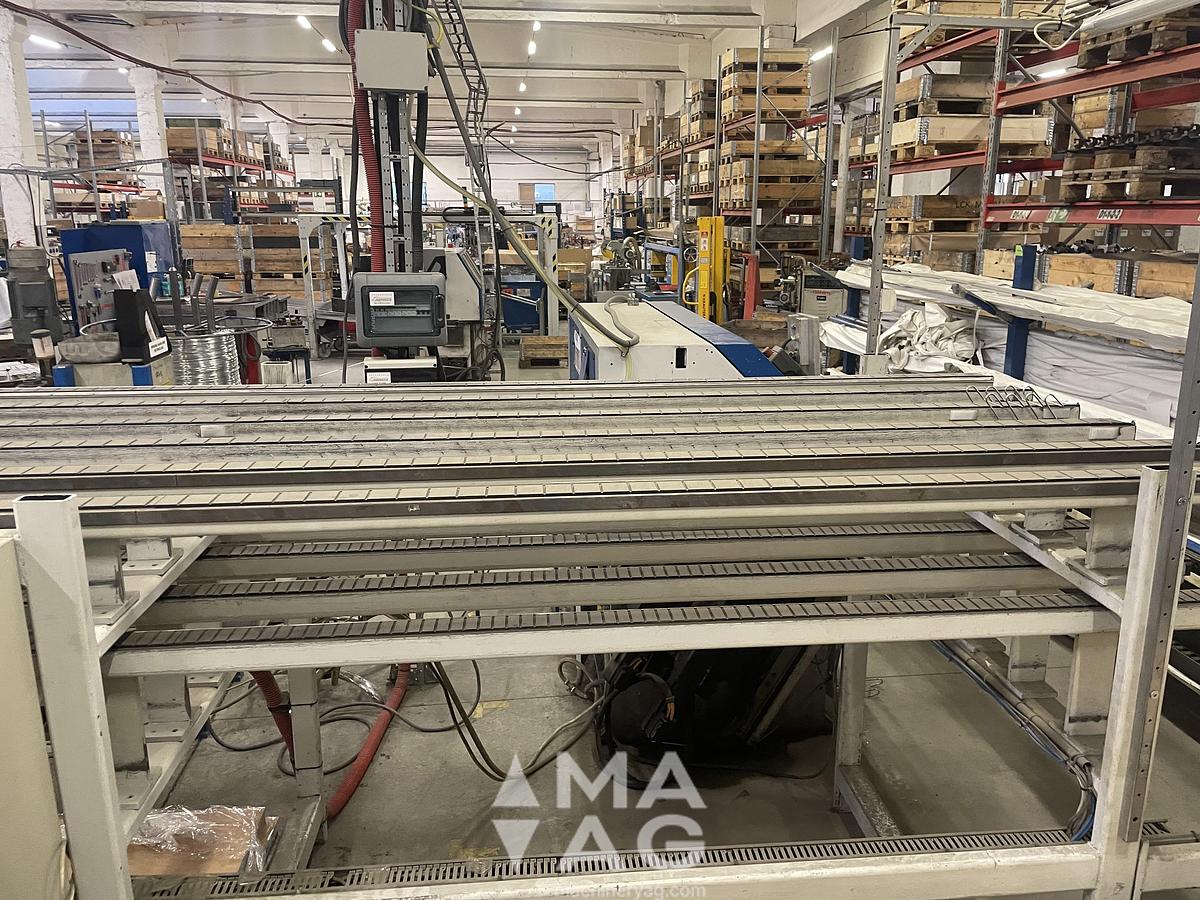

Storage capacity: >5000 parts

Working height 1,175 mm (center wire)

Drive system 7 CNC axes

Wire feed C axis

Swivel wire feed A axis

Bending head UP-DOWN Z axis

Bending shaft Y axis

Mandrel shaft W axis

Cutting-off O axis

Support plate X axis
