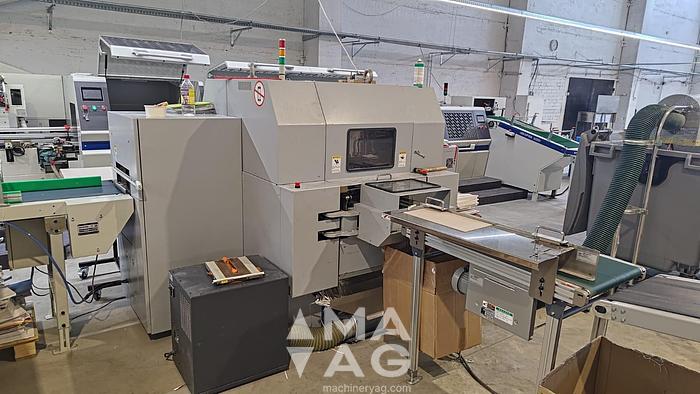

Three-Knife Trimmer Horizon HT-101, 2010

Horizon Three-Knife Trimmer for sale! Machine in production in very good condition. Could be tested. Available immediately!

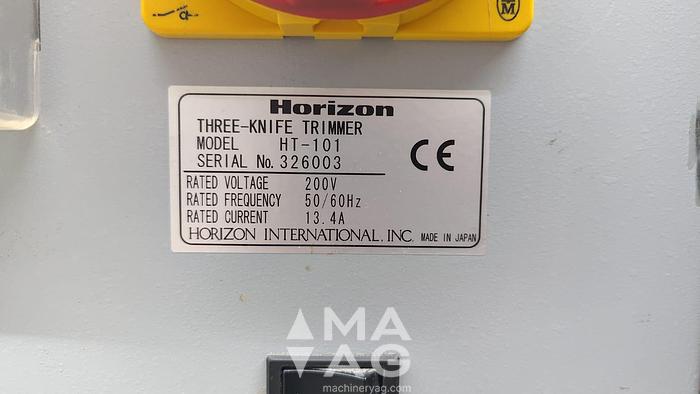

Model: HT-101

Manufactured: 2010

Serial: 326003

Description

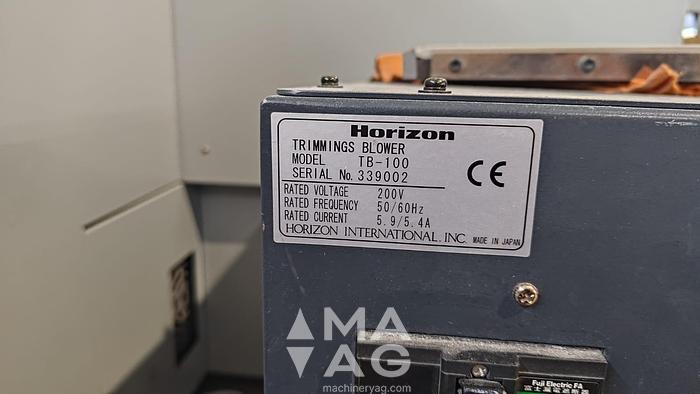

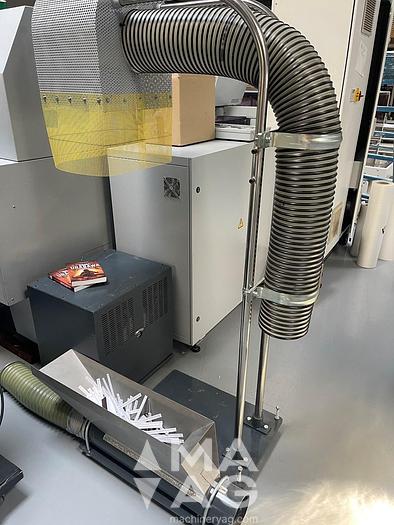

Trimming blower TB -100

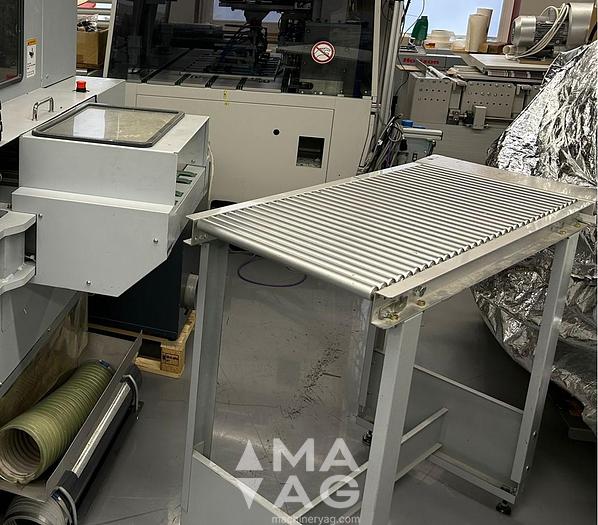

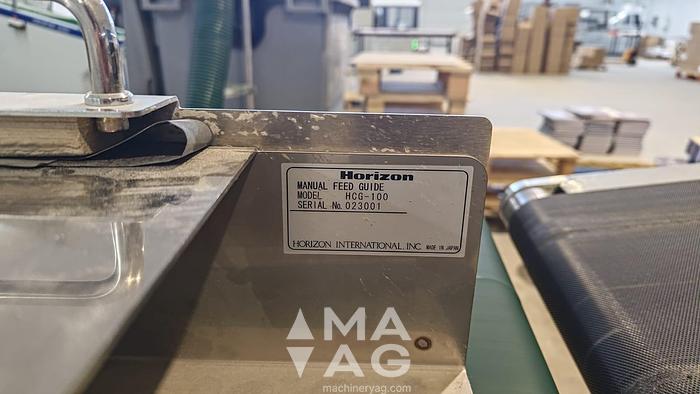

Feed guide HCG - 100

* Fully automated three-knife trimmer;

* Can be used in-line or off-line;

* Automated setup for different book sizes and precision cutting accuracy;

* Job changeovers are performed simply and quickly through the color LCD touch-screen. There are very few replacement parts when changing over the HT-101;

* Knife height and cutting depth are easily adjusted through the color LCD touch-screen.

TECHNICAL SPECIFICATION:

* Max. untrimmed book size: 410 x 320 mm

* Min. untrimmed book size: 148 x 105 mm

* Max. trimmed book size: 366 x 300 mm

* Min. trimmed book size: 145 x 103 mm

* Trimming width: fore-edge: 45 mm / top-bottom: 30 mm

* Trim thickness: max. 100 mm / min. 5 mm (min. book thickness is 2 mm)

* Production speed: 400 to 1600 cycles / hr
