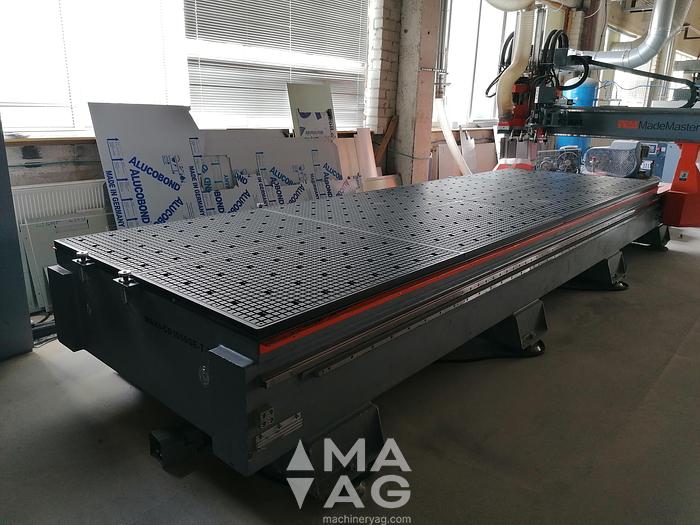

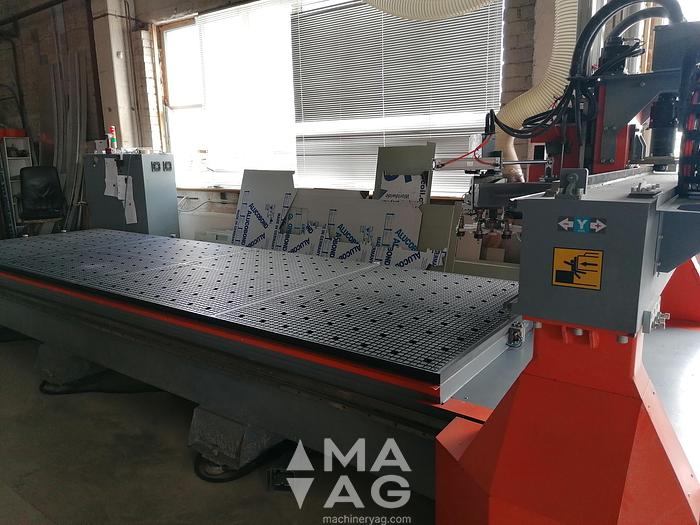

2013 MAXICAM MAXI-CD1550 4 axis CNC cutting edge

REDUCED PRICE NOW! CNC ready for test!

Manufacturer: MAXICAM CNC Technology., LTD

Machine type: CNC cutting edge

Year of manufacture: 2013

Made in: China

Specification:

• 4 axis;
• Table size 6100x2400 mm;
• Working dimensions 5500x2200x180 mm;

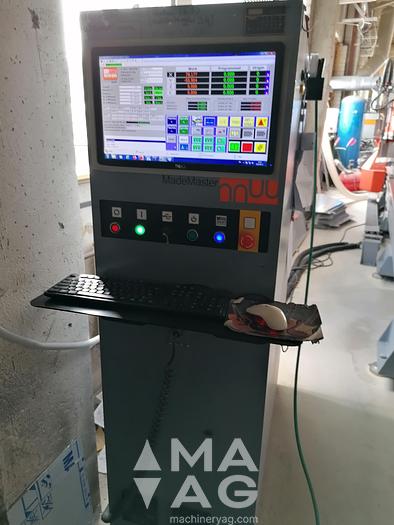

• OSAI controller;
• Welded steel table and gantry for maximum straightness and rigidity;

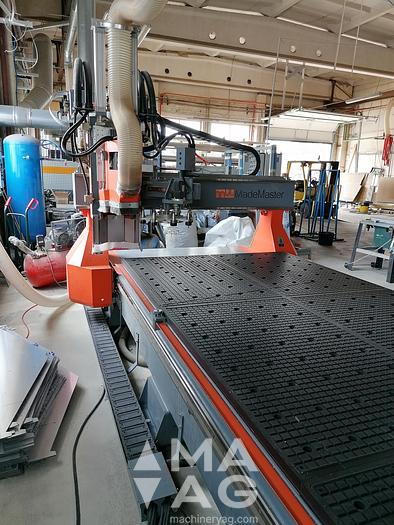

• 9.5Kw Air Cooled HSD Spindle with dust extraction foot;
• 8 Position rotary style tool rack for Automatic Tool Change System to suit HSK 63F tool holders;
• Vacuum table with independent working zones;

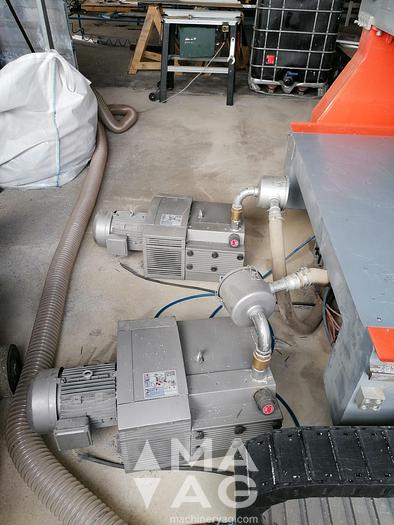

• Becker Vacuum Pumps;
• Automatic tool length setting sensor
• Electronic Parts：German Schneider Electronic Spare Parts
• Switch gear: Japanese OMRON Switch
• German Igus highly flexible cables throughout the wiring loom
• high flow double layer phenolic vacuum matrix table (single layer standard)
• Machining speeds up to 25m/min
• Voltage: 3 PH, 380 V, 50 HZ
• Power: 21 KW
• Spindle power: 9 KW
• Dimension/m: 6.1 x 2.4 x 2.5 m
• Weight: 3100 KG

Suitable materials: MDF, MDP, LMDP board, solid wood board, Plastic, Aluminium
