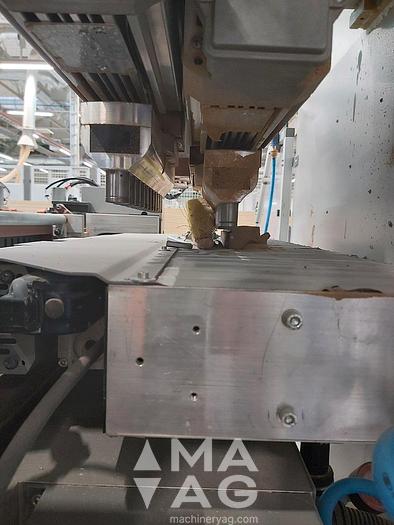

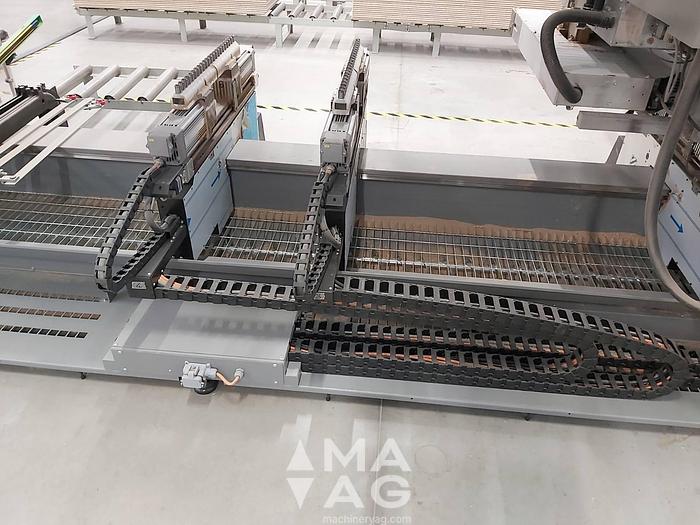

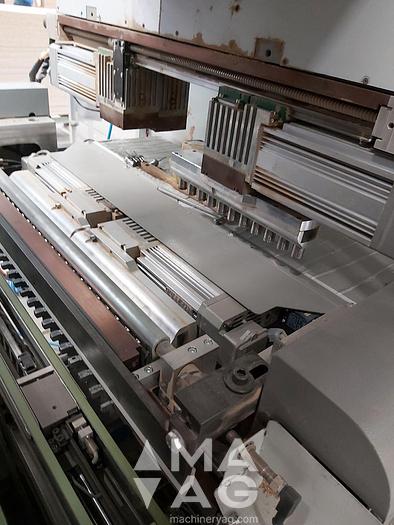

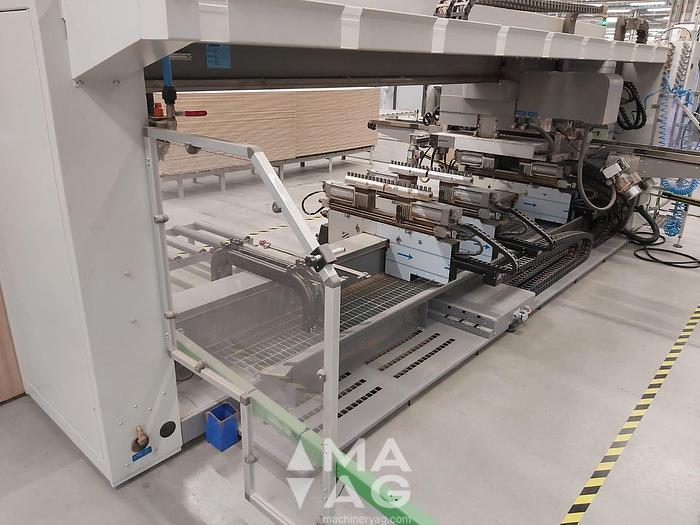

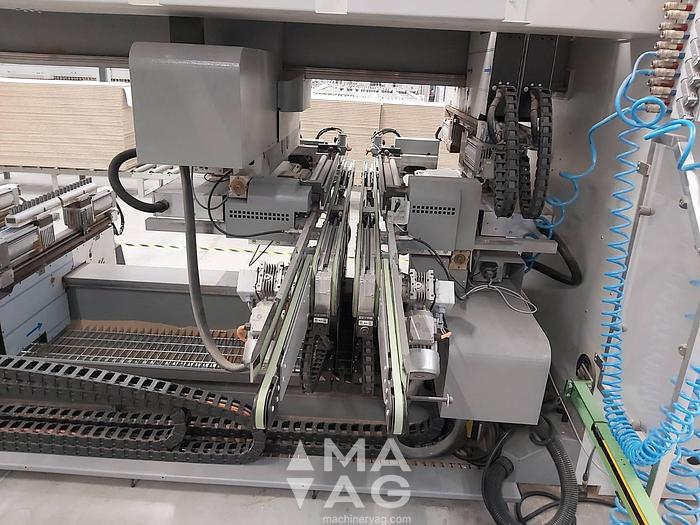

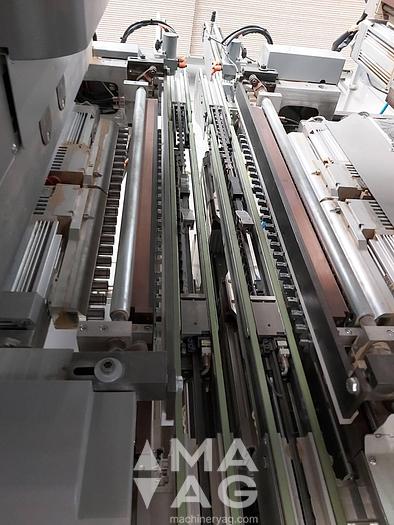

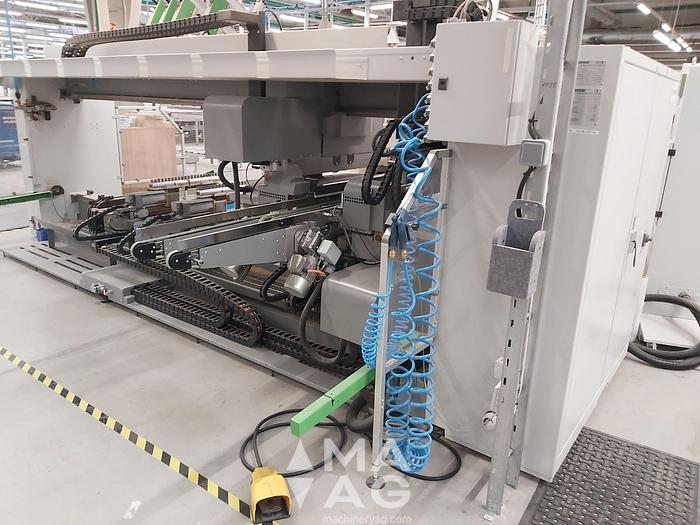

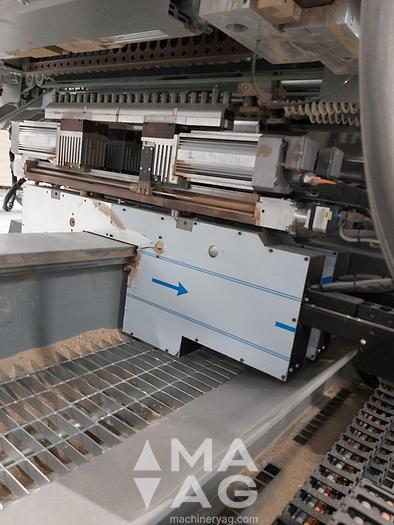

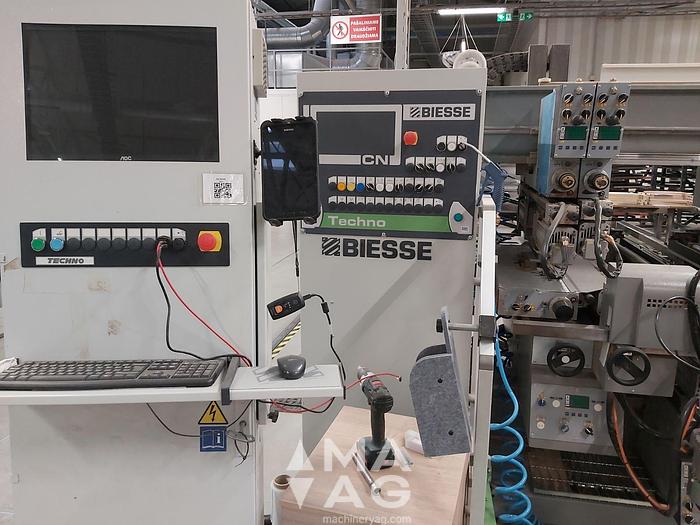

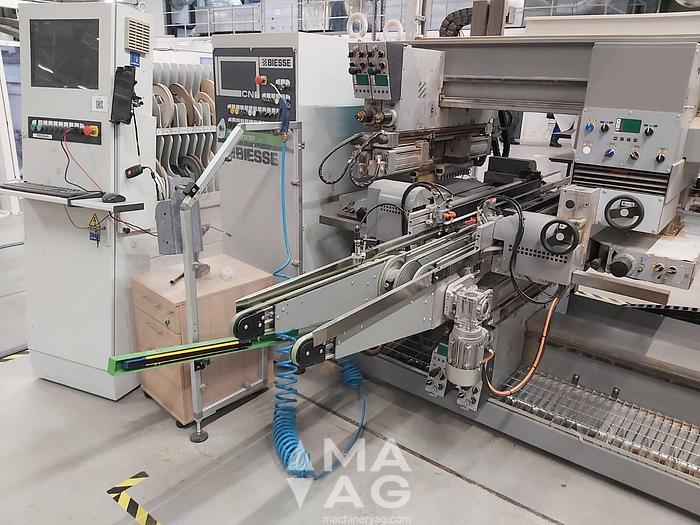

2019 BIESSE Techno FDT Through-feed drilling machine

TECHICAL SPECIFICATIONS

• 2 pcs. of Horizontal Units. Right and left. Each with 2 boring chucks with 11 spindles activated by a 1.5 HP motor. Total 4pcs. of boring chucks;
• 4 pcs. Of Bottom Vertical Head - width 96 mm - with 2 motors (1.8 hp each). Pneumatically activated boring cycle. Total 8 pcs. of boring chucks;
• 2 pcs. Of Top Vertical Head - width 96 mm - with 2 motors (1.8 hp each). Pneumatically activated boring cycle. Total 4 pcs. of boring chucks;
• Hydraulic brake for the adjustment of the boring speed per unit;
• Nylon pieces on side bar clamps;
• Manually overturning double top clamp equipped with security pin;
• Couple of digital inverters for the continuous adjustment of the speed of the transport system motors from 35 to 75 m/1'.* It requires the double section conveyor;
• Motorized central conveyor with single belt and idle wheels at infeed/outfeed - total length 3119 mm - assembled on bottom vert. Head;
• Overturning outfeed transfer - length = 670 mm - driven by the boring machine;
• Chromium-plated side guides for 670 mm long infeed and outfeed transfer.* It requires the 670 mm long overturning outfeed transfers;
• Equipment for chip transport;
• N.8 Prearrangements for the fitting of horizontal boring aggregates on bottom and/or top operating units.- To be selected in unit quantity;
• Special front pushers for panels with delicate profiles;
• Device for the feeding of heavy panels and/or panels profiled or coated with delicate material;
• Device for the working of narrow pieces* It requires the code of the inverters on the transport system.- Compulsory selection for length (X) / width (Y) ratios;
• spindle chuck, 32 mm. continuous center distance, driving spindle the 6th; shaped chuck body. - Quick change chuck;
• Quick change drill-bit holder for RH spindle;
• Quick change drill-bit holder for LH spindle;
• EC-UKCA safety devices, with fixed side panels and programmable photocell barriers. For a machine of the Techno series;
• Personal Computer Desktop and Editor Module for a machine with manually positioned axes;
