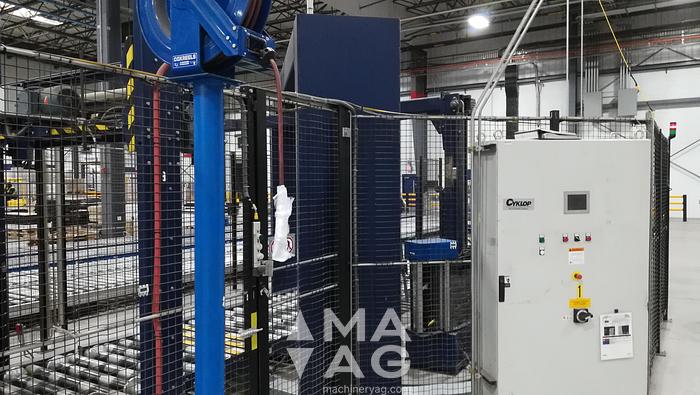

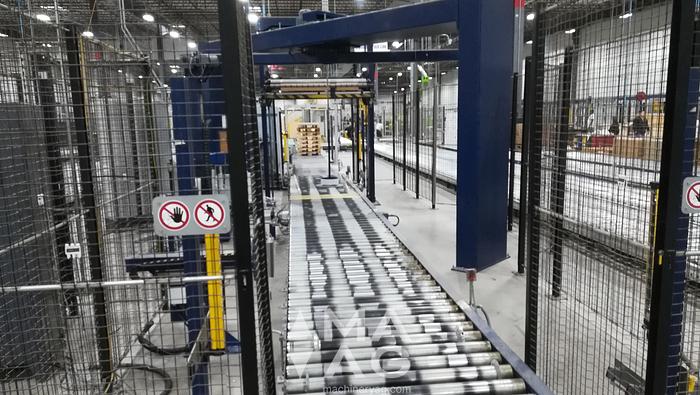

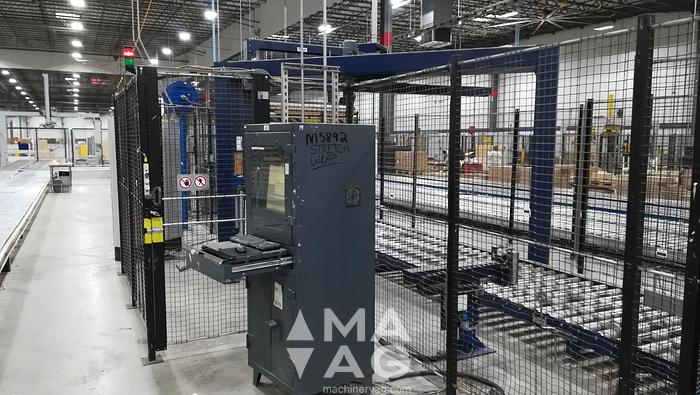

CYKLOP International CI 1110M Wrapper-cover machine

CYKLOP CI 1110M Wrapper-cover machine, 2007 for sale

TECHNICAL DATA

MACHINE

Nominal speed rotary-arm                 10-25 r.p.m.

Maximum speed rotary arm               25 r.p.m.

Capacity                                              max. 58 pallets/h

Operational hours                               24 hrs/day, 5 days/week

Free headroom                                   min of 5000 mm

Total weight (incl. Safety fences)      approx. 1000 kg

Building height transport system       300 mm

Environmental temperature                +5 to +35 °C

Environment                                       clean, dry

ELECTRICAL

Power supply                                      3x600V/50 Hz

Control voltage                                   24 V DC

Installed power                                   approx. 9.4 kVA

Protection class

Control unit                                        IP 55

Motors                                                IP 54

Switching materials                            IP 65

PNEUMATICS

Operating pressure                             min. 6 Bar

Air consumption                                 1000 l/hr at 6 Bar and 60 pallets/hr

PALLET

Pallet dimensions

Length x width x height                     Max. 2000 x 800 x 145 mm

                                                            Min. 1200 x 800 x 145 mm

Height with load (including pallet)    max. 1200 mm / 1500 kg

                                                            Min. 500 mm / 200 kg

Top of load                                         flat

Art of load                                          furniture parts on pallet

FILM

Film roll cross section                        max. 300mm

Cartridge cross-section                      76.2 mm

Width                                                  max. 600mm

Thickness                                           17 – 23

Film cutting system                            Pneumatic linear drive, separating knife, film cutting at bottom.

Film carriage                                      Frequency-controlled drive for different overflap patterns

Film stretching                                   infinitely from 0% to 300%

Sound level   max 80 dBA

min 70 dBA

Sound level during wrapping is dependent on the film which is used.
