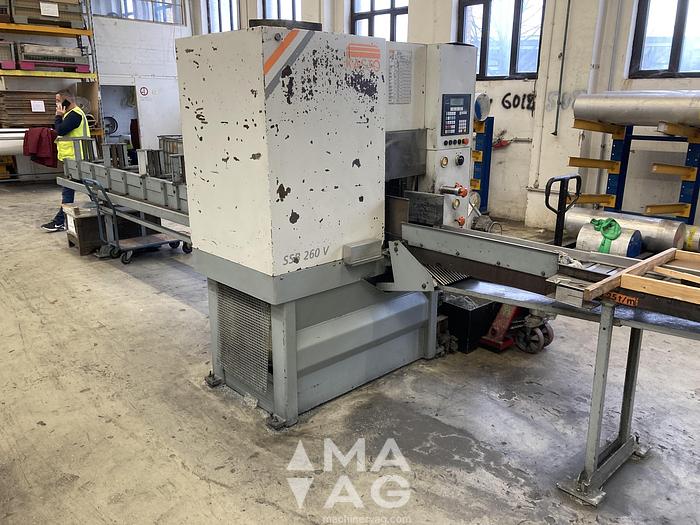

Heavy-duty Automatic Sawing Kasto SSB 260 VA-CC

Fully hydraulic heavy-duty automatic sawing machine with vertically parallel moving saw band for cutting profiles, tubes and solid material in all qualities, including difficult-to-machine material (e.g. titanium, hastelloy, Inconel).

Condition: ready for operation. Available immediately!

Technical data

Total weight: approx. 2110 kg

Total drive power: 6,5 kW

Saw motor power: 4,0 kW

Cutting range round: 260mm

Cutting range square: 260x260mm

Smallest diameter to be cut: 10mm

Smallest cutting length: 5mm

Minimum rest piece length single cut: 10mm

Minimum rest piece length automatic mode: 10mm

Automatic material feed single max: 600mm

Material feed multiple (up to 9x): 5400mm

Cutting speed: infinitely variable 15 - 125m/min

Cutting feed: infinitely variable

Material feed: hydraulic

Automatic feed: with horizontal vice

Material clamping: hydraulic, infinitely variable

Saw band dimensions: 4115x41x1,3mm

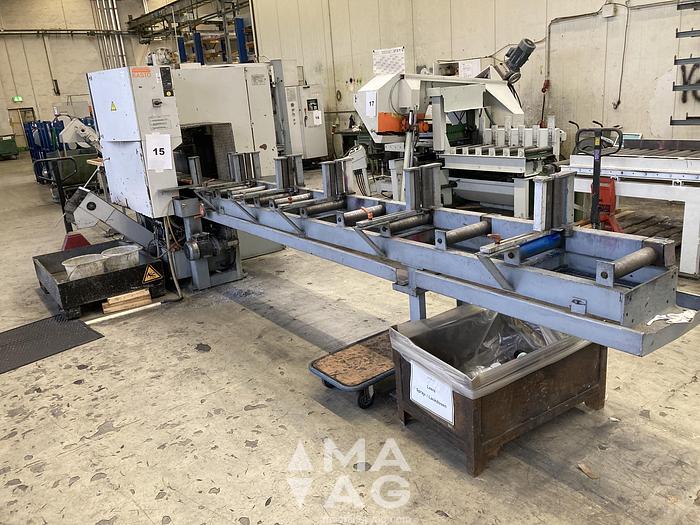

Accessories (included): chip conveyor, Coolant system
